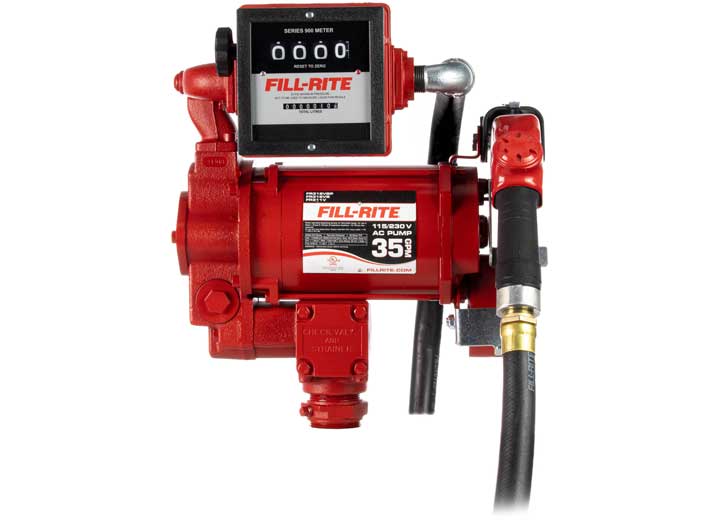

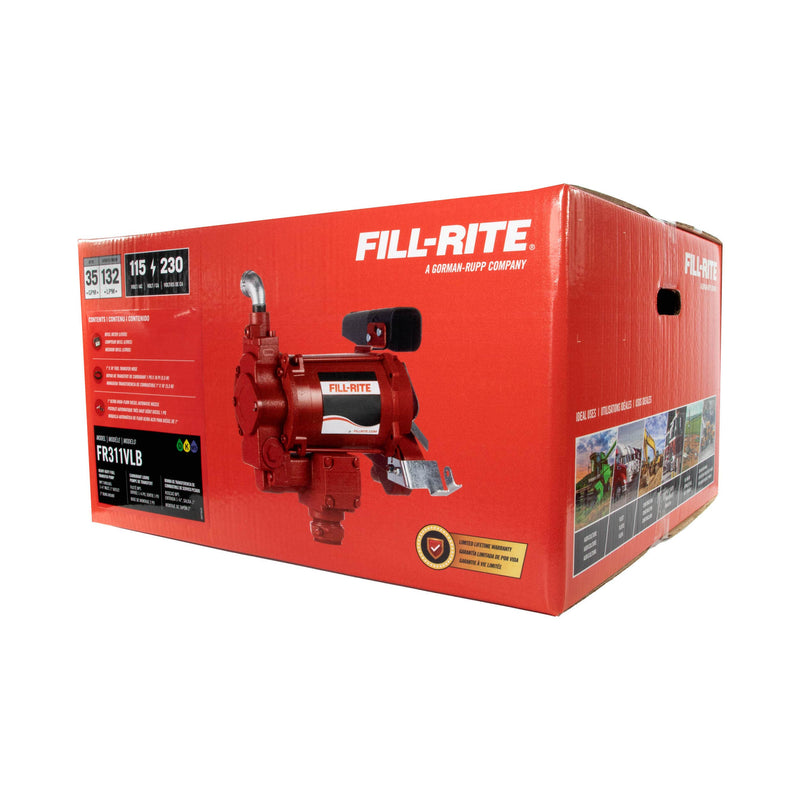

Fill-Rite FR311VLB 115/230V Super High Flow AC Pump, 1" x 18' Hose, 1" Automatic Hi Flow Nozzle
Free gift included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
See it on a truck
Cast-Iron Construction
Fits 2-Inch Tank Bungs
Lockable Nozzle Hook
Features
- Cast-Iron Construction: Every FR300V pump has a cast-iron housing around an iron composite rotor with carbon composite vanes. A built-in check valve that relieves pressure and an automatic bypass are part of the casting, so the pump is ready for years of bulk diesel work on a skid tank or fuel island.
- Fits 2" Tank Bungs: The supplied adapter threads into a 2" tank bung and holds a 1-1/4" suction pipe, with a 1/4" side port ready for an anti-siphon line. For a concrete fuel island, Fill-Rite offers the FRPA125 pedestal kit instead.
- Lockable Nozzle Hook: Turn the pump off, rest the nozzle in its boot, and a padlock through the nozzle rest and the nozzle handle keeps the nozzle from being lifted out. It is a simple way to stop fuel walking off a job site at night.
- Up to 35 GPM: Fill-Rite rates the FR310 models at up to 35 GPM (132 LPM) through a 1" outlet, enough to fill big equipment and service trucks quickly. Metered kits, export versions and the FR300VN carry their own flow numbers, listed on each product.
- 115/230V Dual Voltage: A selector switch on the end of the motor sets the pump for 115V or 230V AC; it leaves the factory on 115V. The FR310, FR311 and FR319 models use a 3/4 HP motor with thermal overload protection and a 30 minute duty cycle.
- Diesel and Kerosene: Fill-Rite's FR300 product pages list diesel, kerosene and biodiesel blends up to B20. The manual adds mineral spirits, Stoddard solvents and heptane, and allows B21 to B100 once the KIT300BD seal kit is fitted. Water, drinkable fluids and aircraft fueling are ruled out.
Description & Fitment

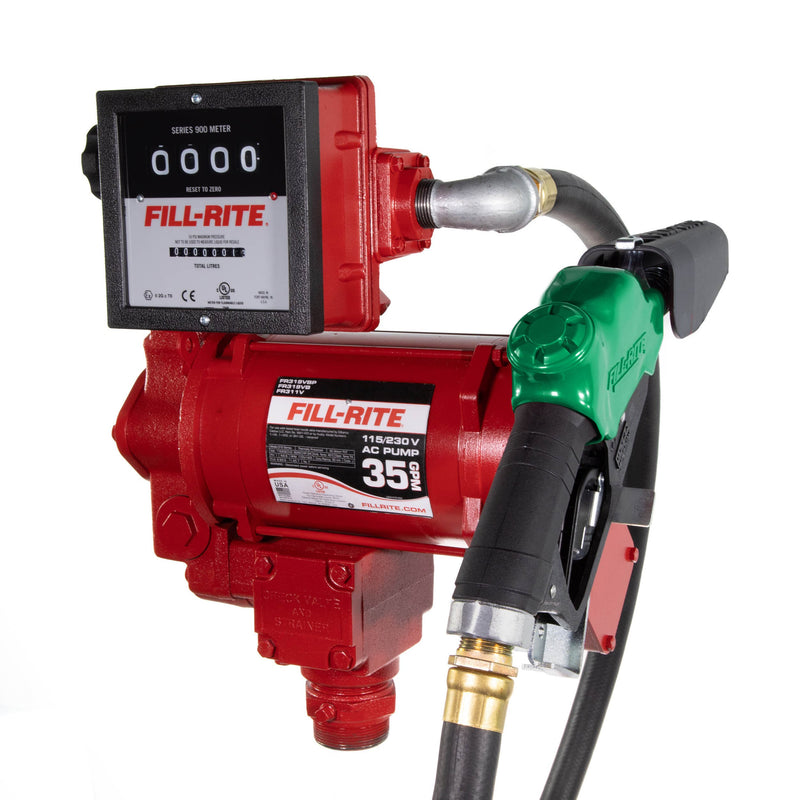

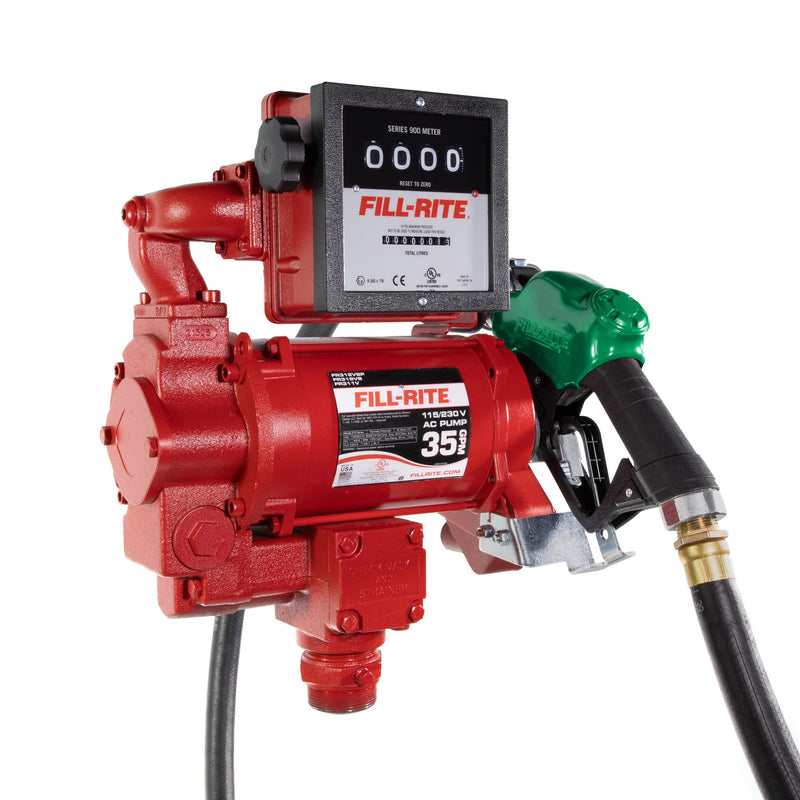

The FR311VLB is the metric-reading counterpart of the FR311VB. The same 35 GPM (132 LPM) 115/230V AC pump carries a 901CL mechanical meter that registers liters, and the kit includes a 1" x 18' hose (UL listed, static ground wire inside), a green-handled 1" Ultra Hi-Flow automatic nozzle for diesel, a meter reset knob, bung adapter, nozzle boot, 1" NPT street elbow and PTFE tape.
Fitment & Compatibility
Check your setup: a vented tank with a 2" NPT bung, a 1-1/4" suction pipe and a 115V or 230V circuit. Want gallons instead? Choose the FR311VB. Without hose and nozzle the liter kit is the FR311VLN.
Not for: water or any fluid meant for drinking and fueling aircraft (Fill-Rite's manual rules both out), plus gasoline, DEF or any other fluid Fill-Rite does not list for this pump.
About Fill-Rite
Fill-Rite is a Gorman-Rupp company that designs and builds transfer equipment for fuel, oil and chemicals: electric and hand-operated transfer pumps, plus the meters, nozzles, hose and filters that go with them. Its sites are in Fort Wayne, Indiana and Lenexa, Kansas.
Its transfer pumps are built around cast-iron rotary vane bodies, and Fill-Rite stands behind them with a tiered warranty that runs for the life of the pump castings, 5 years on the motor and 2 years on wear parts.
Buying Fill-Rite from Prestige Truck. Fill-Rite asks for proof of purchase with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Are the FR311VLB ports metric?
No. Fill-Rite lists 1-1/4" NPT inlet, 1" NPT outlet and a 2" NPT bung mount; only the meter register is in liters.
Does the meter need batteries?
No. The 901CL is mechanical, with a 4-digit register and ±2% listed accuracy.
Does it run on 115V or 230V?
Either. Flip the voltage selector on the end of the pump to match your supply; it ships set to 115V. Fill-Rite lists the draw at 9.8 A on 115V and 4.9 A on 230V at 60 Hz, or 11.4 A and 5.7 A at 50 Hz. Its manual calls for a licensed electrician, rigid conduit with sealed fittings, and a connected ground wire.
Can it run continuously?
No. The motor is rated for a 30 minute duty cycle and has thermal overload protection. If it trips, switch the pump off: Fill-Rite warns that a cooled motor restarts without warning when the power is still on.
How is it mounted?
On a skid tank it threads onto the supplied 2" bung adapter, with a 1-1/4" suction pipe cut to stop at least 3" above the tank floor. On a concrete island Fill-Rite uses its FRPA125 pedestal kit. Either way the tank must be vented.
Do I need an anti-siphon device?
Fill-Rite recommends one. The bung adapter has a 1/4" NPT port that opens into the tank's vapor space; the KIT700AS kit runs a line from the pump outlet back to it on tank-top installs, and KIT700AVB covers other layouts. Both are sold separately.
Installation
Here's the short version. Follow Fill-Rite's manual (below) for the full procedure, wiring and safety steps.
- Cut 1-1/4" suction pipe so it ends at least 3" above the tank floor once the pump is mounted.
- Seal the pipe threads with a sealant suited to the fluid and thread the pipe up into the bung adapter; the end marked PUMP SIDE is the top.
- Coat the adapter's outer threads with anti-seize compound and thread the adapter and pipe into the tank bung until air and fluid tight.
- Seal and thread the pump onto the adapter. On a concrete island use the FRPA125 pedestal kit with the pipe 32-1/2" above the slab instead.
- Run an anti-siphon line (KIT700AS or KIT700AVB) from the adapter's 1/4" NPT port with a steady slope to the vapor space, and mount the nozzle boot on its lower two holes.
- Have a licensed electrician wire it through the 1/2" NPT conduit opening with the ground connected, then set the voltage selector (factory 115V).
Stuck on a step?
Specifications
| Brand | Fill-Rite |
|---|---|
| Part Number | FR311VLB |
| Series | FR300V Series |
| Pump type | Cast-iron rotary vane |
| Power | 115/230V AC, selector switch (factory set to 115V) |
| Duty cycle | 30 min on / 30 min off |
| Thermal overload protection | Yes |
| Outlet | 1" NPT (female) |
| Tank mount | 2" NPT bung |
| Max outlet pressure | 26 PSI |
| Built-in valves | Check valve with pressure relief, automatic bypass |
| Operating temperature | -13 to 150°F |
| Anti-siphon | Ready for KIT700AS or KIT700AVB (sold separately) |
| Voltage | 115/230V AC |
| Max flow | 35 GPM (132 LPM) |
| Motor | 3/4 HP |
| Max current | 9.8 A (115V) / 4.9 A (230V) |
| Self-priming | Yes |
| Suction lift | 18' |
| Dry vacuum | 14 inHg |
| Discharge head | 60' |
| Strainer | 40 x 40 mesh, 0.008" wire |
| Viscosity | 0.5 to 5.5 cSt |
| Inlet | 1-1/4" NPT (female) |
| Power leads | Bare leads, no cord |
| Fluids | Diesel, kerosene, biodiesel up to B20 |
| Meter | 901CL mechanical, liters, 4 digits |
| Meter accuracy | ±2% |
| Meter repeatability | ±0.38% |
| Batteries | Not required |
| Hose | 1" x 18' UL listed hose with static ground wire |
| Nozzle | 1" Ultra Hi-Flow automatic diesel nozzle (green) |

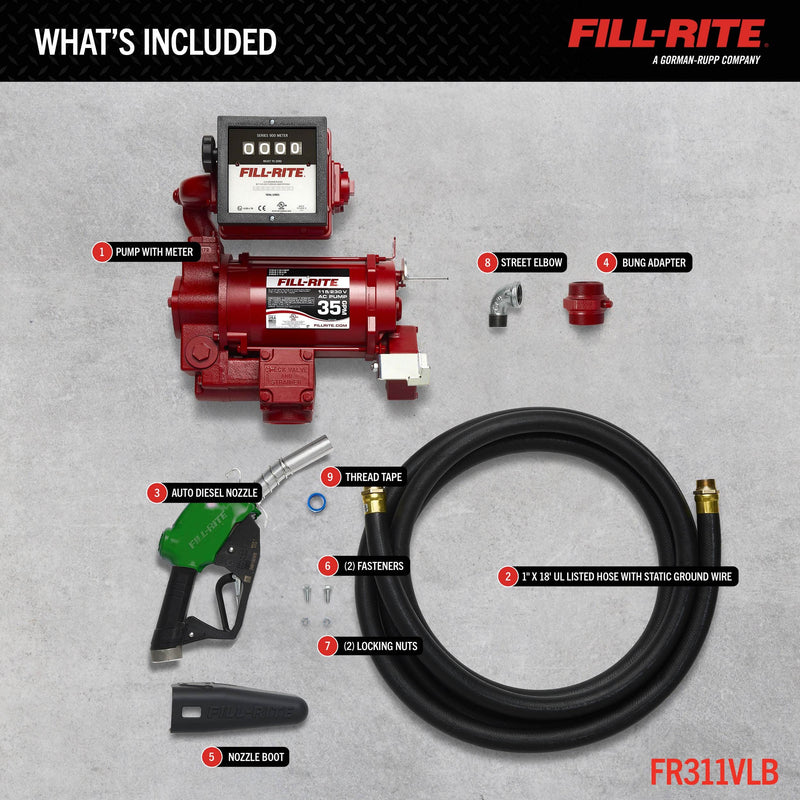

| Included | Pump, 901CL meter, meter reset knob, hose, nozzle, 2" tank bung adapter, nozzle boot, PTFE tape, check valve cover and fasteners, 1" NPT street elbow, (4) locking nuts |

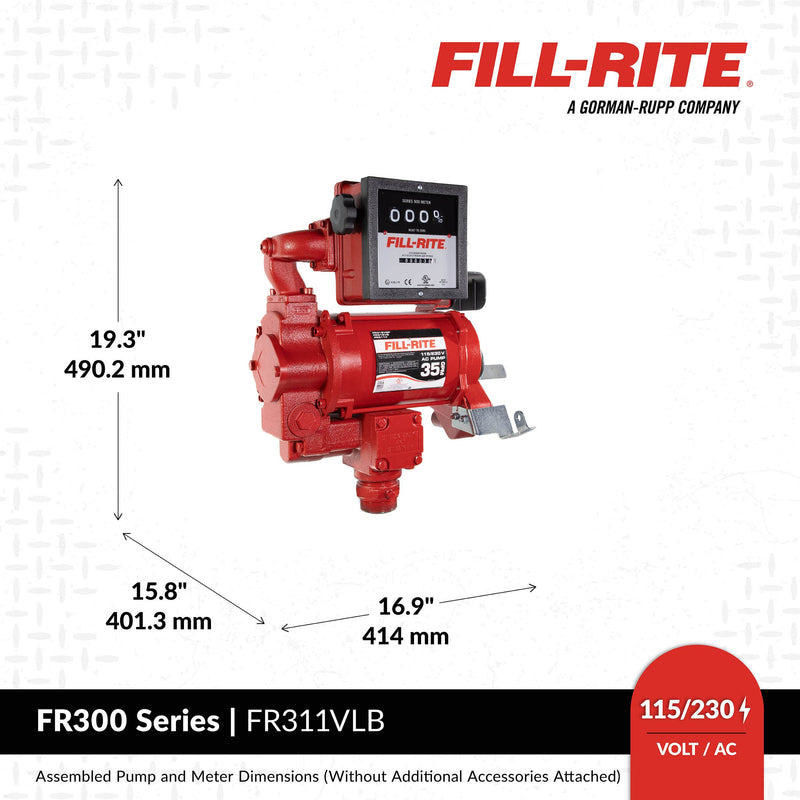

| Dimensions | 19.3 x 16.9 x 15.9" (H x W x D) |
| Weight | 91.97 lb |
| Shipping weight | 98.35 lb |
| Warranty | Tiered limited lifetime |
| UPC | 089404223697 |
