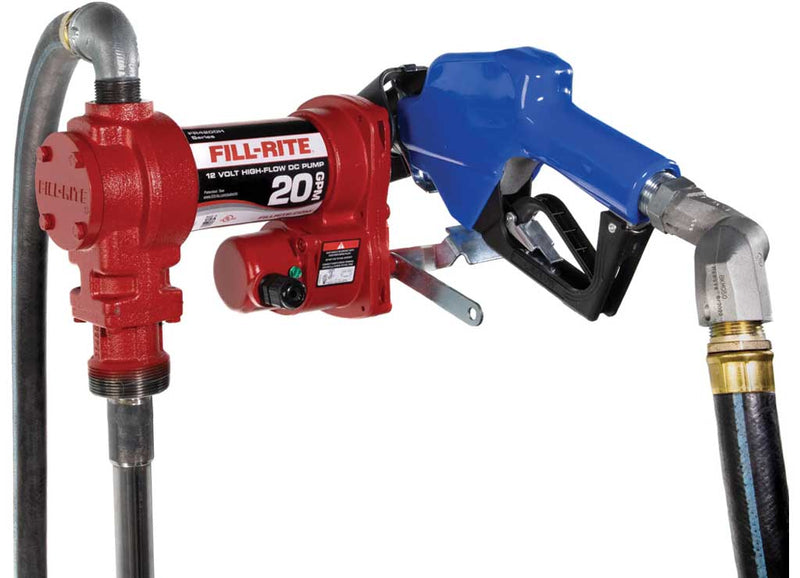

Fill-Rite FR4210HARC 12V DC 20 GPM Fuel Transfer Pump With Automatic Sub-Zero Nozzle

The Fill-Rite FR4210HARC is a 12v dc 20 gpm fuel transfer pump with automatic sub-zero nozzle built for mobile refueling. It moves fuel up to 20 GPM on 12V DC power and is built with Fill-Rite's cast-iron, continuous-duty design. It is not for use with DEF. Built by Fill-Rite in the USA and backed by a Limited Warranty.

Watch Fill-Rite's official product overview:

Features

20 GPM Fuel Transfer On 12V DC Power
Moves fuel where the work is, so you can refuel equipment off a tank or truck without shore power.

Cast-Iron, Continuous-Duty Build
A rugged cast-iron housing and Fill-Rite rotary-vane pump technology are built for a 30-minute-on / 30-minute-off duty cycle and years of hard use.

Self-Priming Design
The pump primes itself, so it draws fuel fast without babysitting.

Handles The Fuels You Use
Diesel, gasoline (up to E15), kerosene, biodiesel (up to B20), and mineral spirits. Not for use with DEF.

Specifications

• Max Flow Rate: 20 GPM
• Power Type: 12V DC
• Compatible Fluids: diesel, gasoline (up to E15), kerosene, biodiesel (up to B20), and mineral spirits
• Duty Cycle: 30 min on / 30 min off
• Motor Power: 0.25 HP
• Max Current: 19 A
• Self-Priming: Yes
• Suction Lift: 8'
• Thermal Protection: Yes
• Discharge Head: 37'
• Operating Temperature: -15 to 150°F
• Strainer Mesh: 20x20 micron
• Country of Origin: USA

Installation

Type: Thread-on bung mount  ·  Difficulty: Moderate DIY

Thread the pump onto a tank bung, fit the suction pipe to your tank depth, and connect power per the manual. Attach the discharge hose and nozzle, prime, and you are ready to pump. Follow the included owner's manual for exact setup.

Watch Fill-Rite's official installation walkthrough:

Resources

Everything you need for your Fill-Rite FR4210HARC, in one place.

• Fill-Rite FR4210HARC Owner's Manual (PDF)
• Fill-Rite FR4210HARC Product Data Sheet (PDF)

Warranty, Shipping & Returns

Warranty. Fill-Rite backs this pump with a tiered Limited Warranty against defects in materials and workmanship: lifetime on the pump castings (excluding paint and corrosion), 5 years on the motor and associated components, 2 years on wearable components, and 1 year on included accessories. It applies to the original purchaser and does not cover misuse, neglect, accident, or improper installation.

Free shipping. This item ships free to the lower 48 states. In-stock orders placed by 2 PM ET, Monday through Friday, typically ship the same business day and arrive in 3 to 5 business days.

Returns. Covered by our 30-day return policy on unused product in the original packaging. Please inspect the shipment on delivery, and if anything is damaged, note it on the delivery receipt and contact us right away.
