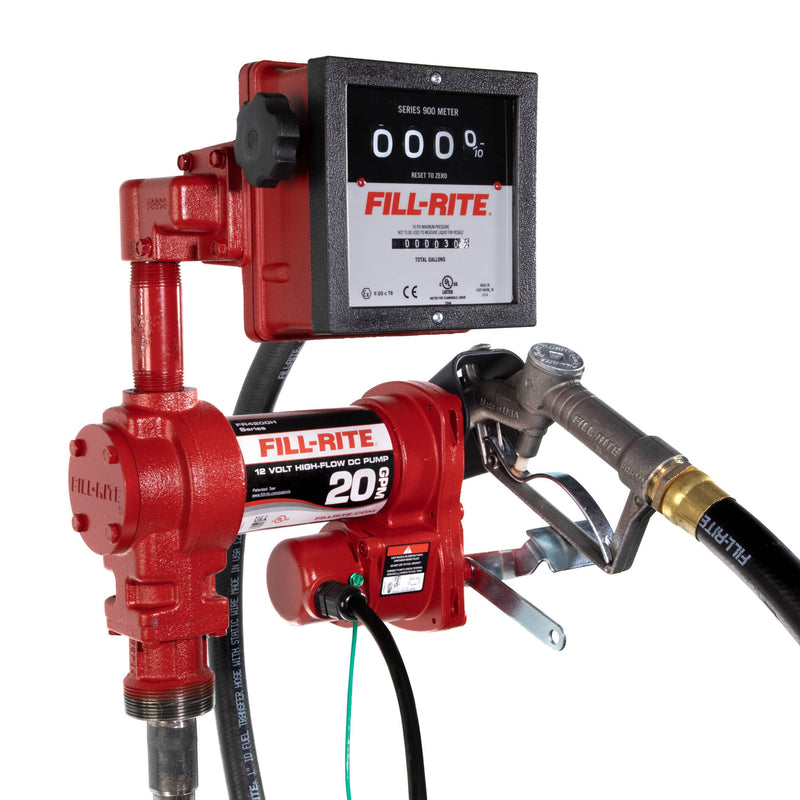

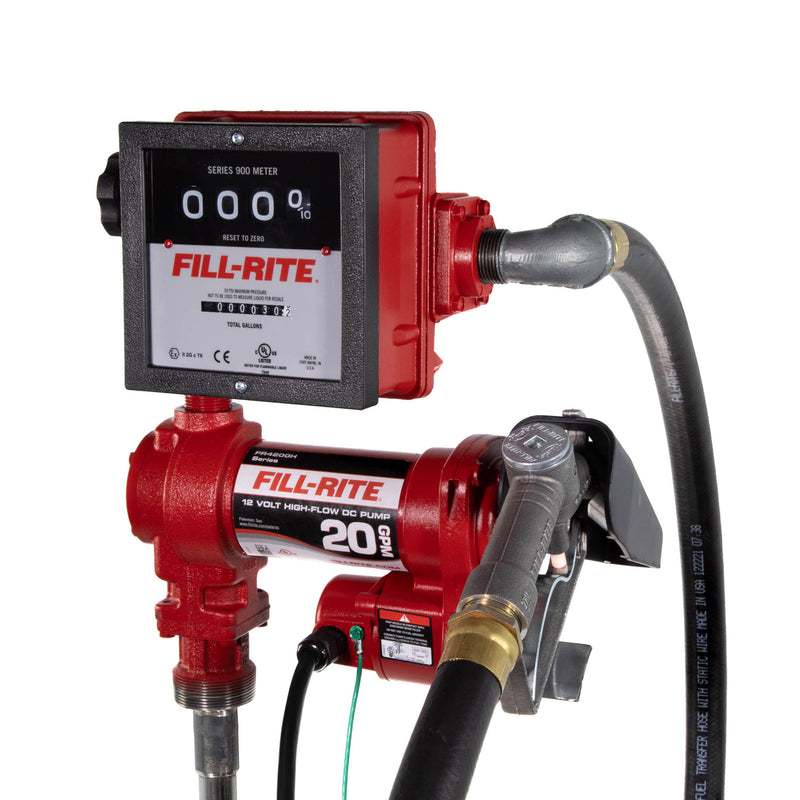

Fill-Rite FR4211H 12V DC 20 GPM Fuel Transfer Pump with Meter & Nozzle

The Fill-Rite FR4211H is a 12v dc 20 gpm fuel transfer pump with meter & nozzle built for mobile refueling. It moves fuel up to 20 GPM on 12V DC power and is built with Fill-Rite's cast-iron, continuous-duty design. It is not for use with DEF. Built by Fill-Rite in the USA and backed by a Limited Warranty.

Watch Fill-Rite's official product overview:

Features

20 GPM Fuel Transfer On 12V DC Power

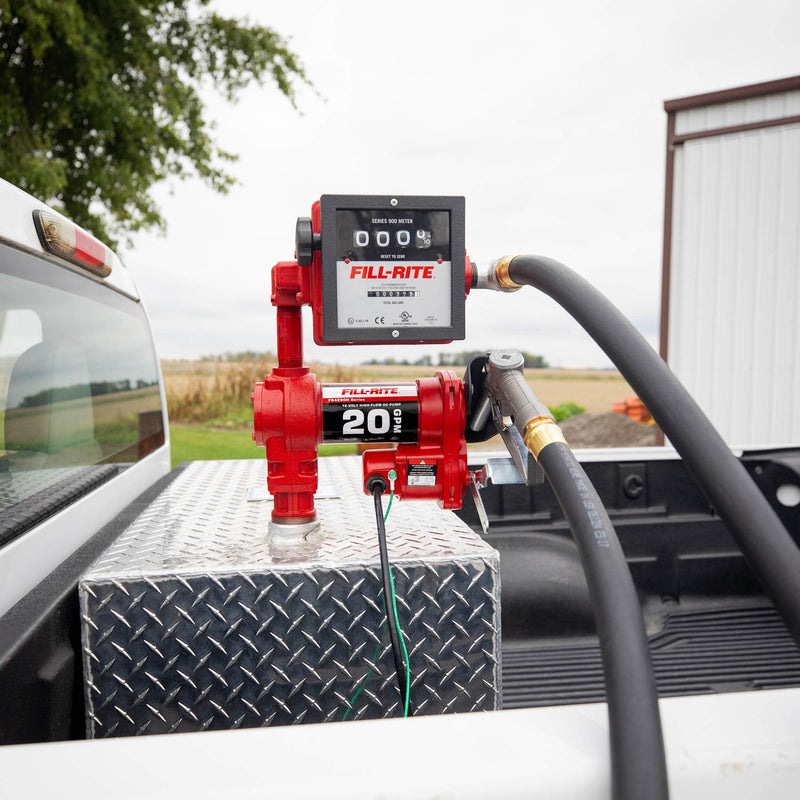

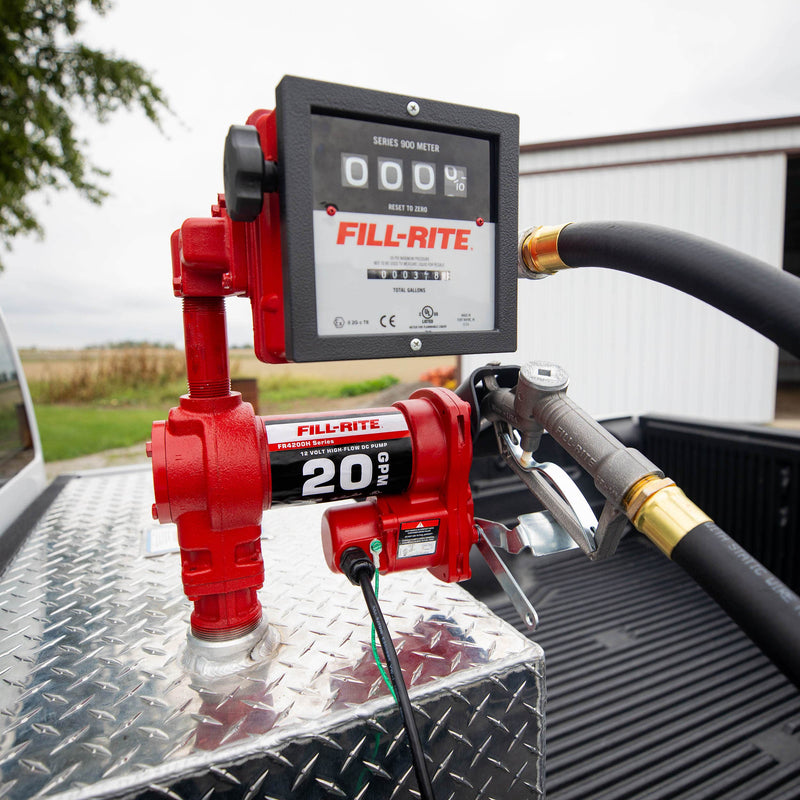

Moves fuel where the work is, so you can refuel equipment off a tank or truck without shore power.

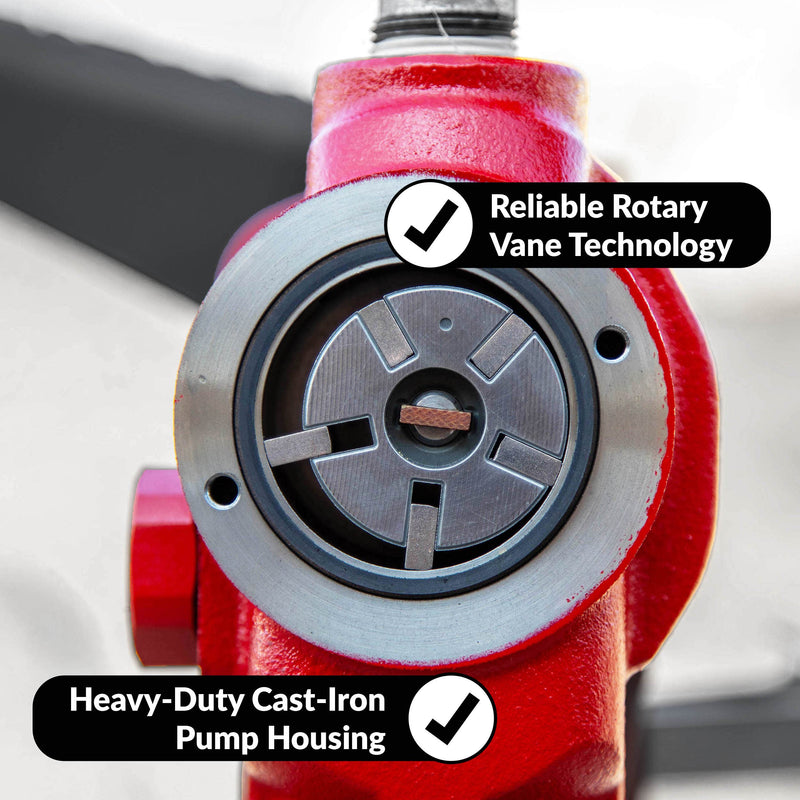

Cast-Iron, Continuous-Duty Build
A rugged cast-iron housing and Fill-Rite rotary-vane pump technology are built for a 30-minute-on / 30-minute-off duty cycle and years of hard use.

Self-Priming Design
The pump primes itself, so it draws fuel fast without babysitting.

Handles The Fuels You Use
Diesel, gasoline (up to E15), kerosene, biodiesel (up to B20), and mineral spirits. Not for use with DEF.

Specifications

• Max Flow Rate: 20 GPM / 75 LPM
• Power Type: 12V DC
• Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits
• Duty Cycle: 30 min on / 30 min off
• Motor Power: 0.25 HP
• Max Current: 19 A
• Self-Priming: Yes
• Suction Lift: 8'
• Thermal Protection: Yes
• Discharge Head: 37'
• Max Operating Pressure: 16 PSI
• Operating Temperature: -15 to 150°F
• Inlet: 1 in / Female / NPT
• Outlet: 1 in / Female / NPT

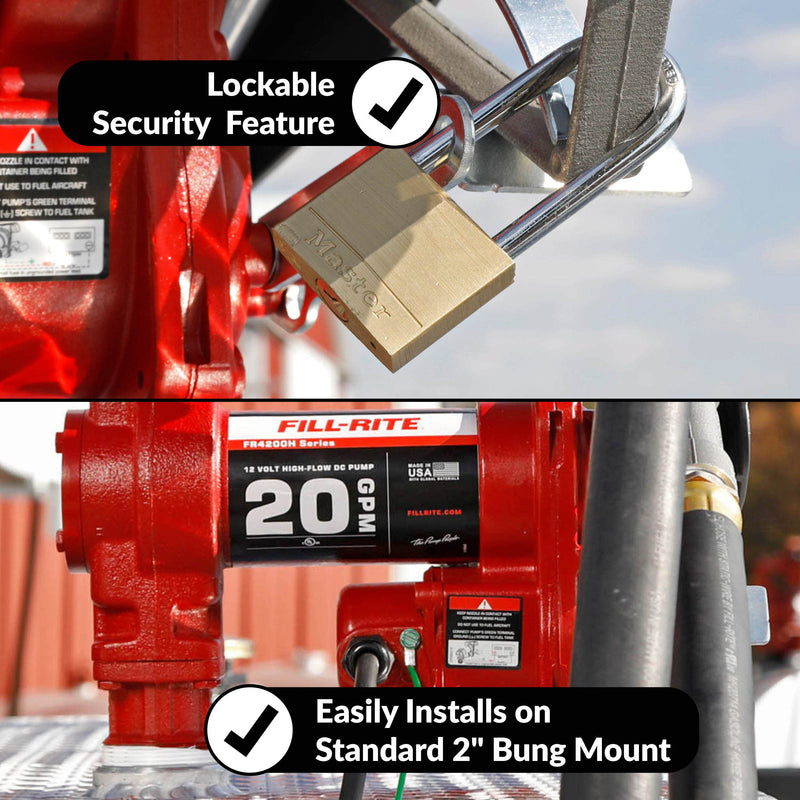

• Mounting: 2 in / NPT / Bung Mount
• Strainer Mesh: 20x20 micron
• Dimensions (H x W x D): 15.0 x 13.7 x 6.5
• Weight: 40.7

Installation

Type: Thread-on bung mount  ·  Difficulty: Moderate DIY

Thread the pump onto a tank bung, fit the suction pipe to your tank depth, and connect power per the manual. Attach the discharge hose and nozzle, prime, and you are ready to pump. Follow the included owner's manual for exact setup.

Watch Fill-Rite's official installation walkthrough:

Download the Fill-Rite FR4211H Owner's Manual (PDF) for full step-by-step instructions.

Resources

Everything you need for your Fill-Rite FR4211H, in one place.

• Fill-Rite FR4211H Owner's Manual (PDF)
• Fill-Rite FR4211H Product Data Sheet (PDF)

Warranty, Shipping & Returns

Warranty. Fill-Rite backs this pump with a tiered Limited Warranty against defects in materials and workmanship: lifetime on the pump castings (excluding paint and corrosion), 5 years on the motor and associated components, 2 years on wearable components, and 1 year on included accessories. It applies to the original purchaser and does not cover misuse, neglect, accident, or improper installation.

Free shipping. This item ships free to the lower 48 states. In-stock orders placed by 2 PM ET, Monday through Friday, typically ship the same business day and arrive in 3 to 5 business days.

Returns. Covered by our 30-day return policy on unused product in the original packaging. Please inspect the shipment on delivery, and if anything is damaged, note it on the delivery receipt and contact us right away.

About Fill-Rite

Fill-Rite has been building fuel transfer equipment in Fort Wayne, Indiana since 1957. Now a Tuthill brand, it earned its reputation the hard way, by making cast-iron rotary-vane pumps that stand up to continuous, real-world duty on fleets, farms, construction sites, and equipment yards across the country.

Today Fill-Rite makes a complete fuel-handling lineup, from 12-volt and 24-volt DC pumps to 115-volt and 230-volt AC pumps, hand pumps, flow meters, nozzles, hoses, and filtration. Whatever you are moving and however you power it, the parts are engineered to work together as a system.

That focus is why Fill-Rite is the name so many operators specify by default: durable where it counts, simple to service, and backed by a Limited Warranty. When fueling your own equipment is part of the job, it is the brand you buy once.
