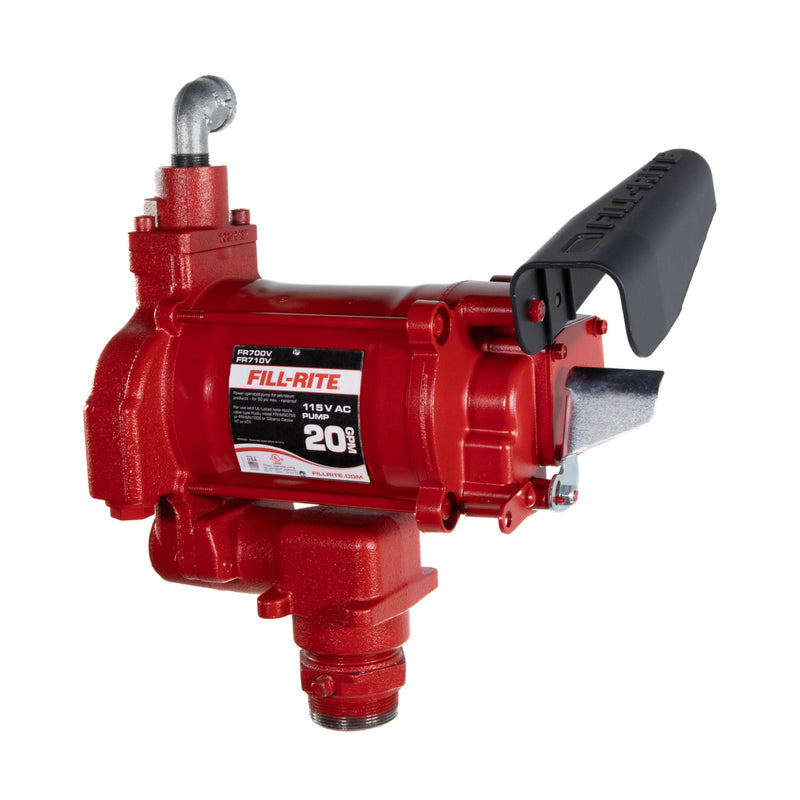

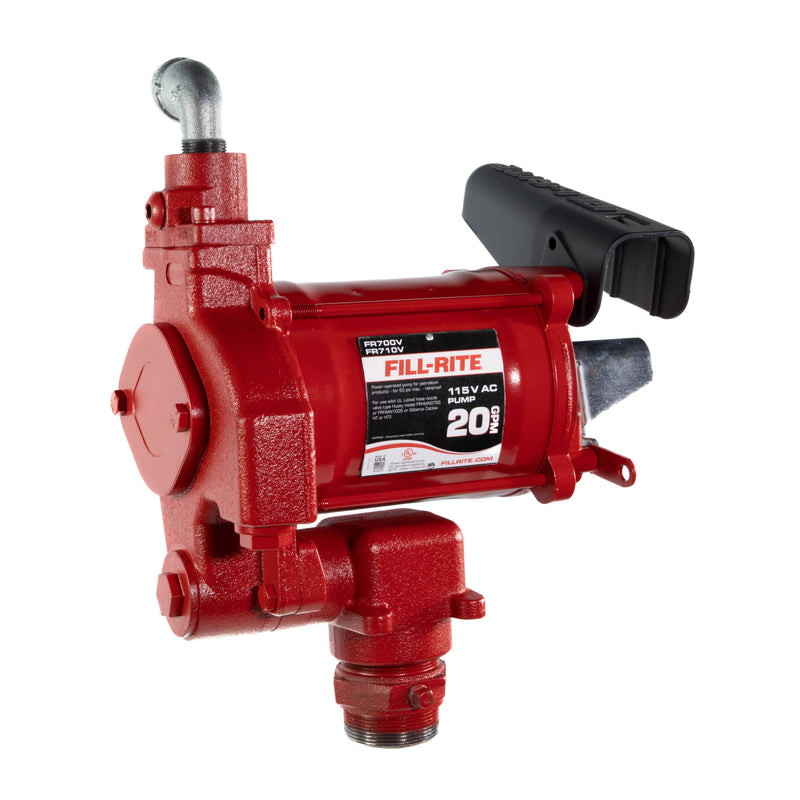

The Fill-Rite FR700VN is a 115v ac 20 gpm fuel transfer pump built for mobile refueling. It moves fuel on 115V AC power and is built with Fill-Rite's cast-iron, continuous-duty design. It is not for use with DEF. Built by Fill-Rite in the USA and backed by a Limited Warranty.
Watch Fill-Rite's official product overview:
Features
Fuel Transfer On 115V AC Power Moves fuel where the work is, so you can refuel equipment off a tank or truck without shore power.
Cast-Iron, Continuous-Duty Build A rugged cast-iron housing and Fill-Rite rotary-vane pump technology are built for a 30-minute-on / 30-minute-off duty cycle and years of hard use.
Self-Priming Design The pump primes itself, so it draws fuel fast without babysitting.
Handles The Fuels You Use Diesel, gasoline (up to E15), kerosene, biodiesel (up to B20), and mineral spirits. Not for use with DEF.
Specifications
Max Flow Rate: 20 GPM / 75 LPM
Power Type: 115V AC
Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits, Heptane, Stoddard Solvents
Duty Cycle: 30 min on / 30 min off
Motor Power: 0.33 HP
Max Current: 5.5 A
Self-Priming: Yes
Suction Lift: 15'
Thermal Protection: Yes
Discharge Head: 53'
Operating Temperature: -13 to 150°F
Inlet: 1.25 in / Female / NPT
Outlet: 0.75 in / Female / NPT
Mounting: 2 in / NPT / Bung Mount
Strainer Mesh: 40 x 40 x .010"
Dimensions (H x W x D): 17.3 x 14.2 x 11.3
Weight: 43.3
Installation
Type: Thread-on bung mount · Difficulty: Moderate DIY
Thread the pump onto a tank bung, fit the suction pipe to your tank depth, and connect power per the manual. Attach the discharge hose and nozzle, prime, and you are ready to pump. Follow the included owner's manual for exact setup.
Watch Fill-Rite's official installation walkthrough:
Warranty. Fill-Rite backs this pump with a tiered Limited Warranty against defects in materials and workmanship: lifetime on the pump castings (excluding paint and corrosion), 5 years on the motor and associated components, 2 years on wearable components, and 1 year on included accessories. It applies to the original purchaser and does not cover misuse, neglect, accident, or improper installation.
Free shipping. This item ships free to the lower 48 states. In-stock orders placed by 2 PM ET, Monday through Friday, typically ship the same business day and arrive in 3 to 5 business days.
Returns. Covered by our 30-day return policy on unused product in the original packaging. Please inspect the shipment on delivery, and if anything is damaged, note it on the delivery receipt and contact us right away.
About Fill-Rite
Fill-Rite has been building fuel transfer equipment in Fort Wayne, Indiana since 1957. Now a Tuthill brand, it earned its reputation the hard way, by making cast-iron rotary-vane pumps that stand up to continuous, real-world duty on fleets, farms, construction sites, and equipment yards across the country.
Today Fill-Rite makes a complete fuel-handling lineup, from 12-volt and 24-volt DC pumps to 115-volt and 230-volt AC pumps, hand pumps, flow meters, nozzles, hoses, and filtration. Whatever you are moving and however you power it, the parts are engineered to work together as a system.
That focus is why Fill-Rite is the name so many operators specify by default: durable where it counts, simple to service, and backed by a Limited Warranty. When fueling your own equipment is part of the job, it is the brand you buy once.
Authorized Fill-Rite dealer. Prestige Truck is an authorized dealer of Fill-Rite, so every pump, meter and accessory you buy is 100% genuine and factory-new, covered by the full Fill-Rite manufacturer warranty, and backed by our own US-based support team.
FR700 Series Full Rebuild Kit Installation
Fill-Rite's official walkthrough for the FR700 full rebuild kit, 700KTF2659.
The steps run the whole rebuild: disassembling the rotor and shaft seal, replacing the shaft seal with KIT700SL, replacing the rotor, rotor key, carbon vanes and cover gasket with KIT700RG, and disassembling and replacing the bypass valve with KIT700BV.
FR700 Rotor And Vane Replacement
Fill-Rite's official walkthrough for the FR700 rotor and vane replacement kit, KIT700RG.
The steps cover disassembling the rotor assembly and replacing the rotor, rotor key, carbon vanes, and cover gasket. This is the wear item that usually explains an FR700 that has lost flow.
FR700 Shaft Seal Kit Installation
Fill-Rite's official walkthrough for the FR700 shaft seal kit, KIT700SL, covering the seal that keeps fluid out of the motor end of the pump.
The steps cover disassembling the rotor and shaft seal, replacing the seal, and reinstalling the rotor, rotor key, vanes, and cover gasket.
Frequently Asked Questions
Straight answers on specs, fit and support
What fuels can it pump?
Diesel, gasoline (up to E15), kerosene, and biodiesel. It is not compatible with DEF, water, or high-concentration ethanol/methanol.
How is it powered?
115V AC. Connect it per the included owner's manual.
How fast does it transfer fuel?
See the specifications, depending on hose, lift, and fluid.
Does it need priming?
No manual priming needed. The pump is self-priming, so it pulls fuel from tanks and drums on its own.
Fill-Rite builds its fuel transfer equipment in Fort Wayne, Indiana, USA.
