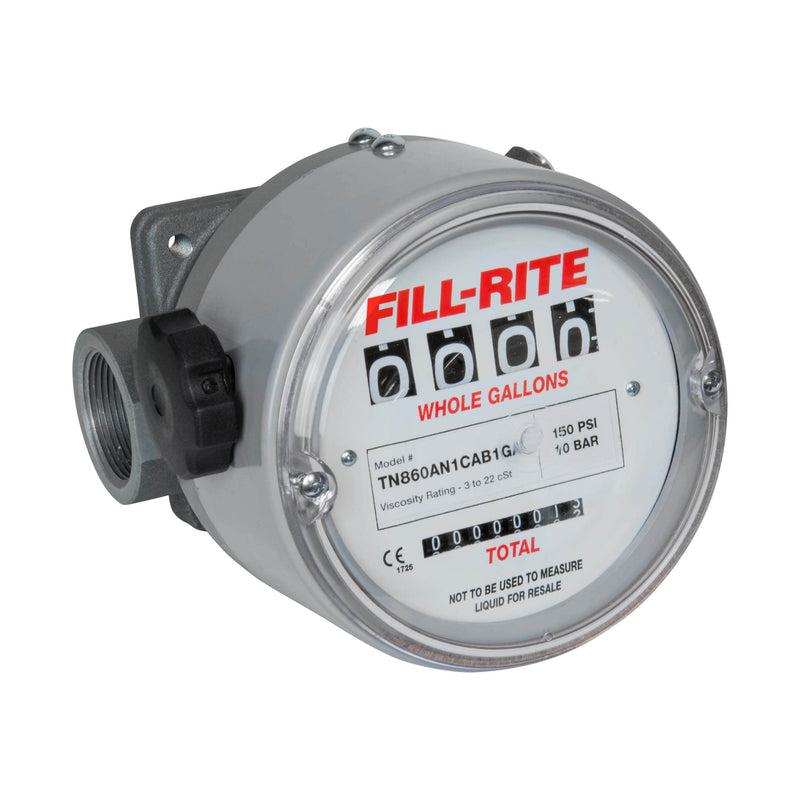

Fill-Rite TN860AN1CAB1GAC 6-60 GPM 4-Digit Mechanical Fuel Transfer Meter, Gallons (NOT FOR FLUID RESALE)
Free gift included with your order
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- 4-Digit Mechanical Register: A resettable 4-digit register shows each delivery and a totalizer that cannot be reset keeps the running count. The meter runs on the flow itself, with no batteries or wiring.
- 6 to 60 GPM High Volume: Fill-Rite rates the TN860 at 6 to 60 GPM (23 to 230 LPM), sized for bulk diesel moving through a 1-1/2" line from a storage tank or a fuel trailer.
- Diesel and Biodiesel Ready: Fill-Rite lists these TN860 meters for diesel, kerosene and biodiesel up to B20. Each one is calibrated at the factory for a viscosity range, so changing fluids can mean new gears and a recalibration.
- Plus or Minus 2% Accuracy: A nutating disc chamber gives ±2% accuracy with 0.25% repeatability for in-house fuel tracking. The calibration screw covers about ±3% to correct for normal wear.
- 150 PSI Rated: The TN860 takes up to 150 PSI (10 bar), and its control plate is sealed with fluorocarbon. Fill-Rite rates it from -15 to 180°F, with a lower pressure limit above 120°F.
- 1-1/2" Female NPT Ports: Female 1-1/2" NPT ports put the meter straight into the line. Flow can run left to right, right to left or upward, never against the arrow on the case.
Description & Fitment
The Fill-Rite TN860AN1CAB1GAC is a 4-digit mechanical fuel transfer meter that reads in gallons, not for fluid resale. It suits diesel, kerosene or B20 biodiesel lines moving 6 to 60 GPM. It is rated at ±2% accuracy and 150 PSI, with 1-1/2" female NPT ports. A reset knob is included.
Fitment & Compatibility
Check your setup: a 1-1/2" NPT diesel line from a bulk tank or trailer. Liter version: TN860AN1CAB1LAC. Fluorocarbon-seal low-viscosity version: TN860AN1CAB1GAC-RL.
Not for: systems that need 3A sanitary equipment, and any fluid outside its factory viscosity range; switching fluids can call for new gears and recalibration. Never reset the register while fluid is flowing. Fill-Rite lists diesel, kerosene and B20 biodiesel for this SKU; ask us before metering any other fluid.
About Fill-Rite
Fill-Rite is a Gorman-Rupp company that designs and builds transfer equipment for fuel, oil and chemicals: electric and hand-operated transfer pumps, plus the meters, nozzles, hose and filters that go with them. Its sites are in Fort Wayne, Indiana and Lenexa, Kansas.
Its transfer pumps are built around cast-iron rotary vane bodies, and Fill-Rite stands behind them with a tiered warranty that runs for the life of the pump castings, 5 years on the motor and 2 years on wear parts.
Buying Fill-Rite from Prestige Truck. Fill-Rite asks for proof of purchase with any warranty claim, so keep your Prestige Truck order receipt with your records.
Frequently Asked Questions
Does the TN860AN1CAB1GAC read gallons?
Yes, whole gallons on the 4-digit register. The TN860AN1CAB1LAC reads liters.
Can it meter gasoline?
Fill-Rite lists this SKU for diesel, kerosene and biodiesel up to B20 only, and the meter is calibrated for that viscosity.
Is the TN860 meant for resale fuel?
No. Fill-Rite builds it for non-custody transfer, meaning in-house tracking of your own fuel, not selling fuel by volume.
Does it need a strainer?
Fill-Rite calls for one on the inlet side to catch slag and pipe scale, plus a thermal relief valve on any section where closed valves on both sides could lock the meter in.
How should I start it the first time?
Fill it slowly: throttle the inlet valve, open the outlet, start the pump and open the inlet gradually. Do not run at full rate until all air is purged.
Can I use PTFE tape on the threads?
No. Fill-Rite asks for pipe compound on the male threads and says not to use PTFE sealing tape.
Installation
Here's the short version. Follow Fill-Rite's manual (below) for the full procedure and safety steps.
- Flush the piping first, keep the port caps on until you are ready, and check that no packing material is inside the meter.
- Fit a strainer on the inlet side, plus a thermal relief valve on any section where closed valves on both sides could lock the meter in; Fill-Rite also suggests inlet, outlet and bypass/calibration valves.
- Orient the meter so it stays full: flow left to right, right to left or upward, never against the arrow on the case; the register can face up or out.
- Put pipe compound on the male threads (no PTFE tape), and secure the meter to a mounting support so the piping carries no stress.
- Fill slowly: throttle the inlet valve, open the outlet, start the pump and open the inlet gradually; do not run at full rate until the air is purged.
- Recheck calibration after installing: three tests against a prover, master meter or scale holding at least 60 seconds of flow, then trim with the calibration screw (about ±3%).
Stuck on a step?
Specifications
| Brand | Fill-Rite |
|---|---|
| Part Number | TN860AN1CAB1GAC |
| Series | TN800 (TN860) |
| Metering | Nutating disc, positive displacement |
| Register | 4-digit mechanical, resettable, with totalizer |
| Power | None (mechanical) |
| Flow range | 6 to 60 GPM |
| Accuracy | ±2% |
| Repeatability | 0.25% |
| Max pressure | 150 PSI |
| Operating temperature | -15 to 180°F (-26 to 82°C) |
| Compatible fluids | Diesel, kerosene, biodiesel up to B20 |
| Ports | 1-1/2" female NPT |
| Seals | Fluorocarbon (control plate) |
| Pulse output | No |
| Display | 4-digit resettable register + non-resettable totalizer |
| Units | U.S. gallons (whole gallon register) |
| Inlet | 1-1/2" female NPT |
| Outlet | 1-1/2" female NPT |
| Included | Meter, reset knob |
| Dimensions | 8" H x 6.5" W x 7" D |
| Weight | 7.9 lb |
| Shipping weight | 8.8 lb |
| UPC | 089404100783 |
