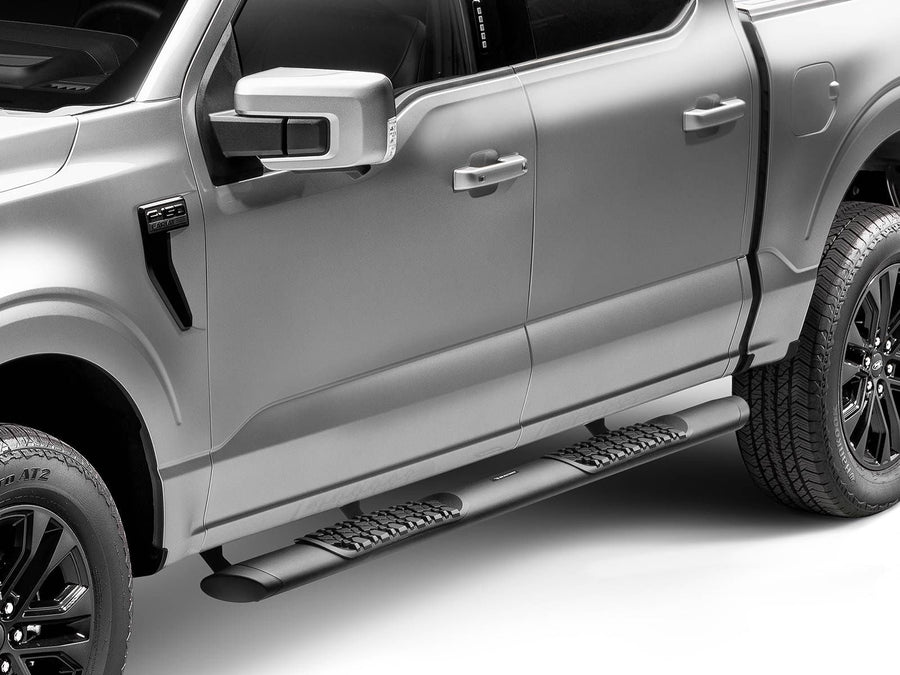

Go Rhino V-Series V3 Side Steps for 2015-2027 Ford F-150 & 2017-2027 Ford F-250 / F-350 Super Duty & 2017-2026 Ford F-450 / F-550 Super Duty (SuperCab)

This Go Rhino V-Series V3 listing covers the 2015-2027 Ford F-150, 2017-2027 Ford F-250 / F-350 Super Duty and 2017-2026 Ford F-450 / F-550 Super Duty. A mounting kit made for this application bolts to existing holes in the rocker panel, with no drilling. It is finished in textured black under Go Rhino part number V3417780T.

What's Included:

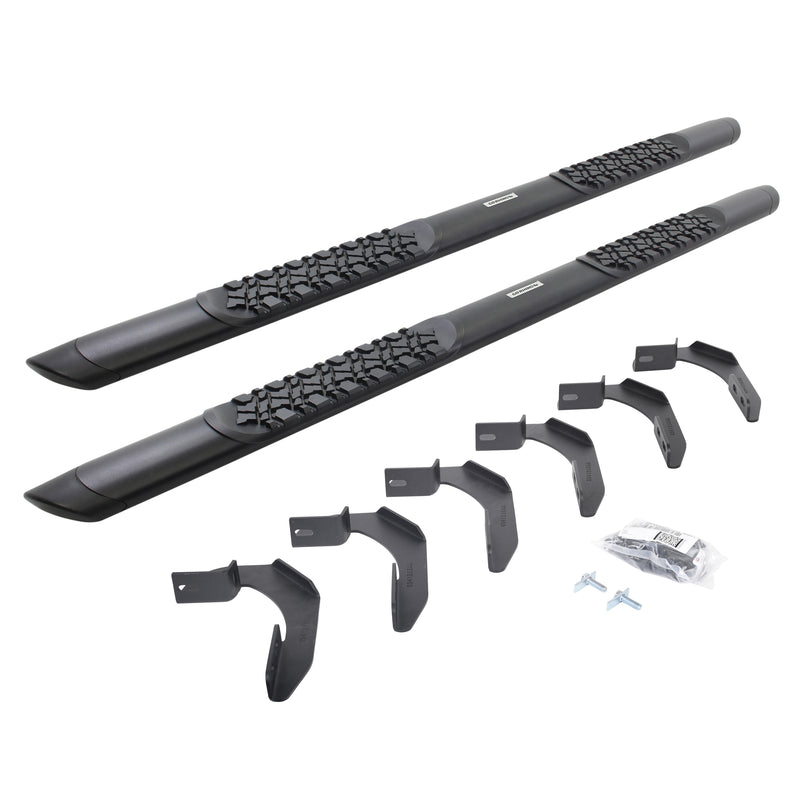

• Driver and passenger side V-Series V3 side steps
• Vehicle-specific mounting bracket kit
• Step hardware: bolt shims, M8 bolts and nuts, flat and lock washers
• Go Rhino installation instructions

Tools are not included; the guide for your part number lists the sockets and wrenches it calls for.

Features

Extruded Aluminum Core
A heavy-duty extruded aluminum core keeps the steps light while Go Rhino rates them at 300 lb per step pad and 600 lb per side.

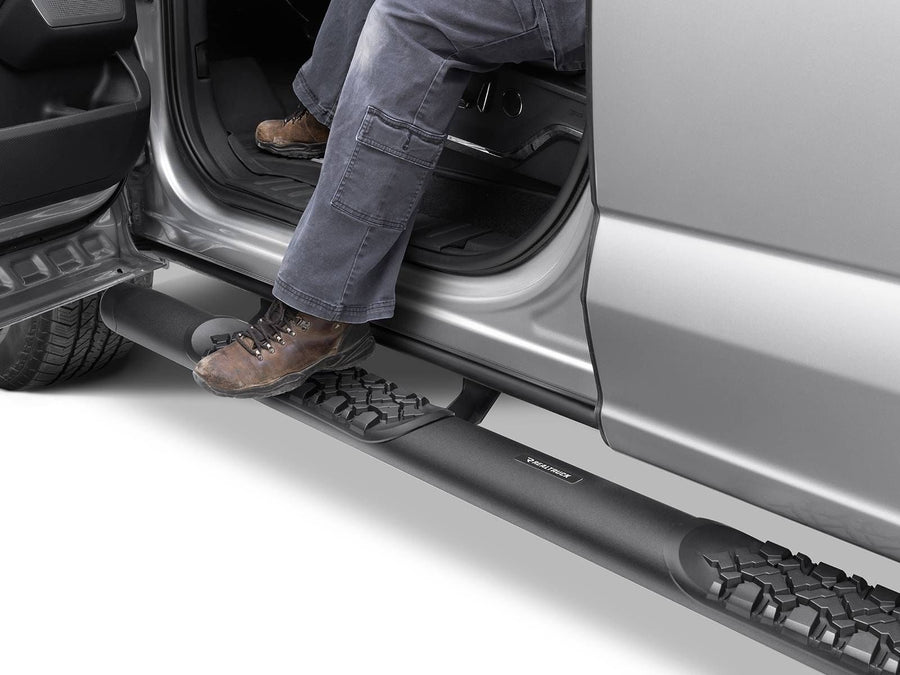

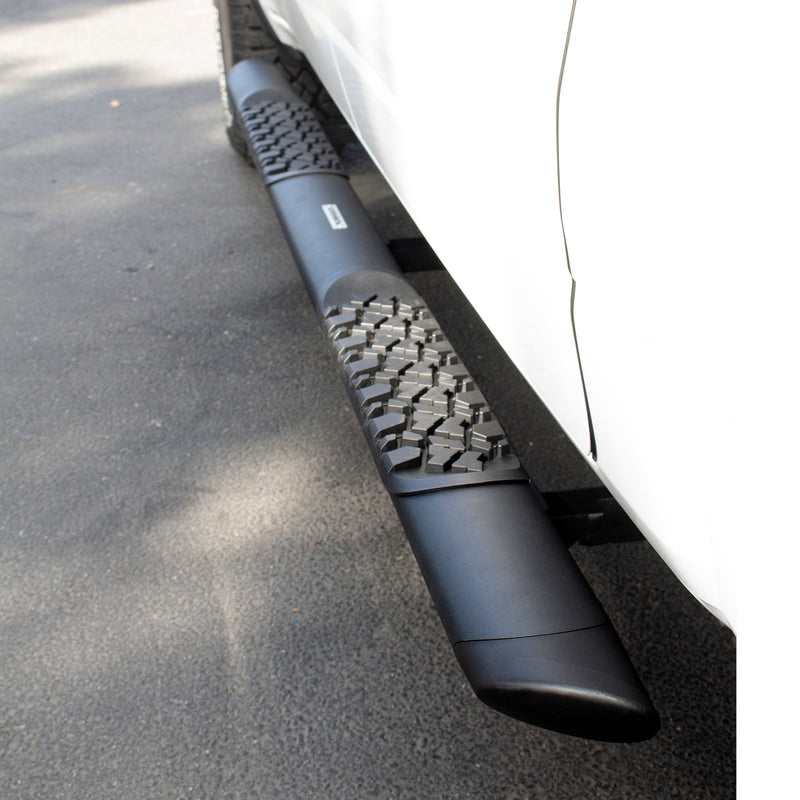

Tread-Style Polymer Pads
Aggressively textured polymer step pads at each door give a 5" wide, non-slip footing in mud, snow or rain.

Textured Black Powder Coat
A textured black powder coat covers the aluminum to resist corrosion and give a stealthy, rugged look.

No-Drill Rocker Mount
Vehicle-specific brackets bolt to existing holes in the rocker panel, with no cutting, trimming or drilling.

Adjustable Step Position
Bolt shims ride in rails along the underside of the extrusion, so each step can be slid into line with the brackets before the nuts are tightened.

Covers the Full Cab Length
The steps run the length of the cab, placing a pad where each door opens.

Fitment & Compatibility

Specifications

• Brand: Go Rhino
• Series: V-Series V3
• Step width: 5"
• Material: Extruded aluminum
• Step pads: Textured polymer, one at each door
• Weight rating: 300 lb per step pad, 600 lb per side
• Length: Cab length
• Mounting: Rocker panel, vehicle-specific bracket kit, no drilling
• Warranty: Limited lifetime structural, 5 years on finish
• Finish: Textured Black
• Part number: V3417780T

Installation

Type: Bolt-on  ·  Mount: rocker panel, vehicle-specific bracket kit  ·  Drilling: none

The Go Rhino guides for this part number, linked below, show the bracket locations, hardware and tools for this application. Mount the brackets, set the steps with their bolt shims, then align and tighten.

Resources

• Go Rhino V-Series V3 installation instructions (PDF), Go Rhino's instructions for this part number.

Warranty, Shipping & Returns

Warranty. Go Rhino's limited lifetime structural warranty covers manufacturing defects in materials or workmanship for as long as the product lasts, provided it was installed per Go Rhino's instructions. A limited 5-year finish warranty, for the original owner, covers red rust, peeling, flaking and cracking from the date of purchase. Go Rhino may ask for proof of purchase and photos of the defect, repairs or replaces a covered part at its discretion, and needs an RGA number on every warranty return; shipping on a finish claim is the owner's cost.

Shipping. Ships by ground carrier. The steps travel in a long carton, and the steps and the bracket kit may arrive as separate boxes.

Inspect on delivery. Open every carton when it arrives and check both bars, the bracket kit and the hardware against the parts list in the Go Rhino guide before you start. Note any visible carton damage on the delivery receipt and photograph it, because damage reported later is much harder to claim.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
