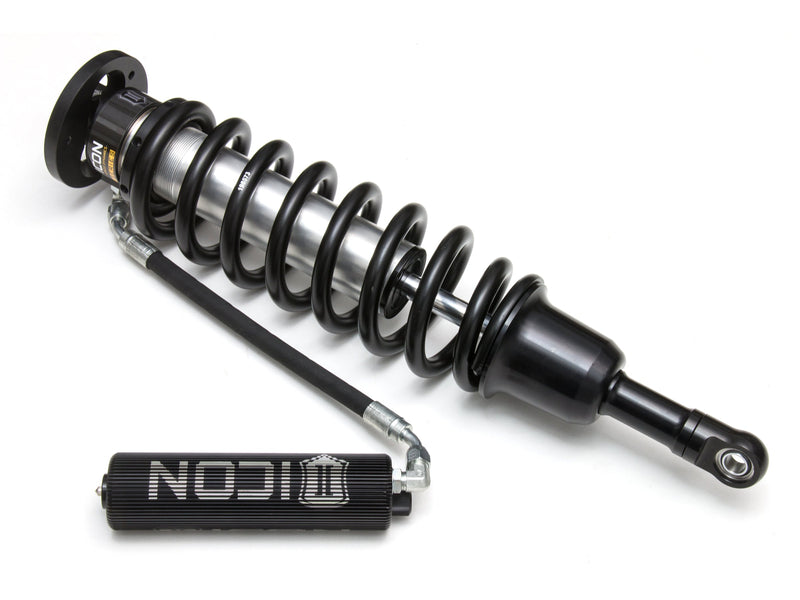

ICON Vehicle Dynamics 3.0 Series Coilover for 2017-2020 Ford F-150

Name: ICON Vehicle Dynamics 3.0 Series Coilover for 2017-2020 Ford F-150
Brand: ICON Vehicle Dynamics
SKU: 95002
Price: 3816.1 USD
Availability: InStock

$3,816.10

Freight shippingCalculated at checkout Only 1 leftIn stock now Estimated delivery

GO

Clear

$40 OFFOrders $500+

Ends in

Apply at checkout. One use per customer.

Guaranteed FitmentTeam-confirmed fit or money back
No Sales TaxZero sales tax on every order
30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund

Questions or a custom quote?

Mon to Fri, 9am to 5pm EST

+1 (470) 823-2453 Email Us

This ICON Vehicle Dynamics 3.0 Series coilover is built for the front of the 2017-2020 Ford F-150, with a remote reservoir and adjustable compression damping. The hydraulic Bump Zone builds resistance through the last 40% of compression, which helps the front end absorb hard hits and unexpected obstacles. This listing covers part number 95002.

What's Included:

ICON 3.0 Series remote reservoir front coilover assembly, as a pair or a single side as the listing states
Any other parts listed for this vehicle in the Kit contents table

Parts named under Also required, such as upper control arms, sway bar or differential drop brackets, track bars or an IIC kit, are sold separately, as are wheels, tires and accessories seen in photos.

Features

3" Body, More Piston Area
The 3" body has 50% more piston area in the ride zone than a 2.5 Series shock, which steadies the vehicle in the roughest off-road driving and shows on the road too.

Remote Reservoir on Every Coilover
A remote reservoir adds oil and nitrogen volume and surface area for cooling, so damping stays consistent as the shock heats up.

Adjustable Compression Damping
Depending on the part, compression is tuned with a CDCV adjuster, a CDXS dual-speed valve or a CDEV valve run by ICON Intelligent Control.

Hydraulic Bump Zone
A multi-stage hydraulic Bump Zone increases bottom-out resistance through the last 40% of compression travel, keeping hard hits under control.

Tuned for the Vehicle
Each coilover is valved and sprung for the vehicle it fits, with lengths and mounts designed for that platform's front suspension.

Built to Be Fully Rebuildable
ICON's 3.0 Series shocks are fully serviceable, so they can be rebuilt or re-tuned rather than replaced.

Fitment & Compatibility

Fit guidance: Fits the 2017-2020 Ford F-150, with the qualifiers shown in the table.
Fits Raptor models only.
Qualifier: Raptor only

Specifications

Brand: ICON Vehicle Dynamics
Series: 3.0 Series
Body diameter: 3"
Color: Black
Lift, front: 1-3"
Reservoir: Remote Reservoir
Shock series: 3.0 Series
Shock body diameter: 3"
Valving: CDCV
Recommended tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Part number: 95002

Fit and install notes

Requires Raptor Damper Interface Device, ICON part # 95199
Requires Ride Height Sensor Recalibration

Installation

Type: Front coilover assembly · Install: Professional shop recommended · Afterward: Professional alignment, plus ADAS recalibration on late-model vehicles

On this vehicle the coilover and the parts in the Kit contents table replace the matching factory front components. Where ICON publishes instructions for this vehicle, they are summarized and linked below, including any cutting or drilling they call for. Recheck all hardware after the first miles and periodically after that, as ICON's instructions direct.

ICON guide for part 95002:
Tools named in the guide: Jack, Jack stands, 5/32" allen wrench, Torque wrench, 7/16" socket/wrench, 9/16" socket/wrench, 15/16" socket/wrench, 15mm socket/wrench, 18mm socket/wrench, 21mm socket/wrench, 27mm socket/wrench and 30mm socket/wrench
Afterward: the guide calls for a wheel alignment
Torque: the guide gives a torque value for each fastener it installs

Resources

Official ICON installation guide for part 95002 (PDF): the ICON Vehicle Dynamics step-by-step guide.

Warranty, Shipping & Returns

Warranty. ICON shock absorbers, coilovers included, carry a 1-year warranty against manufacturer's defects. A shock that fails in its first year goes back to ICON for inspection and service, and if ICON finds the failure came from neglect, improper installation or anything other than normal wear, the owner pays the service costs. Coverage is for the original retail purchaser who owns the vehicle the parts were first installed on, and ICON repairs or replaces a defective part at its discretion. Finish, parts worn through normal use, modifications, installation contrary to ICON's instructions, racing use, police, taxi, government or commercial vehicles, and sales outside the US and Canada are excluded. Removal, installation and freight costs are not covered. Any fabricated ICON brackets supplied with the coilovers fall under ICON's limited lifetime warranty. Shipping. The carrier and ship method are set by the size and weight of the cartons when the order is placed. Inspect on delivery. Open every carton when it arrives and check each part and hardware bag against the parts list before the install starts. Note any visible carton damage on the delivery receipt and photograph it, because damage reported later is much harder to claim.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.

About ICON Vehicle Dynamics

ICON Vehicle Dynamics designs and builds performance suspension for vehicles and SUVs in Riverside, California, and has been developing its systems since 2008. Engineering is led by head engineer and SCORE champion driver Dylan Evans, and the laser cutting, metal forming, CNC machining, welding and assembly are all done in house.

ICON's engineers start from the result they want a vehicle to have, study the forces acting on it in motion, and then develop and test parts both in everyday driving and in race conditions. The 3.0 Series sits above ICON's 2.5 Series for owners who want more damping capacity, and it shares ICON's CDCV, CDXS and CDEV valve technology.

More damping for harder driving

ICON's 3.0 Series is the step beyond its 2.5 Series for drivers who take their vehicles into rougher terrain at higher speeds. The larger body and piston keep the front end stable and controlled at the extremes, and the benefit carries over to daily driving. Adjustable compression damping lets the ride be tuned to the terrain.

Remote reservoirs and bump zone

Every 3.0 Series coilover carries a remote reservoir for more oil and cooling, so damping stays consistent through long rough sections. A multi-stage hydraulic Bump Zone firms up the last 40% of compression to resist bottoming. CDCV, CDXS or CDEV valving sets how the compression damping is adjusted.

Plan the install and parts

ICON recommends a professional shop for the installation and a professional alignment afterward. Many vehicles need other parts with these coilovers, such as upper control arms or a sway bar bracket, and those are listed under Also required. Late-model vehicles also need a driver-assist recalibration.

Frequently Asked Questions

Straight answers on specs, fit and support

How is the 3.0 Series different from the 2.5 Series?

The 3" body has 50% more piston area in the ride zone, a larger oil volume and a hydraulic Bump Zone for the last 40% of compression. ICON builds it for drivers who push harder in rougher terrain, and the extra control shows on the road too.

What is the difference between CDCV, CDXS and CDEV?

CDCV is an external adjuster with 10 compression settings from soft to firm. CDXS adjusts low speed and high speed compression separately. CDEV is an electronic valve that ICON Intelligent Control adjusts from onboard sensors, and the ICON app it runs on needs an iOS device.

Are these sold as a pair?

Most listings are front coilover kits. Where ICON sells a coilover by side, the listing says Driver Side or Passenger Side, and the other side is required as well.

Do I need other parts?

Often. Depending on the vehicle, ICON calls for parts such as Delta Joint PRO upper control arms, a sway bar drop bracket, a differential drop, a track bar or bracket, or on some Raptors a damper interface device. The listing's Also required notes list what your vehicle needs.

Will I need an alignment and ADAS recalibration?

Yes. ICON's instructions call for a professional alignment after the install, and late-model vehicles need their driver-assist systems recalibrated.

What warranty comes with 3.0 Series coilovers?

The coilovers carry ICON's 1-year shock absorber warranty against manufacturer's defects, and a shock that fails in its first year goes back to ICON for inspection and service. Racing use and installation contrary to ICON's instructions are excluded.
