ICON Vehicle Dynamics 3.0 Series Coilover for 2021-2025 Ford F-150

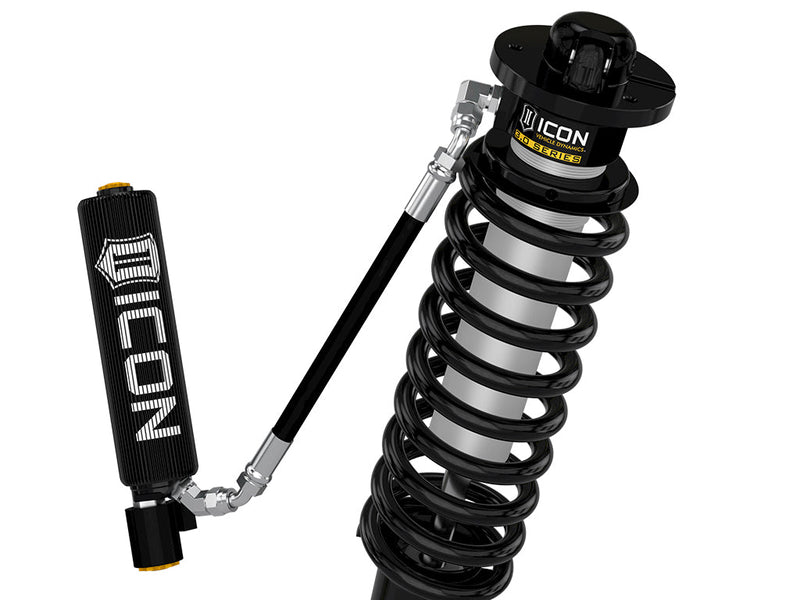

This ICON Vehicle Dynamics 3.0 Series coilover is built for the front of the 2021-2025 Ford F-150, with a remote reservoir and adjustable compression damping. Its valving is developed for this vehicle, and the shock is fully rebuildable so it can be serviced or re-tuned later. This listing covers part number 95003.

What's Included:

• ICON 3.0 Series remote reservoir front coilover assembly, as a pair or a single side as the listing states
• Any other parts listed for this vehicle in the Kit contents table

Parts named under Also required, such as upper control arms, sway bar or differential drop brackets, track bars or an IIC kit, are sold separately, as are wheels, tires and accessories seen in photos.

Features

3" Body, More Piston Area
The 3" body has 50% more piston area in the ride zone than a 2.5 Series shock, which steadies the vehicle in the roughest off-road driving and shows on the road too.

Remote Reservoir on Every Coilover
A remote reservoir adds oil and nitrogen volume and surface area for cooling, so damping stays consistent as the shock heats up.

Adjustable Compression Damping
Depending on the part, compression is tuned with a CDCV adjuster, a CDXS dual-speed valve or a CDEV valve run by ICON Intelligent Control.

Hydraulic Bump Zone
A multi-stage hydraulic Bump Zone increases bottom-out resistance through the last 40% of compression travel, keeping hard hits under control.

Tuned for the Vehicle
Each coilover is valved and sprung for the vehicle it fits, with lengths and mounts designed for that platform's front suspension.

Built to Be Fully Rebuildable
ICON's 3.0 Series shocks are fully serviceable, so they can be rebuilt or re-tuned rather than replaced.

Fitment & Compatibility

Specifications

• Brand: ICON Vehicle Dynamics
• Series: 3.0 Series
• Body diameter: 3"
• Lift: 1-3"
• Lift, front (5.2L GAS): 0.75-2.75"
• Lift, front: 1-3"
• Max tire size: 35" x 12.50"
• Recommended wheel offset: 6mm
• Reservoir: Remote Reservoir
• Shock series: 3.0 Series
• Shock body diameter: 3"
• Valving: CDEV
• Part number: 95003
• Alignment after install: Required (ICON install guide)
• Estimated install time: About 4 to 5 hours (ICON install guide)
• Installation: Professional install recommended by ICON

Fit and install notes

• Also Requires Part Number 95020
• For 37x12.50" Tires Use Bump Stop Spacer Kit
• Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
• Requires iOS operated device to run ICON Intelligent Control App
• Also Requires Part Number 93500 , Number 95206L and Number 95206R
• Requires Damper Interface Device Not Currently Offered by ICON But Available From Other Third Party Manufacturers

Installation

Type: Front coilover assembly  ·  Install: Professional shop recommended  ·  Afterward: Professional alignment, plus ADAS recalibration on late-model vehicles

On this vehicle the coilover and the parts in the Kit contents table replace the matching factory front components. Where ICON publishes instructions for this vehicle, they are summarized and linked below, including any cutting or drilling they call for. Recheck all hardware after the first miles and periodically after that, as ICON's instructions direct.

Resources

An installation guide for this part number is not available to download. Our team can answer installation questions before you order; contact us with the part number.

Warranty, Shipping & Returns

Warranty. ICON shock absorbers, coilovers included, carry a 1-year warranty against manufacturer's defects. A shock that fails in its first year goes back to ICON for inspection and service, and if ICON finds the failure came from neglect, improper installation or anything other than normal wear, the owner pays the service costs. Coverage is for the original retail purchaser who owns the vehicle the parts were first installed on, and ICON repairs or replaces a defective part at its discretion. Finish, parts worn through normal use, modifications, installation contrary to ICON's instructions, racing use, police, taxi, government or commercial vehicles, and sales outside the US and Canada are excluded. Removal, installation and freight costs are not covered. Any fabricated ICON brackets supplied with the coilovers fall under ICON's limited lifetime warranty. Shipping. The carrier and ship method are set by the size and weight of the cartons when the order is placed. Inspect on delivery. Open every carton when it arrives and check each part and hardware bag against the parts list before the install starts. Note any visible carton damage on the delivery receipt and photograph it, because damage reported later is much harder to claim.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
