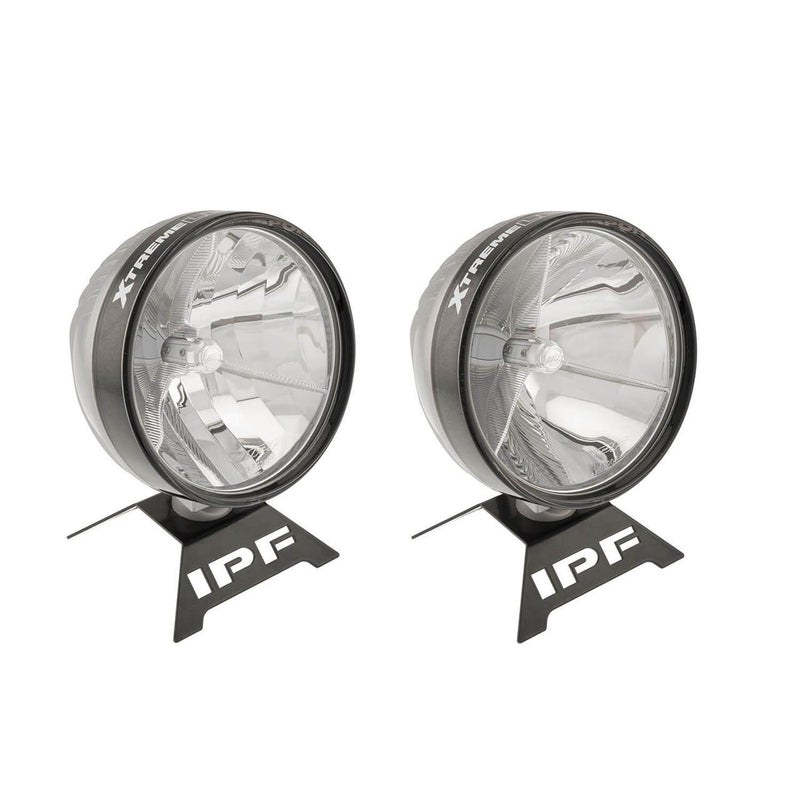

IPF Xtreme LED Sport 900XLS Series 2 Driving Light, CREE LEDs, IP68, Deutsch DT-6 (900XLSS2)

IPF is the Japanese lighting manufacturer ARB distributes in the US, and the 900XLS Series 2 is its Xtreme LED Sport driving light. The retail packaging describes it as an exclusive model for ARB 4x4 Accessories, rated at 30 W on 12 V or 24 V with a 6500K color temperature.

What distinguishes it from a typical LED pod is the optics: a tri-wall reflector paired with a heatproof resin reflector body, rather than a flat array of TIR lenses. IPF claims improvements in light output and performance of up to 28% over the previous series. The body is die-cast alloy with an integrated finned heatsink, the driver circuit is internally mounted, and it terminates in waterproof Deutsch DT-6 connectors. Sealed for life to IP68 and submersible.

Note that ARB does not publish a beam pattern designation, lumen figure or beam distance for this part, so we do not state one.

What's Included:

• One IPF Xtreme LED Sport 900XLS Series 2 driving light

Features

Tri-Wall Reflector Optics
IPF uses a hybrid combination design built around a tri-wall reflector rather than a flat TIR lens array, which is what gives this light its distinctive clean beam edge.

CREE High Power LEDs
State of the art CREE high power LEDs delivering high intensity white light, rated by IPF at 6500K on the retail packaging.

Submersible And Sealed For Life
IP68 sealed for life construction with a membrane breather, which equalizes pressure as the light heats and cools without drawing water past the seals.

Die-Cast Alloy Body
Super tough die-cast alloy housing with an integrated finned heatsink, plus a heatproof resin reflector incorporating water and dust resistant components.

Waterproof Deutsch DT-6 Connectors
Proper sealed automotive connectors at the light end, which is where cheap connectors fail first.

Internally Mounted Driver
The LED driver circuit is inside the light rather than in a separate box on the harness, so there is one less sealed enclosure to find a home for.

Fitment & Compatibility

Specifications

• Model: IPF Xtreme LED Sport 900XLS Series 2
• Part Number: 900XLSS2
• Brand: IPF, distributed by ARB
• LEDs: CREE high power
• Power: 30 W (per the retail packaging)
• Color Temperature: 6500K (per the retail packaging)
• Operating Voltage: 12 V and 24 V (per the retail packaging)
• Reflector: Tri-wall, heatproof resin
• Ingress Protection: IP68, submersible, sealed for life
• Connector: Waterproof Deutsch DT-6
• Mounting: M12 heavy duty mounting stud
• Housing: Die-cast alloy with finned heatsink
• Lens: Reinforced high transparency polycarbonate
• Breather: Membrane breather
• Shipping Weight: 4 lb
• Warranty: 3 years
• UPC: 4951499017955

Installation

Type: Single M12 stud mount, plus a wiring loom  ·  Time: 1-2 hours per pair including wiring  ·  Tools: Socket set, crimper, cable ties  ·  Difficulty: Moderate

Mechanically it is a single M12 stud through a light tab. The Deutsch DT-6 connector means you need a matching loom or a set of DT-6 terminals. Aim the beam on a dark road once everything is bolted down.

Warranty, Shipping & Returns

Warranty. ARB publishes a 3-year warranty term for this part. In North America it is administered by ARB (Air Locker Inc., Auburn, WA) and honored through authorized dealers like us. We describe the warranty exactly as ARB publishes it and do not extend or restate its terms.

Free shipping. This item ships free to the lower 48 states and typically arrives in 3 to 7 business days.

Inspect on delivery. Please inspect your order on arrival. If anything is damaged or missing, contact us right away and we will make it right.

Compliance. The retail packaging shows RoHS, CE and IP68 markings. No SAE or DOT rating is published, so this is sold as an off-road auxiliary driving light.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
