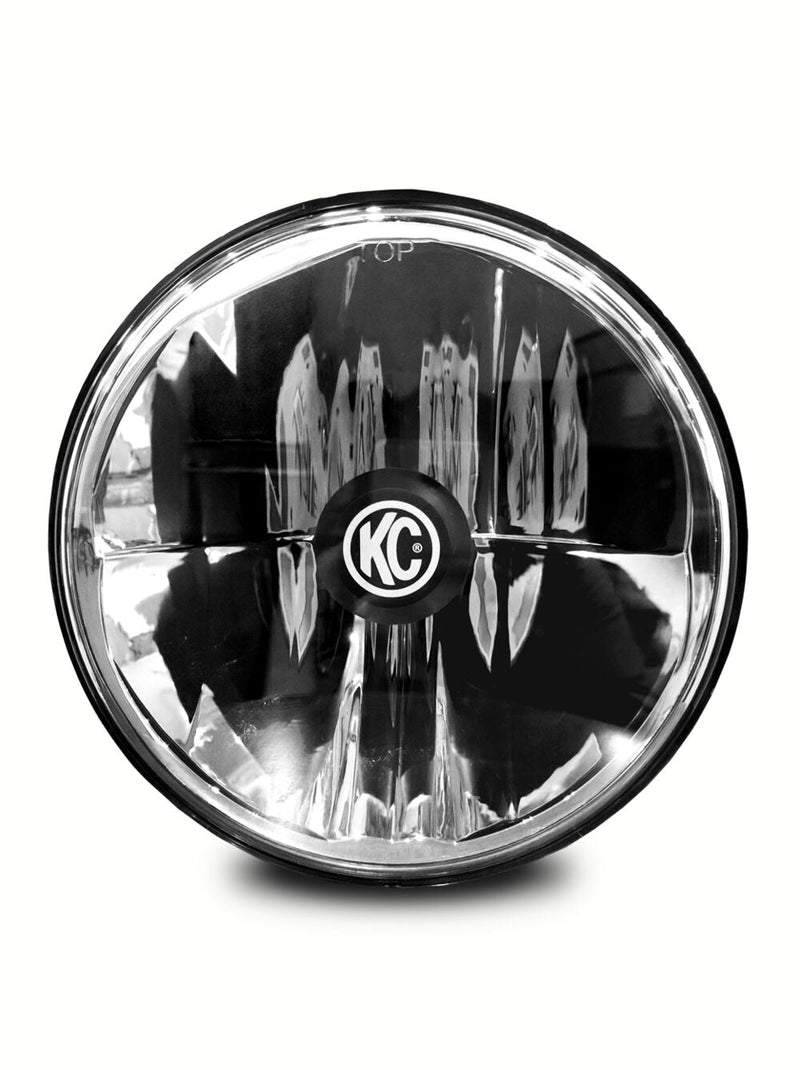

KC HiLiTES 7" Gravity LED DOT Headlight (H4 plug) on a studio background: front view of a round 7" LED headlight with chrome reflectors and KC center badge on white

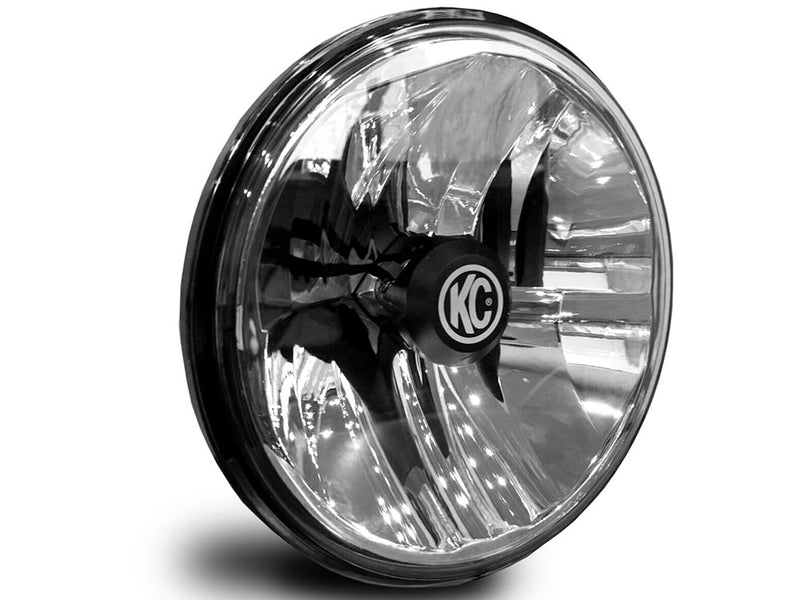

KC HiLiTES 7" Gravity LED DOT Headlight (H4 plug) on a studio background: angled view of a round 7" LED headlight with black housing and KC center badge on white

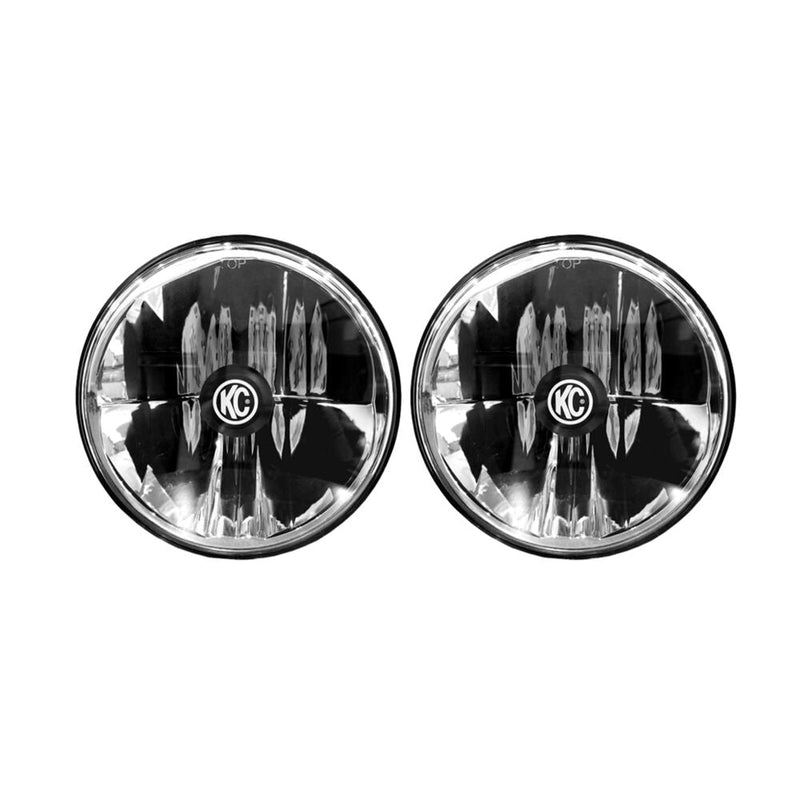

KC HiLiTES 7" Gravity LED DOT Headlight (H4 plug) on a studio background: two round 7" LED headlights side by side with KC center badges on white

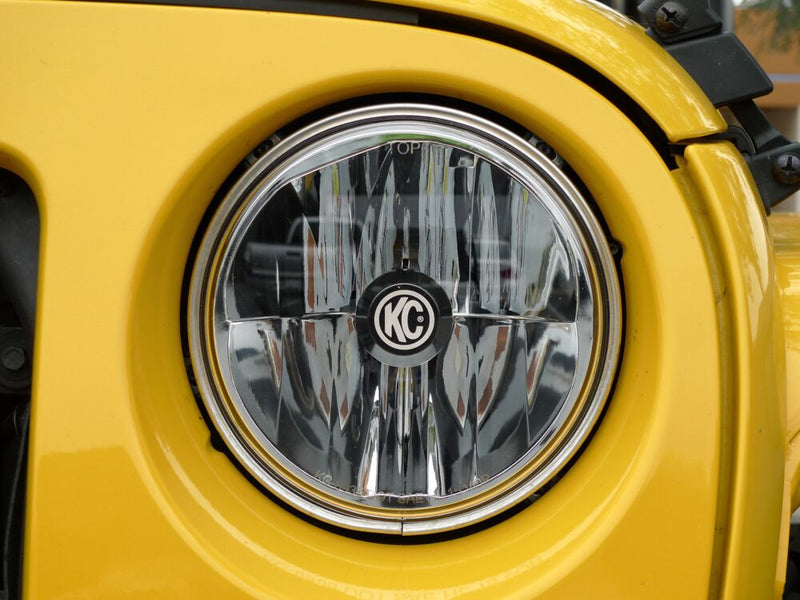

KC HiLiTES 7" Gravity LED DOT Headlight (H4 plug) installed on a Jeep Wrangler: close-up of a round LED headlight with KC center badge installed in a yellow Jeep grille

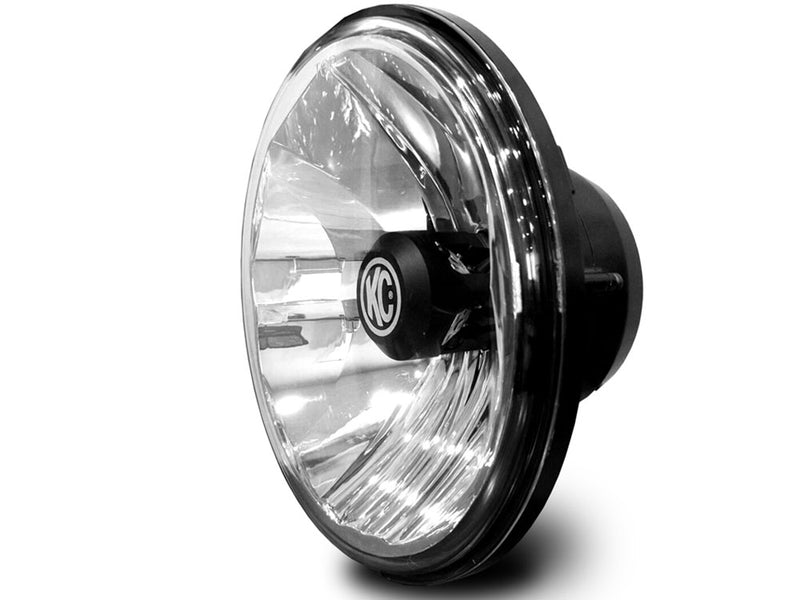

KC HiLiTES 7" Gravity LED DOT Headlight (H4 plug) on a studio background: angled view of a round 7" LED headlight with black housing and clear lens on white

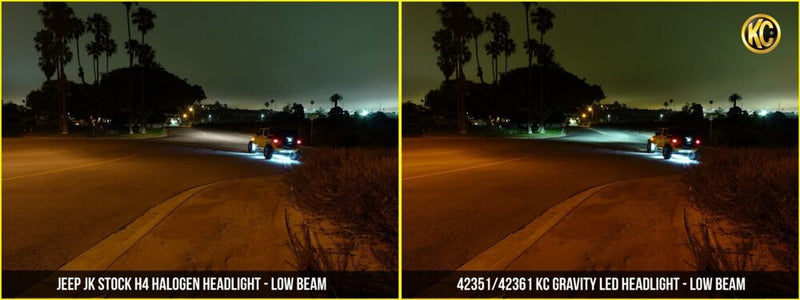

KC HiLiTES 7" Gravity LED DOT Headlight (H4 plug): side by side night photos of a road lit by stock halogen low beams and by LED low beams

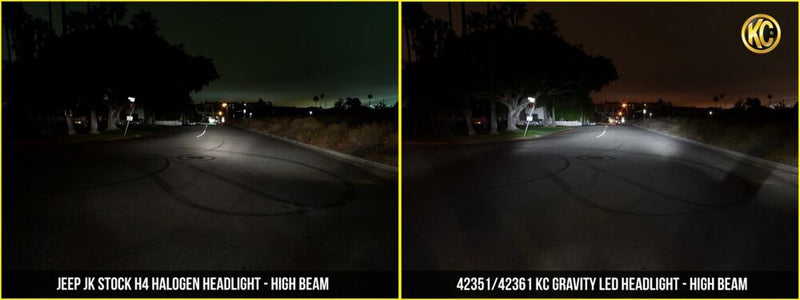

KC HiLiTES 7" Gravity LED DOT Headlight (H4 plug): side by side night photos of a road lit by stock halogen high beams and by LED high beams

KC HiLiTES 7" Gravity LED DOT Headlight (H4 plug)

Name: KC HiLiTES 7" Gravity LED DOT Headlight (H4 plug)
Brand: KC HiLiTES
SKU: 4236
Price: 419.99 USD
Availability: InStock
Rating: 4.8 (15 reviews)

15 reviews(15)

$419.99

FREE SHIPPINGNo sales tax Only 1 leftIn stock now Estimated delivery

Kit

Guaranteed FitmentTeam-confirmed fit or money back
No Sales TaxZero sales tax on every order
30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund

Questions or a custom quote?

Mon to Fri, 9am to 5pm EST

+1 (470) 823-2453 Email Us

This Gravity LED 7" headlight plugs into the H4 connector of TJ Wranglers built 1997-2006 and other vehicles with 7" round headlights. It provides DOT compliant low beam, high beam and DRL, with 3,666 lm on high. The pair adds a capacitor harness, a 30 A LED switch with panel and mounting hardware.

Features

Plugs into H4 connector
Fits the 1997-2006 TJ and universal 7" H4 headlight openings.

High, low and DRL
DOT compliant low and high beams with a daytime running light.

Gravity reflector optics
GRD optics with CREE XHP35 HI and Nichia LEDs.

Die-cast housing, IP68 sealed
Die-cast aluminum housing with a hard-coated polycarbonate lens.

Specifications

Brand: KC HiLiTES
Size: 7" round
LED source: CREE XHP35 HI and Nichia
Lumens per light: 1,260 lm low / 3,666 lm high / 275 lm DRL
Candela per light: 41,500 cd low / 77,500 cd high
Beam distance: 407 m low / 557 m high
Wattage per light: 18 W low / 22 W high
Amp draw per light: 1.88 A
Voltage: 9 V to 18 V
Color temperature: 5,000 K
Housing: Die-cast aluminum, hard-coated polycarbonate lens
Ingress rating: IP68
Dimensions per light: 6.96" W x 3.72" D
Compliance: DOT; SAE and ECE R112
Road use: DOT compliant low beam, high beam and DRL
Warranty: 5-year warranty
Beam pattern: Driving
Lens color: Clear
Part numbers: 4236, 42361

Options

Kit	Quantity	Extras	KC part number
Single	1 headlight		4236
Pair	2 headlights	Capacitor harness, 30 A LED switch with panel	42361

In the box

Option	Contents
Single (part 4236)	1 Gravity LED 7" DOT headlight; 1 plug-and-play connector, Jeep TJ / universal H4
Pair (part 42361)	2 Gravity LED 7" headlights; 1 capacitor harness; Plug-and-play connectors, Jeep TJ / 7" universal H4; 1 30 A LED switch with panel; Mounting hardware

Installation

Type: 7" LED headlight · Install: Plug-and-play H4 · Tools: Basic hand tools

The headlight replaces a 7" round H4 headlight and plugs in with the included connector. The pair also includes a capacitor harness, a 30 A LED switch with panel and mounting hardware.

Resources

An installation guide for this part number is not available to download. Our team can answer installation questions before you order; contact us with the part number.

Warranty, Shipping & Returns

Warranty. 5-year warranty from KC HiLiTES. Shipping. Most KC parts ship by parcel carrier; roof racks and long light bars ship in oversize cartons. The ship method is set by the carton size and weight when the order is placed.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.

About KC HiLiTES

KC HiLiTES has been building off-road lights since 1970, a company story that began with a missed turn to a campsite in the middle of the night. Based in Williams, Arizona, KC takes features engineered for off-road racing and designs them into lights for drivers who head down the paths less traveled.

Today the KC line runs from the classic round Daylighter to LED families such as FLEX ERA, Gravity Pro6, Gravity Titan, SlimLite and Cyclone V2, many built around KC's patented Gravity Reflective Diode optics. Covers, shields, bezels, wiring kits and vehicle-specific mounts let you build a complete lighting setup for a Jeep, truck, SUV or UTV.

See it on a truck

LED upgrade for TJ

Replace the TJ's factory headlights with LED high, low and DRL in the same 7" opening.

LED upgrade for TJ

Replace the TJ's factory headlights with LED high, low and DRL in the same 7" opening.

Universal 7" H4 fit

The H4 connector also suits other vehicles with 7" round headlights.

Sealed die-cast housing

IP68 sealing and a hard-coated lens hold up on and off the road.

Frequently Asked Questions

Straight answers on specs, fit and support

Will it fit my vehicle?

It fits the 1997-2006 Jeep Wrangler TJ and other vehicles with 7" round H4 headlight openings.

Is it street legal?

Yes. The low beam, high beam and DRL are DOT compliant, and it is Transport Canada compliant on the TJ with DRL equipped and enabled.

What extra parts come with the pair?

A capacitor harness, H4 connectors, a 30 A LED switch with panel and mounting hardware.

How bright is it?

1,260 lm on low beam and 3,666 lm on high beam per light.

What our customers say

4.8 · 15 reviews

Sort

Photos from owners

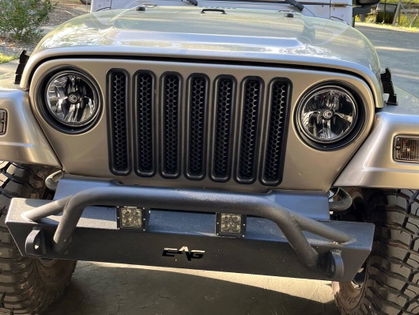

DaveB. Verified

08/13/2026

Love these!

these LED headlights are really solid, look great, and have a consistent spread. Super easy to install, I recommend them for sure!

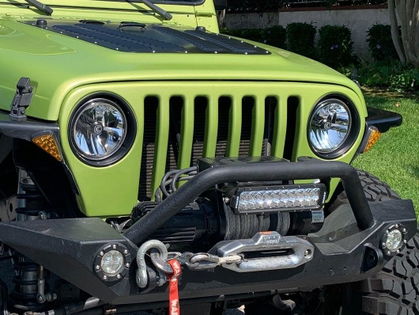

BrianS1970 Verified

01/03/2026

Nice and easy

These were easy to install and adjust. Very bright!

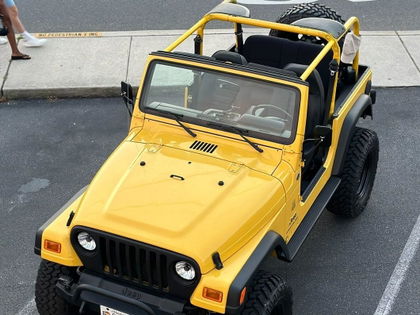

Clint5869 Verified

08/13/2024

KC LED replacement headlights

These things are amazing. They look fantastic, old-style look, with great LED lighting.

RiverHawg Verified

08/18/2026

Pricey, yes, but worth it to me.

I had been advised to "do my homework" when it comes to LED headlights, that there is a lot of crappy products out there. Watched many user (not sponsored) videos and read many reviews. I concluded that the KC HiLites was the best for my TJ. Pricey, yes, but I am not at all disappointed. The color temperature is very easy on the eyes, coverage is great, and the hi-beam is definitely a real day-maker. Mind you, I upgraded from the almost useless factory style lamps, so I can't give an assessment over other LED's. Note: you won't see the full potential of these lamps until they're properly aligned. Pricey, yes, but worth it to me.

Eglyde04 Verified

02/12/2026

LED Headlights

A great replacement for original stock headlights for my 97 TJ Wrangler. Installation was a breeze.

MATTHEW Verified

10/29/2025

Amazing for CJ7

I retrofitted these into my 1981 CJ7 and am very impressed with the output. No other upgrade has made such a dramatic improvement. Will have to cut 1.5 inches off the back of the headlight buckets to allow proper fitment, but this does not compromise the headlight bucket's integrity. I'm very satisfied with this purchase.

GaryM Verified

01/21/2025

Nothing beats LED's

Great product...Easy Installation. They look great and light up the roadway perfectly. Expensive but worth it.

NickyZ Verified

01/05/2025

Sweet

Changes your wrangler to badass. Super expensive but fingers crossed will never change them.

Jacob Verified

12/12/2024

KC HiLiTES Gravity LED 7

Best headlights I've seen on a Jeep. Super easy to install and align. Took me maybe 15 minutes to swap out both.

TravisC Verified

10/23/2024

KC HiLites

A nice upgrade to dimmed stock headlights. Super bright, but a bit on the pricey side.

ChadH Verified

07/07/2024

Bright

Easy installation and super bright vs factory lights on my 2000 tj

jeeper Verified

06/25/2024

Bright

Super expensive and overpriced. But they are extremely bright and do their job well.

JakeBoyd Verified

08/08/2026

Nice Headlight Upgrade

Quite expensive, but a huge improvement over OEM. Installation was super simple. Mine also throws a weird pattern that seems to mostly come from the right side. Not a big deal, but it's there.

JohnnyD Verified

08/04/2025

flyfshr2

Great headlights, bright and the spread is very nice. I need to adjust them due to some flashing (my Jeep is lifted), but the lights itself is great and fits my Jeep.

DonP Verified

04/13/2025

Well better than stock

I love the looks of my new KC HiLites Gravit LED's when they are off. Once they are on they are bright and better than factory, by far. The one hang up I have with the pair is they don't appear to light the same and I am not sure why. The brightness is the same but it is almost like the right head light is shooting a different light pattern... These must be popular as I had to wait a while before they came in. Again better than stock.
