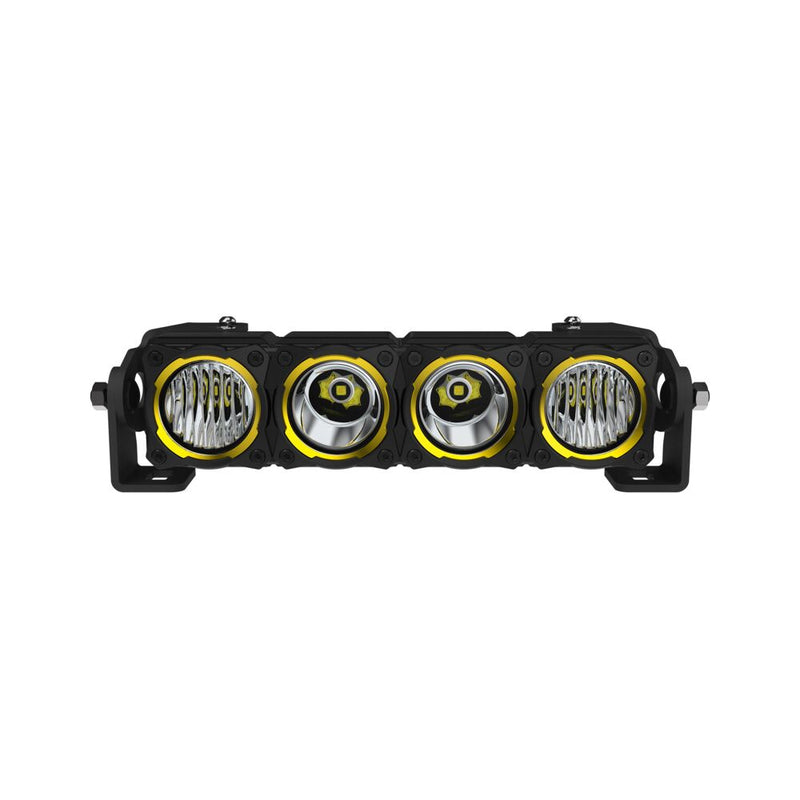

The FLEX ERA LED Light Bar Master Kit brings the FLEX ERA look to a bar built from linked 10" segments, offered from 10" to 50". Each kit arrives set to combo with a spare spot lens, a KC cover, and wiring with a dual-throw LED switch. Output scales with length, from 7,912 lm on the 10" bar to 39,560 lm on the 50".
Features
Combo and spot lenses
Combo beam is installed, and a spot lens is included for longer reach.
Two power modes
An amber backlight mode for style and a full-power mode for the most light.
Wiring and switch included
Every kit includes a plug-and-play harness with a dual-throw LED switch.

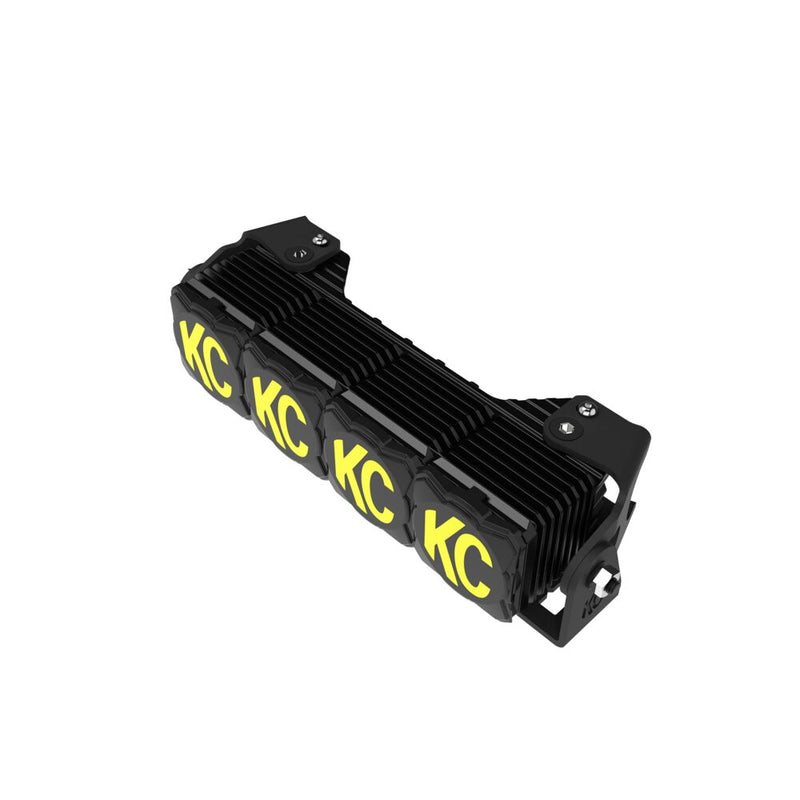

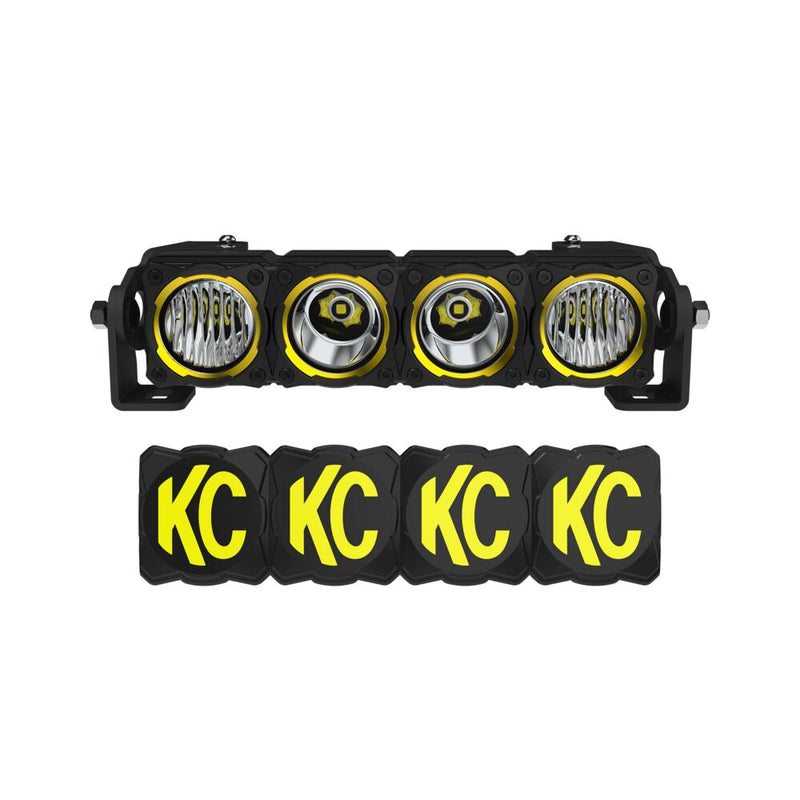

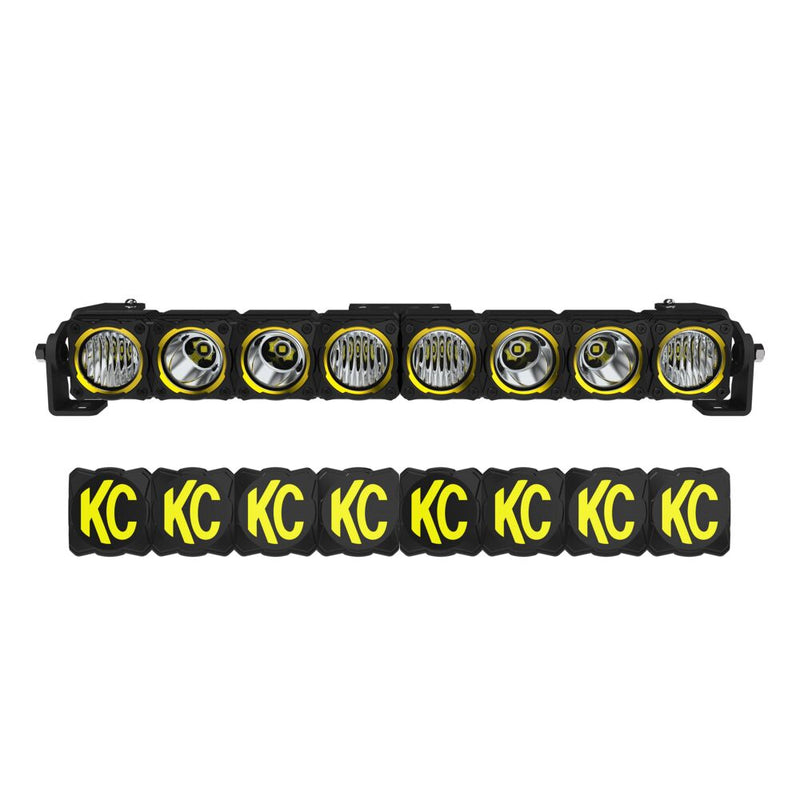

KC light cover included
A black KC cover with yellow logo protects the lens when the bar is off.

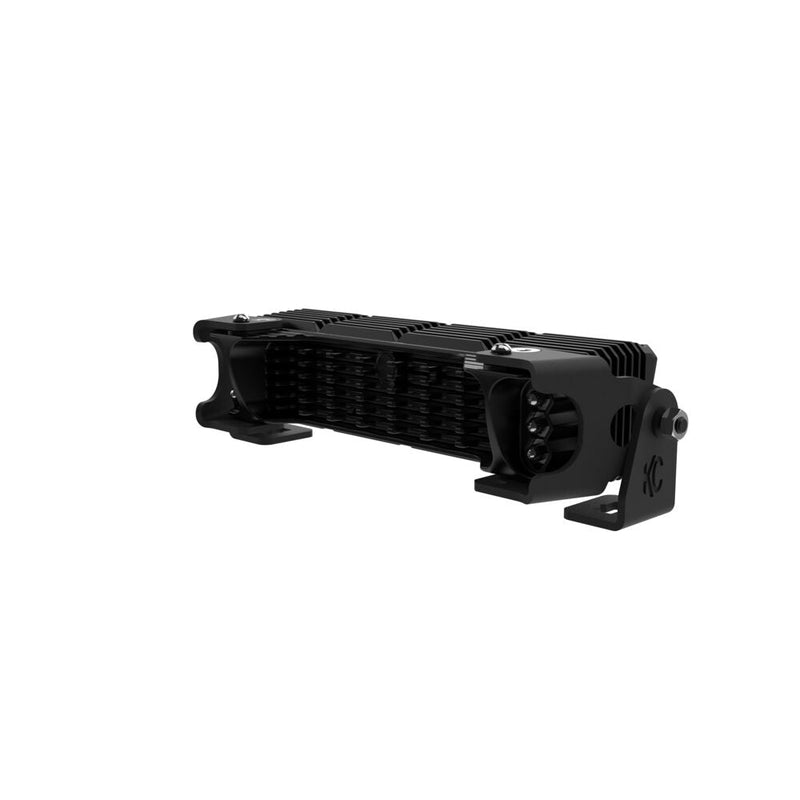

Aluminum, IP68 sealed
An aluminum alloy housing sealed to IP68 for dust and water.
Specifications
-
Brand: KC HiLiTES
-
Series: FLEX ERA LED Light Bar
-
Beam patterns: Combo (installed), spot lens included
-
Voltage: 9 V to 36 V
-
Color temperature: 5,000 K
-
LED color: White with amber backlight
-
Housing: Black aluminum alloy
-
Ingress rating: IP68
-
Mount location: Bumper, overhead, roof
-
Warranty: 5-year limited warranty
-
Part numbers: 0292, 0291, 0293, 0294, 0295
Options
| Length |
Wattage |
Lumens |
Candela |
Beam distance |
Amp draw |
KC part number |
| 20" |
24 W / 216 W (amber backlight / full power) |
15,824 lm |
322,000 cd / 360,000 cd (combo / spot) |
567 m / 600 m (combo / spot) |
2.0 A / 18.0 A (amber / white) |
0292 |
| 10" |
12 W / 108 W (amber backlight / full power) |
7,912 lm |
161,000 cd / 180,000 cd (combo / spot) |
401 m / 424 m (combo / spot) |
1.0 A / 9.0 A (amber / white) |
0291 |
| 30" |
36 W / 324 W (amber backlight / full power) |
23,736 lm |
483,000 cd / 540,000 cd (combo / spot) |
695 m / 735 m (combo / spot) |
3.0 A / 27.0 A (amber / white) |
0293 |
| 40" |
48 W / 432 W (amber backlight / full power) |
31,648 lm |
644,000 cd / 720,000 cd (combo / spot) |
802 m / 849 m (combo / spot) |
4.0 A / 36.0 A (amber / white) |
0294 |
| 50" |
60 W / 540 W (amber backlight / full power) |
39,560 lm |
805,000 cd / 900,000 cd (combo / spot) |
897 m / 949 m (combo / spot) |
|
0295 |

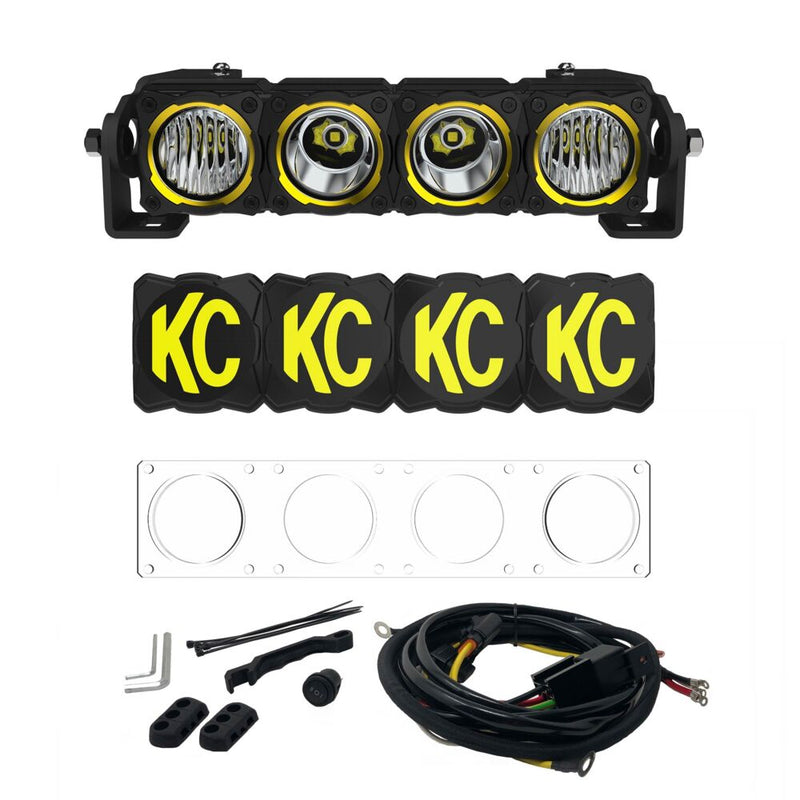

In the box
| Option |
Contents |
| 20" (part 0292) |
1 20" FLEX ERA LED light bar; 1 combo beam lens (pre-installed); 1 spot beam lens; 1 light cover; 1 plug-and-play wiring harness with dual-throw LED switch |
| 10" (part 0291) |
1 10" FLEX ERA LED light bar; 1 combo beam lens (pre-installed); 1 spot beam lens; 1 light cover; 1 plug-and-play wiring harness with dual-throw LED switch |
| 30" (part 0293) |
1 30" FLEX ERA LED light bar; 1 combo beam lens (pre-installed); 1 spot beam lens; 1 light cover; 1 plug-and-play wiring harness with dual-throw LED switch |
| 40" (part 0294) |
1 40" FLEX ERA LED light bar; 1 combo beam lens (pre-installed); 1 spot beam lens; 1 light cover; 1 plug-and-play wiring harness with dual-throw LED switch |
| 50" (part 0295) |
1 50" FLEX ERA LED light bar; 1 combo beam lens (pre-installed); 1 spot beam lens; 1 light cover; 1 plug-and-play wiring harness with dual-throw LED switch |
Installation

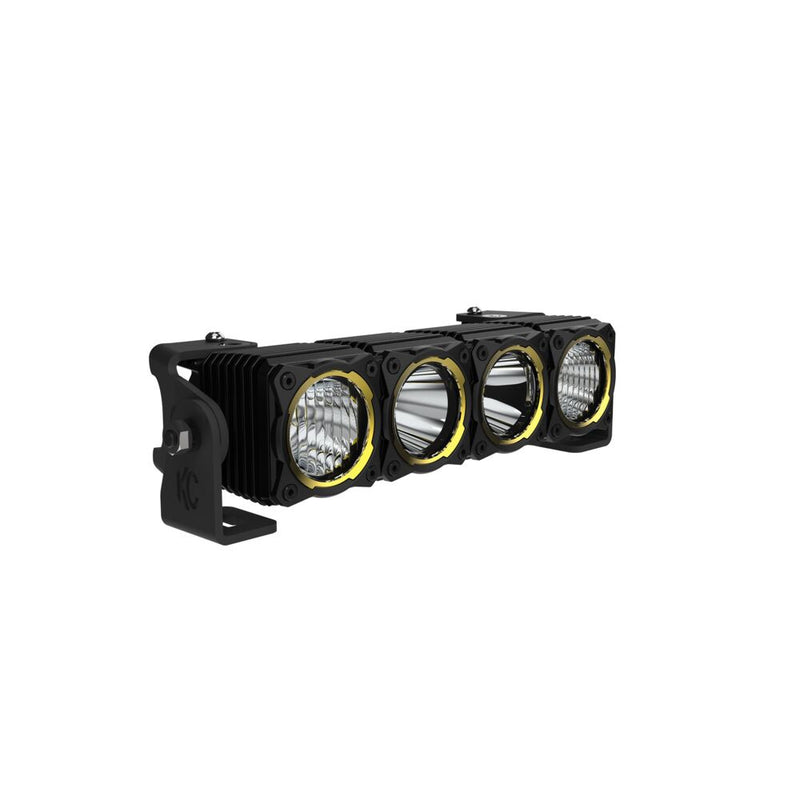

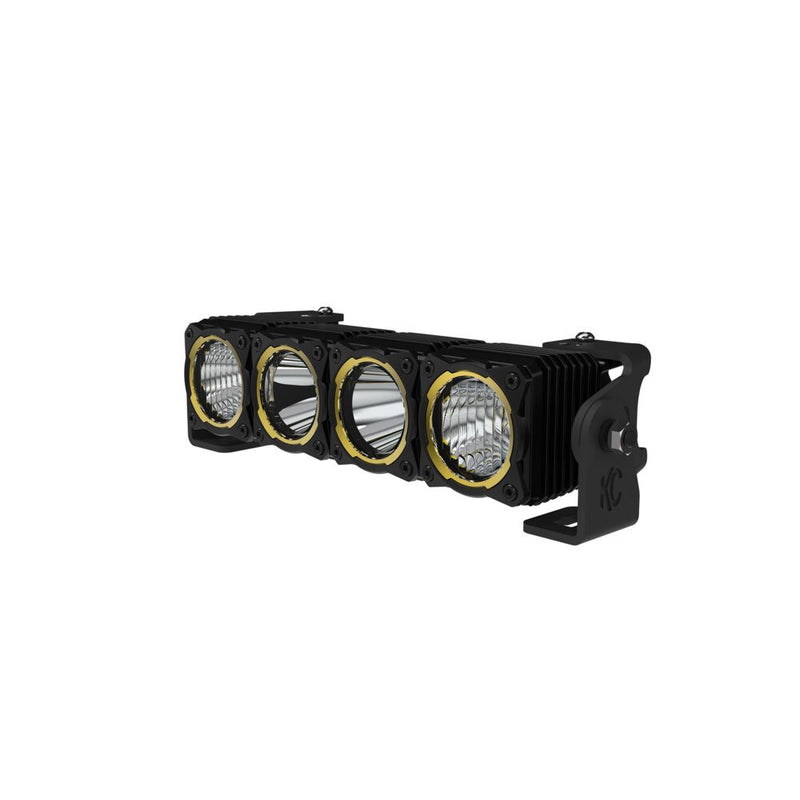

Type: LED light bar · Install: Bracket mount, plug-and-play harness · Tools: Basic hand tools

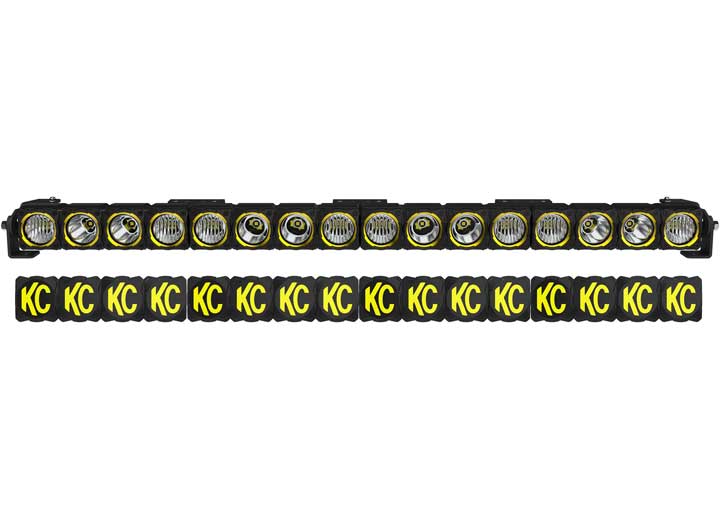

The bar mounts at the bumper, roof or overhead position. Every length includes a plug-and-play wiring harness with a dual-throw LED switch. Longer bars are built from linked 10" segments, and KC sells a 10" add-a-light kit to extend a bar.
KC's installation instructions for this part are linked under Resources. Read them fully before starting.
Resources
Warranty, Shipping & Returns
Warranty. 5-year limited warranty from KC HiLiTES. Shipping. Most KC parts ship by parcel carrier; roof racks and long light bars ship in oversize cartons. The ship method is set by the carton size and weight when the order is placed.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About KC HiLiTES
KC HiLiTES has been building off-road lights since 1970, a company story that began with a missed turn to a campsite in the middle of the night. Based in Williams, Arizona, KC takes features engineered for off-road racing and designs them into lights for drivers who head down the paths less traveled.
Today the KC line runs from the classic round Daylighter to LED families such as FLEX ERA, Gravity Pro6, Gravity Titan, SlimLite and Cyclone V2, many built around KC's patented Gravity Reflective Diode optics. Covers, shields, bezels, wiring kits and vehicle-specific mounts let you build a complete lighting setup for a Jeep, truck, SUV or UTV.
