This kit fits a 45" Pro6 combo bar with seven lights to the front bumper of GEN4 and GEN5 Ford Super Duty trucks from 2017 on. Two bumper bracket mounts carry the bar, and the lights reach 704 m with 17,556 lm combined. Covers, a harness and an illuminated switch come in the box.
Features
GEN4-5 Super Duty mounts
Two bumper bracket mounts made for 2017-2024 F-250 to F-550 Super Duty trucks.
45" 7-light Pro6 bar
17,556 lm combined with a 704 m combo beam.
Infinity Ring linking
Pro6 rings link into a bar that can be set straight or curved.
Wiring and switch included
A plug-and-play harness with an illuminated LED switch is included.
KC covers included
A black KC cover with yellow logo for every light.
Fitment & Compatibility
Ford
| Years |
Model |
Notes |
| 2017-2024 |
F-250 Super Duty |
Front bumper 7-light kit (7356 mount); requires trimming OEM tow-hook covers |
| 2017-2024 |
F-350 Super Duty |
Front bumper 7-light kit (7356 mount); requires trimming OEM tow-hook covers |
| 2017-2024 |
F-450 Super Duty |
Front bumper 7-light kit (7356 mount); requires trimming OEM tow-hook covers |
| 2017-2024 |
F-550 Super Duty |
Front bumper 7-light kit (7356 mount); requires trimming OEM tow-hook covers |
Fit guidance: Fits: 2017-2024 Ford Super Duty F-250/F-350/F-450/F-550, with the qualifiers shown. Check your vehicle against these notes before ordering.
Specifications
-
Brand: KC HiLiTES
-
Light bar: 45" Gravity Pro6, 7 lights
-
Beam pattern: Combo
-
Wattage per light: 21.36 W
-
Lumens per light: 2,508 lm
-
Beam distance: 704 m
-
Voltage: 9 V to 36 V
-
Housing: Black aluminum alloy
-
Ingress rating: IP68
-
Bar dimensions: 45.625" W x 6.06" H x 3.33" D
-
Total lumens: 17,556 lm
-
Warranty: 5-year limited warranty
-
Shipping weight: 24 lb
-
Part number: 91346
In the box
| 1 45" 7-light Gravity Pro6 LED light bar |

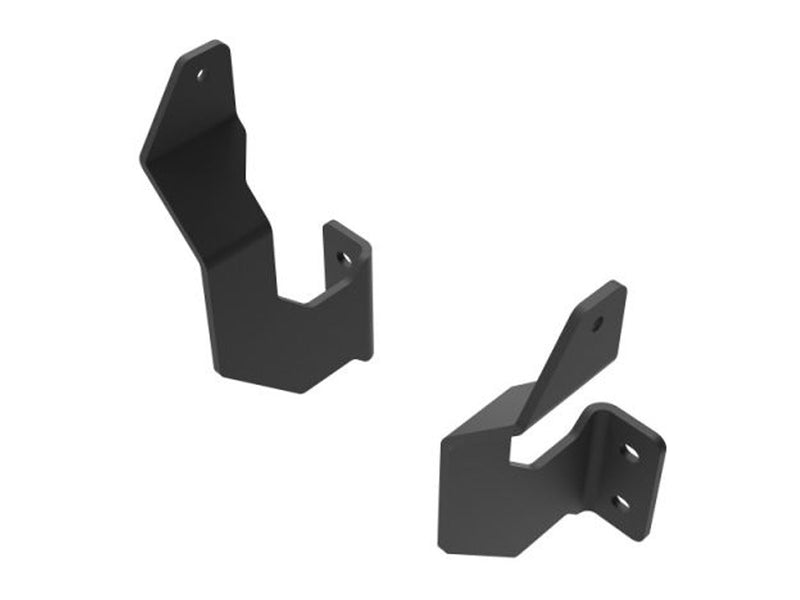

| 2 bumper bracket mounts |
| 7 KC Pro6 light covers |
| 1 plug-and-play wiring harness |
| 1 illuminated LED light switch |
Installation
Type: Bumper light bar kit · Install: Bolt-on bumper brackets, plug-and-play harness · Tools: Basic hand tools, trim tools
The two bumper bracket mounts hold the 45" Pro6 bar on the front bumper of 2017-2024 Super Duty trucks, and the plug-and-play harness with illuminated switch powers it. The OEM tow-hook covers must be trimmed.
Resources
An installation guide for this part number is not available to download. Our team can answer installation questions before you order; contact us with the part number.
Warranty, Shipping & Returns
Warranty. 5-year limited warranty from KC HiLiTES. Shipping. Most KC parts ship by parcel carrier; roof racks and long light bars ship in oversize cartons. The ship method is set by the carton size and weight when the order is placed.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About KC HiLiTES
KC HiLiTES has been building off-road lights since 1970, a company story that began with a missed turn to a campsite in the middle of the night. Based in Williams, Arizona, KC takes features engineered for off-road racing and designs them into lights for drivers who head down the paths less traveled.
Today the KC line runs from the classic round Daylighter to LED families such as FLEX ERA, Gravity Pro6, Gravity Titan, SlimLite and Cyclone V2, many built around KC's patented Gravity Reflective Diode optics. Covers, shields, bezels, wiring kits and vehicle-specific mounts let you build a complete lighting setup for a Jeep, truck, SUV or UTV.
