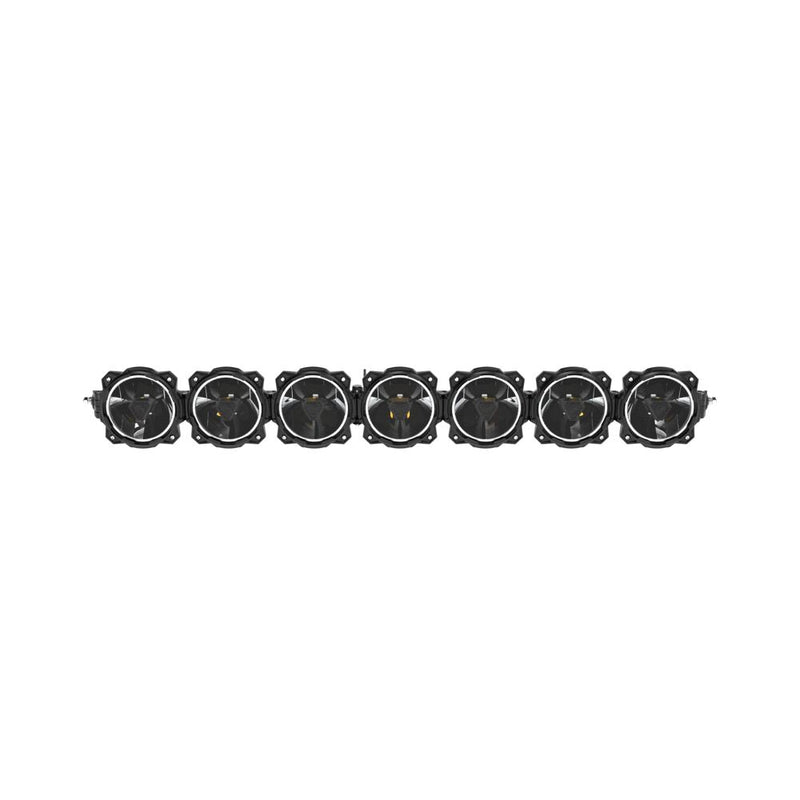

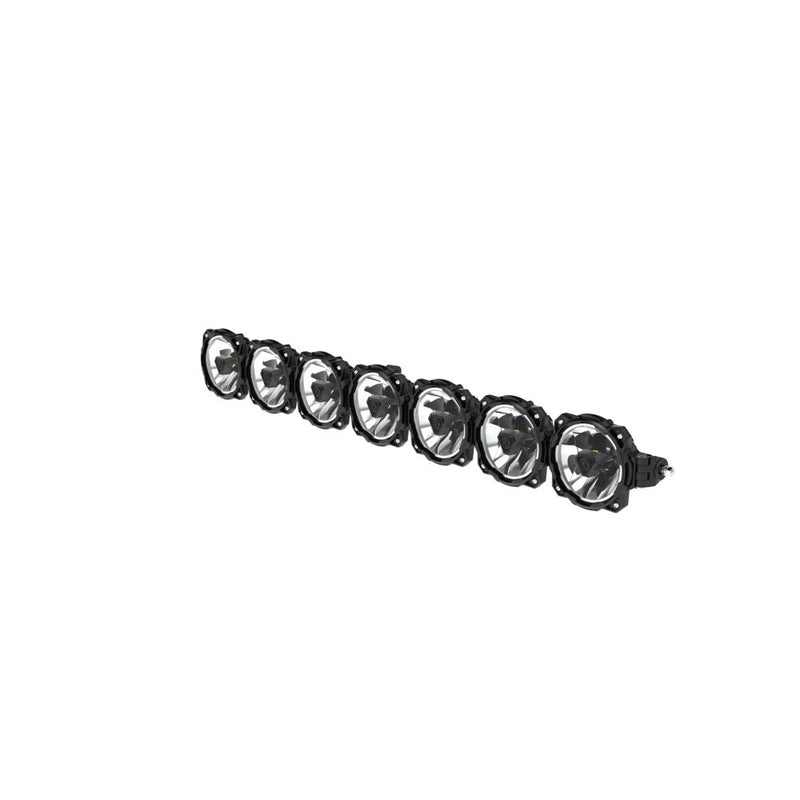

This pre-built 45" Gravity Titan bar is set up for Ford Super Duty bumpers, with a special bumpstop that matches KC's 7355 and 7356 bumper light bar brackets. Seven Titan lights run 3-source LED optics, and an integrated amber mode lets others see you in dust. Brackets are sold separately.
Features
Bumpstop matched to brackets
A special bumpstop matches KC 7355 (2011-2016) or 7356 (2017 on) bumper light bar mounts.
Titan core optics
3-source LED optics cover short, mid and long range.
Amber LED dust light
An amber mode acts as a marker light in low visibility.
Sealed MoistureBlock wiring plug
An integrated plug in the housing keeps water out.
Pass-through front cooling
Patented cooling keeps output steady in high heat.
Fitment & Compatibility
Ford
| Years |
Model |
Notes |
| 2011-2016 |
F-250 Super Duty |
45" Titan bar only; needs bracket 7355 (sold separately) |
| 2011-2016 |
F-350 Super Duty |
45" Titan bar only; needs bracket 7355 (sold separately) |
| 2011-2016 |
F-450 Super Duty |
45" Titan bar only; needs bracket 7355 (sold separately) |
| 2011-2016 |
F-550 Super Duty |
45" Titan bar only; needs bracket 7355 (sold separately) |
| 2017-2024 |
F-250 Super Duty |
45" Titan bar only; needs bracket 7356 (sold separately); tow-hook cover trimming |
| 2017-2024 |
F-350 Super Duty |
45" Titan bar only; needs bracket 7356 (sold separately); tow-hook cover trimming |
| 2017-2024 |
F-450 Super Duty |
45" Titan bar only; needs bracket 7356 (sold separately); tow-hook cover trimming |
| 2017-2024 |
F-550 Super Duty |
45" Titan bar only; needs bracket 7356 (sold separately); tow-hook cover trimming |
Fit guidance: Fits: 2011-2024 Ford Super Duty (bracket sold separately), with the qualifiers shown. Check your vehicle against these notes before ordering.
Specifications
-
Brand: KC HiLiTES
-
Light bar: 45" Gravity Titan, 7 lights
-
Beam pattern: Combo
-
Lumens per light: 2,972 lm
-
Wattage per light: 39.48 W white / 11.2 W amber
-
Amp draw per light: 3.29 A white / 0.93 A amber
-
Beam distance: 936 m
-
Voltage: 9 V to 36 V
-
Ingress rating: IP68
-
Mounting brackets: Not included; designed for KC 7355 (2011-2016) or 7356 (2017 on)
-
Warranty: 5-year limited warranty
-
Shipping weight: 35 lb
-
Mount location: Bumper
-
Part number: 91421
In the box

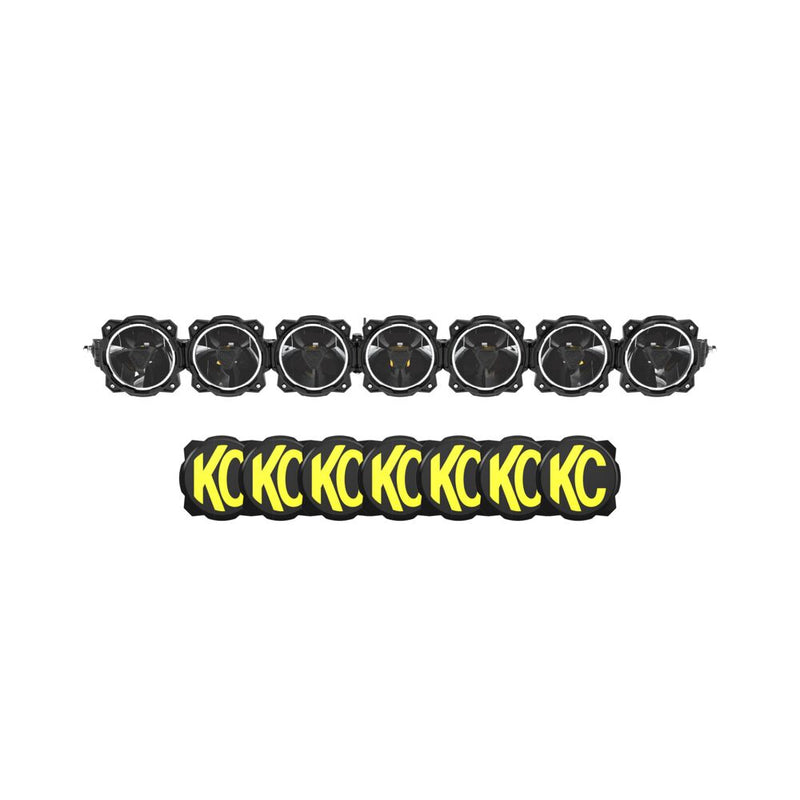

| 1 45" Gravity Titan LED light bar (7 lights) |

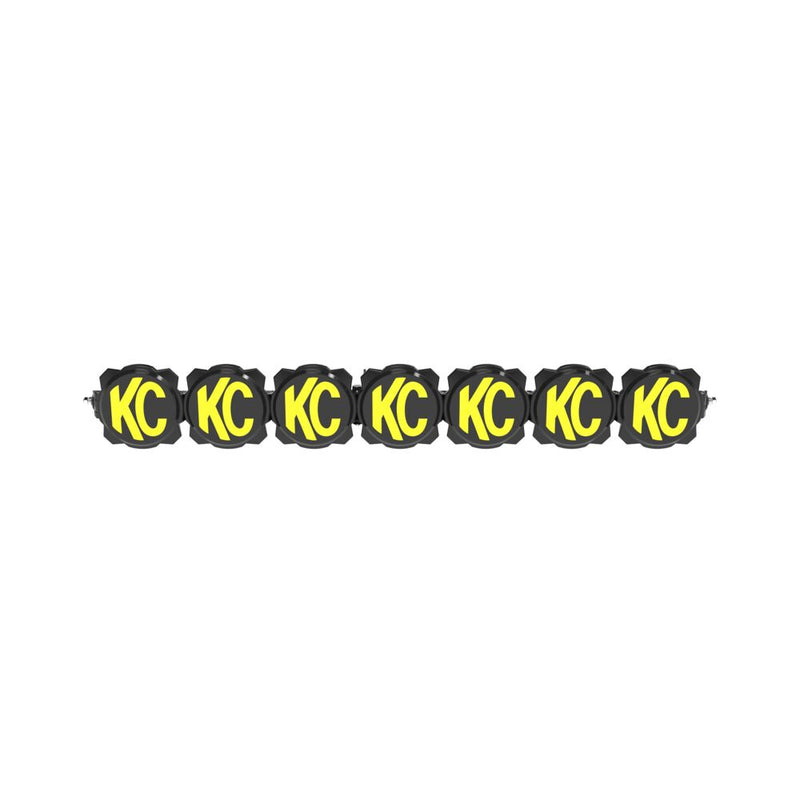

| 7 Gravity 6" light covers, black with yellow KC logo |
| 1 Gravity Titan 7-light daisy-chain back harness |
| 1 complete plug-and-play wiring harness with 3-position switch |
| 1 cover removal tool |
| 1 center support bracket |
| 1 bumpstop |
| 1 3/8-16 nylon lock nut |
| 7 R-type cable clamps |
| 7 M4-0.7x6 mm Phillips screws |
Installation
Type: Bumper light bar · Install: On KC 7355 (2011-2016) or 7356 (2017 on) mounts (sold separately) · Tools: Basic hand tools
The pre-built bar and bumpstop are designed for KC 7355 (2011-2016) or 7356 (2017 on) bumper light bar mounts, which are sold separately. The daisy-chain back harness links the lights and the plug-and-play harness with 3-position switch powers the bar.
Resources
An installation guide for this part number is not available to download. Our team can answer installation questions before you order; contact us with the part number.
Warranty, Shipping & Returns
Warranty. 5-year limited warranty from KC HiLiTES. Shipping. Most KC parts ship by parcel carrier; roof racks and long light bars ship in oversize cartons. The ship method is set by the carton size and weight when the order is placed.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About KC HiLiTES
KC HiLiTES has been building off-road lights since 1970, a company story that began with a missed turn to a campsite in the middle of the night. Based in Williams, Arizona, KC takes features engineered for off-road racing and designs them into lights for drivers who head down the paths less traveled.
Today the KC line runs from the classic round Daylighter to LED families such as FLEX ERA, Gravity Pro6, Gravity Titan, SlimLite and Cyclone V2, many built around KC's patented Gravity Reflective Diode optics. Covers, shields, bezels, wiring kits and vehicle-specific mounts let you build a complete lighting setup for a Jeep, truck, SUV or UTV.
