The latest SlimLite 6" keeps the classic round shape in an ultra-slim 2.7" deep housing, now making 7,100 lm per light. Ten Cree XD-16 LEDs and reflectors give a spot beam with fill light for short and mid range. The master kit adds a clear SAE driving shield for road use and a dimmed mode that drops output to 20%.
Features
7,100 lm per light
High mode delivers 7,100 lm and a spot beam that reaches 741 m.
SAE driving shield included
A clear snap-on SAE driving shield sets up a street-legal driving beam.
Dimmed mode at 20%
Drops brightness to 20% for road driving and group trail rides.
MoistureBlock 3-pin plug
An integrated plug in the housing keeps water out.

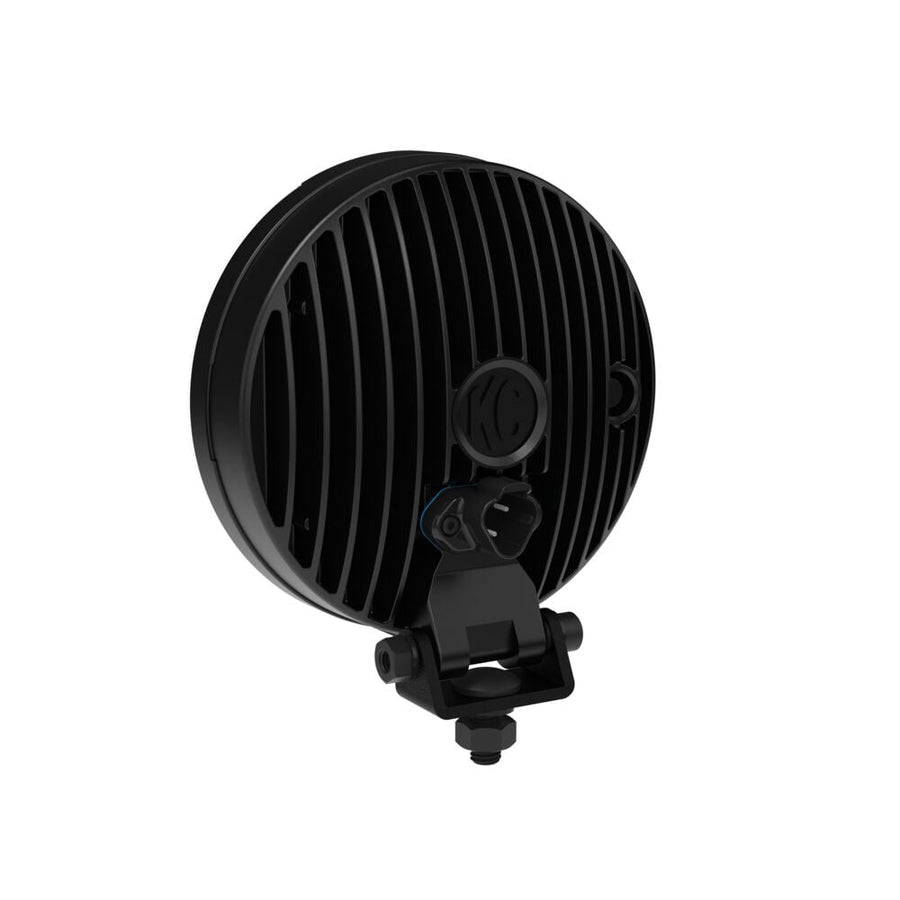

Slim 2.7" housing
Aluminum housing with a shatter-resistant polycarbonate lens, ideal for A-pillars and bumpers.
Adjustable universal mounts
Mounts to most bolt holes with vertical and horizontal aiming.
Specifications
-
Brand: KC HiLiTES
-
Series: SlimLite
-
Light size: 6" round
-
LED source: 10 Cree XD-16 LEDs
-
Beam pattern: Spot with fill (SAE driving with shield)
-
Lumens per light: 7,100 lm high / 1,420 lm dimmed
-
Wattage per light: 76.44 W high / 15.29 W dimmed
-
Candela per light: 549,500 cd high / 109,900 cd dimmed
-
Beam distance per light: 741 m high / 332 m dimmed
-
Amp draw per light: 6.37 A high / 1.27 A dimmed
-
Voltage: 9 V to 36 V
-
Dimensions per light: 6.22" W x 6.79" H x 2.88" D
-
Housing: Black aluminum alloy
-
Ingress rating: IP67
-
Compliance: ECE R112 driving (with SAE driving shield)
-
Road use: With the included clear SAE driving shield fitted, the output is street legal.
-
Lens color: Clear
-
Mount location: A-pillar/ditch, bumper and overhead
-
Color temperature: 5,000 K
-
Part numbers: 0106, 1106
Options
| Kit |
Quantity |
Wiring harness |
KC part number |
| Pair (2-light system) |
2 lights |
Complete wiring kit with 3-position switch included |
0106 |
| Single light |
1 light |
Not included |
1106 |

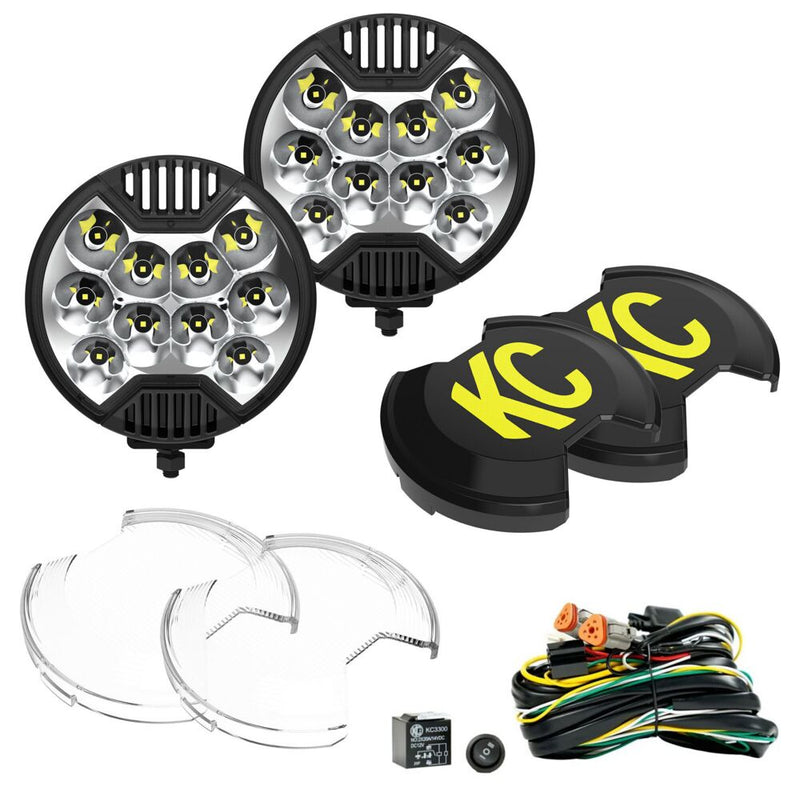

In the box
| Option |
Contents |
| Pair (2-light system) (part 0106) |
2 SlimLite 6" LED lights; 2 light covers, black with yellow KC logo; 2 shields, SAE driving beam; 1 complete wiring kit with 3-position switch |
| Single light (part 1106) |
1 SlimLite 6" LED light; 1 light cover, black with yellow KC logo; 1 shield, SAE driving beam |
Installation
Type: 6" round auxiliary light · Install: Universal adjustable mount, 12 V wiring · Tools: Basic hand tools
Universal adjustable mounts fit most bolt hole locations and aim vertically and horizontally. The single light does not include a wiring harness. The 2-light kit includes a complete wiring kit with 3-position switch, and the previous SlimLite harness is not compatible with this version.
