LEER SR250 Soft Roll-Up Tonneau Cover for 2007-2013 Chevrolet Silverado 1500 / GMC Sierra 1500 (6'7" Bed, GM 6'6" Standard Box)
Free gift included with your order
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck

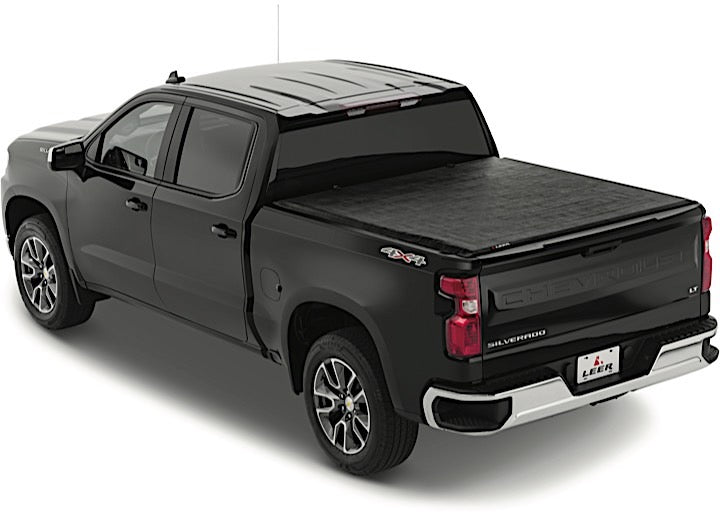

See it on a truck
Rolls up for full access
No-drill clamp-in rails
Commercial-grade vinyl
Features
- Rolls up for full access: Release the cover, roll it up to the cab and strap it there, and the whole bed opens for tall or bulky loads. Unroll it again once the cargo is loaded. If you drive with the cover rolled up, LEER's manual says the tie-down straps must stay fastened.
- No-drill clamp-in rails: The left and right rails clamp inside the bed, so nothing gets drilled. A bulkhead seal goes across the front of the bed and rail seals run along the sides, and LEER describes the cover as easy to install and to remove.
- Commercial-grade vinyl: The skin is a reinforced, commercial-grade vinyl that LEER double-coats. Wash it with mild soap and water only: LEER warns that abrasive pads and harsh cleaners can dull the finish, and that chemicals can damage the vinyl and seals.

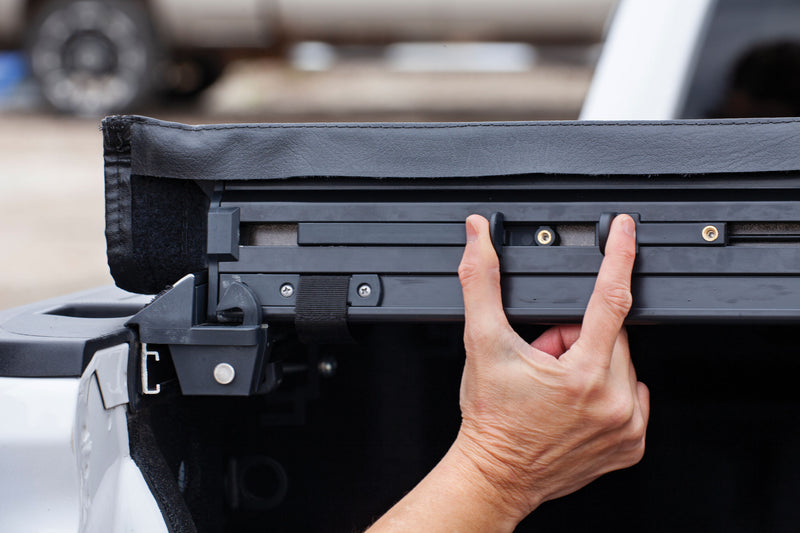

- Two-finger CYNC latch: LEER calls its patented CYNC latch an industry exclusive. A two-finger pinch releases the cover, and you can do it from either side of the bed, so you can open it from whichever side you are standing on.
- Simple tension adjustment: If the vinyl starts to sag, slide the cover along the teeth on the rails: toward the cab tightens it, toward the tailgate loosens it. LEER builds the adjustment in to keep the cover from sagging.
- Built-in aluminum bows: Aluminum bows built into the cover hold the vinyl up across the bed and give the cover its structure. LEER pairs them with a low-profile shape it describes as aerodynamic.
Description & Fitment
Made for the 2007-2013 Chevrolet Silverado 1500 and 2007-2013 GMC Sierra 1500 with the 6'7" bed, part 610159 is LEER's SR250 soft roll-up cover. Two fingers on the CYNC latch let the cover go, from either side of the bed. LEER's limited lifetime warranty stays with it while the first owner keeps it on the first truck. GM's own name for this 6'7" bed is the 6'6" Standard Box. For 2007, only the New Body (GMT900) trucks qualify, not the 2007 Classic.
Fitment & Compatibility
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2013 | Silverado 1500 | 6'7" | 2007 New Body (GMT900) only, not 2007 Classic |
| Years | Model | Bed | Notes |
|---|---|---|---|
| 2007-2013 | Sierra 1500 | 6'7" | 2007 New Body (GMT900) only, not 2007 Classic |
Check your fit: this cover fits 2007-2013 Chevrolet Silverado 1500 and 2007-2013 GMC Sierra 1500 with the 6'7" bed (GM 6'6" Standard Box), 2007 New Body (GMT900) only, not 2007 Classic. Measure the bed floor from the front wall to the inside of the closed tailgate and match it to the 6'7" bed before you order.
Not for: other beds or generations of this truck, which LEER covers with separate SR250 parts: 610300 (2019-2025 Chevrolet Silverado 1500, 2022 Chevrolet Silverado 1500 LTD, 2019-2025 GMC Sierra 1500 and 2022 GMC Sierra 1500 Limited, 5'10" bed); 610301 (2019-2025 Chevrolet Silverado 1500, 2022 Chevrolet Silverado 1500 LTD and 2019-2025 GMC Sierra 1500, 6'7" bed); 610120 (2014-2018 Chevrolet Silverado 1500 and 2014-2018 GMC Sierra 1500, 5'9" bed); 610123 (2007-2013 Chevrolet Silverado 1500 and 2007-2013 GMC Sierra 1500, 5'9" bed); 610170 (2014-2018 Chevrolet Silverado 1500, 2019 Chevrolet Silverado 1500 LD, 2015-2019 Chevrolet Silverado 2500 HD/Silverado 3500 HD, 2014-2018 GMC Sierra 1500 and 2015-2019 GMC Sierra 2500 HD, 6'7" bed); the 2007 Classic body (for 2007, only the New Body GMT900 trucks).
About LEER
Based in Elkhart, Indiana, LEER builds truck caps and tonneau covers. LEER backs them with its own limited warranty; for any claim, contact us and we handle it with LEER.
In the LEER tonneau line, the SR250 is the soft roll-up cover, alongside the Latitude soft folding cover and the HF350M and HF650M hard folding covers.
Buying LEER from Prestige Truck. Keep your Prestige Truck order email with your records: LEER asks for the original sales receipt as proof of purchase on an SR250 claim. For registration, replacement parts or a claim, contact us with your order number and we will work with LEER for you.
Frequently Asked Questions
Which trucks does part 610159 fit?
Part 610159 fits 2007-2013 Chevrolet Silverado 1500 and 2007-2013 GMC Sierra 1500 with the 6'7" bed (GM 6'6" Standard Box), 2007 New Body (GMT900) only, not 2007 Classic. Check the bed length before you order.
Does it fit a 2007 Silverado or Sierra?
Only the 2007 New Body (GMT900) trucks. The 2007 Classic body is not covered by part 610159.
Is the SR250 waterproof?
LEER describes the unrolled cover as a sealed bed cover, with a bulkhead seal at the cab and seals along both rails. It is not sold as waterproof, so wrap anything that must stay completely dry.
Do I have to drill the bed rails to fit it?
No. The SR250 side rails clamp in with no drilling. The hardware package has 6 clamp assemblies, 2 front crossbar hold-downs and the 2.5mm, 5mm and 6mm Allen wrenches.
Can I drive with the cover rolled up?
Yes, as long as the tie-down straps are fastened, which LEER's manual calls for. Check that the clamps are tight before every trip too: LEER's warranty does not cover a cover that comes off the truck.
How do I keep the vinyl in good shape?
Wash it with mild soap and water. LEER says abrasive pads and harsh cleaners can dull the finish, and chemicals or harsh fluids can damage the vinyl and seals and void the warranty.
Installation
- 2.5mm Allen wrench
- 5mm Allen wrench
- 6mm Allen wrench
Here's the short version. Follow LEER's install sheet (below) for the exact positions and hardware.
- Wash the truck bed if it is dirty, then set the left-hand rail in place with its notch flush and install the right-hand rail the same way.
- Place a clamp at each of the three marked locations inside the bed channel and the rail, and hand-tighten the lower screw until it makes contact.
- Tighten the clamp screws with the 5mm Allen wrench; the lower screws may then be removed and kept for later adjustment. Repeat on the right-hand side.
- Install the bulkhead seal on the truck's front bulkhead.
- Set the front crossbar bolts into the rail slots, line the cover assembly up on the fourth tooth with the front shield pulled out, and repeat on the opposite side.
- Fold the cover down to engage the CYNC latches, remove the clips and roll the cover down; if needed, adjust tautness by moving over the teeth toward the front (tighter) or the tailgate (looser).
Stuck on a step?
Specifications
| Brand | LEER |
|---|---|
| Part Number | 610159 |
| Series | LEER SR250 |
| Cover style | Soft roll-up tonneau cover |
| Cover material | Reinforced commercial-grade vinyl, double-coated |
| Support | Built-in aluminum bows |
| Latch | CYNC latch, two-finger release from either side of the bed |
| Tension adjustment | Move the cover along the rail teeth (toward the cab to tighten) |
| Seals | Bulkhead seal and rail seals |
| Mounting | Clamp-in side rails, no drilling |
| Profile | Low profile |
| In the box | Soft cover assembly, left and right rails, bulkhead seal, hardware package |
| Hardware package | 6 clamp assemblies, 2 front crossbar hold-downs, 2.5mm, 5mm and 6mm Allen wrenches |
| Bed length | 6'7" (GM 6'6" Standard Box) |
| Fit note | 2007 New Body (GMT900) only, not 2007 Classic |
| UPC | 812227029357 |
Warranty, shipping & returns
-
Warranty
The SR250 carries LEER's Limited Lifetime Warranty: LEER promises the cover is free of material and workmanship defects, and the coverage lasts as long as the original purchaser keeps it on the original truck.- Who and where: the original retail purchaser only, on the original owner's truck. The warranty is not transferable.
- Conditions: the cover must be properly installed and not modified, and LEER asks for the original sales receipt as proof of purchase.
- Remedy: LEER repairs or replaces a cover that proves defective, at its sole discretion.
- Not covered: damage caused by accidents, neglect or abuse, by inappropriate use or a faulty install, or by acts of God; a cover lost off the truck to wind or while driving (checking the clamps before you drive is the owner's job); paint damage to the truck; damage from careless unpacking, such as opening the carton with a box cutter; use outside the cover's specifications or intended application; installing or operating it against the manual; and consequential damage, including to cargo or the truck bed.
- Shipping damage: LEER excludes damage caused by a parcel carrier in transit, so tell us right away and we will file the claim with the carrier.
- Care: clean with mild soap and water only. LEER says chemicals and harsh fluids can damage the vinyl and seals and void the warranty.
- Registration: LEER's manual says the cover must be registered for the warranty to be valid. Contact us and we will help you register it.
- To start a claim, contact us with your order number and photos and we will take it up with LEER for you.
-
Free shipping
Ships free to the lower 48 states, with no minimum order.- Order by 5 PM ET on a business day and it starts processing the same day.
- Most orders arrive within 1-5 business days.
- We email your tracking number as soon as it ships.
-
Inspect on delivery
Open the carton without a blade, then check the cover, both rails, the bulkhead seal and the hardware package against the parts list in LEER's manual before you start. Check it as soon as it arrives.- Look for crushed ends, punctures or tears in the carton.
- If something looks wrong, take photos of the box and the parts (and if a driver asks you to sign, note the damage on the receipt).
- Open the box and check the parts against the parts list before you install.
- Email support@prestigetruck.com right away with your order number, a short note and photos. We send a replacement or a full refund at no cost to you.
-
30-day returns
Return it within 30 days of delivery, unused, in the original packaging, with proof of purchase.- Email support@prestigetruck.com with your order number. We reply within 1-2 business days with instructions.
- Damaged, defective or wrong item: we send a prepaid label or arrange a pickup.
- Changed your mind: you pay return shipping. No restocking fee.
- Refunds go back to your original payment method within 7 business days of approval. See our returns policy.
