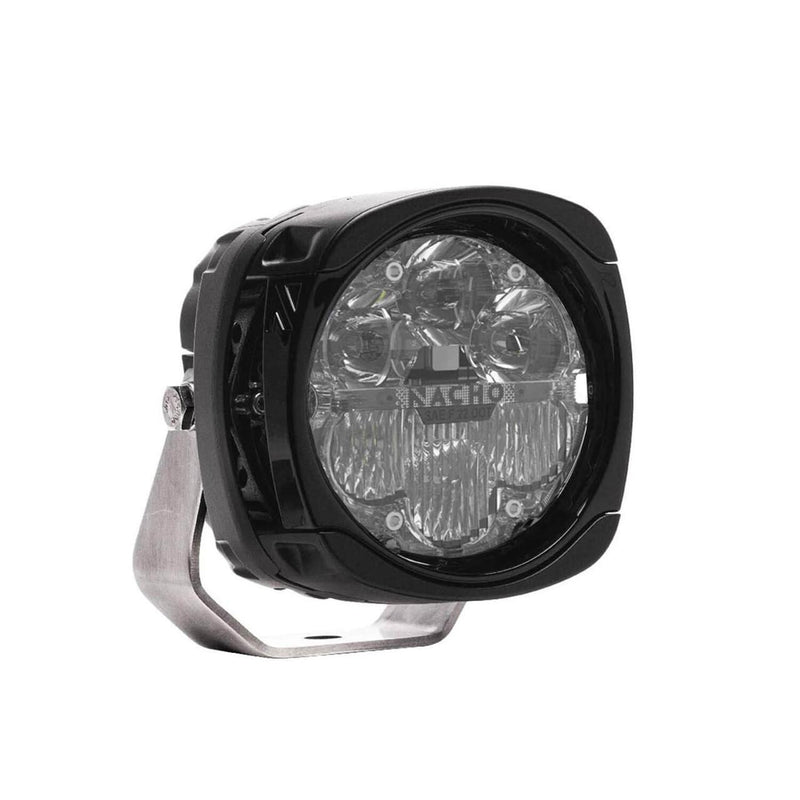

The NACHO Quatro packs an unusual amount of technology into a 4" pod. This is the sae combo white set, supplied as a pair, producing 12,040 raw lumens and 9,176 effective lumens across the pair and reaching 335 m (1,099 ft) at 1 lux.
The SAE variant is the one to look at if road legality matters: it runs an SAE J583 compliant fog beam alongside a spot pattern, so one light can be a legal fog lamp and an off-road spot depending on which mode you select. The body is powder-coated aluminum with a pressure equalizing vent, the lens is polycarbonate, and NACHO rates the light to IP68 and to SAE J575 for vibration.
Each light weighs 1.2 lb and draws up to 60 W at maximum in any mode.
What's Included:
Two NACHO Quatro LED lights
Stainless steel universal mount brackets with chrome plated hardware
Features
SAE J583 Compliant Fog Beam Mode one gives you an SAE J583 compliant fog beam, which is the standard that governs front fog lamps in the US. Mode two adds a spot pattern on top. One light, two jobs, one of them road legal.
SAE fog and spot combo Optics Three built-in modes: an SAE J583 compliant fog beam, a spot pattern, and the two together. One light that is legal as a fog lamp and useful as an off-road spot.
Pressure Equalizing Vent The vent lets the light breathe as it heats and cools, which stops the internal vacuum that pulls moisture past seals. It is the detail that separates a light that stays clear from one that fogs internally after a season.
IP68 And J575 Vibration Rated IP68 for dust and water ingress, and SAE J575 for vibration. The second one is what matters when a light is bolted to a bumper over corrugations at speed.
Powder Coated Aluminum Heat Sink An aluminum heat sink with a polycarbonate lens for impact protection, which is the right combination: metal where you need thermal conductivity and polycarbonate where you need something that takes a stone.
Stainless Universal Mount A stainless steel universal mount bracket with chrome plated hardware, so the mounting solution is in the box and corrosion resistant from the start.
Fitment & Compatibility
Application
Fit
Any bumper, bar or rack with room for a 4" pod
✓ Fits, universal stainless bracket supplied
NACHO 40 amp vehicle harness NAC11N
● Recommended, includes switches and supports the Quatro Trail Running Light circuit
NACHO Quatro flush mount kit NAC13U
● Compatible, for recessed installations
ARB BASE Rack via adaptor kit 1780860
● Compatible, adaptor sold separately
12 V vehicles
✓ Fits, 10 V to 16 V input
Fit guidance: A universal-mount auxiliary light rather than a vehicle-specific part. Note the published figures are for the PAIR at maximum output: 12,040 raw and 9,176 effective lumens, 335 m at 1 lux. The 1.2 lb weight is per light. The SAE J583 fog mode is the road-legal one; check your local rules on the other modes.
Specifications
Model: NACHO Quatro 4", SAE Combo White
Part Number: PM461
Sold As: Pair
Beam Type: SAE fog and spot combo
Beam Spread: 35 degrees (widest beam width, any beam)
Design: Combo Light
Housing Size: 4" (single light)
Power: 120 W total, 60 W per light maximum in any mode
Raw Lumens: 12,040 lm (pair, maximum, high beam)
Effective Lumens: 9,176 lm (pair, maximum, high beam)
Distance at 1 Lux: 335 m (1,099 ft) (pair, highest)
Color Temperature: 5700K
Operating Voltage: 10 V to 16 V DC
Ingress Protection: IP68
Vibration Rating: SAE J575
Compliance: SAE J583 fog beam, ECE R10
Cable Length: 350 mm (13.8")
Housing: Powder coated aluminum heat sink
Lens: Polycarbonate
Product Weight: 1.2 lb (single light)
Shipping Weight: 4.5 lb
Warranty: Lifetime against manufacturing defects
UPC: 860008448699
Installation
Type: Bolt-on pair with universal stainless brackets, wired to a switched circuit · Time: 1-2 hours per pair including wiring · Tools: Socket set, crimper, cable ties, drill if the mounting point needs one · Difficulty: Moderate
The lights themselves are a bolt each through a stainless bracket. The wiring is the work: these are high-output lights and need a properly fused, relayed circuit. The NAC11N 40 amp harness is built for exactly this job and includes the switches. Aim the beam on a dark road once everything is torqued down.
Warranty, Shipping & Returns
Warranty. NACHO states a lifetime warranty against manufacturing defects on this product, and the distributor record independently lists the warranty term as Lifetime. Those are the two sources available and they agree. In North America it is supported through ARB (Air Locker Inc., Auburn, WA) and honored through authorized dealers like us. We describe the warranty exactly as the manufacturer publishes it and do not extend or restate its terms.
Free shipping. This item ships free to the lower 48 states and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect your order on arrival. If anything is damaged or missing, contact us right away and we will make it right.
Compliance. NACHO publishes an SAE J583 compliant fog beam in one mode, ECE R10 electromagnetic compliance, IP68 ingress protection and SAE J575 vibration rating for this light.
About ARB
NACHO Offroad Lighting is ARB's American lighting brand, engineered, tested and built in the USA and proven at events like King of the Hammers and the Baja 1000. NACHO products are designed around user control: programmable output modules, replaceable housings and swappable covers, so one light can serve as a driving light, a work light or a street legal fog lamp depending on how you set it up.
NACHO sits inside the wider ARB group, which began in a Melbourne driveway in 1975 and is now the largest 4x4 accessories manufacturer in the southern hemisphere, with offices in the USA, Europe and the Middle East. Prestige Truck is an authorized ARB and NACHO dealer. Every light we ship is genuine US market stock with full manufacturer warranty support behind it.
The Quatro Has Arrived
ARB's launch film for the NACHO Quatro, covering the four optic layout, the Trail Running Light and the swappable covers.
One minute, filmed by ARB.
Night Driving Technique
ARB on how to actually use auxiliary lighting at night: beam selection, aiming, and reading the road ahead at speed.
Worth watching before you aim a new set of lights for the first time.
The ARB Story
How a Melbourne driveway operation building bull bars for outback tourers in 1975 became the southern hemisphere's biggest 4x4 accessories maker.
Seven minutes on the company behind this product, filmed by ARB across its Australian factories and proving grounds.
Frequently Asked Questions
Straight answers on specs, fit and support
Is this one light or a pair?
A pair. That matters when you compare the price against a single-light listing elsewhere. It also matters when you read the specification: the lumen and beam distance figures NACHO publishes for this part number are measured for the pair at maximum output, while the 1.2 lb weight is for a single light.
Is the SAE mode actually road legal?
The beam pattern in mode one is SAE J583 compliant, which is the US standard for front fog lamps. Whether that makes a given installation legal where you live depends on mounting height, aiming and local rules, which vary by state. The certification is the manufacturer's; the compliance of your specific install is yours to confirm.
Which Quatro should I buy?
NACHO makes four in this range and they differ by optics: the combo (PM411) mixes spot and flood, the spot (PM431) concentrates into roughly 10 degrees for distance, the flood (PM451) spreads wide and close, and the SAE combo (PM461) trades some raw output for a road-legal fog pattern. This is the sae combo white. All four are the same physical light with different optics behind the lens.
Do I need a special harness?
You need a properly fused and relayed circuit, and NACHO makes one for the job: the NAC11N is a dual 40 amp harness with two Carling switches and a dedicated green wire for the Quatro Trail Running Light. A generic harness will run the main beams but will not have the extra circuit for the running light.
How is it mounted?
A stainless steel universal mount bracket with chrome plated hardware comes with each light. If you want a recessed installation instead, the NAC13U flush mount kit is the part for that.
What is the warranty?
NACHO publishes a lifetime warranty against manufacturing defects on this product, and the distributor record independently records the term as Lifetime. Two sources, in agreement. If something is wrong with how it was made, contact us and we will take it up with the manufacturer. Keep your invoice.
