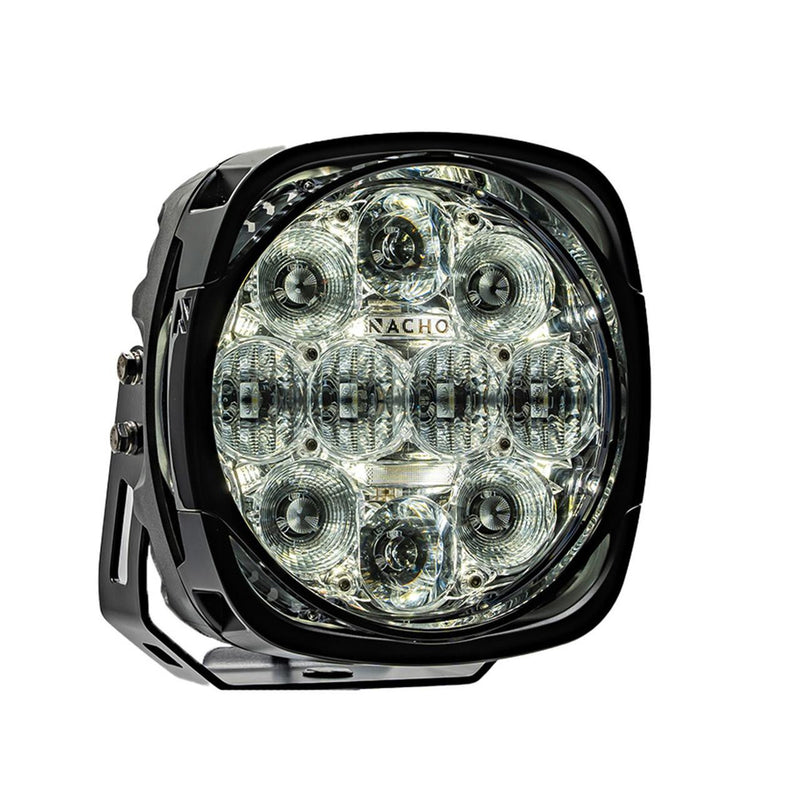

NACHO Grande 7" LED Driving Light, 4 Lo, 80W, Programmable Output, IP68, Single (PM611)

The Grande is the flagship of the NACHO range and it does something most driving lights do not: it lets you program the output. An onboard control module stores multiple beam configurations, and you switch between them by waving a magnet, the "Sorcery Wand", over the housing. Set it up once for the driving you actually do and forget it.

The 4 Lo is the widest beam in the Grande range at 53 degrees, aimed squarely at the driving most people actually do: setting up camp, cruising with family aboard, and picking a line through rough terrain at low speed. It carries a hint of spot so it is not purely a flood, but its job is smooth, even coverage from a standstill up to touring speed rather than maximum reach.

The signature polycarbonate exoskeleton is a Forced Air Induction design that channels air through the housing for cooling, and it is replaceable, so a scraped or faded shell does not mean a new light. The 2-in-1 patented mount surface mounts or clamps directly to 1.5" tube. Relays are built into the light, so you can run a low-power switch to a high-power light without extra harness components. IP68 and J575 rated. This part number is a single light.

What's Included:

• One NACHO Grande LED driving light
• Amber branded NACHO cover
• Solid black ARB branded cover
• 2-in-1 stainless steel surface mount bracket with chrome plated hardware
• Sorcery Wand magnet tool

Features

Programmable Output Control Module
An inbuilt module stores multiple outputs and beam patterns. Program the light for the conditions you drive in, save it, and stop thinking about it. This is the Grande's defining feature and nothing else in the ARB or NACHO range does it this way.

Sorcery Wand Magnet Control
A magnet on a stick toggles the light through its stored settings. It sounds like a gimmick and is in fact the reason the housing has no buttons to seal, no switch to fail and no connector to corrode.

Replaceable Forced Air Induction Housing
The polycarbonate exoskeleton channels air through the light for cooling and can be replaced for a fresh look or a custom paint job. A scraped shell is a cosmetic part, not a new light.

2-In-1 Patented Mount
Surface mount it, or clamp it directly to any 1.5" tube, from the same patented bracket. Stainless steel with a UV protected black powder coat.

Relays Built Into The Light
Because the relays are internal, you can run a low-power switch to a high-power light without building a relay box into the harness. That is a real saving in installation cost and complexity.

Two Covers In The Box
Each Grande comes with an amber branded NACHO cover and a solid black ARB branded cover, so you can change the look or the beam color without buying an accessory.

Fitment & Compatibility

Specifications

• Model: NACHO Grande 7", 4 Lo
• Part Number: PM611
• Sold As: Single light
• Housing Size: 7"
• Power: 80 W
• Raw Lumens: 10,624 lm (single, maximum, high beam)
• Effective Lumens: 7,436 lm
• Distance at 1 Lux: 330 m (1,083 ft)
• Beam Spread: 53 degrees (widest beam width, any beam)
• Color Temperature: 5700K
• Operating Voltage: 12 V DC
• Ingress Protection: IP68
• Vibration Rating: SAE J575
• Compliance: ECE R10
• Control: Onboard Output Control Module, magnet actuated
• Mounting: 2-in-1 surface mount or 1.5" tube clamp
• Housing: Replaceable polycarbonate exoskeleton, Forced Air Induction
• Lens Material: Polycarbonate
• Product Weight: 5.2 lb (single)
• Shipping Weight: 7.4 lb
• Warranty: Lifetime against manufacturing defects
• UPC: 850051761487

Installation

Type: Bolt-on single light, surface or tube mount, wired to a switched circuit  ·  Time: 1 hour per light including wiring  ·  Tools: Socket set, crimper, cable ties  ·  Difficulty: Moderate

Simpler to wire than most lights of this output because the relays are inside the light, so a low-current switch feed is enough. Mount it, wire it, then use the Sorcery Wand to set up the output pattern you want before you go looking for a dark road to aim it on.

Warranty, Shipping & Returns

Warranty. NACHO states a lifetime warranty against manufacturing defects on this product, and the distributor record independently lists the warranty term as Lifetime. Those are the two sources available and they agree. In North America it is supported through ARB (Air Locker Inc., Auburn, WA) and honored through authorized dealers like us. We describe the warranty exactly as the manufacturer publishes it and do not extend or restate its terms.

Free shipping. This item ships free to the lower 48 states and typically arrives in 3 to 7 business days.

Inspect on delivery. Please inspect your order on arrival. If anything is damaged or missing, contact us right away and we will make it right.

Compliance. NACHO publishes ECE R10 electromagnetic compliance, IP68 ingress protection and SAE J575 vibration rating for the Grande. No SAE beam certification is published, so it is sold as an off-road auxiliary driving light.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
