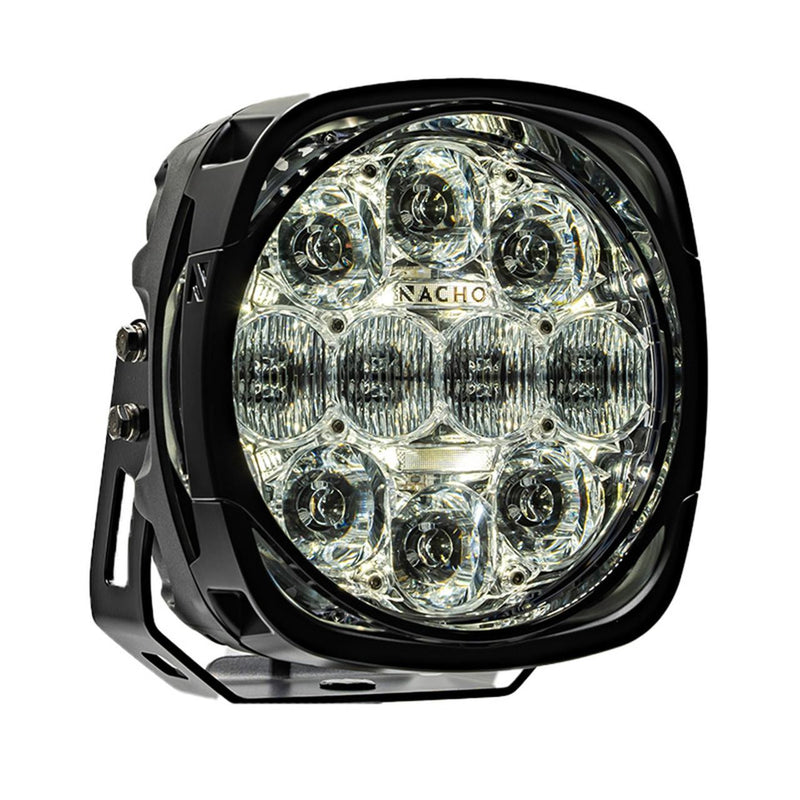

NACHO Grande 7" LED Driving Light, 4 Hi, 80W, Programmable Output, IP68, Single (PM612)
$439.99
- Guaranteed FitmentTeam-confirmed fit or money back
- No Sales TaxZero sales tax on every order
- 30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund
Questions or a custom quote?
Mon to Fri, 9am to 5pm EST
Complete your upgrade
Fits the same truck
Features
- Big 7" round output: The Grande is NACHO's large 7" round light, built for drivers and racers who want a lot of programmable light from one housing.
- Output Control Module: NACHO's Output Control Module lets you build your own beam and brightness settings and keeps them stored in the light.
- Program it with a magnet: Tap the supplied magnetic Sorcery Wand on the marked spot of the housing to step through beam patterns and brightness levels; stop tapping and the choice is saved.
- Three programmable triggers: Three trigger wires can each hold their own mode, and the light runs on constant battery power so the triggers draw so little current that no external relays are needed.

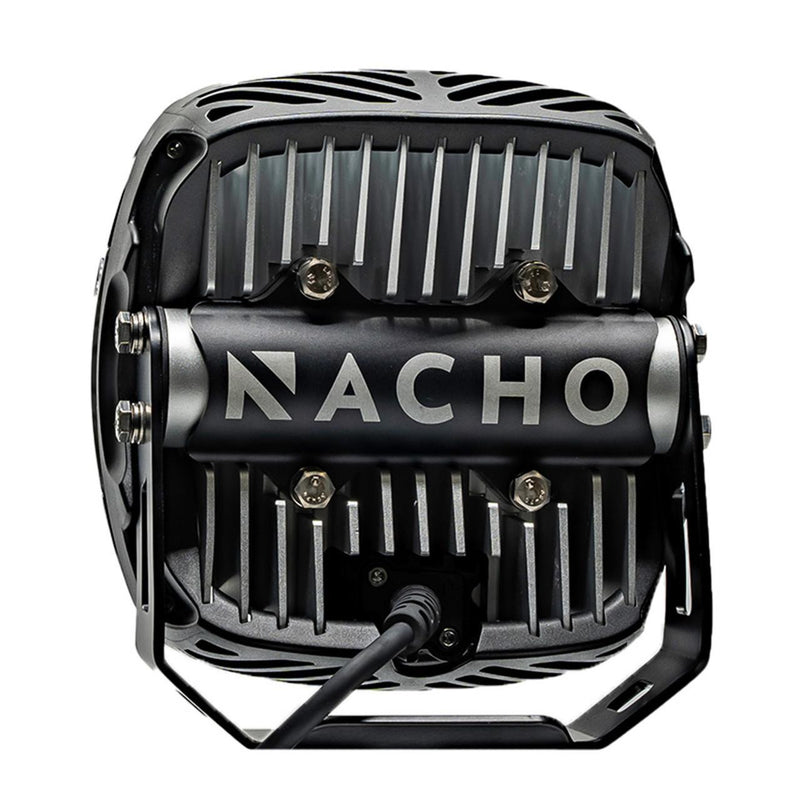

- Polycarbonate exoskeleton: A polycarbonate exoskeleton wraps the housing for impact protection and helps shed heat.

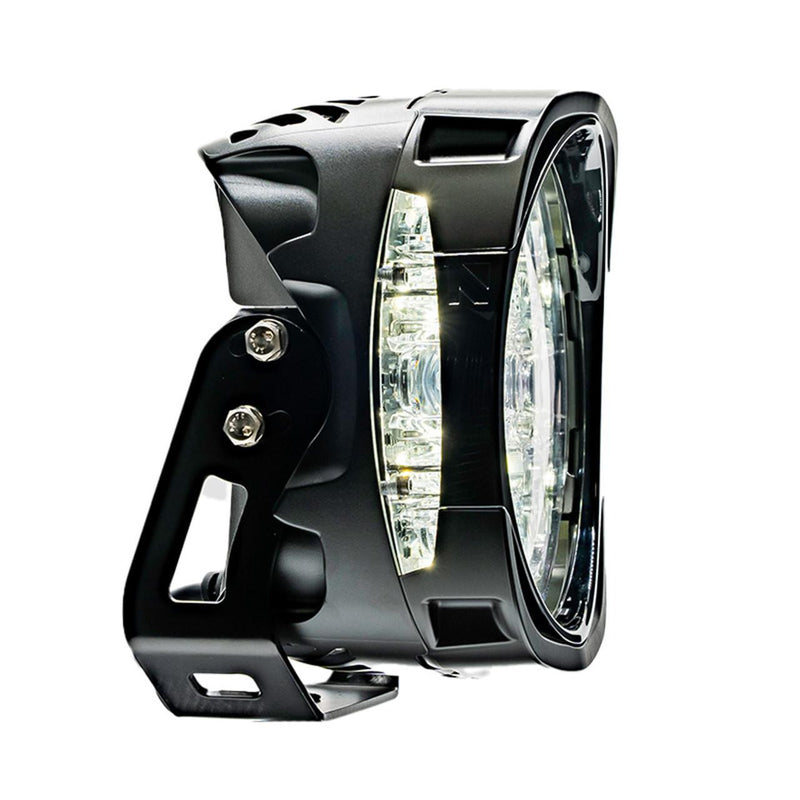

- IP68, surface or tube mount: The light is IP68 sealed. It ships on a surface-mount bracket and also clamps directly to 1.5" straight tube once the bracket is removed.
Description & Fitment
Part PM612 is the Grande "4 Hi", one 7" light that mixes spot, flood and area patterns at 80 W. Against the 4 Lo it trades some width for reach, getting to 1 lux at roughly 1,680 ft (512 m), with 7,883 effective lumens. The box holds the light on its surface-mount bracket, an M10 mounting bolt and the magnet used for programming, with no harness, switch or partner light.
Fitment & Compatibility
Check before you buy: this is one 7" Grande light for 12 V systems. Wider 80 W version: PM611 (4 Lo). 140 W Racer versions: PM615 (spot) and PM616 (combo).
The Grande needs constant power run directly to the battery plus a switched trigger feed; check your mount is a flat tab for the M10 bolt or 1.5" straight tube.
About ARB
ARB.
ARB dates to 1975, when Tony Brown came home to Melbourne from a trip to the Top End convinced that the racks and bars of the day could not survive the Outback. He started building roof racks and bull bars himself, and his brothers soon joined the business that carries his initials.
The company later added Old Man Emu suspension and the Air Locker, and ARB says it was early to off-road fridge freezers, rooftop tents and round driving lights. Its own summary of the idea has not changed: better design and better materials make a better four-wheel-drive trip.
Authorized ARB dealer. Prestige Truck is an authorized ARB dealer, so what we sell is new and genuine ARB product. ARB requires proof of purchase for any warranty claim, so keep your receipt with your build records.
Frequently Asked Questions
Will a 7" Grande fit my bumper?
It bolts to a flat tab with its M10 bolt or clamps to 1.5" straight tube. Check you have room for a 7" round light.
Do I need anything else?
Wire, a fuse and a switch for the trigger feed; the light connects straight to the battery for its main power.
Is this a pair?
No. Each Grande part number is one light; order two for a pair.
How do I change the beam?
Power the trigger wire you want to set, then tap the supplied magnet on the target mark. Each tap moves to the next pattern or brightness level, and the light saves the last one when you stop.
Do I need relays?
No. The Grande takes constant power straight from the battery, and its trigger wires draw so little current that a low-amperage switch can control it.
Can it mount on a tube bar?
Yes. Remove the four M6 fasteners and the surface bracket, and the light clamps to 1.5" straight tube.
Installation
DifficultyNot stated by ARB
TypeNACHO Grande / Quatro LED Lights
ToolsNot stated by ARB
Mount and wire per the NACHO Grande instruction sheet (PDF below): constant power to the battery, trigger wires to your switches, then program with the magnet.
Stuck on a step?
Specifications
| Brand | NACHO (sold by ARB) |
|---|---|
| Part Number | PM612 |
| Product Line | NACHO Grande |
| Product Type | 7" round LED driving light |
| Quantity | Single light |
| Operating Voltage | 12 V DC |
| Ingress Rating | IP68 |
| Lens | Polycarbonate |
| Color Temperature | 5700K |
| Mounting | Surface bracket (M10 bolt) or 1.5" tube clamp |
| Warranty | 3 years (ARB) |
| Size | 7" round |
| Sold As | Single |
| Version | 4 Hi |
| Beam Patterns | Spot, flood, area light |
| Power | 80 W |
| Raw Lumens | 10,624 lm |
| Effective Lumens | 7,883 lm |
| 1 Lux Distance | 1,680 ft (512 m) |
| UPC | 850051761494 |
