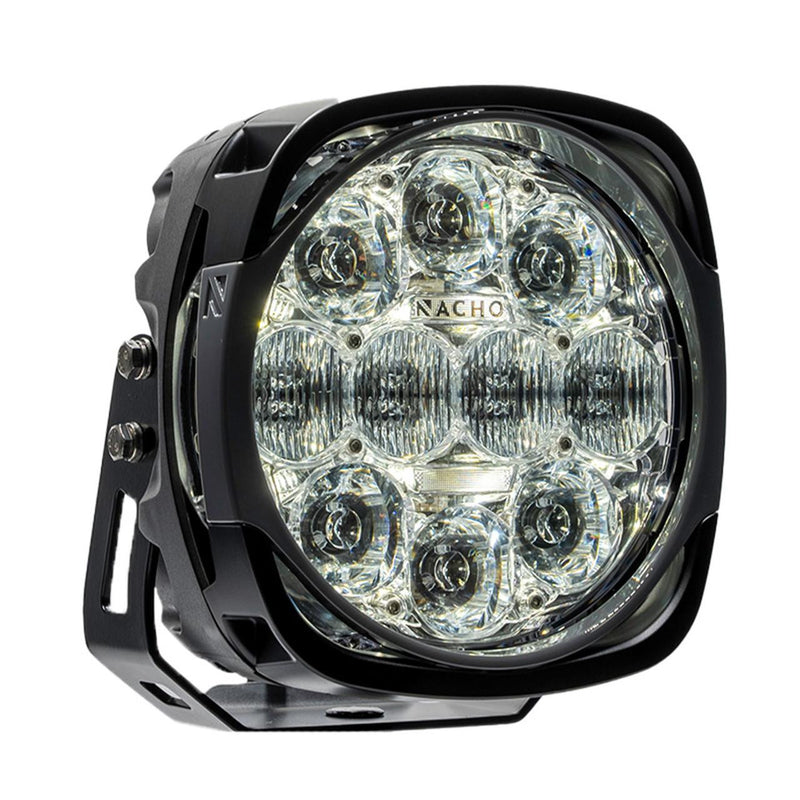

The Grande is the flagship of the NACHO range and it does something most driving lights do not: it lets you program the output. An onboard control module stores multiple beam configurations, and you switch between them by waving a magnet, the "Sorcery Wand", over the housing. Set it up once for the driving you actually do and forget it.
The Supreme 100 is the high-output combo: a copper circuit board carrying 140 W into a 37.5 degree pattern for 12,201 raw lumens and 566 m of reach. NACHO positions it for high-visibility race applications and for people who simply want a great deal of light. The copper board is the reason it can run that wattage continuously without cooking itself.
The signature polycarbonate exoskeleton is a Forced Air Induction design that channels air through the housing for cooling, and it is replaceable, so a scraped or faded shell does not mean a new light. The 2-in-1 patented mount surface mounts or clamps directly to 1.5" tube. Relays are built into the light, so you can run a low-power switch to a high-power light without extra harness components. IP68 and J575 rated. This part number is a single light.
What's Included:
One NACHO Grande LED driving light
Amber branded NACHO cover
Solid black ARB branded cover
2-in-1 stainless steel surface mount bracket with chrome plated hardware
Sorcery Wand magnet tool
Features
Programmable Output Control Module An inbuilt module stores multiple outputs and beam patterns. Program the light for the conditions you drive in, save it, and stop thinking about it. This is the Grande's defining feature and nothing else in the ARB or NACHO range does it this way.
Sorcery Wand Magnet Control A magnet on a stick toggles the light through its stored settings. It sounds like a gimmick and is in fact the reason the housing has no buttons to seal, no switch to fail and no connector to corrode.
Replaceable Forced Air Induction Housing The polycarbonate exoskeleton channels air through the light for cooling and can be replaced for a fresh look or a custom paint job. A scraped shell is a cosmetic part, not a new light.
2-In-1 Patented Mount Surface mount it, or clamp it directly to any 1.5" tube, from the same patented bracket. Stainless steel with a UV protected black powder coat.
Relays Built Into The Light Because the relays are internal, you can run a low-power switch to a high-power light without building a relay box into the harness. That is a real saving in installation cost and complexity.
Two Covers In The Box Each Grande comes with an amber branded NACHO cover and a solid black ARB branded cover, so you can change the look or the beam color without buying an accessory.
Fitment & Compatibility
Application
Fit
Flat surfaces: bumpers, bar pans, rack platforms
✓ Fits, surface mount
1.5" outside diameter tube
✓ Fits, direct tube clamp from the same bracket
12 V vehicles
✓ Fits
NACHO 40 amp vehicle harness NAC11N
● Compatible
Vehicles needing more than one light
● Order the quantity you need, this part number is a single light
Fit guidance: A universal-mount driving light rather than a vehicle-specific part, and the 2-in-1 bracket covers both flat surfaces and 1.5" tube without buying a second mount. Read the quantity carefully: this part number is ONE light, and the published lumen figures are for a single light. Check your local rules on auxiliary driving lights before fitting.
Specifications
Model: NACHO Grande 7", Supreme 100 Racer Combo
Part Number: PM616
Sold As: Single light
Housing Size: 7"
Power: 140 W
Raw Lumens: 12,201 lm (single, maximum, high beam)
Effective Lumens: 10,696 lm
Distance at 1 Lux: 566 m (1,857 ft)
Beam Spread: 37.5 degrees (widest beam width, any beam)
Color Temperature: 5700K
Operating Voltage: 12 V DC
Ingress Protection: IP68
Vibration Rating: SAE J575
Compliance: ECE R10
Control: Onboard Output Control Module, magnet actuated
Mounting: 2-in-1 surface mount or 1.5" tube clamp
Housing: Replaceable polycarbonate exoskeleton, Forced Air Induction
Lens Material: Polycarbonate
Product Weight: 5.2 lb (single)
Shipping Weight: 7.4 lb
Warranty: Lifetime against manufacturing defects
UPC: 850051761531
Installation
Type: Bolt-on single light, surface or tube mount, wired to a switched circuit · Time: 1 hour per light including wiring · Tools: Socket set, crimper, cable ties · Difficulty: Moderate
Simpler to wire than most lights of this output because the relays are inside the light, so a low-current switch feed is enough. Mount it, wire it, then use the Sorcery Wand to set up the output pattern you want before you go looking for a dark road to aim it on.
Warranty, Shipping & Returns
Warranty. NACHO states a lifetime warranty against manufacturing defects on this product, and the distributor record independently lists the warranty term as Lifetime. Those are the two sources available and they agree. In North America it is supported through ARB (Air Locker Inc., Auburn, WA) and honored through authorized dealers like us. We describe the warranty exactly as the manufacturer publishes it and do not extend or restate its terms.
Free shipping. This item ships free to the lower 48 states and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect your order on arrival. If anything is damaged or missing, contact us right away and we will make it right.
Compliance. NACHO publishes ECE R10 electromagnetic compliance, IP68 ingress protection and SAE J575 vibration rating for the Grande. No SAE beam certification is published, so it is sold as an off-road auxiliary driving light.
About ARB
NACHO Offroad Lighting is ARB's American lighting brand, engineered, tested and built in the USA and proven at events like King of the Hammers and the Baja 1000. NACHO products are designed around user control: programmable output modules, replaceable housings and swappable covers, so one light can serve as a driving light, a work light or a street legal fog lamp depending on how you set it up.
NACHO sits inside the wider ARB group, which began in a Melbourne driveway in 1975 and is now the largest 4x4 accessories manufacturer in the southern hemisphere, with offices in the USA, Europe and the Middle East. Prestige Truck is an authorized ARB and NACHO dealer. Every light we ship is genuine US market stock with full manufacturer warranty support behind it.
NACHO Grande Launch
ARB's introduction to the Grande: the polycarbonate exoskeleton, the Output Control Module and the 2-in-1 mount.
One minute, filmed by ARB.
Night Driving Technique
ARB on how to actually use auxiliary lighting at night: beam selection, aiming, and reading the road ahead at speed.
Worth watching before you aim a new set of lights for the first time.
The ARB Story
How a Melbourne driveway operation building bull bars for outback tourers in 1975 became the southern hemisphere's biggest 4x4 accessories maker.
Seven minutes on the company behind this product, filmed by ARB across its Australian factories and proving grounds.
Frequently Asked Questions
Straight answers on specs, fit and support
Is this one light or a pair?
One. The NACHO Grande is sold as a single light at this part number, and the published lumen figures are for a single light. That is the opposite of the Quatro sets, which are sold as pairs with pair figures, so it is worth being deliberate when you compare the two on price.
What does programmable output actually mean?
The Grande has a control module inside it that stores several output and beam pattern configurations. You cycle through and select them by passing a magnet over the housing. So you can set a pattern for high-speed open running, another for slow technical going, and an area-light setting for camp, then switch without any dash controls.
Is the magnet control a gimmick?
It is the reason the housing has no buttons, no switch and no extra connector, which are three of the most common failure points on a sealed light. Whether you like the idea or not, a magnetically actuated control on an IP68 housing is sound engineering rather than marketing.
Which Grande should I choose?
NACHO makes four. The 4 Lo (PM611) is the widest at 53 degrees for slower and more technical going. The 4 Hi (PM612) narrows to 37.5 degrees for more distance. The Supreme 150 (PM615) is the extreme spot at 3.5 degrees for racing. The Supreme 100 (PM616) is the 140 W combo at 37.5 degrees. Pick on beam width first, output second.
Do I need a relay or a special harness?
Relays are built into the light, so you can run a low-power switch to a high-power light without adding relay hardware to the harness. You still want proper fusing and adequate cable. The NACHO NAC11N harness is a sound choice if you are wiring more than one light.
What is the warranty?
NACHO publishes a lifetime warranty against manufacturing defects on this product, and the distributor record independently records the term as Lifetime. Two sources, in agreement. If something is wrong with how it was made, contact us and we will take it up with the manufacturer. Keep your invoice.
