The E-Series PRO 10" is a double-row Rigid E-Series PRO bar built for maximum output. It is built for off-road use and ready for powersports, overlanding and work. This listing is Rigid part 110113, 110213, 110223, 110313, 178313, 178613, 110213BLK.
In the box: Single Light Bar, Black Powder Coated L-Shape Brackets, Harness & Switch w/Relay and Mounting Hardware.
Installation is not included, and any harness, switch, cover or mount that is not on this light's box list is sold separately.
Features
Double-row power
Two rows of LEDs give the E-Series PRO its output in a compact length.
Every beam option
Spot, flood, driving, hyperspot, diffused and combo patterns are offered across the range; this bar's choices appear as options.
Ready for anything
Built for off-road, E-Series bars also serve powersports, overlanding and first responders.
The original Rigid bar
The E-Series is the double-row bar Rigid credits with starting the LED light bar movement.
Limited Lifetime Warranty
Rigid covers the light against manufacturing defects for the original purchaser, with shorter terms for commercial use and for finishes and lenses.
Specifications
-
Brand: Rigid
-
Series: E-Series PRO
-
Light Type: Double-row LED bar
-
Mount Type: Surface mount
-
Warranty: Limited Lifetime Warranty (commercial, marine and industrial use 5 years; powder coating and lenses 1 year)
-
Part numbers: 110113, 110213, 110223, 110313, 178313, 178613, 110213BLK
-
Size: 10 in
-
Mounting Location: Bumper
-
Wiring Harness Included: Yes, harness and switch with relay
-
Raw Lumens: Flood / Clear: 15840; Spot / Clear: 15840; Spot / Amber: 15840; Spot Flood Combo / Clear: 15840; Spot Driving Combo / Clear: 15048; Driving / Clear: 18810; Spot / Midnight: 15840
-
Watts: Flood / Clear: 185; Spot / Clear: 168; Spot / Amber: 168; Spot Flood Combo / Clear: 165; Spot Driving Combo / Clear: 174; Driving / Clear: 204; Spot / Midnight: 183
-
Current Draw at 14V (A): Flood / Clear: 13.21; Spot / Clear: 12; Spot / Amber: 12; Spot Flood Combo / Clear: 11.79; Spot Driving Combo / Clear: 12.43; Driving / Clear: 14.57; Spot / Midnight: 13.07
-
Beam Distance @ 1 LUX: Flood / Clear: 169 m; Spot / Clear: 580.3 m; Spot / Amber: 415.6 m; Spot Flood Combo / Clear: 447.5 m; Driving / Clear: 309.9 m; Spot / Midnight: 459.3 m
-
Beam Distance @ .25 LUX: Flood / Clear: 338.1 m; Spot / Clear: 1160.7 m; Spot / Amber: 831.2 m; Spot Flood Combo / Clear: 895 m; Driving / Clear: 619.8 m; Spot / Midnight: 918.6 m
Options
| Option |
Rigid part number |

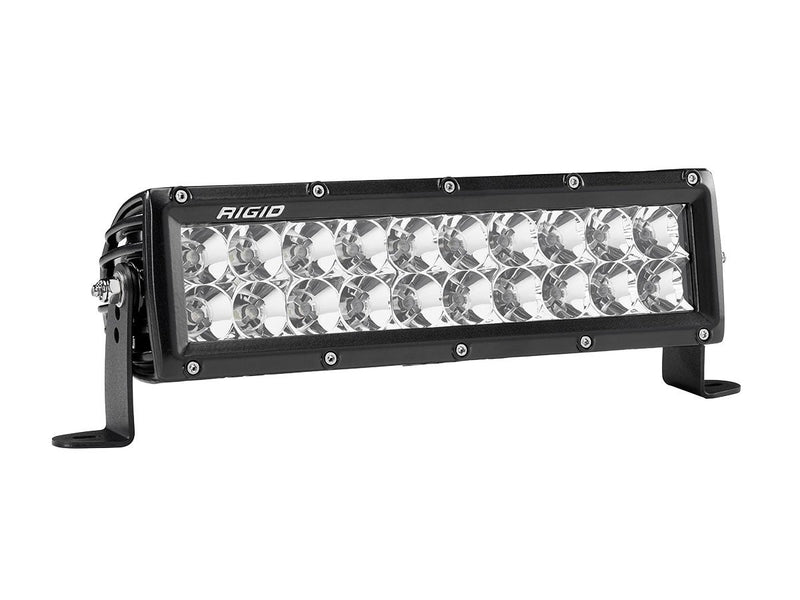

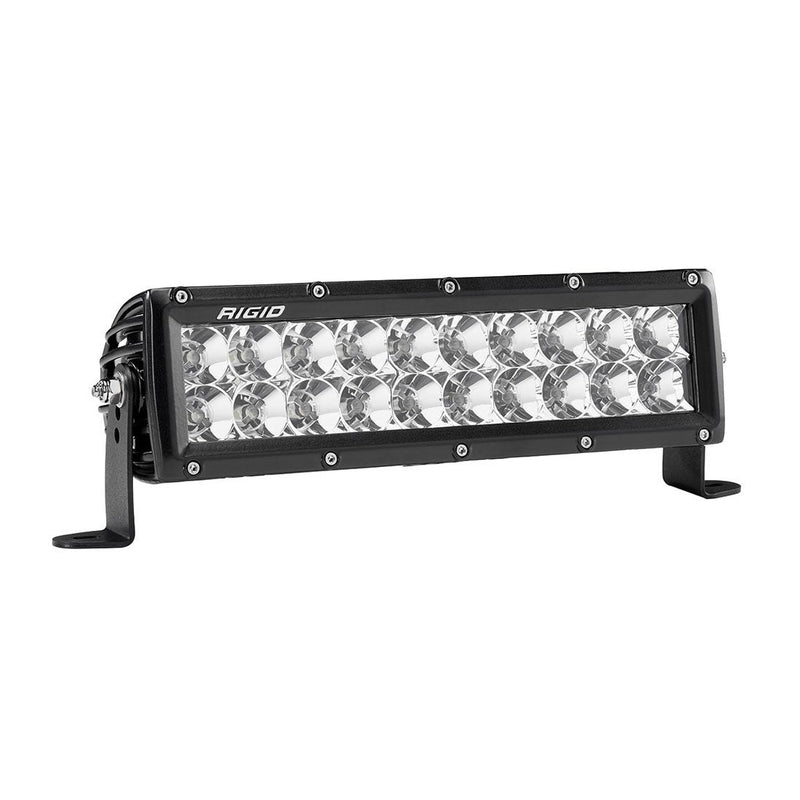

| Flood / Clear |
110113 |
| Spot / Clear |

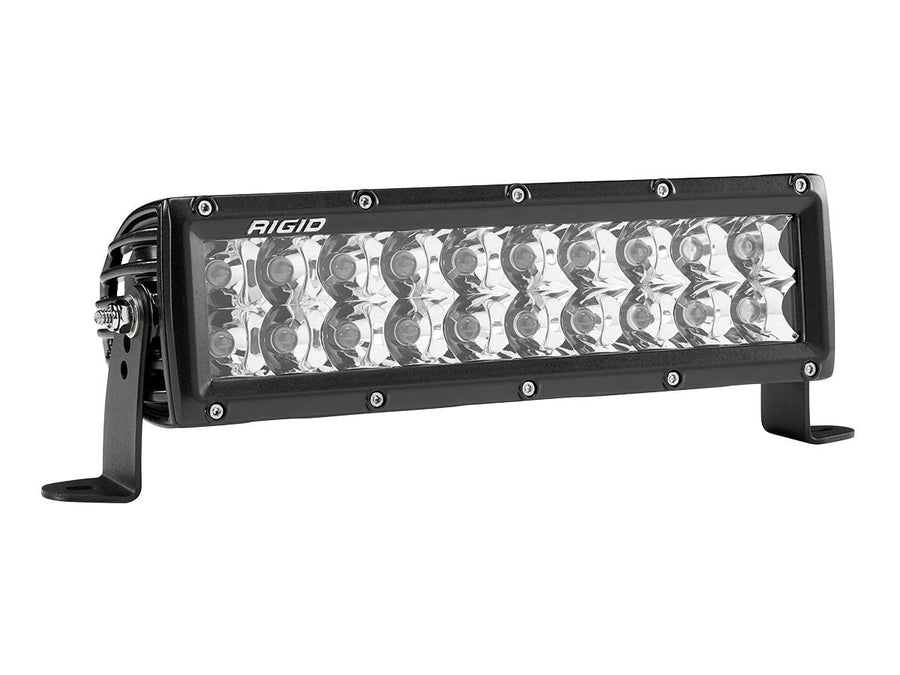

110213 |

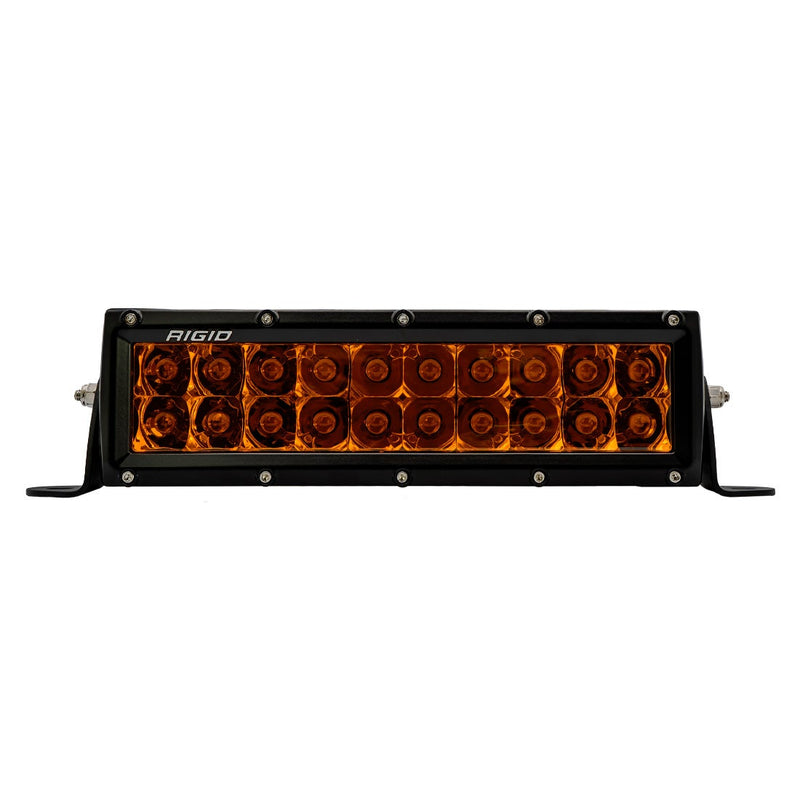

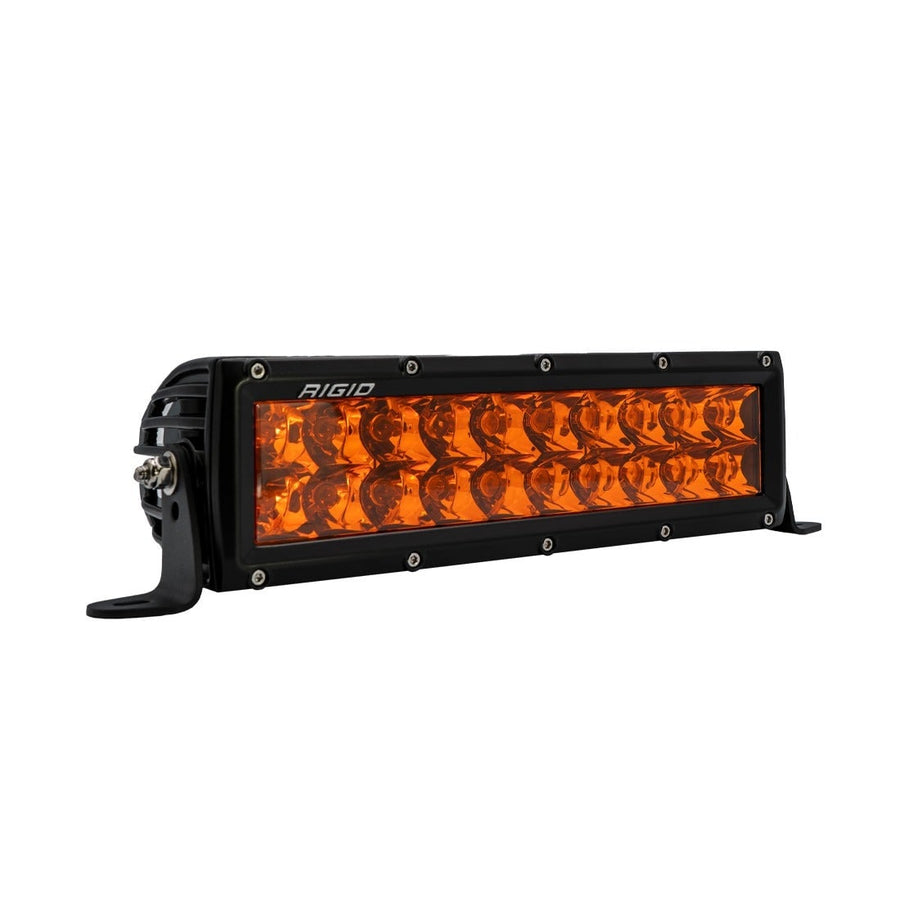

| Spot / Amber |
110223 |

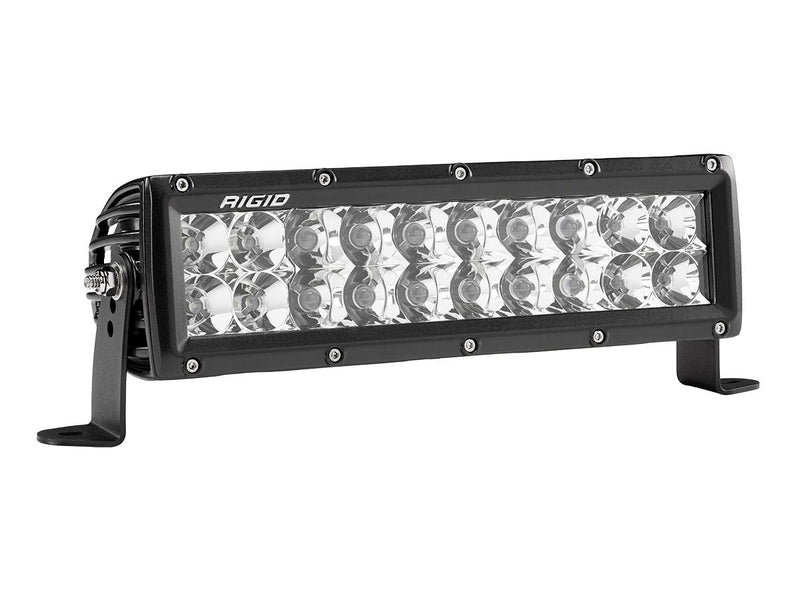

| Spot Flood Combo / Clear |
110313 |

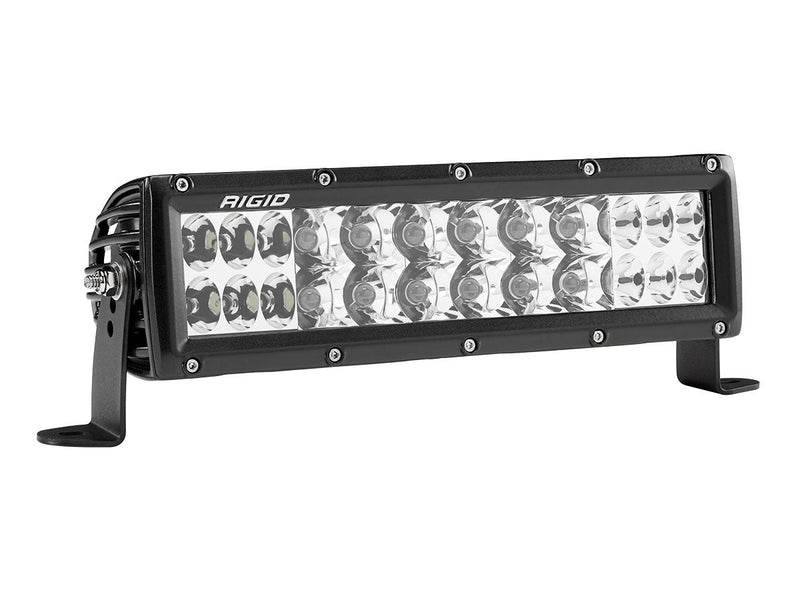

| Spot Driving Combo / Clear |
178313 |

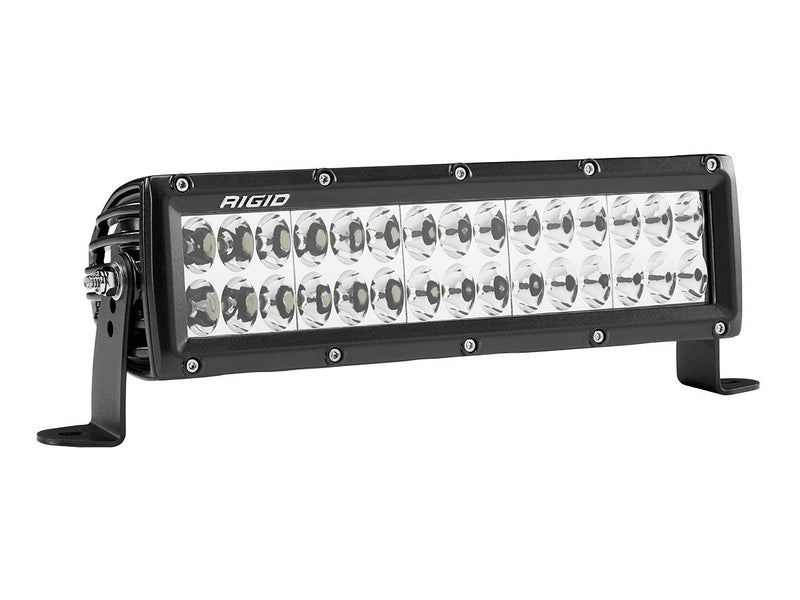

| Driving / Clear |
178613 |

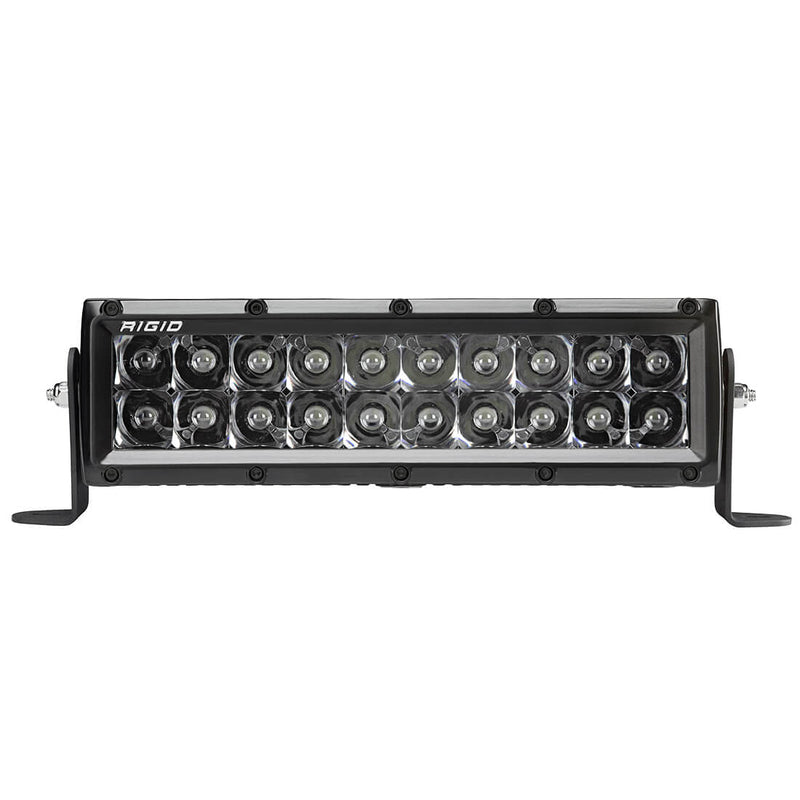

| Spot / Midnight |
110213BLK |
California Proposition 65
WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Installation
Type: Universal LED light bar · Install: surface mount on L-brackets, wired to the vehicle electrical system · Tools: per the Rigid install sheet
Mount the bar on its brackets, aim it, and route the wiring as the Rigid install instructions show. The box list below shows what comes with this bar.
Rigid's installation instructions for this part are linked under Resources. Read them fully before starting.
Resources
Warranty, Shipping & Returns
Warranty. Rigid covers this product with its Limited Lifetime Warranty against manufacturing defects for the original purchaser with proof of purchase. Coverage is limited to 5 years for commercial, marine and industrial use, and powder coating and lenses carry 1 year. Seal tampering, improper installation, damage from ammonia-based cleaners and road-salt erosion are not covered. Shipping. Ships in the manufacturer's carton by parcel carrier; long light bars ship in oversize cartons. Inspect on delivery. Open the carton as soon as it arrives and check the light, brackets and hardware against the box list before you install anything, then report any shipping damage right away with photos.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Rigid Industries
Rigid Industries was founded in Gilbert, Arizona in 2006. It began by selling powersports accessories, until its engineers decided halogen and HID lamps were holding riders back and set out to build a better light. That work produced Rigid's patented Hybrid Optical System and the first LED light bar.
Rigid has since partnered with Toyota, Ford and Polaris, programs that hold its lights to demanding OEM standards for output, durability and reliability. Off-road racers at events such as the Baja 1000 and the Mint 400 run Rigid lighting to get to the finish.
Today Rigid is part of Clarience Technologies, a group of vehicle lighting, visibility and safety companies, and it still designs for the trail, the job site and everything in between.
