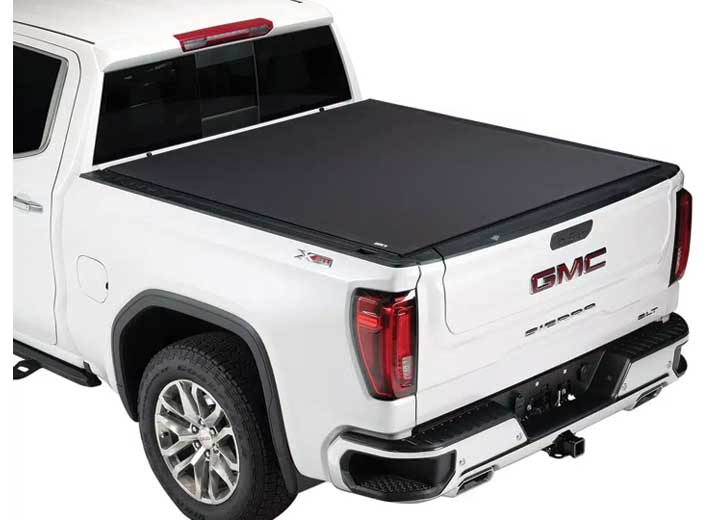

TruXedo Pro X15 soft roll-up tonneau cover closed on a 2019-2024 GMC Sierra 1500, widest view

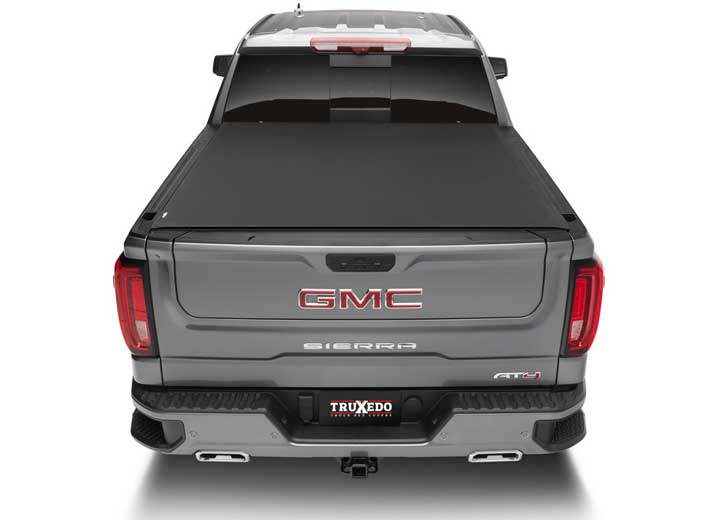

TruXedo Pro X15 soft roll-up tonneau cover closed on a 2019-2024 GMC Sierra 1500, straight rear view

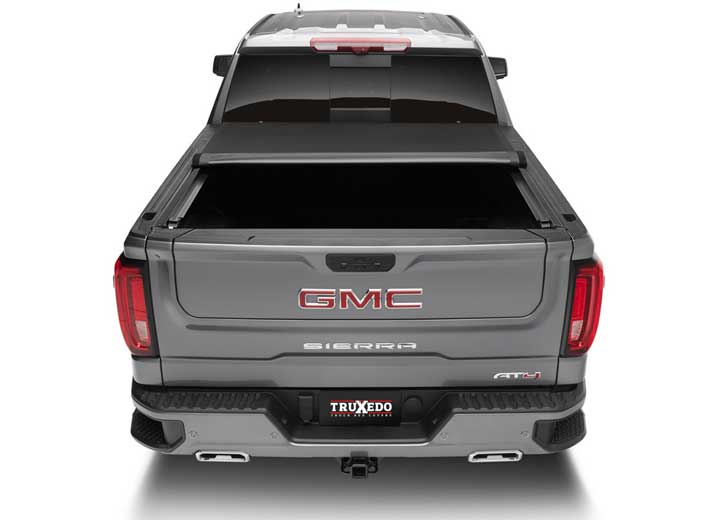

TruXedo Pro X15 soft roll-up tonneau cover rolled partway open on a 2019-2024 GMC Sierra 1500, straight rear view

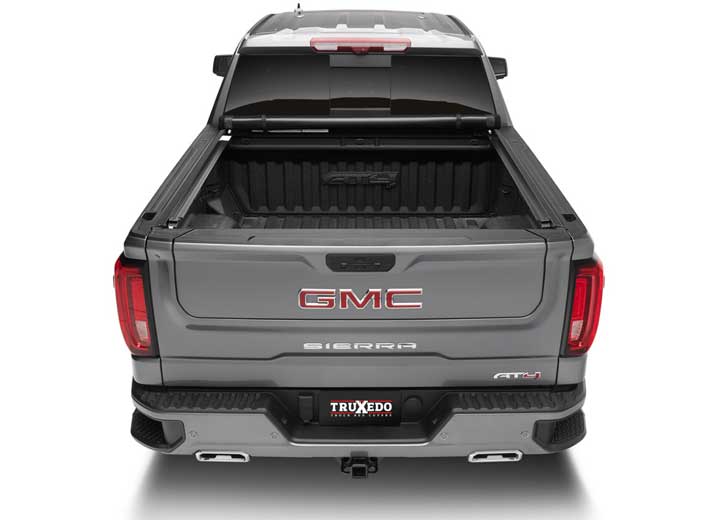

TruXedo Pro X15 soft roll-up tonneau cover rolled forward to the cab on a 2019-2024 GMC Sierra 1500, straight rear view

TruXedo Pro X15 soft roll-up tonneau cover closed over the bed of a pickup truck, straight rear view, against a plain studio backdrop

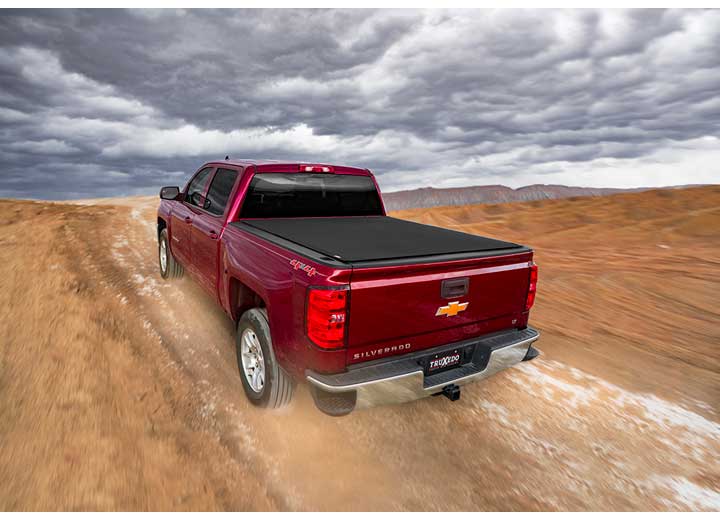

TruXedo Pro X15 soft roll-up tonneau cover closed over the bed of a pickup truck, rear three-quarter view, on a dirt road under storm cloud, a photo-illustration rather than location photography, photographed on location

Close-up of the PRO X15 name plate alongside the tailgate handle recess, seen from directly above on a TruXedo Pro X15 soft roll-up tonneau cover

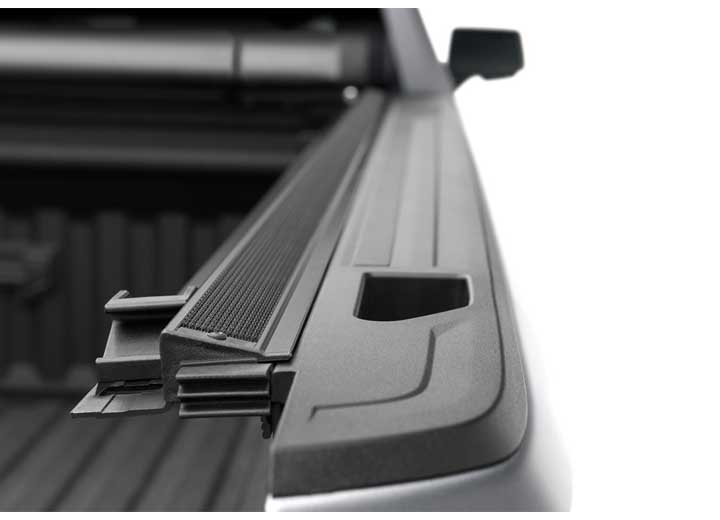

Close-up of the side rail on a TruXedo Pro X15 soft roll-up tonneau cover

Close-up of the hook-and-loop fastening along the side rail on a TruXedo Pro X15 soft roll-up tonneau cover

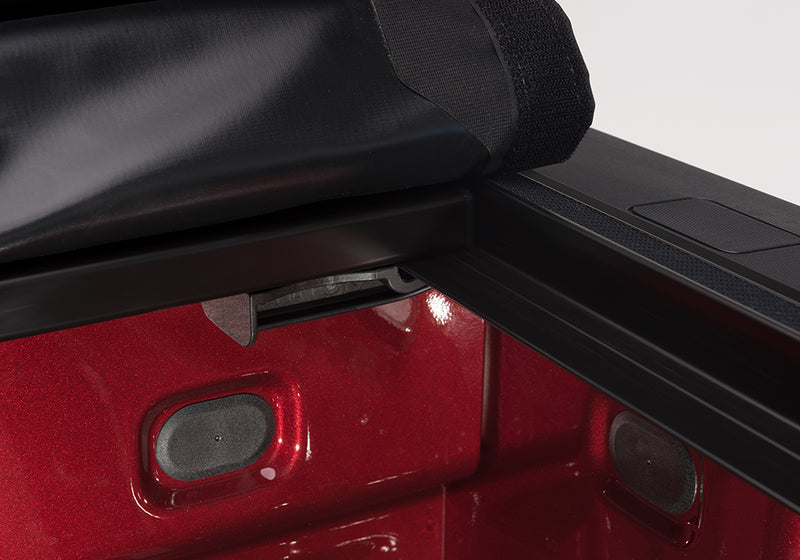

Close-up of the release lever at the rear corner on a TruXedo Pro X15 soft roll-up tonneau cover

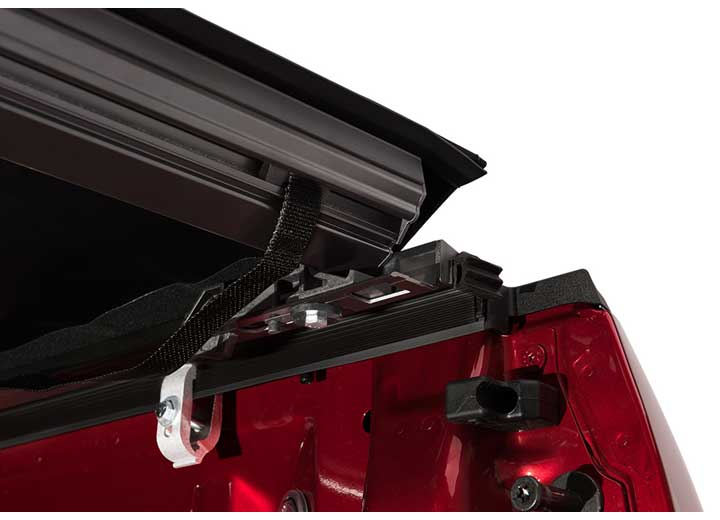

Close-up of the latch and tensioning mechanism on a TruXedo Pro X15 soft roll-up tonneau cover

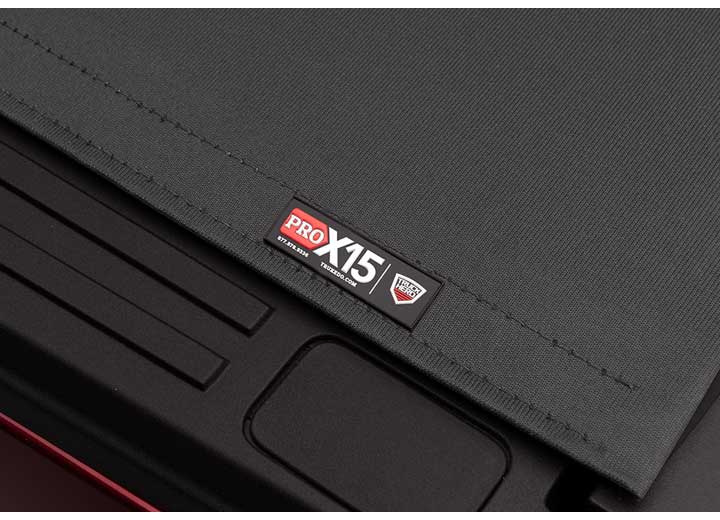

Close-up of the PRO X15 name plate on the cover's rear seam, a long stamped bedside recess below on a TruXedo Pro X15 soft roll-up tonneau cover

TruXedo Pro X15 Soft Roll-Up Tonneau Cover for 2020-2026 GMC Sierra 1500 (5'10" Bed)

Name: TruXedo Pro X15 Soft Roll-Up Tonneau Cover for 2020-2026 GMC Sierra 1500 (5'10" Bed)
Brand: TruXedo
SKU: TRX1474301
Price: 649.99 USD
Availability: InStock

$649.99

FREE SHIPPINGNo sales tax Only 1 leftIn stock now Estimated delivery

Clear

Free gifts included with your order

Details

Guaranteed FitmentTeam-confirmed fit or money back
No Sales TaxZero sales tax on every order
30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund

Questions or a custom quote?

Mon to Fri, 9am to 5pm EST

+1 (470) 823-2453 Email Us

GMC's CarbonPro bed is a composite box rather than a steel one, and it takes a cover built specifically for it. Be clear about one thing before you order: this is the only Pro X15 application that is not purely clamp-on. Fitting it means drilling a 7mm (9/32") hole through the truck's plastic bed cap on each side to reach the factory threaded hole beneath, using the two drill guides supplied in the kit, and a T30 Torx driver. Part number 1474301 is the Pro X15 for the 2020-2026 GMC Sierra 1500 with the CarbonPro bed and the 5'10" (69.9") box, the one GM markets as the 5'8" short box, and it works with or without the MultiPro or Multi-Flex tailgate.

What's Included:

1x Roll cover
1x Driver side cover rail
1x Passenger side cover rail
12x Clamps
12x Button screws, M6 x 30 mm
10x U-nuts
2x Drill guides
2x Front corner block seals
4x End plug seals, front and rear, driver and passenger
1x Bulkhead seal, on selected makes and models

Features

A Woven Top, Not a Vinyl Sheet
RTxTechWeave is a 120-grade textured composite built up in five layers. It pulls tighter than vinyl does and holds that shape, which is what takes the drumming out of the ride, and the weave shrugs off the scuffs that leave a vinyl cover looking tired after a few summers.

Rails Angled to Sit Low
The side rails are cut at 15 degrees so the closed cover finishes nearly level with your bed caps. TruXedo puts the drop at roughly a third lower than its own Lo Pro, and the practical effect is less to catch the wind and a cleaner line down the side of the truck.

Tension That Resets Itself
DriveTight lives in the front header, where two spring plungers keep pressure on the fabric as it expands in summer heat and contracts in winter. It is set at the factory and adjustable by hand afterwards, so there is no seasonal re-tensioning ritual and no turnbuckle to remember.

Hook and Loop Down Both Rails
The RTxGrip closure is a multi-tiered hook-and-loop strip laid end to end along each rail rather than in patches. Push it home with your palms after every close and the edge of the cover has nothing for wind to get under, which is what keeps the sides quiet at speed.

Aluminum Cross Tubes Underneath
Straight aluminum cross tubes carry the span under the fabric so the surface does not belly out under standing rain or a load of wet snow. They are also why the closed cover reads as a flat plane rather than a tarp stretched over bows.

One Finger on the Trigger Latch
The release is a trigger latch on the driver side rail. Drop the tailgate, pull it toward you and the rear header is free; roll the cover forward and clip both retainer hooks into their loops before you drive. TruXedo puts the latch on the driver side only, so the matching hole you will see in the passenger rail is a manufacturing convention, not a missing part.

Off the Truck Without Tools
The quick-release handle disengages the header guides so the whole cover lifts clear of the rails in seconds, with the rails left clamped where they are. That turns a tall load from a problem into a two-minute job. A few bed designs in the range do not allow the system, and those applications say so in their own fitment notes.

Seals Where Beds Actually Leak
Two front corner seals, four end plug seals for the front and rear of both rails and a bulkhead seal on selected models are in the box. They go on with adhesive after the surfaces are cleaned with isopropyl alcohol, and the corners and tailgate ends they cover are precisely where an uncovered bed takes water.

Fitment & Compatibility

Fit guidance: Fits the 2020-2026 GMC Sierra 1500 with the 5'10" (69.9") bed, which GMC markets as its "5'8" Short Box". The manufacturer lists this part as: works with or without the MultiPro or Multi-Flex tailgate; compatible with the CarbonPro bed, if the truck has one. This application is not clamp-on: fitting it means drilling through the bed cap, and the Installation section below sets out exactly what that involves. It is worth reading before you order. Pro X15 rails are cut for one truck and one box, so the part number on this page is the only one that fits this combination.

Specifications

Series: TruXedo Pro X15
Cover type: Soft roll-up
Cover material: RTxTechWeave 120-grade textured composite, 5-layer
Finish: Matte black
Frame: Aluminum cross tubes with aluminum headers and side rails
Side rails: X15 15-degree rails, closing nearly flush with the bed caps
Tension system: DriveTight automatic tension control, factory preset and owner adjustable
Closure: RTxGrip multi-tiered hook-and-loop down both rails, with a trigger latch on the driver side rail
Removal: Quick-release system; the cover lifts out without tools
Tested climate range: -40F to 180F, up to 95% relative humidity
Mounting: Clamp-on side rails, with one drilled step: a 7mm (9/32") opening is made in the plastic bed cap at each side, using the two guides supplied in the kit, to reach the factory thread beneath
Installation difficulty: Level 1: Simple Installation
Installation time: Allow an hour
Warranty: Limited lifetime on hard parts and limited lifetime on the fabric
Assembled in: USA
Drilling: Required on this application. A 9/32" (7 mm) hole through the plastic bed cap at every U-nut position, both sides, using the two drill guides supplied in the kit. The truck's metal is not drilled, because the thread is already cut there from new, but the plastic cap is permanently changed.
Part number: 1474301
UPC: 845742017455

Installation

Type: Clamp-on, with holes drilled through the plastic bed cap · Time: Allow an hour · Tools: 9/32" (7 mm) drill bit and drill, T30 Torx, isopropyl alcohol, scissors or a utility knife · Difficulty: Level 1, one person

This application is drilled. Please read before ordering. GMC's CarbonPro box is composite, capped along each rail in plastic, and the mounting points sit under that cap. Getting to them means making a 7 mm (9/32") opening in the plastic on each side of the bed, at every U-nut position, with a drill you supply and a T30 Torx for the fasteners. Two guides are packed in the carton for exactly this: a U-nut is fed into the bed wall behind the cap, the guide hooks over the cap edge and registers itself against the factory thread beneath, and its closed back face stops the bit before it can touch the bed. The truck's metal is never drilled, since the thread is already cut there from new, but the plastic cap is changed for good and there is no undoing it. Twelve clamps then draw their button screws home against those U-nuts, tightened to 8 ft-lb (11 Nm) and worked forward from the tailgate. Foam corner blocks and end plug seals go on first, onto dry surfaces you have cleaned.

Resources

Pro X15 Soft Roll-Up Installation Sheet (PDF), TruXedo's own guide, document 1118696 revision D. The document covers the series rather than any one truck. Where it is the sheet in your carton, its kit list, its tool list and its clamp figure are the ones that apply; several trucks in this range are served by a different sheet with different numbers, and those listings link theirs instead.
Pro X15 GMC Sierra CarbonPro Supplemental Installation Guide (PDF), Document 1118745 revision D, written for the CarbonPro composite bed. This is the sheet that takes you through the plastic bed cap with the supplied drill guides, and it is the reason this application is not a plain clamp-on.

Warranty, Shipping & Returns

Warranty. Both halves of this cover are warranted for its lifetime: the fabric on one clause, and the hardware, which TruXedo defines as rails, clamps and bows, on another. Only the first owner is covered, the cover does not pass to a second, and a dated receipt or a completed registration has to exist. Most refused claims come down to a short list of conditions. Wash it with a mild automotive soap, nothing with silicone or petroleum in it. Whenever the truck is in motion the cover has to be latched down or rolled right up with both straps on; part-open driving is excluded. Keep cargo from pushing up into the fabric. Sweep snow and ice off the top before you open it. Give the rail clamps a check a week in and occasionally from then on. Never leave the rolled cover resting on the cab or the back glass, and take it off the truck before anyone tows the truck backwards.

Free shipping. This is a parcel item rather than a freight one, and stock normally leaves the warehouse within 1 to 2 business days.

Inspect on delivery. The Pro X15 ships as a parcel rather than on a pallet, in a long carton that takes the handling on the cover's behalf. Look it over while the driver is still there. Open it the same day and count the seals and clamps against the parts list in the sheet, because a missing end plug seal or a bent rail is far easier to sort in the first week than in the third. TruXedo ships replacement parts direct, and damage noted on the delivery paperwork is what lets us move quickly.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.

About TruXedo

Yankton, South Dakota is where TruXedo puts its bed covers together, and the company's cover of choice for a buyer who wants quiet is this one. Claims run to the first owner only, need a dated receipt kept somewhere findable, and are honored on covers sold by dealers the manufacturer has approved. That is us, so what ships from here is a warranted Pro X15 rather than a listing that merely borrows the name.

The Pro X15 is the quiet one in the soft roll-up range. TruXport is the entry cover and Lo Pro is the low-profile vinyl signature; the Pro X15 keeps the low profile and swaps vinyl for RTxTechWeave canvas, which is what changes the noise. Pro X15 TS is the same cover with T-slot rails cut into it for racks and cargo accessories, and the Deuce rolls up like these but also hinges open at the cab end. Above all of them sit the two hard roll-ups, Sentry in vinyl over aluminum slats and Sentry CT in canvas over the same slats, which are the covers to look at if a lock rather than a latch is the deciding factor.

Everything TruXedo builds works on the same idea: a tensioned surface over an aluminum frame, clamped to the bed rather than bolted through it. Its tension and closure hardware is patented in-house, and the point of both is that nobody has to retension a cover by hand years after buying it. On the Pro X15 the surface is the woven RTxTechWeave top, the frame is a set of straight aluminum cross tubes, and the hardware carries a limited lifetime warranty alongside the fabric.

See it on a truck

Canvas over vinyl, quieter

The top surface is RTxTechWeave, a 120-grade five-layer woven composite rather than a sheet of vinyl, and it is held under constant tension by the DriveTight system built into the front header. Fabric that cannot go slack cannot drum, which is why this cover rides quieter than the vinyl covers below it in the range. The side rails sit at 15 degrees so the closed cover finishes nearly level with the bed caps instead of standing proud of them.

Canvas over vinyl, quieter

TruXedo Pro X15 soft roll-up tonneau cover closed on a pickup bed at a construction site

Built for a working climate

TruXedo tests the Pro X15 between -40F and 180F and up to 95% relative humidity, which is the range a cover actually lives in between a January morning and a July afternoon on a black bed floor. Woven fabric moves with heat, so the tension system carries spring plungers that take up the slack as the material expands and contracts, and the aluminum cross tubes underneath hold the surface flat when rain, hail or snow sits on it.

Frequently Asked Questions

Straight answers on specs, fit and support

Will it keep water out of the bed?

It sheds most weather and TruXedo never calls it waterproof, so neither will we. The kit includes adhesive corner seals for the front of the bulkhead, end plug seals for the front and rear of both rails and, on a lot of applications, a bulkhead seal across the front, and those three are what decide whether your bed stays dry. Clean the surfaces with soap and water and then isopropyl alcohol before sticking any of them down; seals pressed onto wax or road film are the single most common reason an owner reports a wet bed. TruXedo's own note is that water reaching the tailgate corners generally runs down the tailgate and out underneath the truck rather than into the box. Treat it as highly weather resistant rather than sealed, and keep anything that truly has to stay dry in a closed container.

Water sits on top of the cover after rain. Is that normal?

Yes, and TruXedo answers this one in the manual. The aluminum cross tubes under the fabric are straight rather than arched, so the closed surface is deliberately flat and a shallow pool can stand on it after heavy rain. Once the truck is moving the water leaves on its own. Two habits reduce it: make any tension adjustment when the day is at its hottest, so the fabric is pulled up tight, and press both hook-and-loop strips home from cab to tailgate every time you shut the cover. If a pool is deep enough to sag the middle, the cover is running loose rather than faulty.

Can I close it with the tailgate up?

On most trucks yes, and the order matters. TruXedo's preferred sequence is to shut the tailgate first and then close the cover down on top of it, so the rear seal lands outside the tailgate. Some bed shapes will not allow that, and on those you latch the cover down first and then close the tailgate up against the inside of the seal. It takes a week or so of use for the seal to learn the second position. If the rear header will not catch at all, the cause is nearly always side rails sitting low or out of level rather than the latch, so reset the clamp heights before you call anything faulty.

Does the fabric flap or flutter at highway speed?

It should not, and when it does there are two fixes before you conclude anything is wrong. First, the hook-and-loop has to be engaged from the cab end to the tailgate on each rail, every time; run your palms down both sides and press the strip into its track. A cover left unhooked at the corners is what lifts at speed. Second, check the DriveTight tension. Behind the front header sit two spring plungers, set at the factory and adjustable afterwards. TruXedo asks that any adjustment be made when the day is at its hottest, a little at a time, working toward roughly a 1/16" gap. Both are owner adjustments that need no parts.

Is anything drilled or cut when it goes on?

On 78 of the 79 Pro X15 applications, nothing at all. The rails grip the inner lip of the bed rail, no metal is cut, and everything lifts back off when the truck changes hands. One application is different and we would rather you read it here than find it in the carton. Part number 1474301, built for the GMC Sierra 1500 on the composite CarbonPro bed, needs a 7mm (9/32") hole made in the plastic bed cap at each side so the mounting screw can reach the threaded hole underneath. TruXedo supplies two drill guides in that kit for exactly this step, and the guide backs the bit so it cannot touch the bed itself, but you will need a drill and a T30 Torx driver. Every other application in the family, including the other GM 5'10" parts, is clamp-on.

Can I take the cover off, and how heavy is it?

Most Pro X15 applications include the quick-release handle, which lets you lift the cover off the rails in seconds with no tools, leaving the rails clamped to the truck. A handful of trucks miss out on it, which TruXedo puts down to the design of those beds, and every listing affected says so in its own fitment notes. Read those first if lifting the cover off in seconds is the reason you are buying this one. TruXedo publishes no weight for the cover on its own, only a packed carton weight, so we are not going to quote you a figure. In practice one person can manage a rolled cover off a short bed and a second pair of hands makes any long bed easier.
