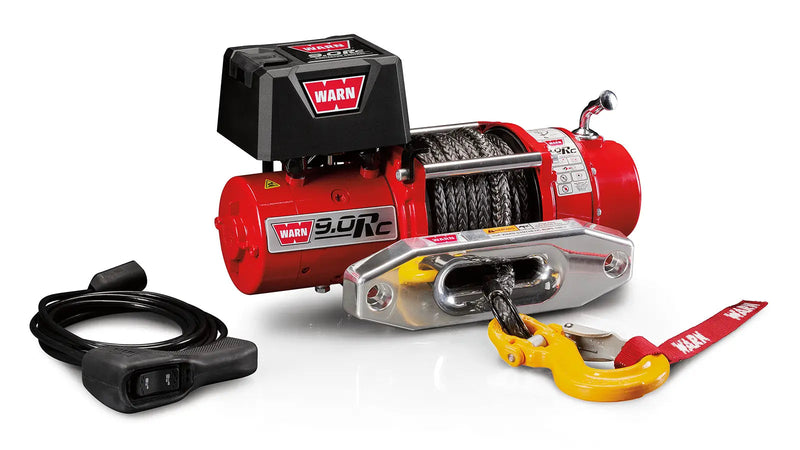

The 9.0Rc was built for competition rock crawling, which is a discipline with a very specific set of demands: maximum pull, minimum weight, minimum length, and a brake the driver can actually feel. It answers all four. A short 2.75" by 4.75" drum carrying 50' of 3/8" synthetic rope makes it dramatically more compact than a truck winch, and the whole thing weighs 54 lb, less than half what an M12 does. Behind that sits a 4.8 hp series-wound motor, the fastest per pound in Warn's line, and an exclusive multi-segment cam-actuated brake that gives progressive operator control instead of the on-or-off feel of a cone brake. It wears gloss red over a chromate undercoat, because a competition winch has never had to be subtle.
What's Included:
- Warn 9.0Rc winch with 9,000 lb rated line pull
- 50' of 3/8" synthetic rope, factory spooled
- Polished aluminum hawse fairlead
- 360 degree swivel hook and thimble
- Ballistic Nylon sliding sleeve for rope abrasion protection
- Remote switch with 12' lead, S2 elements and integrated flashlight
- 2 gauge, 72" battery leads
- Warn operator's manual and mounting hardware
Features
9,000 lb in a 54 lb Winch
This is the number that defines the 9.0Rc. Most 9,000 lb winches weigh 75 lb or more; this one weighs 54 lb, which on a competition buggy is a meaningful chunk of front-end weight not being carried. The short drum is where most of that saving comes from, and it also makes the winch far shorter overall than a truck unit.

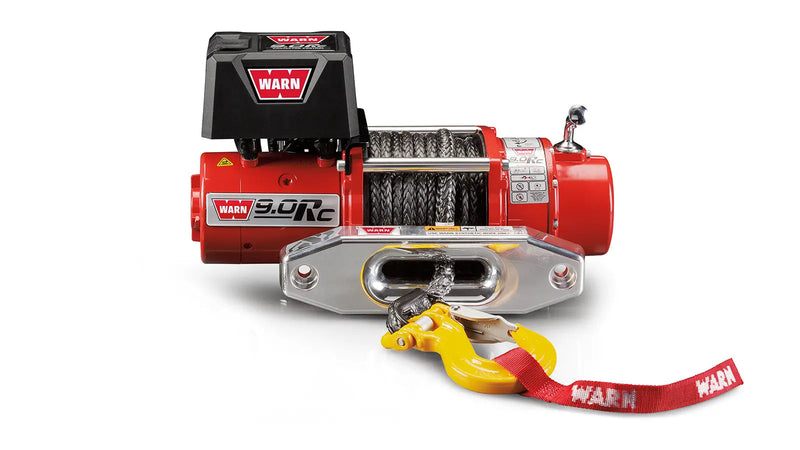

Short-Drum Design, 2.75" x 4.75"
A short, narrow drum keeps the whole winch compact at 16.8" long, which is what lets it tuck inside a competition bumper or a tight buggy nose where a full-length winch simply will not go. It carries 50' of rope, which is the length a rock-crawling course actually needs.
Exclusive Multi-Segment Cam-Actuated Brake
This is the 9.0Rc's real party trick. Instead of the automatic cone brake used across Warn's truck line, it runs a multi-segment cam-actuated brake that gives positive, progressive operator control while winching. On a technical climb where you are modulating the line rather than just reeling it in, that feel is the difference between placing the vehicle and dragging it.
4.8 hp Series-Wound Motor
The largest motor in the batch relative to winch size, geared 216:1 through a three-stage planetary. That combination is why the 9.0Rc has fast line speeds for its class, which matters when a competition run is against the clock.
Synthetic Rope, Aluminum Hawse and a Swivel Hook
50' of 3/8" synthetic rope through a polished aluminum hawse fairlead, terminating in a rugged 360 degree swivel hook and thimble. The swivel is not a detail: on a rock course the line takes load from angles a fixed hook fights against. A Ballistic Nylon sliding sleeve protects the rope where it drags.
Extreme-Duty Sealing and a Gloss Red Finish
Chromate undercoating beneath high-gloss red paint for corrosion resistance, with extreme-duty sealing to keep water and grit out of the motor and gear train. Competition rigs live in water and silt, and this winch is built on that assumption.
6" x 4.5" Bolt Pattern, Not the Standard 10" x 4.5"
Worth reading twice if you are cross-shopping. The 9.0Rc uses a 6" x 4.5" mounting bolt pattern, not the industry-standard 10" x 4.5" that every other winch here uses. Your mount has to be made for it. That is the price of the short frame, and it is the single most important thing to check before you order.
Fitment & Compatibility
| Vehicle Class |
Fit |
| Competition rock crawlers and buggies |
✓ Yes, the 9.0Rc's purpose-built application |
| Lightweight trail rigs and tube chassis builds |
✓ Yes, and the weight saving is the reason to choose it |
| Jeep Wrangler and mid-size 4x4s up to about 6,000 lb gross weight |
✓ Yes on capacity, but only with a mount cut for the 6" x 4.5" pattern |
| Half-ton and heavier trucks |
✗ No. Capacity is marginal and the short drum carries only 50' of rope |
| ATV, UTV and powersports |
✗ No. Use the Warn VRX or AXON line |
Fit guidance: This is a universal-fit winch, but with one hard constraint the rest of the Warn line does not have: it mounts on a 6" x 4.5" bolt pattern, not the industry-standard 10" x 4.5". A standard winch plate or winch-ready bumper will NOT accept it without a purpose-made adapter or mount. Confirm your mount is specified for the 9.0Rc or 9.0R before ordering. On capacity, the usual rule applies: a rated pull of at least 1.5 times gross vehicle weight, which puts 9,000 lb at home on vehicles up to roughly 6,000 lb. Also plan around the 50' rope, which is short by truck-winch standards and assumes a course rather than a highway recovery.
Specifications
-
Model: 9.0Rc
-
Part Number: 71550
-
Rated Line Pull: 9,000 lb (4,082 kg) single line, first layer
-
Motor: 12V DC, 4.8 hp series wound
-
Geartrain: 3-stage planetary
-
Gear Ratio: 216:1
-
Brake: Exclusive multi-segment cam actuated
-
Clutch: Sliding ring gear free-spool
-
Remote Control: Remote switch, 12' (3.7m) lead, S2 elements, integrated flashlight
-
Rope: 50' of 3/8" synthetic rope
-
Fairlead: Polished aluminum hawse
-
Hook: 360 degree swivel hook and thimble
-
Rope Protection: Ballistic Nylon sliding sleeve
-
Drum Diameter and Length: 2.75" / 4.75" (7.0cm / 12cm), short drum
-

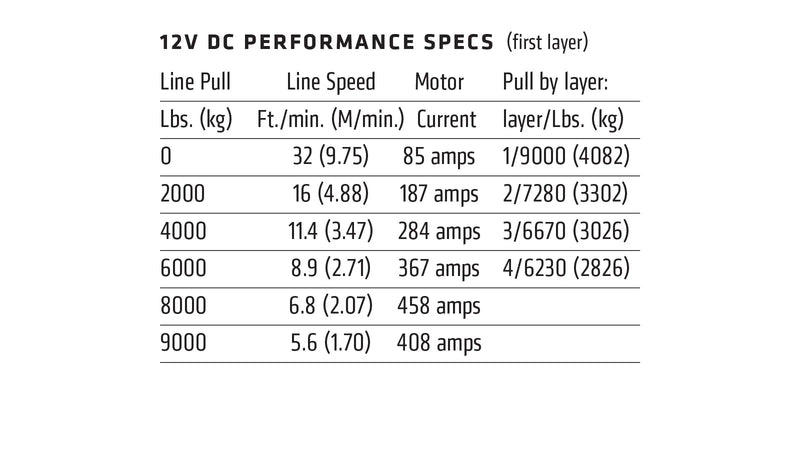

Line Speed, No Load: 32 ft/min (9.75 m/min), 85 amps
-
Pull by Layer: Layer 1: 9,000 lb · Layer 2: 7,280 lb · Layer 3: 6,670 lb · Layer 4: 6,230 lb
-

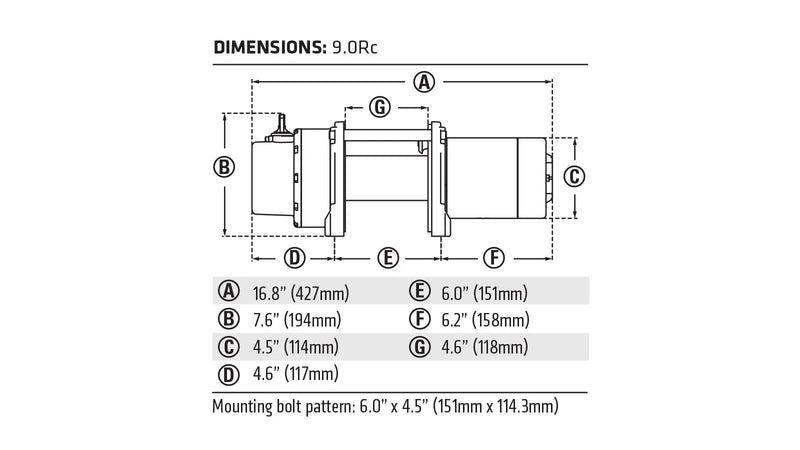

Overall Dimensions: 16.8" x 7.6" x 4.5" (427mm x 194mm x 114mm)
-
Mounting Bolt Pattern: 6" x 4.5" (151mm x 114.3mm), not the standard 10" x 4.5"
-
Battery Leads: 2 gauge, 72" (1.83m)
-
Recommended Battery: 650 CCA minimum for winching
-
Lubrication: Aeroshell #17
-
Finish: Chromate undercoat with high-gloss red paint
-
Sealing: Extreme duty
-
Winch Weight: 54 lb (24.8 kg)
-
Country of Origin: USA
-
Shipping Weight: 60 lb
-
UPC: 012748715504
-
Warranty: Limited lifetime mechanical, limited 7 year electrical
Installation
Type: Bolt-in to a winch mount cut for the 6" x 4.5" pattern, plus a battery connection · Time: About 1 to 2 hours with the mount already fitted · Tools: Socket and wrench set, torque wrench. At 54 lb this is a one-person lift, unlike the rest of the Warn truck line · Difficulty: Intermediate
Check the bolt pattern before anything else: 6" x 4.5", not the standard 10" x 4.5". Bolt the winch down and torque to Warn's spec, then fit the polished aluminum hawse so the rope runs through it without touching an edge, and check the aperture for burrs, because that is what destroys synthetic rope. Position the Ballistic Nylon sliding sleeve where the rope drags. Run the 2 gauge leads to the battery clear of exhaust, steering and suspension travel. Cycle the free-spool clutch and run the winch both directions under no load before the first pull, and get familiar with how the cam-actuated brake feels under load, because it behaves differently from the cone brake on a truck winch.
Resources
Everything you need for your Warn 9.0Rc Rock Crawling Winch, in one place.
Warranty, Shipping & Returns
Warranty. Warn limited lifetime warranty on mechanical components and a limited seven year warranty on electrical components.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Warn
Warn Industries has been building vehicle recovery gear in the Pacific Northwest since 1948, when Arthur Warn started out converting surplus military Jeeps for road use with a locking hub of his own design. The hubs turned into winches, and the winches turned Warn into the name that off-roaders, ranchers, utility fleets and search-and-rescue crews reach for when something has to come out of somewhere it should not be. The Rc and R specialty winches are the competition end of that line, and Warn designs, engineers and assembles them in Clackamas, Oregon.
From mud in Malaysia to sand in the Australian outback, Warn's specialty winches have a reputation earned in the trenches, on trails and in the toughest competitions in the off-road world, one fast line pull at a time. That reputation comes from treating a winch as a safety device rather than an accessory: series-wound motors, real brakes, extreme-duty sealing and gear trains rated for the number printed on the box. It is also why Warn publishes full pull-by-layer tables instead of a single headline figure, and why the mechanical side of the warranty runs for the life of the product.
Prestige Truck is an authorized Warn dealer. Every winch we sell is new, factory-boxed, covered by the full Warn factory warranty, and supported through Warn's own dealer network.
