Finished in fleet-friendly brite white ARMOR TUF powder coat, the Weather Guard 125-3-04 reflects heat to help keep contents cooler and is easy to match to a white work truck or fleet. The tough coating resists rust, chips and fading season after season. It is the natural match for a white commercial fleet or any contractor who wants maximum visibility. On hot days a white box and its contents also run noticeably cooler than a dark one baking in the sun. This standard-width steel gull-wing crossover box spans the bed rails behind the cab of a full-size pickup and opens through twin independent lids for access from either side, with 11.3ft³ of storage. A heavy-duty formed steel body with a reinforced lid stands up to jobsite abuse, and a full-perimeter D-shaped weather seal locks out rain and dust.
What's Included:
125 Series full-size standard steel gull-wing crossover (cross) tool box in brite white
Two independently locking gull-wing lids, 1Key UltraLock compatible, two keys
Under-rail mounting clamps and hardware for a no-drill install
Heavy-Duty Steel Build A heavy-duty formed steel body with a reinforced lid and front panel stands up to years of loading, weather and road abuse. Steel gives this box maximum strength and a solid, secure feel. This one is finished in brite white ARMOR TUF powder coat.
Brite White ARMOR TUF Finish A brite white ARMOR TUF powder coat reflects sunlight to help keep the box and its contents cooler, and it is easy to color-match to a white work-truck fleet. The coating resists rust, chips and fading in tough conditions.
Dual-Stage Rotary Latch, 1Key Compatible Each gull-wing lid uses an automotive-grade dual-stage rotary latch for smooth one-touch closing and solid break-in resistance, and the box is 1Key UltraLock compatible so you can key it into the same one-key system as your other Weather Guard boxes.
Full-Perimeter Weather Seal A memory-resistant D-shaped, multi-ridge weather strip runs the entire lid perimeter to keep rain, dust and debris off your tools, so your gear stays dry and ready in any weather.

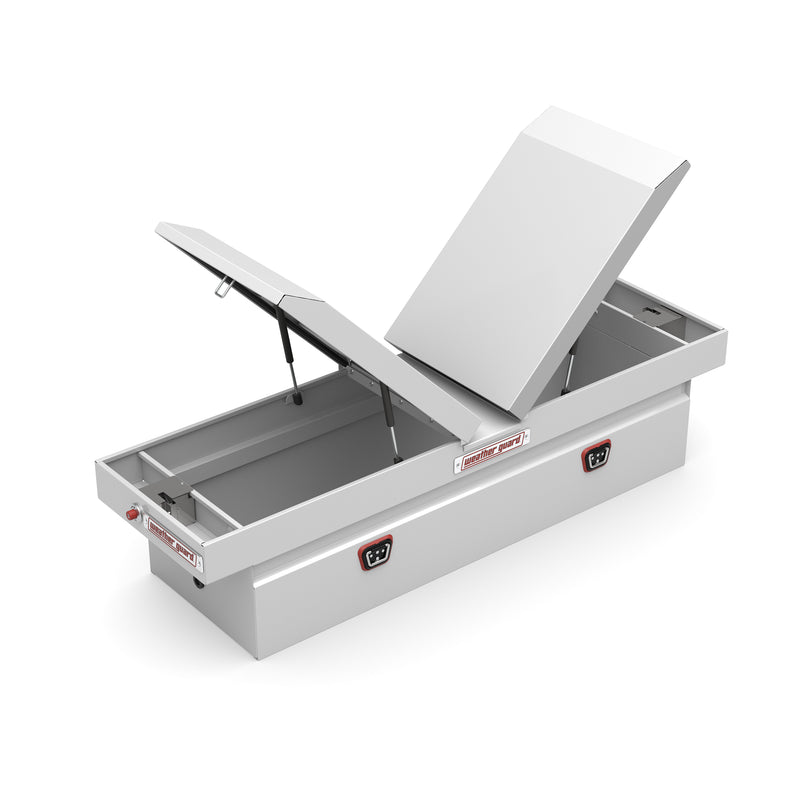

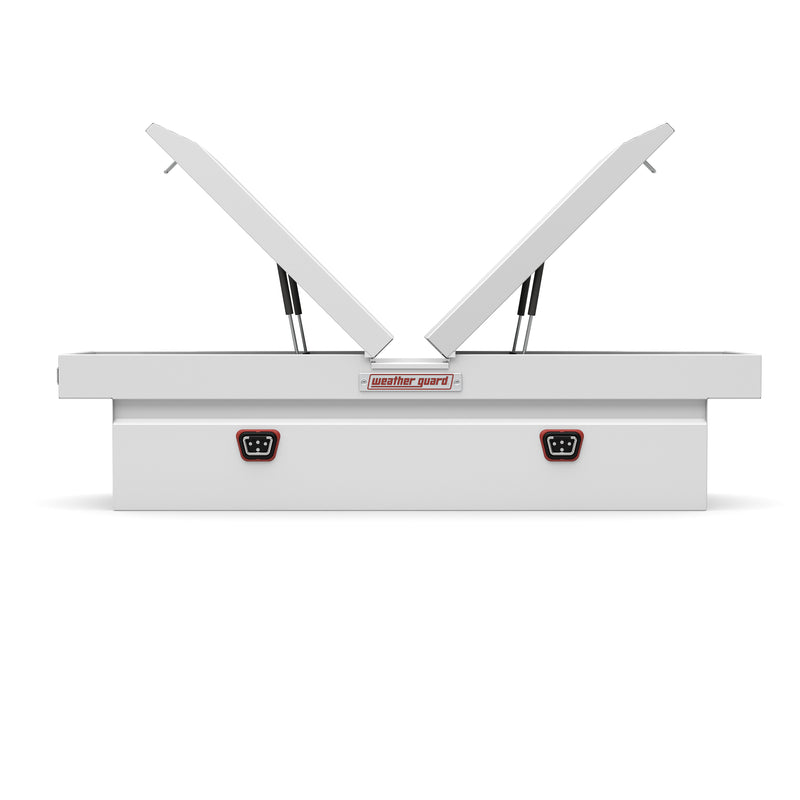

Dual-Lid Gull-Wing Access Two independent gull-wing lids open from either side of the truck, so you can reach tools from whichever side you are standing on without walking around the bed. Each lid operates and locks on its own.

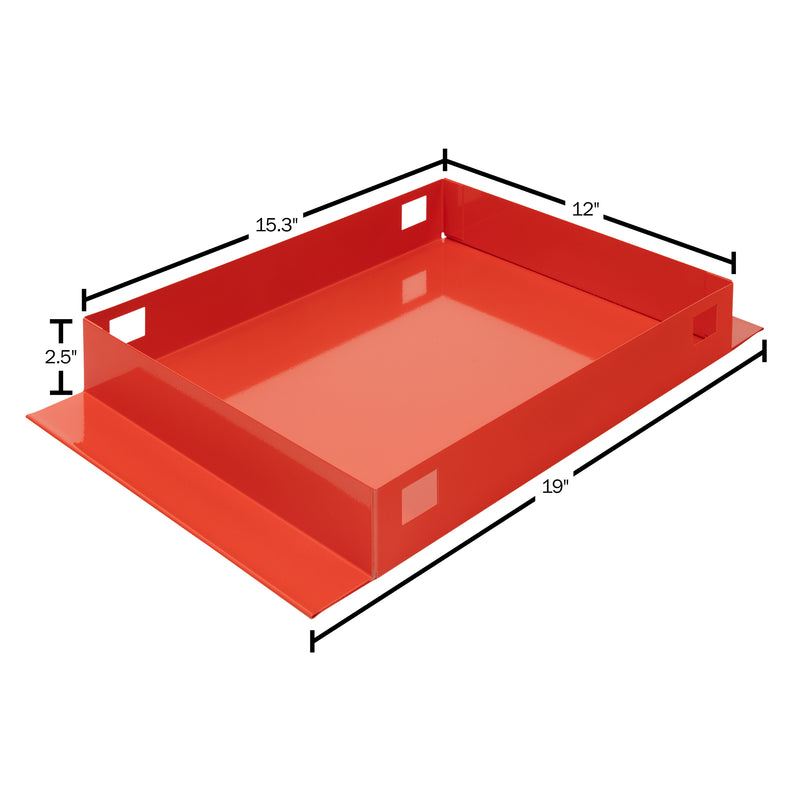

Crossover Fit With Bed Clearance The box suspends across the bed rails behind the cab and leaves room underneath, and a 12V access port supports lights and electrical add-ons. A removable divider tray helps organize smaller tools and hardware.
Reinforced Body, Automotive-Grade Hardware Weather Guard specifies a five-piece welded body for the 125-3-04, with a C-channel reinforced front panel and a heavy-duty C-channel reinforced lid, so the box stays square when it is loaded and when someone stands on the lid. The latch is an automotive dual-stage rotary mechanism, the same style a truck door uses, so it pulls the lid down onto the seal instead of relying on a friction catch. A welded gas strut shield keeps loose tools from knocking the strut mount out of line. The D-shaped ribbed weather strip is memory resistant, so it springs back after years of closing rather than taking a set and letting water track in.
Fit guidance: Crossover, or saddle, boxes mount across the truck bed on top of the two bed rails just behind the cab, so the box straddles the bed and leaves the bed floor open. At about 72" wide this size fits standard-width full-size pickups, and because it sits on the rails rather than the bed floor it works with short, standard and long beds on those trucks. Always measure your bed rail width and check clearance behind the cab before ordering. It is not designed for compact or mid-size trucks.
Specifications
Series: 125 Series Steel Gull-Wing Crossover
Style: Full-Size Standard, dual-lid gull-wing
Storage Capacity: 11.3ft³
Exterior Dimensions: 72"L x 22-3/4"W x 19"H
Material: Heavy-duty formed steel, reinforced lid and front
Finish: Brite White ARMOR TUF
Lid: Two independent gull-wing lids, gas-strut assisted
Lock: Automotive-grade dual-stage rotary latch per lid, 1Key UltraLock compatible, two keys
Overall Size (Weather Guard published): 72"L x 22-3/4"W x 19-1/4"H
Shipping Size: 74-3/8"L x 25"W x 21-3/8"H, 115 lb
UPC: 783965073080
Weight: About 115 lb (shipping weight)
Warranty: Limited Lifetime
Made In: USA
Installation
Type: Saddle mount across the top bed rails, clamp-in with no drilling · Time: About 20 to 30 minutes · Tools: Socket or wrench set and a tape measure; no drill needed with the included under-rail clamps · Difficulty: Easy, best done with two people for the lift
Set the gull-wing box across the two bed rails behind the cab and center it left to right, then hook the included clamps under each bed rail and tighten the hardware evenly so the box sits flat and both lids seal. Because the box is wide and opens from both sides, have a second person help lift and hold it while you clamp it down. Follow the Weather Guard installation instructions for exact clamp placement and torque.
Watch the installation walkthrough:
Warranty, Shipping & Returns
Warranty. Limited Lifetime Warranty from Weather Guard against defects in materials and workmanship.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Weather Guard
Weather Guard has built professional-grade truck and van storage in the USA for decades and is the storage brand tradespeople, contractors, and fleets reach for first. Its steel and aluminum tool boxes, ladder racks, and van-interior systems are engineered to survive daily jobsite abuse and keep expensive tools secure and organized.
Known for weather-tight seals, patented locking systems, and heavy-gauge construction, Weather Guard products mount cleanly on work trucks and vans and stand up to years of hard use. The lineup spans crossover, low-side, and saddle truck boxes, ladder and van racks, drawer units, and fuel and utility tanks, so an entire work vehicle can be outfitted from one brand.
Backed by a strong manufacturer warranty and US-based support, Weather Guard is the name pros trust to protect the tools their livelihood depends on.
Authorized Weather Guard dealer. Prestige Truck is an authorized dealer of Weather Guard, so every tool box, rack and storage product you buy is 100% genuine and factory-new, covered by the full Weather Guard manufacturer warranty, and backed by our own US-based support team.
Compare The Range
How this compares to similar models
The closest alternatives side by side, so you do not have to keep tabs open.
Model
This OneWeather Guard 125 Steel Gull-Wing Truck Tool Box, Full-Size Standard, Brite White (125-3-04)
Weather Guard's official hardware video zooms in on the clamp and bolt kit that secures its truck boxes to the bed rails without drilling. It is a helpful close-up companion to the full box install and shows how the mounting brackets hook under the rail lip and tighten down. Use it alongside the printed instructions that ship with the box.
How the 1Key UltraLock System Works
A step-by-step look from Weather Guard at what the 1Key UltraLock actually does: how the cylinder accepts a new code, why the red push button retracts when the box is locked, and how the latch pulls the lid down against the seal. Worth two minutes before you set the box up.
How to Code Your 1Key UltraLock Lock
Weather Guard's official walkthrough for coding the lock so this box opens with the same key as the rest of your Weather Guard boxes. Follow it once when the box arrives and you can stop carrying a separate key for every lid on the truck.
Frequently Asked Questions
Straight answers on specs, fit and support
Will the 125-3-04 fit my truck?
It is a full-size standard crossover, or saddle, box that mounts across the top bed rails behind the cab, so it fits full-size pickups such as the F-150, Silverado and Sierra 1500 through 3500, Ram 1500 through 3500, Tundra and Titan. It needs about 72" of rail-to-rail width. Measure your bed rails and check clearance behind the cab first, and note it is not designed for compact or mid-size trucks.
Does it require drilling to install?
No. The gull-wing box ships with under-rail clamps and hardware, so it mounts without drilling into your truck. Most installs take about 20 to 30 minutes and go easiest with two people to lift and hold the box while you clamp it down.
How does this gull-wing box lock?
Each of the two gull-wing lids has its own automotive-grade dual-stage rotary latch for smooth, secure closing, and the box is 1Key UltraLock compatible, so it can be keyed into the same one-key system as your other Weather Guard boxes. Two keys are included.
Does the white finish stay clean and hold up over time?
The brite white ARMOR TUF coating resists rust, chips and yellowing, and the full-perimeter D-shaped weather seal keeps the inside dry. White shows road grime sooner than dark colors, but it wipes clean quickly and reflects heat to keep contents cooler.
Why choose the white finish over black or aluminum?
Brite white reflects heat instead of absorbing it, so tools and adhesives inside stay a little cooler on hot days, and it is the easy pick for matching a white work-truck or van fleet. The ARMOR TUF coating keeps it looking sharp and rust-free.
What is it made of and how big is it?
It is built from heavy-duty formed steel with a brite white ARMOR TUF powder coat. The exterior measures 72"L x 22-3/4"W x 19"H with 11.3ft³ of storage, and it ships at about 115 lb, so it is heavy-duty and built to last.
