Give every tool its own home with the Weather Guard 9928-3-02 mechanics-grade cabinet, the eight-drawer unit in the 16" line. Eight ball-bearing drawers turn a single 16" wide column into a fully sorted tool chest, a drawer for each wrench set, driver set, socket family and specialty tool, so nothing gets buried. Each drawer measures about 13.3" wide by 11.4" deep, glides on smooth rollers and latches shut so it holds even when the cabinet is unlocked and the road gets rough. It stacks with other 16" Weather Guard cabinets to extend the system, and the welded Brite White steel body mounts to 13" or 16" deep shelving with the matching bracket.
What's Included:
9928 Series mechanics-grade 8-drawer cabinet in Brite White steel
Eight self-latching drawers on ball-bearing rollers
Easy-to-grip drawer handles (built in)
Weather Guard installation instructions
Features
Eight Drawers, Maximum Sorting Eight drawers turn a single 16" column into a fully sorted tool chest, so wrench sets, driver sets, socket families and specialty tools each get their own drawer and nothing gets buried.
Usable Drawer Size Each drawer measures about 13.3" wide by 11.4" deep, sized for real tool sets rather than tiny trays, while the eight-high stack keeps everything within easy reach.

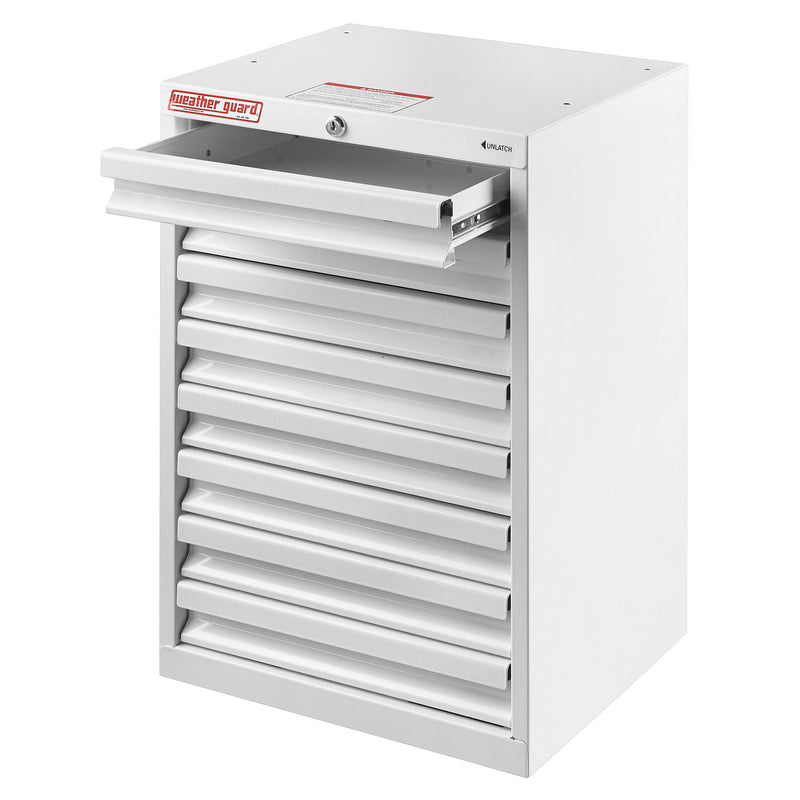

Ball-Bearing Glide, Easy-Grip Handles Every drawer rides on smooth ball-bearing rollers and pulls out on an easy-to-grip handle, so opening any of the eight drawers is quick and clean even with gloves on.
Drawers Latch Shut in Transit Each of the eight drawers latches closed and holds even when the cabinet is unlocked, so a full load of tools stays put on hard stops and washboard roads.
Stacks With 16" Cabinets, ARMOR TUF Finish The 9928 stacks with other 16" wide Weather Guard cabinets, and the welded steel body wears a Brite White ARMOR TUF powder coat that resists moisture, scuffs and grime for years of van duty.
Fitment & Compatibility
Compatibility
Fit
Other 16" wide Weather Guard cabinets (stacking)
✓ Yes, stacks to build a storage tower
13" deep Weather Guard shelving
✓ Yes, with Model 9993-3-01 mounting bracket (sold separately)
16" deep Weather Guard shelving
✓ Yes, with Model 9996-3-01 mounting bracket (sold separately)
Any specific van make, model, wheelbase or roof height
✗ Not applicable, this is a modular cabinet that mounts inside a Weather Guard system, not to the van body
Fit guidance: Fit is to the Weather Guard system rather than to a specific van. The 9928 is the eight-drawer cabinet, about 24" high, so confirm you have the vertical clearance in your build. It stacks with other 16" wide Weather Guard cabinets and mounts to 13 or 16" deep shelving; the bracket is sold separately (9993-3-01 for 13", 9996-3-01 for 16").
Specifications
Type: Mechanics-grade van cabinet, 8 self-latching drawers
Drawers: 8, on ball-bearing rollers, each latches closed when the cabinet is unlocked
Drawer Size: about 13.3"W x 11.4"D x 1.9"H each
Product Dimensions: about 16"W x 24"H x 13.63"D
Material: Welded steel
Finish: Brite White ARMOR TUF Powder Coat
Handles: Easy-to-grip drawer handles
Mounting: Stacks with other 16" cabinets; mounts to 13" or 16" deep shelving with the matching bracket (sold separately, 9993-3-01 for 13", 9996-3-01 for 16")
Shipping Weight: About 65 lb
Product Weight: About 60.5 lb
Shipping Dimensions: About 17"L x 15.88"W x 25.75"H
Install Time: About 0.5 hours
Made In: China
Warranty: Weather Guard limited lifetime
Installation
Type: Stacks or bracket-mounts in a Weather Guard van build · Time: About 15 to 30 minutes · Tools: Ratchet and socket set · Difficulty: Easy with basic hand tools
To stack, secure the 9928 to the cabinet below it before loading. To mount on shelving, attach the matching bracket for your shelf depth and fasten the cabinet so it sits level and all eight drawers glide freely. Follow the Weather Guard installation instructions for exact fastener placement.
Watch the installation walkthrough:
Warranty, Shipping & Returns
Warranty. Weather Guard limited lifetime warranty against defects in materials and workmanship.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Weather Guard
Weather Guard has built professional-grade truck and van storage in the USA for decades and is the storage brand tradespeople, contractors, and fleets reach for first. Its steel and aluminum tool boxes, ladder racks, and van-interior systems are engineered to survive daily jobsite abuse and keep expensive tools secure and organized.
Known for weather-tight seals, patented locking systems, and heavy-gauge construction, Weather Guard products mount cleanly on work trucks and vans and stand up to years of hard use. The lineup spans crossover, low-side, and saddle truck boxes, ladder and van racks, drawer units, and fuel and utility tanks, so an entire work vehicle can be outfitted from one brand.
Backed by a strong manufacturer warranty and US-based support, Weather Guard is the name pros trust to protect the tools their livelihood depends on.
Authorized Weather Guard dealer. Prestige Truck is an authorized dealer of Weather Guard, so every tool box, rack and storage product you buy is 100% genuine and factory-new, covered by the full Weather Guard manufacturer warranty, and backed by our own US-based support team.
Van Shelf Back Panels and Door Accessories Install
Weather Guard's step-by-step guide covers fitting the back panels and door accessories that turn an open van shelf unit into a closed, secure one. Back panels stop small parts dropping down behind the shelving, and the doors keep contents in place and out of sight.
It is the reference to use when you are adding to shelving you already own. Because it is the manufacturer's own video, it shows the correct fixing points and the order the parts go together.
Conquer the Chaos in Your Work Van
Weather Guard's own short film on van storage, built around the difference between a van you have to dig through and one where every item has a home. It shows the Weather Guard van range working as a single interior rather than as separate parts bolted in over time.
It is a useful orientation if you are planning an upfit and are not sure where to start. Because it is manufacturer content, the shelving, bins and flooring shown are the current Weather Guard line rather than an older catalog.
Installation Help for Your Van Accessories
Weather Guard made this video for anyone who would rather not tackle a van upfit alone. It covers the installation support Weather Guard offers on its van accessories and how to get a fitment question answered before it becomes a problem.
Watch it before you start if this is your first upfit. Knowing the support route in advance is usually what keeps a Saturday install from turning into a Monday phone call.
Frequently Asked Questions
Straight answers on specs, fit and support
How many drawers does the 9928-3-02 have?
Eight drawers in a single 16" wide column, so you can give wrench sets, driver sets, socket families and specialty tools each their own drawer. It is the maximum-sorting unit in the 16" line.
How big is each drawer?
Each drawer measures about 13.3" wide by 11.4" deep, sized for real tool sets rather than tiny trays, and rides on smooth ball-bearing rollers.
Do the drawers stay shut in transit?
Yes. Each of the eight drawers latches closed and holds even when the cabinet is unlocked, so a full load of tools stays put on hard stops and rough roads.
Can I stack it with other cabinets?
Yes. It stacks with other 16" wide Weather Guard cabinets. Since it is about 24" high, confirm you have the vertical clearance in your build first.
Does it include a mounting bracket?
No. The bracket is sold separately. Order Model 9993-3-01 for 13" deep shelving or Model 9996-3-01 for 16" deep shelving.
How big is it and what does it weigh?
About 16" wide, 24" high and roughly 13.63" deep, shipping at about 65 pounds. It is welded steel with a Brite White ARMOR TUF powder coat.
