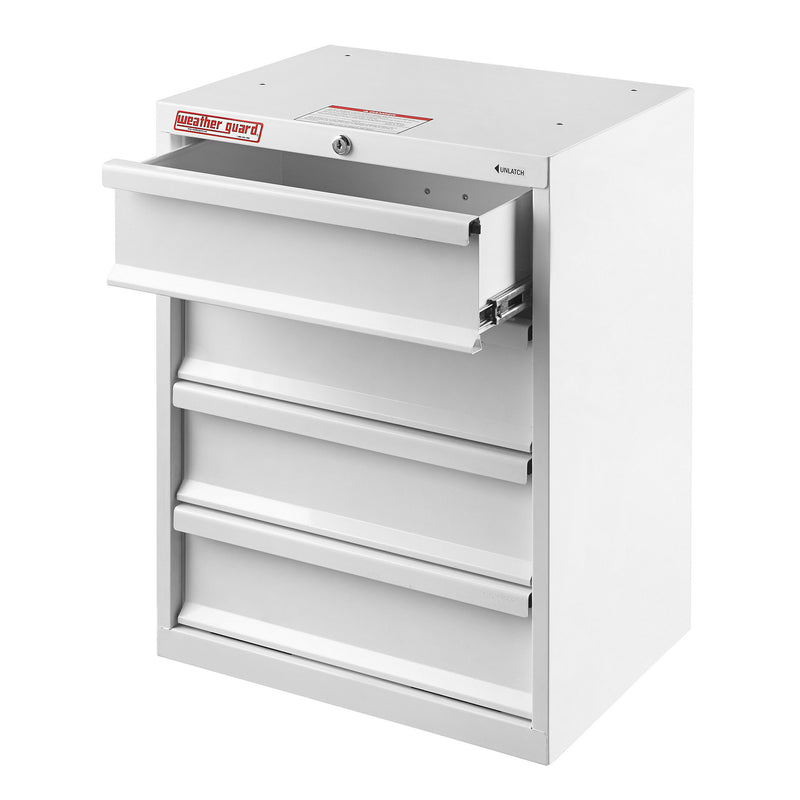

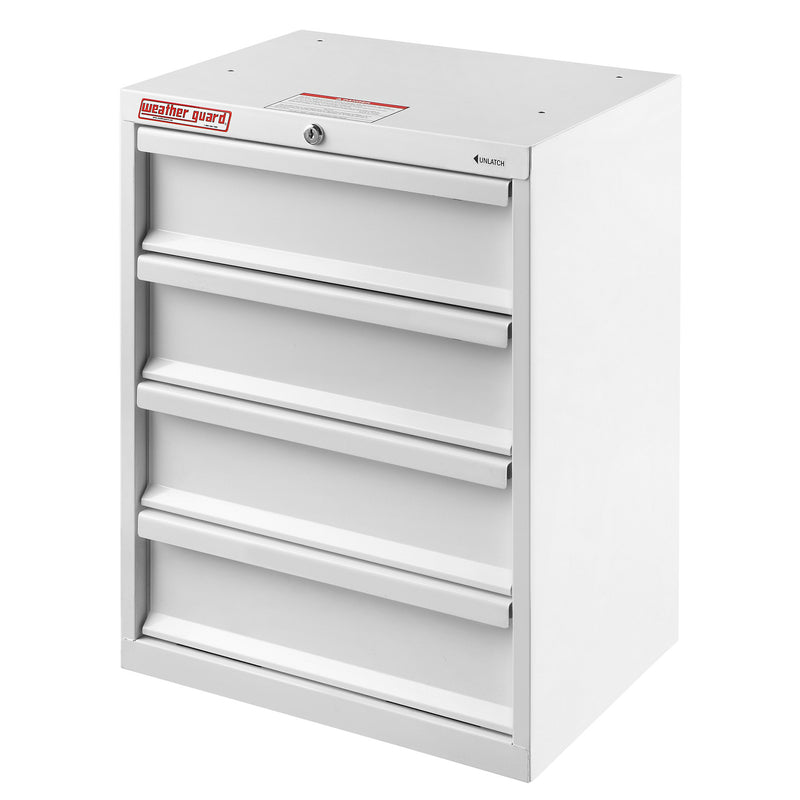

Get wider drawers for long tools and bigger boxes with the Weather Guard 9984-3-01 mechanics-grade cabinet. This is the 18" wide four-drawer unit, so each drawer spans more than the 16" cabinets, useful for longer wrenches, pry bars, larger meters and boxed accessories that a narrower drawer cannot hold flat. Every drawer rides on ball-bearing rollers, pulls out on an easy-to-grip handle and latches shut so it holds even when the cabinet is unlocked and the road turns rough. It stacks with other 18" Weather Guard cabinets to build a matching tower, and the welded Brite White steel body mounts to 13" or 16" deep shelving with the correct bracket.
What's Included:
9984 Series mechanics-grade 4-drawer cabinet in Brite White steel (18" wide)
Four wide self-latching drawers on ball-bearing rollers
Easy-to-grip drawer handles (built in)
Weather Guard installation instructions
Features
Wider 18" Drawers At 18" wide, each of the four drawers spans more than a 16" cabinet, so longer wrenches, pry bars, larger meters and boxed accessories lie flat instead of jamming diagonally.
Ball-Bearing Glide, Easy-Grip Handles Every drawer rides on smooth ball-bearing rollers and pulls out on an easy-to-grip handle, so even a wide, loaded drawer opens cleanly with gloves on.
Drawers Latch Shut in Transit Each of the four drawers latches closed and holds even when the cabinet is unlocked, so a full load stays put on hard stops and washboard roads.
Stacks With 18" Cabinets The 9984 stacks with other 18" wide Weather Guard cabinets, so you can pair it with the eight-drawer 9988 and build a matching, wider storage tower.
Brite White ARMOR TUF Powder Coat A welded steel body with a Brite White ARMOR TUF powder coat resists moisture, scuffs and grime and keeps the cabinet looking clean through years of van duty.
Fitment & Compatibility
Compatibility
Fit
Other 18" wide Weather Guard cabinets (stacking)
✓ Yes, stacks with the 9988 and other 18" cabinets
13" deep Weather Guard shelving
✓ Yes, with Model 9993-3-01 mounting bracket (sold separately)
16" deep Weather Guard shelving
✓ Yes, with Model 9996-3-01 mounting bracket (sold separately)
Any specific van make, model, wheelbase or roof height
✗ Not applicable, this is a modular cabinet that mounts inside a Weather Guard system, not to the van body
Fit guidance: Fit is to the Weather Guard system rather than to a specific van. The 9984 is the 18" wide four-drawer cabinet, about 24" high, and it stacks with other 18" Weather Guard cabinets (not the 16" line). It mounts to 13 or 16" deep shelving; the bracket is sold separately (9993-3-01 for 13", 9996-3-01 for 16"). Confirm your shelf depth and about 18" of shelf width before ordering.
Specifications
Type: Mechanics-grade van cabinet, 4 wide self-latching drawers
Drawers: 4 wide, on ball-bearing rollers, each latches closed when the cabinet is unlocked
Product Dimensions: about 18"W x 24"H x 13.63"D
Material: Welded steel
Finish: Brite White ARMOR TUF Powder Coat
Handles: Easy-to-grip drawer handles
Mounting: Stacks with other 18" cabinets; mounts to 13" or 16" deep shelving with the matching bracket (sold separately, 9993-3-01 for 13", 9996-3-01 for 16")
Shipping Weight: About 53 lb
Product Weight: About 49.3 lb
Shipping Dimensions: About 16"L x 19"W x 26"H
Install Time: About 0.5 hours
Made In: China
Warranty: Weather Guard limited lifetime
Installation
Type: Stacks or bracket-mounts in a Weather Guard van build · Time: About 15 to 25 minutes · Tools: Ratchet and socket set · Difficulty: Easy with basic hand tools
To stack, secure the 9984 to the 18" cabinet below it before loading. To mount on shelving, attach the matching bracket for your shelf depth and fasten the cabinet so it sits level and all four wide drawers glide freely. Follow the Weather Guard installation instructions for exact fastener placement.
Watch the installation walkthrough:
Warranty, Shipping & Returns
Warranty. Weather Guard limited lifetime warranty against defects in materials and workmanship.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Weather Guard
Weather Guard has built professional-grade truck and van storage in the USA for decades and is the storage brand tradespeople, contractors, and fleets reach for first. Its steel and aluminum tool boxes, ladder racks, and van-interior systems are engineered to survive daily jobsite abuse and keep expensive tools secure and organized.
Known for weather-tight seals, patented locking systems, and heavy-gauge construction, Weather Guard products mount cleanly on work trucks and vans and stand up to years of hard use. The lineup spans crossover, low-side, and saddle truck boxes, ladder and van racks, drawer units, and fuel and utility tanks, so an entire work vehicle can be outfitted from one brand.
Backed by a strong manufacturer warranty and US-based support, Weather Guard is the name pros trust to protect the tools their livelihood depends on.
Authorized Weather Guard dealer. Prestige Truck is an authorized dealer of Weather Guard, so every tool box, rack and storage product you buy is 100% genuine and factory-new, covered by the full Weather Guard manufacturer warranty, and backed by our own US-based support team.
Van Shelf Back Panels and Door Accessories Install
Weather Guard's step-by-step guide covers fitting the back panels and door accessories that turn an open van shelf unit into a closed, secure one. Back panels stop small parts dropping down behind the shelving, and the doors keep contents in place and out of sight.
It is the reference to use when you are adding to shelving you already own. Because it is the manufacturer's own video, it shows the correct fixing points and the order the parts go together.
Conquer the Chaos in Your Work Van
Weather Guard's own short film on van storage, built around the difference between a van you have to dig through and one where every item has a home. It shows the Weather Guard van range working as a single interior rather than as separate parts bolted in over time.
It is a useful orientation if you are planning an upfit and are not sure where to start. Because it is manufacturer content, the shelving, bins and flooring shown are the current Weather Guard line rather than an older catalog.
Installation Help for Your Van Accessories
Weather Guard made this video for anyone who would rather not tackle a van upfit alone. It covers the installation support Weather Guard offers on its van accessories and how to get a fitment question answered before it becomes a problem.
Watch it before you start if this is your first upfit. Knowing the support route in advance is usually what keeps a Saturday install from turning into a Monday phone call.
Frequently Asked Questions
Straight answers on specs, fit and support
How is the 9984-3-01 different from the 16" cabinets?
The 9984 is 18" wide, so each of its four drawers spans more than the 16" units. Choose it for longer tools and wider boxes. Note that it stacks with other 18" Weather Guard cabinets, not the 16" line.
Do the wide drawers glide well?
Yes. Every drawer rides on ball-bearing rollers and pulls out on an easy-to-grip handle, so even a wide, loaded drawer opens cleanly with gloves on.
Do the drawers stay shut in transit?
Yes. Each drawer latches closed and holds even when the cabinet is unlocked, so a full load stays put on hard stops and rough roads.
What can I stack it with?
It stacks with other 18" wide Weather Guard cabinets, such as the eight-drawer 9988, to build a matching wider storage tower.
Does it include a bracket?
No. The mounting bracket is sold separately. Order Model 9993-3-01 for 13" deep shelving or Model 9996-3-01 for 16" deep shelving.
How big is it and what does it weigh?
About 18" wide, 24" high and roughly 13.63" deep, shipping at about 53 pounds. It is welded steel with a Brite White ARMOR TUF powder coat.
