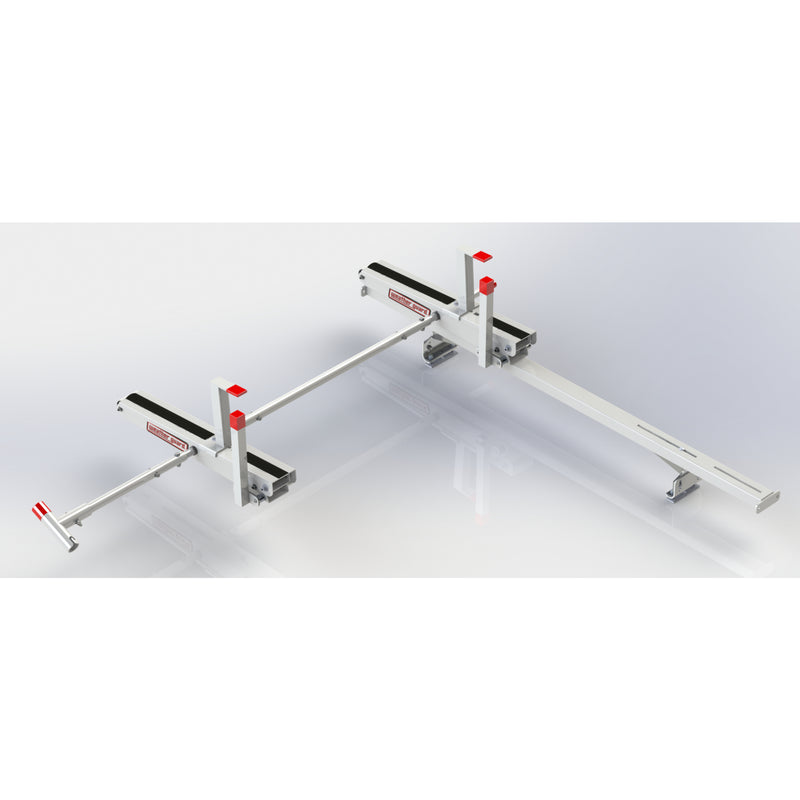

The Weather Guard 2277-3-01 does the same job as the plain full-size dual kit, adding a second drop-down side to a Weather Guard EZGLIDE2 full-size rack (Model 2271-3-01), but it comes with a center cross member so you can carry mixed and shorter ladder lengths on that second side. That cross member gives a stable middle support, which matters when the second ladder is a 14' to 18' extension, a 5' to 8' step, or a podium ladder rather than a long 40' stick. It is an add-on kit, not a standalone rack, and it keeps the EZGLIDE2 feel on both sides: smooth rollers on dual hydraulic dampers, interlocking supports, and roughly 50 percent easier loading than a typical drop-down. Lightweight aluminum with a Brite White ARMOR-TUF finish matches the base rack.
What's Included:
EZGLIDE2 dual drop-down conversion kit for the second side of a full-size rack, aluminum
Center cross member for carrying different ladder lengths
Smooth-roller drop-down mechanism with dual hydraulic dampers
Interlocking ladder supports
Locking latch for the raised position
Stainless steel mounting hardware
Weather Guard installation instructions
Note: requires the base rack Model 2271-3-01, sold separately
Features
Second Side Plus A Cross Member This kit adds a drop-down to the open side of a full-size EZGLIDE2 rack and includes a center cross member, so the second side supports shorter and mixed-length ladders steadily instead of leaving them to hang between the end supports.
Sized For Shorter Ladders The included cross member suits extension ladders from 14' to 18', step ladders from 5' to 8', and podium ladders from 3' to 8', a common second-ladder mix for trades that run one long ladder and one short one.

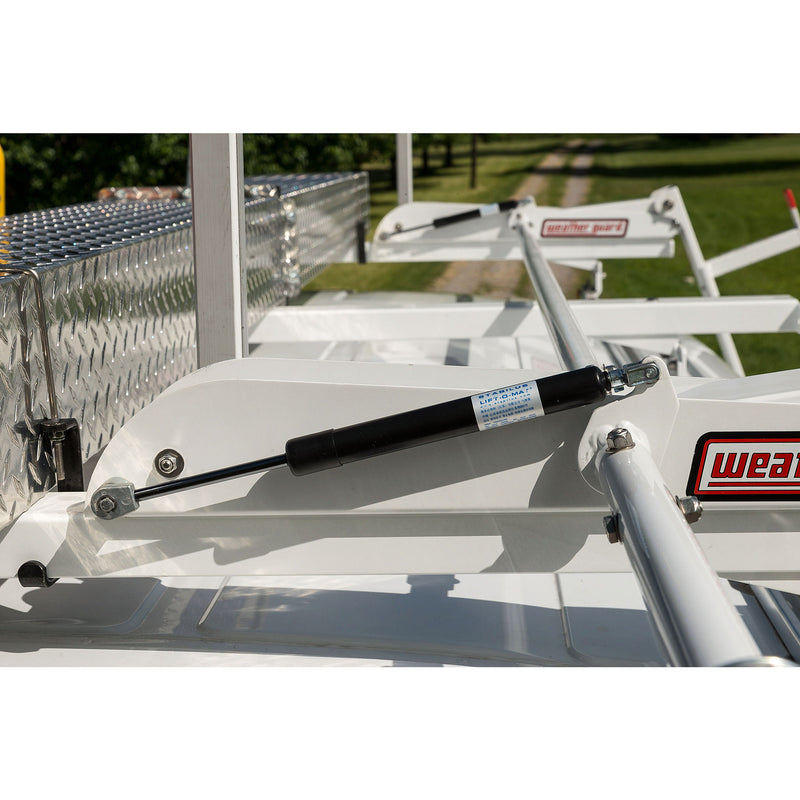

Same Easy EZGLIDE2 Motion Smooth rollers on dual hydraulic dampers and interlocking supports carry over from the base rack, so the second side drops down to waist height and locks up the same easy way, about 50 percent easier than a typical drop-down rack.
Add-On Kit, Not A Standalone Rack It mounts to an installed Weather Guard EZGLIDE2 full-size rack (2271-3-01). It does not bolt to a bare van by itself, so the base rack needs to be in place first.
Light Aluminum, Weatherproof Finish Aluminum keeps the added roof weight low, and the Brite White ARMOR-TUF powder coat with stainless steel hardware matches the base rack and stands up to weather and road salt.
Fitment & Compatibility
Works With
Configuration
Fit
Weather Guard EZGLIDE2 full-size rack 2271-3-01
Existing single-side drop-down rack
● Required base rack, sold separately
Both sides of the van
Adds a second drop-down with a center cross member
✓ Yes, provided by this kit
Use on its own without a base rack
No EZGLIDE2 rack installed
✗ Not a standalone rack
Fit guidance: This is an add-on kit with a center cross member, not a complete rack. It converts an installed Weather Guard EZGLIDE2 full-size rack (Model 2271-3-01) to dual-side and adds middle support for shorter and mixed ladders. Vehicle fit is set by the base rack and its mounting channel kit, so confirm the base rack is installed and rated for your van first. This kit is sized for 14' to 18' extension ladders on the second side. Confirm your van roof load rating before running both sides loaded.
Specifications
Type: Dual drop-down conversion kit with center cross member (second side)
Works With: Weather Guard EZGLIDE2 full-size rack Model 2271-3-01
Standalone Rack: No, requires the base rack
Extension Ladder Range: 14' to 18'
Step Ladder Range: 5' to 8'
Podium Ladder Range: 3' to 8'
Load Rating: Up to 100 lb (check your van roof rating)
Mechanism: Smooth rollers on dual hydraulic dampers, interlocking supports
Includes: Center cross member for different ladder lengths
Material: Aluminum
Finish: Brite White ARMOR-TUF powder coat
Hardware: Stainless steel
Shipping Dimensions: about 74"L x 20.9"W x 6.6"H
Shipping Weight: About 59 lb
Product Dimensions: About 71.6"W x 77.2"D x 19"H
Product Weight: About 50.5 lb
Install Time: About 0.8 hours
Warranty: Limited Lifetime
Made In: China
Installation

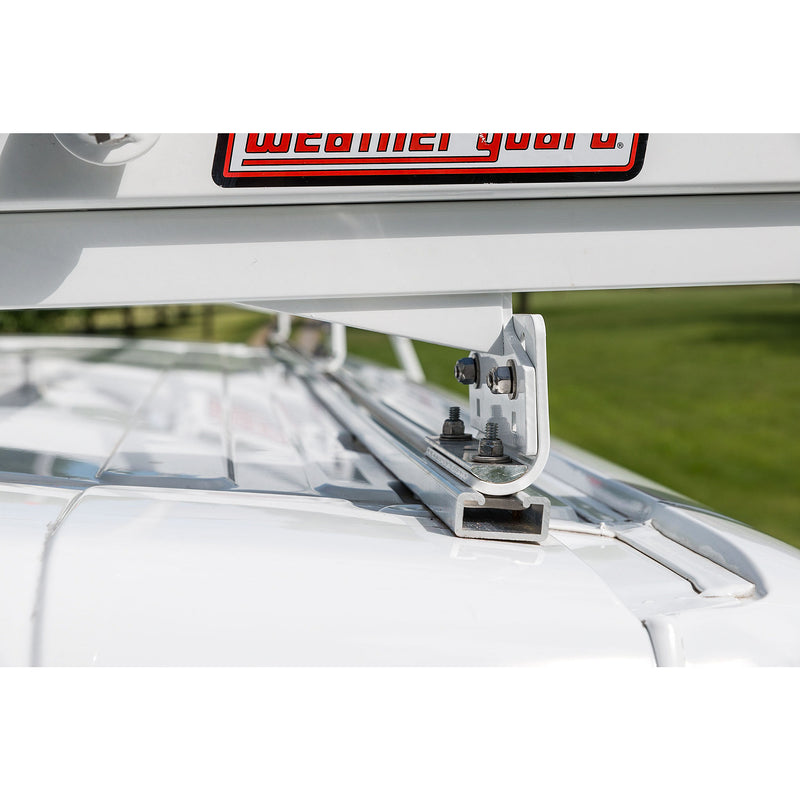

Type: Bolts to the open side of an installed EZGLIDE2 full-size rack · Time: About 1.5 to 2.5 hours · Tools: Socket and wrench set, tape measure · Difficulty: Moderate, two people recommended
With the base 2271-3-01 rack mounted, install the second-side drop-down and the center cross member per the printed Weather Guard instructions, then set the supports for your second ladder. Cycle the new side empty to confirm smooth damper motion and a positive latch before loading.
Watch the installation walkthrough:
Warranty, Shipping & Returns
Warranty. Weather Guard Limited Lifetime Warranty against defects in materials and workmanship.
Free shipping. This item ships free to the lower 48 states. Because it is an oversized item, it ships by freight and typically arrives in 3 to 7 business days.
Inspect on delivery. Please inspect the packaging before signing. If you see any damage, note it on the delivery receipt and contact us right away, and we will make it right.
About Weather Guard
Weather Guard has built professional-grade truck and van storage in the USA for decades and is the storage brand tradespeople, contractors, and fleets reach for first. Its steel and aluminum tool boxes, ladder racks, and van-interior systems are engineered to survive daily jobsite abuse and keep expensive tools secure and organized.
Known for weather-tight seals, patented locking systems, and heavy-gauge construction, Weather Guard products mount cleanly on work trucks and vans and stand up to years of hard use. The lineup spans crossover, low-side, and saddle truck boxes, ladder and van racks, drawer units, and fuel and utility tanks, so an entire work vehicle can be outfitted from one brand.
Backed by a strong manufacturer warranty and US-based support, Weather Guard is the name pros trust to protect the tools their livelihood depends on.
Authorized Weather Guard dealer. Prestige Truck is an authorized dealer of Weather Guard, so every tool box, rack and storage product you buy is 100% genuine and factory-new, covered by the full Weather Guard manufacturer warranty, and backed by our own US-based support team.
Weather Guard Van Upfit Gear

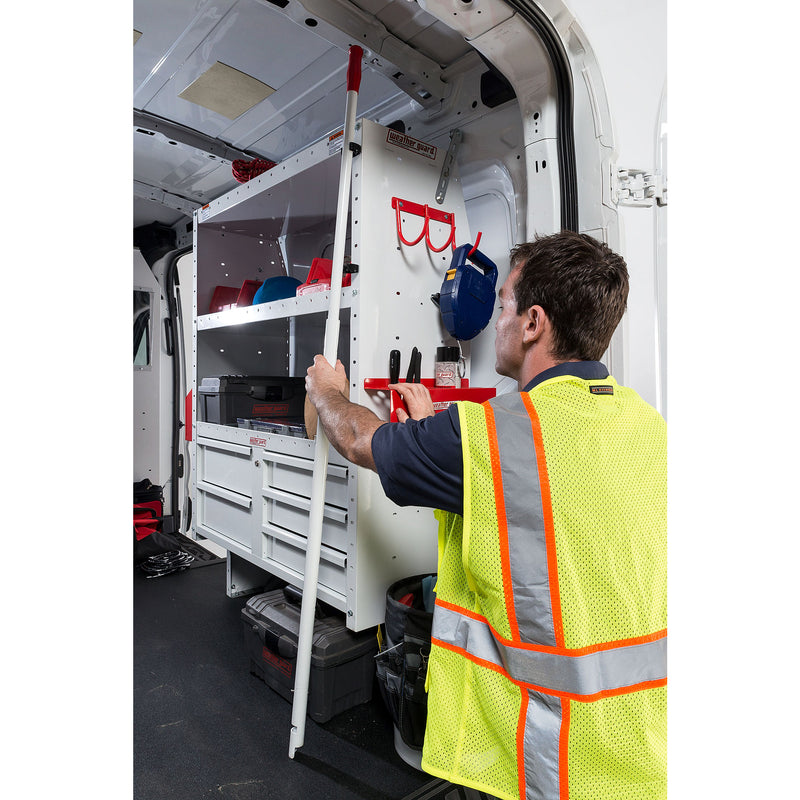

A companion overview of the Weather Guard van interior system, folding shelves, rigid flooring, and locking bins, that pairs with a fully loaded dual-side ladder rack when you build out a full-size work van.
Glidesafe Load Assist Install Guide
Weather Guard's step-by-step guide covers installing the Glidesafe load assist on a van rack. Glidesafe is the assist mechanism that takes the weight and the awkwardness out of getting a ladder up onto and back down off the roof.
It is worth watching even if you are not adding the assist yet, because it shows how the rack and the load-handling hardware bolt together. Coming from Weather Guard itself, it is the most reliable reference for fitting the accessory correctly.
Conquer the Chaos in Your Work Van
Weather Guard's own short film on van storage, built around the difference between a van you have to dig through and one where every item has a home. It shows the Weather Guard van range working as a single interior rather than as separate parts bolted in over time.
It is a useful orientation if you are planning an upfit and are not sure where to start. Because it is manufacturer content, the shelving, bins and flooring shown are the current Weather Guard line rather than an older catalog.
Frequently Asked Questions
Straight answers on specs, fit and support
What does the cross member add over the plain dual kit?
The included center cross member gives the second side a stable middle support, which suits shorter and mixed ladders. That is why this kit is sized for 14' to 18' extension ladders, while the plain full-size kit (2275-3-01) carries longer 20' to 40' ladders.
Is the 2277-3-01 a complete rack?
No. It is an add-on that converts a single-side Weather Guard EZGLIDE2 full-size rack (Model 2271-3-01) to dual-side. The base rack must already be installed on the van.
What ladders fit the second side?
Extension ladders from 14' to 18', step ladders from 5' to 8', and podium ladders from 3' to 8', up to about 100 lb. Confirm your van roof load rating before loading both sides.
Does it operate like the base rack?
Yes. It uses the same smooth rollers, dual hydraulic dampers, and interlocking supports as the 2271-3-01, so both sides drop to waist height and lock up the same easy way.
Do I need another van mounting kit?
No. The van mounting is handled by the base rack's channel kit. This dual kit bolts to the installed base rack itself.
Is it warranted?
Yes. It carries the Weather Guard Limited Lifetime Warranty against defects in materials and workmanship, in matching aluminum with a Brite White ARMOR-TUF finish.
