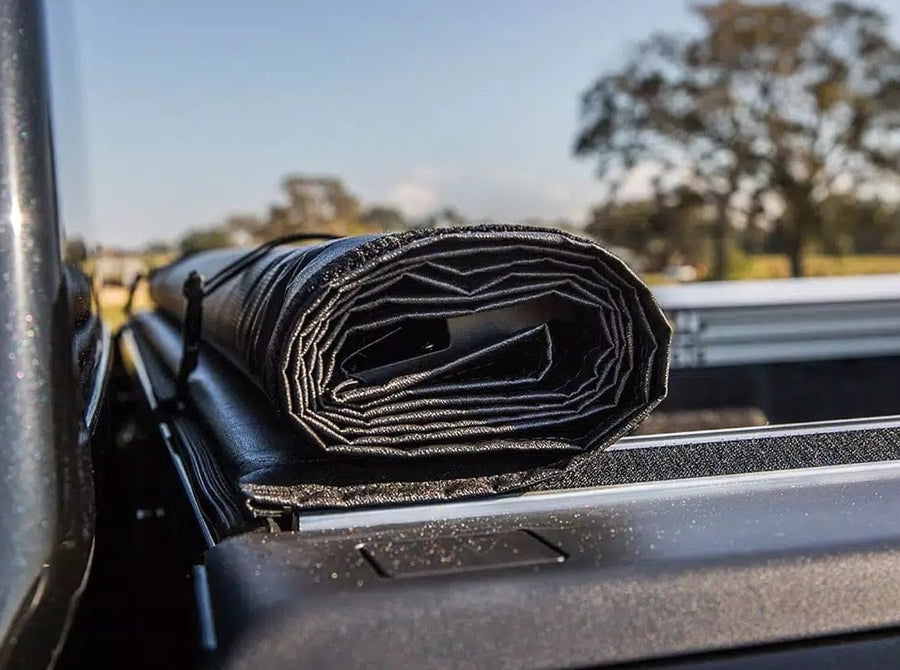

Access TonnoSport part 22050349 is the 5' bed application for the 2024-2027 Toyota Tacoma. Roll the cover to the cab and strap it there when a tall load needs the whole bed.
What's Included:
Pre-rolled TonnoSport cover assembly with front bar, bows, rear bar and built-in front and rear seals
Driver and passenger side rails in a silver finish (longer boxes typically get two-piece rails on each side)
Left and right EZ-Dial tension adjusters with nuts and bolts
Tight Bite rail clamps
Storage straps, attached to the cover
The Element Seal bulkhead gasket, TrailSeal tailgate gasket, sealant for factory box holes, bed liner and any cargo lighting or tools are sold separately and are not in the box.
Features
Trigger latch and dual slide locks A one-finger trigger on the driver side releases the rear bar, and the latch sets itself when the cover closes. Slide locks on both sides push in to lock and pull out to release.
EZ-Dial tension adjusters Turning the dials tightens or loosens the fabric with no tools. Setting both sides equally keeps the cover drum tight, which helps it shed water and last longer.
Low 1/2" profile The cover rides 1/2" above the box for a trim, low line on the truck. Black aluminum bars pair with silver side rails and bows, and most long boxes get three bows instead of two.
Full-length hook-and-loop sealing A 1" slide-in hook strip fastens the fabric edge along the entire length of each side rail. One person can roll the cover up tight for full use of the bed.
Seals on all four sides Built-in front and rear vinyl seals and foam on the side rails close off the perimeter of the box. An Element Seal bulkhead gasket is an available add-on.
Fitment & Compatibility
Fit guidance: Fits the 2024-2027 Toyota Tacoma with the 5' (60") bed. The cover mounts with special hardware that may disable or limit use of the deck rail system (see the installation instructions).
Side sealing: 1" slide-in hook-and-loop, full length of both rails
Weather sealing: Seals on all 4 sides: built-in front and rear vinyl seals, foam on side rails
Element Seal bulkhead gasket: Optional, sold separately
Frame: Black aluminum bars, silver side rails and 2 silver bows (most long boxes get 3)
Rear bar: Flat rear bar
Mounting: Tight Bite clamp-on side rails; some trucks need special hardware (see Installation tab)
Warranty: 2-year limited
Fits: 2024-2027 Toyota Tacoma
Bed: 5' (60") bed
Part number: 22050349
Installation
Type: Clamp-on side rails with Tight Bite clamps; some trucks add special hardware or bolt-on steps · Install: Hand tools and a torque wrench, truck-specific steps on each listing's Installation tab
The cover mounts to side rails fixed along the inside of the box, with its tension set at the front bar. Steps, torque values and any extra hardware for this truck are on the Installation tab below.
What the instructions for this truck call for:
Tools listed: (2) 1/2" Wrenches, Protective eyewear, Tape measure or ruler, Ft-lb Torque wrench with 1/2" socket, Spring clamp - optional, Ft-lb Torque wrench, Ratchet with 7/16", 1/2" and 10mm sockets, 1/2" Wrench, Cutting tool, T-30 Torx bit, Protective eyeware
Torque: H. Torque all bolts to 10 ft-lbs.
Drilling: the instructions for this truck include no drilling step.
Bed liners: Under the rail drop-in bed liner requires minimal modification at front corner of box and back by tailgate. Over the rail drop-in bed liner requires considerable modification.
After installing: For trucks with electric tailgates, cover and tailgate should remain closed after installation for at least 24 hours. (electric tailgates only)
Warranty. Agri-Cover backs the TonnoSport with a 2-year limited warranty against defects in material and workmanship, counted from the date of receipt or manufacture. It covers repair or replacement of defective parts, not labor, and excludes accident, misuse, improper installation and normal wear. Shipping. The cover arrives pre-rolled with its side rails and mounting hardware packed alongside. Inspect on delivery. Check every component against the parts list and look over the rails and fabric for shipping damage before you start the install.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Access
Access roll-up covers are designed and built by Agri-Cover, Inc., a Jamestown, North Dakota company whose lineup also spans mud flaps, snow plows, ag tarps, pickup racks, truck toppers and hard covers. The Access Original roll-up has been in the catalog since 1991, and every Access roll-up since has kept the same rail-mounted, hook-and-loop sealed layout.
Access builds seven roll-up lines. The TonnoSport is the entry-level model: it shares the 1/2" low profile, trigger latch and dual slide locks of the Vanish, and uses EZ-Dial tension adjusters, silver side rails and a simpler sealing package to reach a lower price.
Agri-Cover supports the TonnoSport with a 2-year limited warranty. The serial number is on a decal under the rear bar; have it ready for warranty claims and when ordering original replacement parts through Agri-Cover customer service.

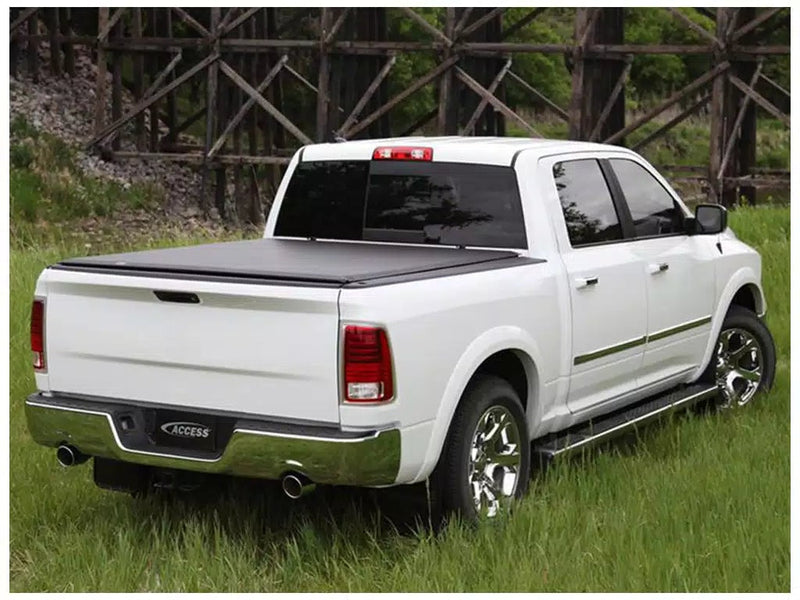

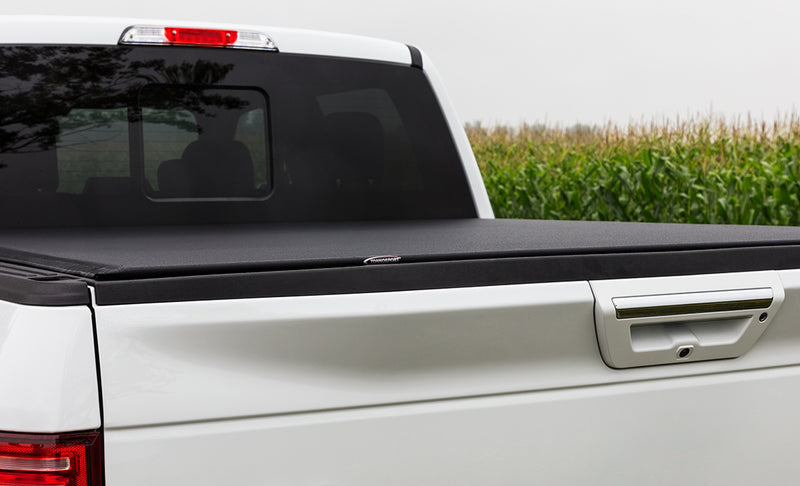

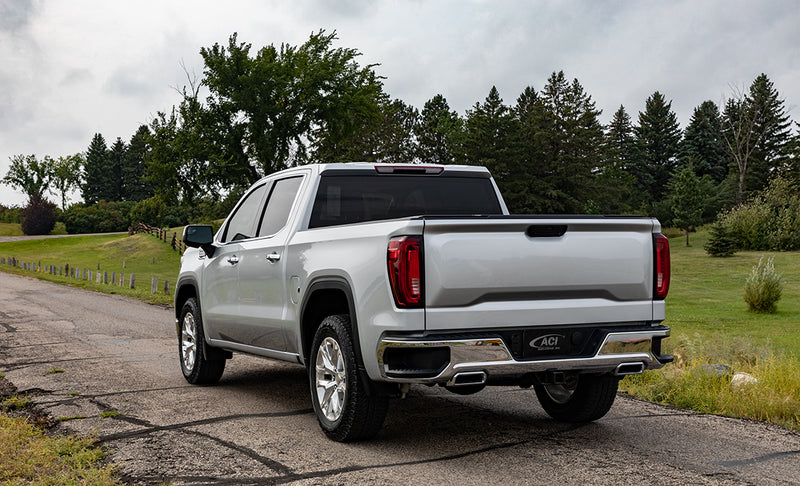

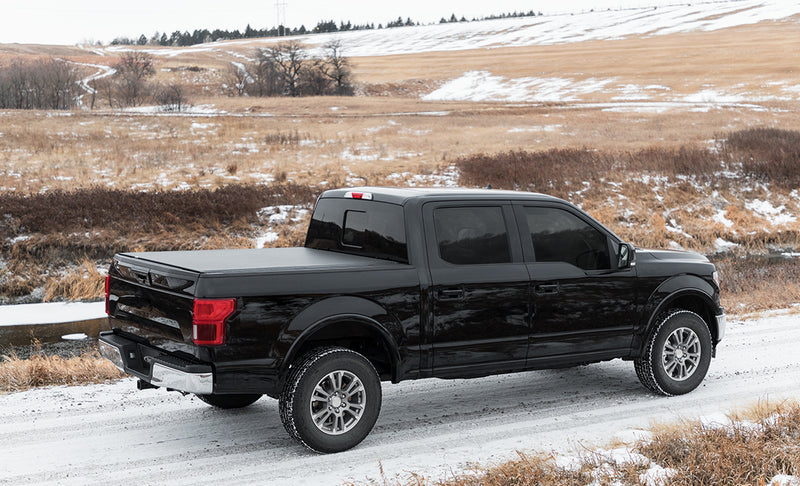

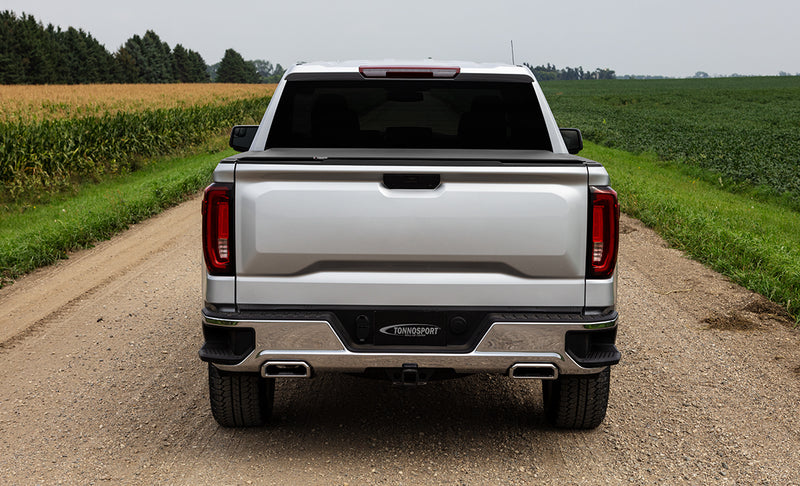

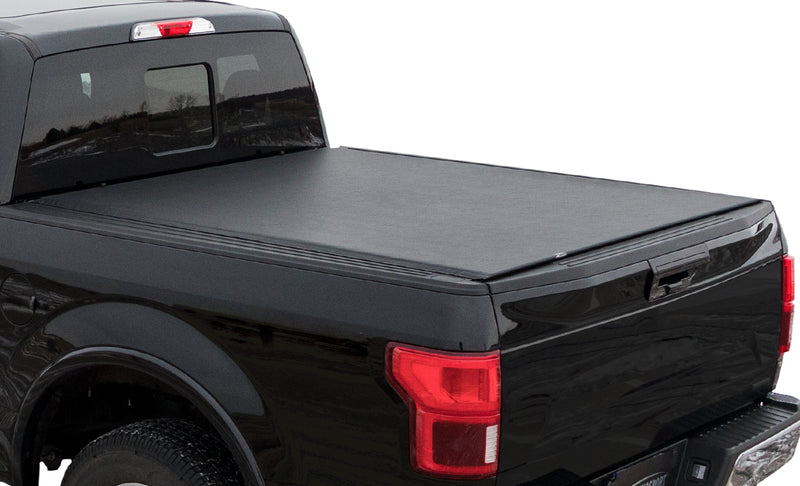

A low line over the bed
The TonnoSport rides just 1/2" above the box, so the closed cover reads as part of the truck rather than something added on top. Silver rails and bows sit under black bars and textured black vinyl.

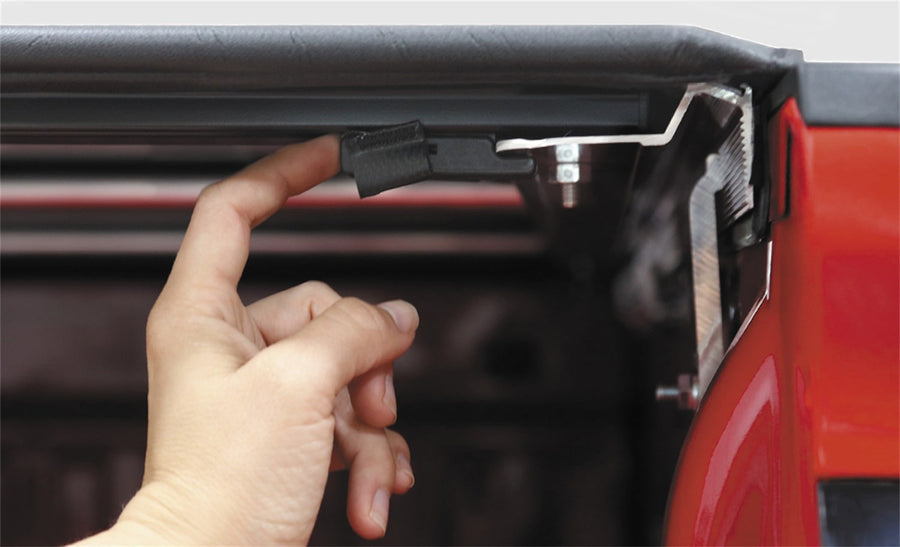

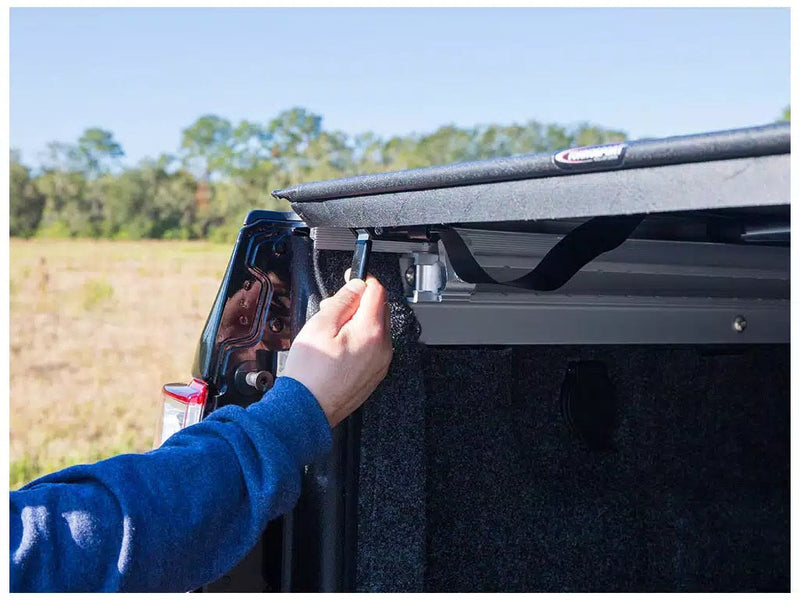

One finger to open
A trigger on the driver side frees the rear bar with a single finger, and closing the cover sets the latch again. Slide locks on both sides add a second hold when you want it.

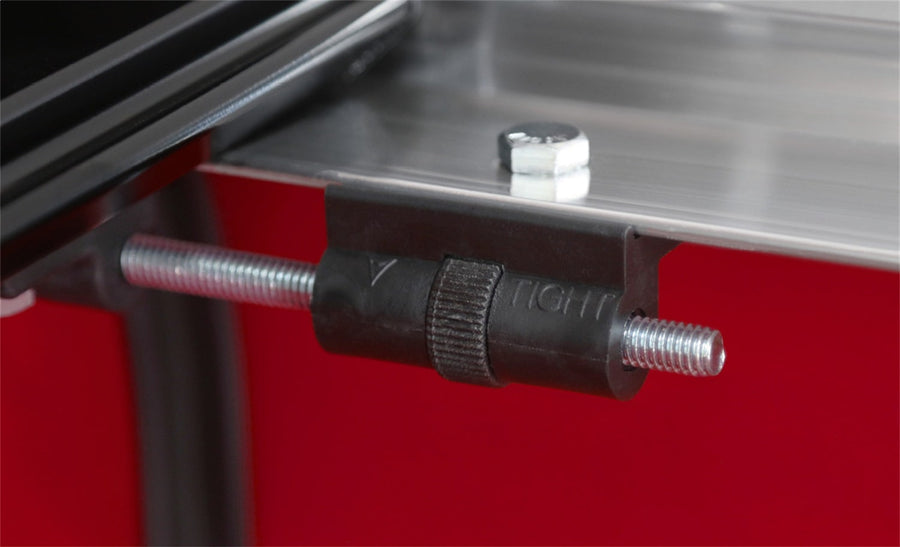

Tension you set by hand
EZ-Dial adjusters let you tighten or relax the vinyl without tools. Keeping it drum tight helps the cover shed water and keeps it looking sharp.
Frequently Asked Questions
Straight answers on specs, fit and support
Is the TonnoSport waterproof?
No soft roll-up cover is fully waterproof. Seals on all four sides keep most weather out, but some moisture and dust can still reach the bed, so wrap cargo that has to stay dry.
How does the TonnoSport lock?
A one-finger trigger on the driver side releases the rear bar, and the latch sets itself when you close the cover. Slide locks on both sides add a second hold; with a locking tailgate the bed stays closed to casual access, though no soft cover is theft-proof.
How do I adjust the tension?
Roll the cover open and turn both EZ-Dial adjusters by equal amounts: counterclockwise to tighten, clockwise to loosen. A properly set cover sounds drum-like when tapped and sheds water better.
Will it work with my bed liner?
Spray-in liners and bed mats are compatible. Drop-in liners that sit under the rail need minor trimming at the front corners and by the tailgate, and over-the-rail drop-ins need considerable modification.
Can I tow a fifth-wheel trailer with the cover installed?

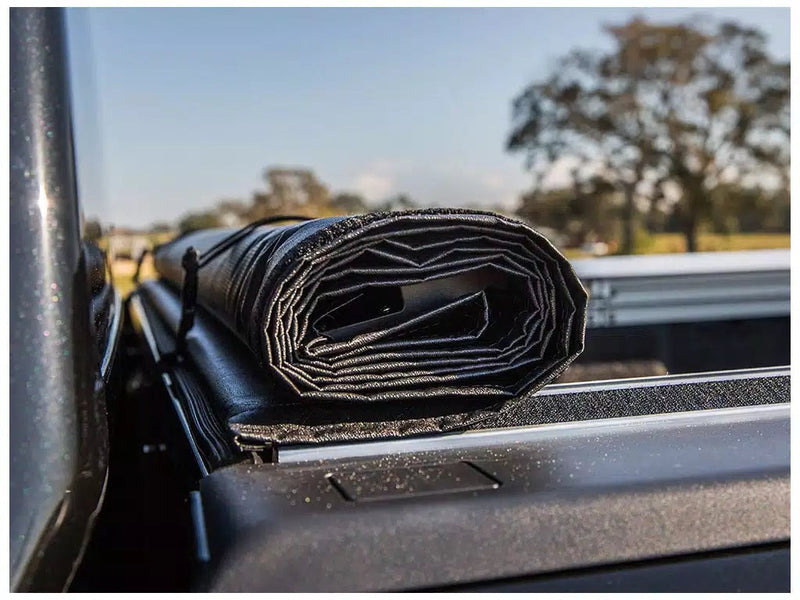

Yes. Roll the cover up to the front of the box and secure it with the storage straps before hooking up.
Do I have to drill into my truck?
Standard TonnoSport installs clamp to the box, but some applications use special hardware, a bolt-on procedure or drilling. The Installation tab on each listing shows exactly what that truck needs.
