Access Vanish part 95269 is the 5'1" bed application for the 2016-2023 Toyota Tacoma. Easy-grip XT-Dial adjusters bring the vinyl back to drum tight with no tools.
What's Included:
Pre-rolled Vanish vinyl cover assembly with front bar, bows and rear bar
Driver and passenger side rails (longer boxes typically get two-piece rails on each side)
Left and right XT-Dial tension adjusters with nuts and bolts
Tight Bite rail clamps
Element Seal bulkhead seal gasket
Alcohol prep pad for gasket installation
Storage straps, attached to the cover
The TrailSeal tailgate gasket, sealant for factory box holes, bed liner and any cargo lighting or tools are sold separately and are not in the box.
Features
Trigger latch and dual slide locks A one-finger trigger on the driver side releases the rear bar, and the latch engages automatically when the cover closes. Slide locks on both sides push in to lock and pull out to release.
XT-Dial tension adjusters Easy-grip dials tighten or loosen the fabric with no tools. Setting both sides equally keeps the cover drum tight, which helps it shed water and run quieter.
Element Seal bulkhead gasket A seal gasket runs the full width of the bulkhead as standard equipment, on top of the front and rear fabric seals and foam on the side rails. That gives the Vanish sealing on all four sides with extra coverage at the front of the box.
1/2" low profile The cover sits 1/2" above the box, the lowest height Access offers on a roll-up. Black aluminum bars and rails carry silver bows, and most long boxes get three bows instead of two.
Full-length hook-and-loop sealing A 1" slide-in hook strip fastens the fabric along the entire length of each side rail. One person can roll the cover up tight and use the whole bed.
Fitment & Compatibility
Fit guidance: Fits the 2016-2023 Toyota Tacoma with the 5'1" (60.5") bed (without OEM hard cover). The cover mounts with special hardware that may disable or limit use of the deck rail system (see the installation instructions).
Side sealing: 1" slide-in hook-and-loop, full length of both rails
Weather sealing: Seals on all 4 sides: front and rear fabric seals, foam on side rails, Element Seal bulkhead gasket
Frame: Black aluminum bars and rails, 2 silver bows (most long boxes get 3)
Rear bar: Flat rear bar
Mounting: Tight Bite clamp-on side rails; some trucks need special hardware (see Installation tab)
Warranty: 3-year limited
Fits: 2016-2023 Toyota Tacoma
Bed: 5'1" (60.5") bed
Truck requirements: without OEM hard cover
Part number: 95269
Installation
Type: Clamp-on side rails with Tight Bite clamps; some trucks add special hardware · Install: Hand tools and a torque wrench, truck-specific steps on each listing's Installation tab
The cover mounts to side rails fixed along the inside of the box, with the bulkhead gasket in front and tension set at the front bar. Steps, torque values and any extra hardware for this truck are on the Installation tab below.
What the instructions for this truck call for:
Tools listed: (2) 1/2" Wrenches, Protective eyewear, Tape measure or ruler, Scissors, Ft-lb Torque wrench with 1/2" socket, Spring clamp - optional, 1/2" Wrench, Ft-lbs Torque wrench with 7/16" socket
Torque: tightening serrated nut on rear bracket to 10 ft-lbs.
Torque: then torque serrated nut on front bracket to 10 ft-lbs.
Drilling: the instructions for this truck include no drilling step.
Bed liners: Under the rail drop-in bed liner requires minimal modification at front corner of box and back by tailgate. Over the rail drop-in bed liner requires considerable modification.
After installing: For trucks with electric tailgates, cover and tailgate should remain closed after installation for at least 24 hours. (electric tailgates only)
Warranty. Agri-Cover backs the Vanish with a 3-year limited warranty against defects in material and workmanship, counted from the date of receipt or manufacture. It covers repair or replacement of defective parts, not labor, and excludes accident, misuse, improper installation and normal wear. Shipping. The cover arrives pre-rolled with its side rails, gasket and mounting hardware packed alongside. Inspect on delivery. Check every component against the parts list and look over the rails and fabric for shipping damage before you start the install.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Access
Access roll-up covers are designed and built by Agri-Cover, Inc., a Jamestown, North Dakota company whose lineup also spans mud flaps, snow plows, ag tarps, pickup racks, truck toppers and hard covers. The Access Original roll-up has been in the catalog since 1991, and every Access roll-up since has kept the same rail-mounted, hook-and-loop sealed layout.
Access builds seven roll-up lines. The Vanish sits at the low end of the height range at 1/2" above the box, and it pairs that trim look with a trigger latch, dual slide locks, XT-Dial tension adjusters and a standard Element Seal bulkhead gasket, the sealing package of the premium lines.
Agri-Cover supports the Vanish with a 3-year limited warranty. The serial number is on a decal under the rear bar; have it ready for warranty claims and when ordering original replacement parts through Agri-Cover customer service.
Sits 1/2" above the box
The Vanish sits 1/2" above the bed rails, so the closed cover keeps a near-flush line along the truck. Black bars and rails under textured black vinyl keep the look clean.
Sealed tight at the bulkhead
A standard Element Seal gasket runs the full width of the bulkhead, backing up the front and rear seals and the foam on the side rails. It closes the gap where rain and dust tend to get in at the front of the box.
Release it with one finger
A trigger on the driver side lets the rear bar go with a single finger, and closing the cover resets the latch. Slide locks on both sides add a manual hold.
Frequently Asked Questions
Straight answers on specs, fit and support
Is the Vanish waterproof?
No soft roll-up cover is fully waterproof. Seals on all four sides and the bulkhead gasket keep most weather out, but some moisture and dust can still reach the bed, so wrap cargo that has to stay dry.
How does the Vanish lock?
A one-finger trigger on the driver side releases the rear bar, and the latch engages on its own when you close the cover. Slide locks on both sides add a second hold; with a locking tailgate the bed stays closed to casual access, though no soft cover is theft-proof.
How do I adjust the tension?
Roll the cover open and turn both XT-Dial adjusters by equal amounts: counterclockwise to tighten, clockwise to loosen. A properly set cover sounds drum-like when tapped and sheds water better.
Will it work with my bed liner?
Spray-in liners and bed mats are compatible. Drop-in liners that sit under the rail need minor trimming at the front corners and by the tailgate, and over-the-rail drop-ins need considerable modification.
Can I tow a fifth-wheel trailer with the cover installed?

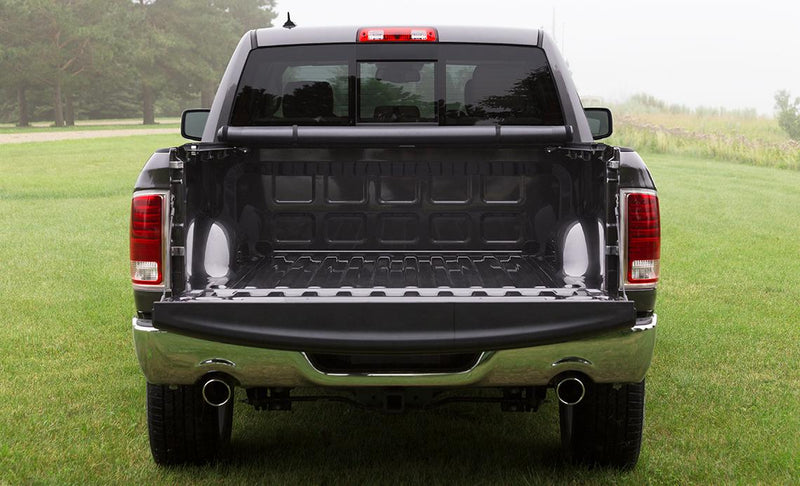

Yes. Roll the cover up to the front of the box and secure it with the storage straps before hooking up.
Do I have to drill into my truck?
Standard Vanish installs clamp to the box, but some applications use special mounting hardware. The Installation tab on each listing shows exactly what that truck needs.
