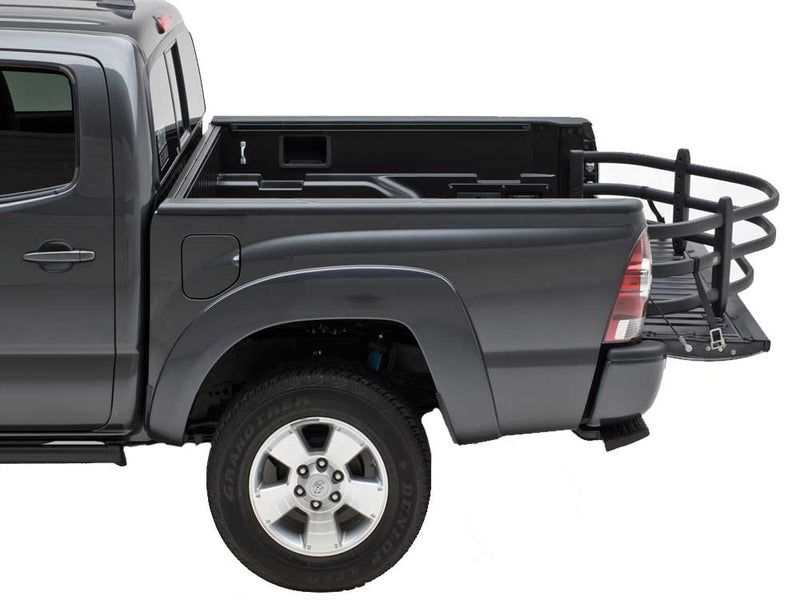

Gray crew-cab pickup in the studio with a black BedXTender HD Moto extended over the lowered tailgate

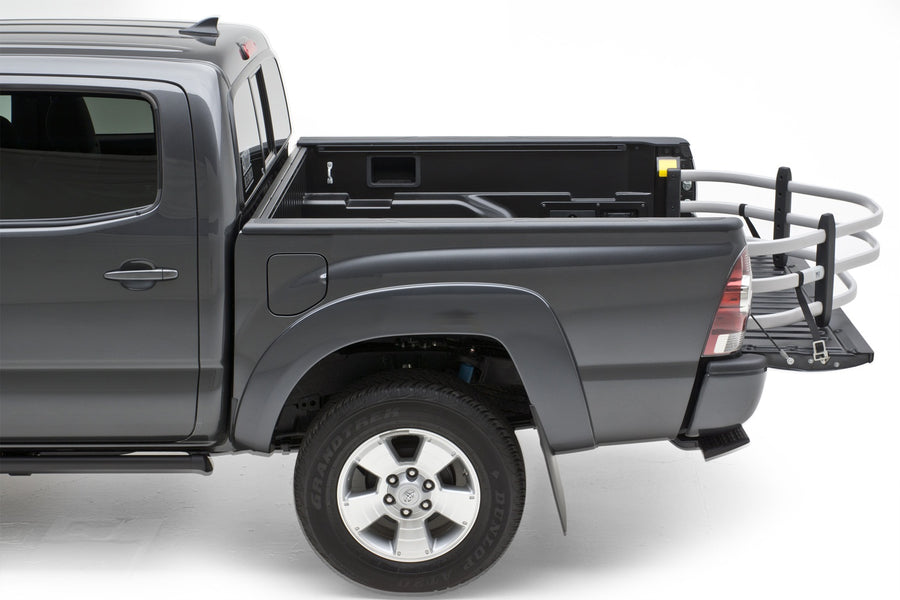

Gray crew-cab pickup in the studio with a silver BedXTender HD Moto extended over the lowered tailgate

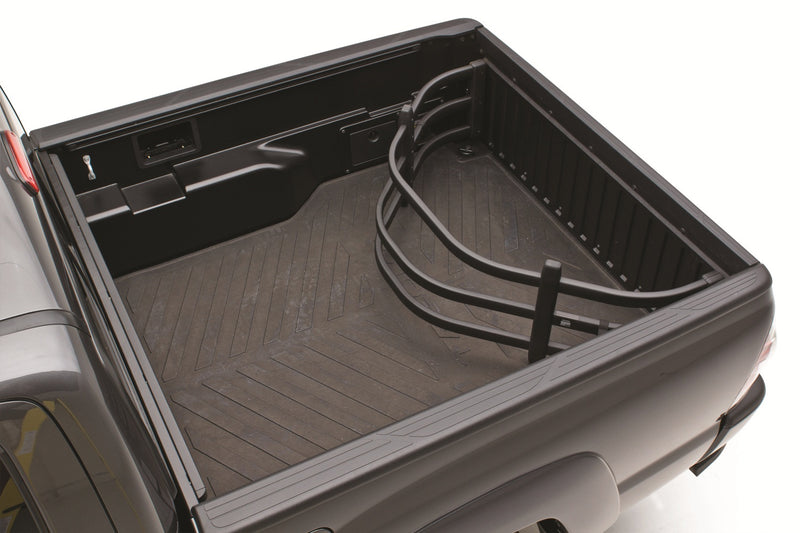

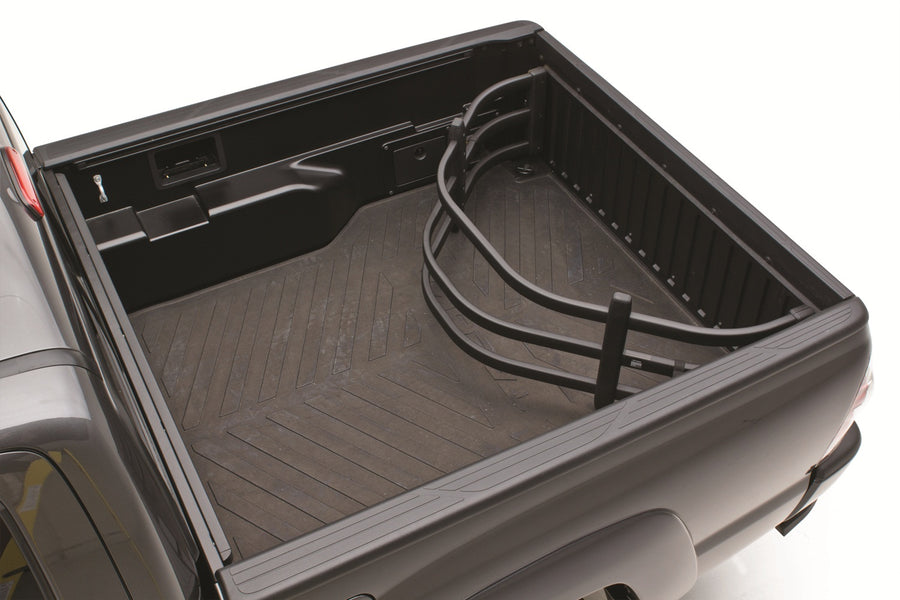

Black BedXTender HD Moto flipped inside the bed of a gray pickup against the closed tailgate

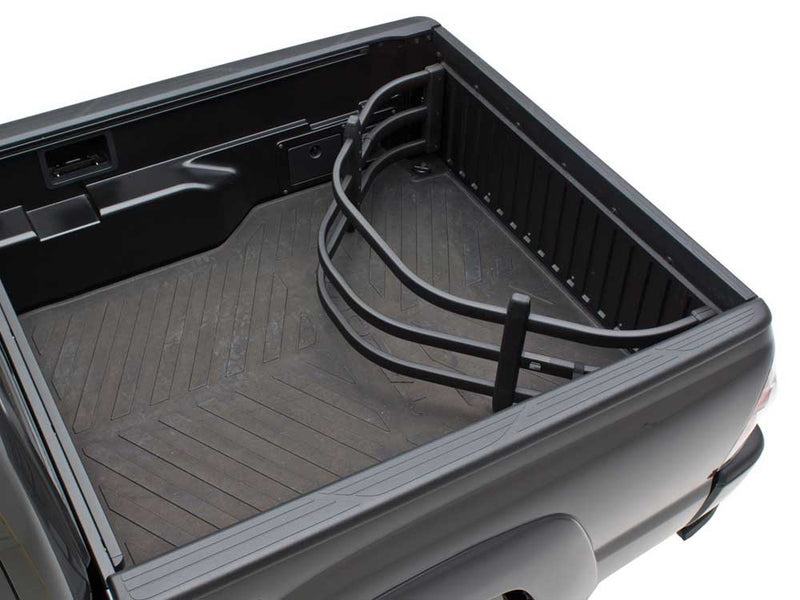

Black BedXTender HD Moto flipped inside the bed of a gray pickup against the closed tailgate, second angle

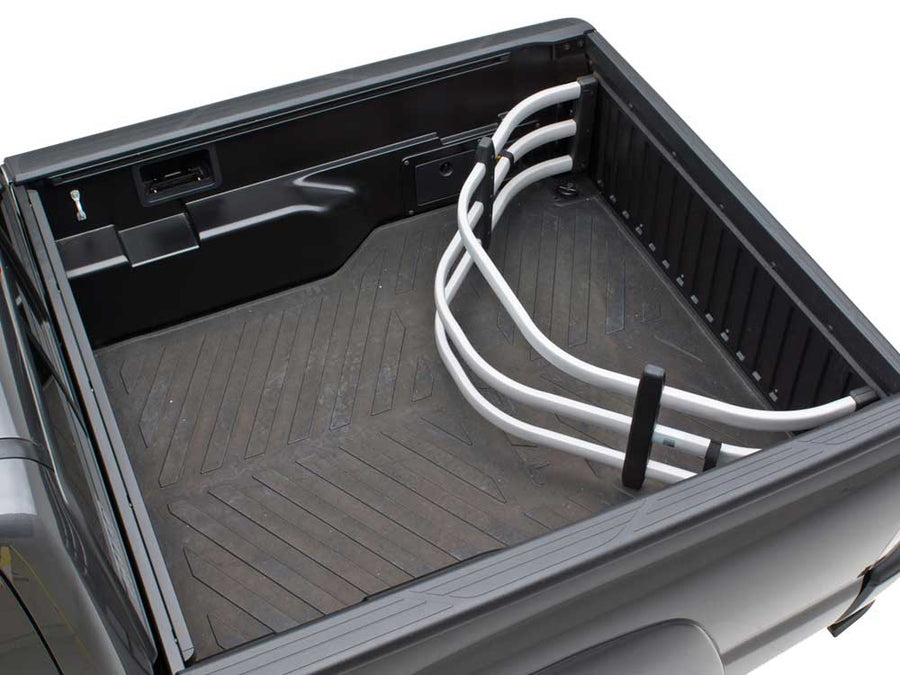

Silver BedXTender HD Moto flipped inside the bed of a gray pickup against the closed tailgate

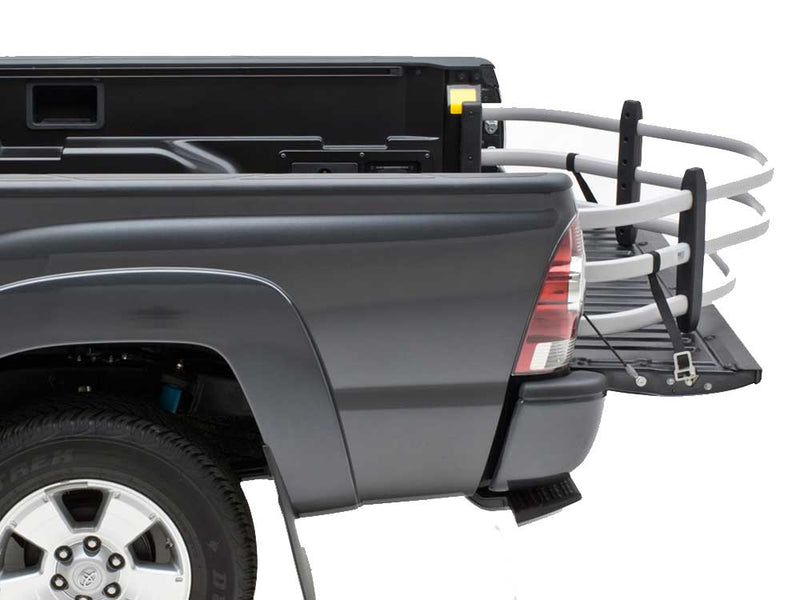

Silver BedXTender HD Moto extended over the lowered tailgate of a gray pickup, rear corner studio view

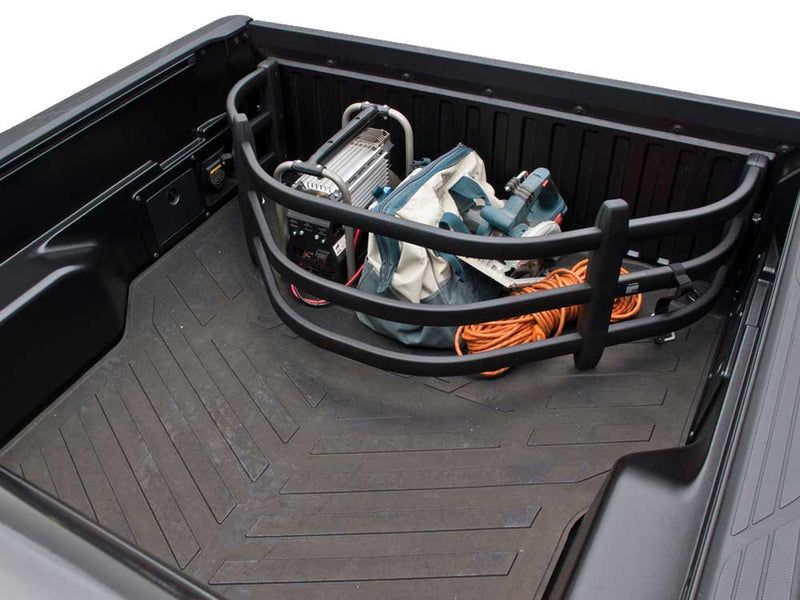

BedXTender HD Moto turned inward to corral a compressor, bag and extension cord in a gray pickup bed

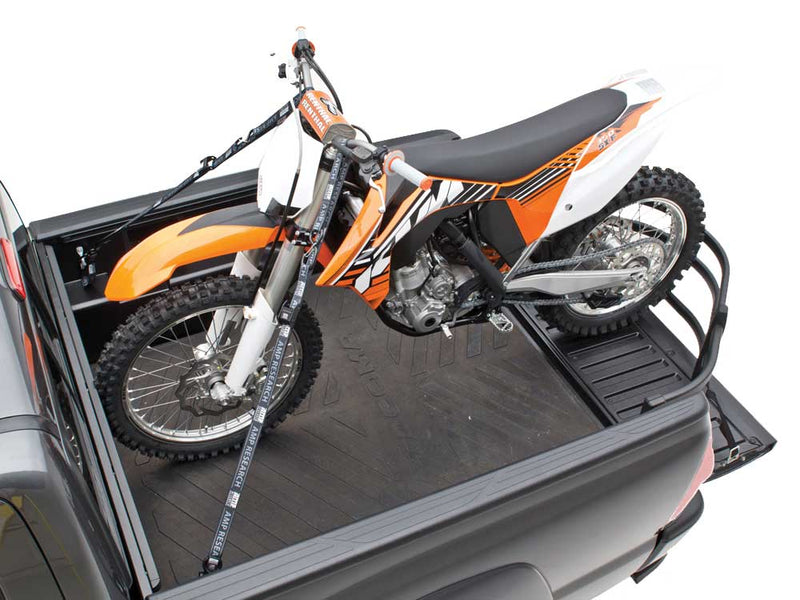

A dirt bike strapped into a gray pickup bed with its rear wheel resting inside the extended BedXTender HD Moto

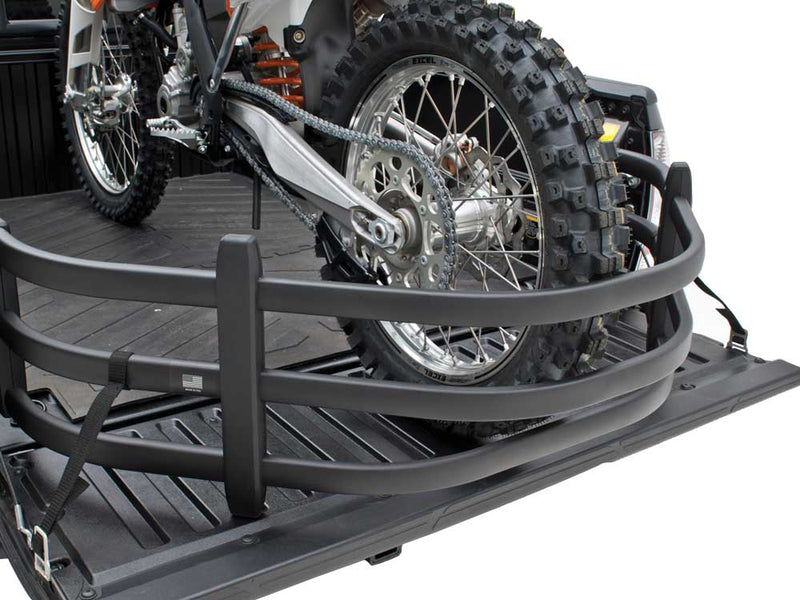

Rear wheel of a dirt bike held inside the extended BedXTender HD Moto on the lowered tailgate

AMP Research BedXTender HD Moto Bed Extender

Name: AMP Research BedXTender HD Moto Bed Extender
Brand: AMP Research
SKU: AMP-PARENT-BEDXTENDER-HD-MOTO
Price: 329.99 USD
Availability: InStock

From $329.99

FREE SHIPPINGNo sales tax Only 1 leftIn stock now Estimated delivery

GO

Clear

Guaranteed FitmentTeam-confirmed fit or money back
No Sales TaxZero sales tax on every order
30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund

Questions or a custom quote?

Mon to Fri, 9am to 5pm EST

+1 (470) 823-2453 Email Us

Motorcycles are the reason the AMP Research BedXTender HD Moto exists. Its patented slant-back frame swings out over the lowered tailgate to extend the bed, and AMP Research says it takes up to a full-size motorcycle. On a mid-size or compact truck it adds up to 30% more cargo space, and flipped inside with the gate closed it holds smaller loads near the tailgate. The tubes are 6063-T6 aluminum with glass-reinforced nylon uprights in a silver or black powder coat.

What's Included:

Quick Mount bracket set
6x Phillips head self-tapping screws
Double-bend center tubes, one with the AMP logo
12x PT-screws
4x Rubber bumpers
2x Strap buckle assemblies
2x Pivot upright assemblies
2x Bumper uprights, outer
2x Bumper uprights, inner

Features

Made for motorcycles
The Moto is the extender AMP Research built around bikes. Its patented slant-back frame swings out over the lowered tailgate, and the brand says it takes up to a full-size motorcycle, closing off the end of the bed on the way to the trail.

Up to 30% more space
On the mid-size and compact trucks it is built for, AMP Research says the Moto adds up to 30% more cargo space, turning a short bed into one that can carry what a longer truck would.

A cargo basket when flipped in
Swing the frame forward into the bed and close the tailgate, and it becomes a basket that keeps groceries and loose gear near the gate rather than sliding toward the cab.

Buckled to the tailgate latches
Two strap buckles lock into the truck's own tailgate latches while the Moto is out, and the tailgate handle releases them. Pull on each strap after latching to be sure it is seated.

Aluminum and glass-reinforced nylon
6063-T6 aluminum tubes and glass-reinforced nylon composite uprights keep the frame light and resistant to corrosion, finished in silver or black powder coat.

Plan for the quick-latch kit
The guide lists AMP Research's universal quick-latch mounting bracket kit as required on all short-bed trucks when hauling motorcycles, so factor it in if a bike is the reason you are buying.

Fitment & Compatibility

Chevrolet 1Dodge 1GMC 1Ram 1Toyota 2

Chevrolet
Years	Model	Bed	Notes
2004-2012	Colorado		—

Dodge
Years	Model	Bed	Notes
1987-2010	Dakota		—

GMC
Years	Model	Bed	Notes
2004-2012	Canyon		—

Ram
Years	Model	Bed	Notes
2011	Dakota		—

Toyota
Years	Model	Bed	Notes
2005-2013	Tacoma		—
2000-2006	Tundra		—

Fit guidance: Built for mid-size and compact pickups with smaller beds; choose your truck to confirm fit, and plan on the quick-latch mounting kit if you will haul a motorcycle on a short bed.

Specifications

Design: Patented slant-back frame, pivots over the open tailgate
Motorcycle capacity: Fits up to a full-size motorcycle
Cargo space gain: Up to 30%
Frame: 6063-T6 aluminum tubes
Uprights: Glass-reinforced nylon composite
Tailgate load limit: 200 lb on the open tailgate with the extender in use, evenly distributed
Warranty: 3-year limited
Finish: Silver or black powder coat

Installation

Type: Bracket-mounted, removable · Time: about 1 hour · Difficulty: 1 of 4 (easy) on the guide

Two brackets fasten to the rear pillars of the bed from a supplied template, and the extender's pivots drop into them. The guide drills through the pillar sheet metal, and through a bedliner if there is one, then secures the brackets with self-tapping screws; where a liner's contours stop a bracket sitting flat, a section of liner is cut away so it seats on metal. The frame assembles from its tubes, uprights and straps. Older compact pickups need AMP Research's L-bracket kit to finish the job.

Warranty, Shipping & Returns

Warranty. The BedXTender HD Moto is covered by AMP Research's three-year limited warranty against defects in materials and workmanship from the purchase date, when installed as the instructions describe. Coverage is for the original purchaser only and ends if the extender is fitted to another vehicle or the truck is sold. Misuse, accidents, improper installation and modifications are not covered, nor is labor to take it off or put it back. You will need proof of purchase to make a claim.

Inspect on delivery. Go through the tubes, uprights and hardware against the guide's parts list as soon as the box arrives, before any drilling. Report damage or anything missing to us right away so it can be resolved before you install.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.

About AMP Research

AMP Research makes truck accessories with strength and reliability as its stated core values, from the PowerStep power-retractable running board it has sold since 2002 to the extenders and steps that work at the bed. Its own limited warranty covers the original purchaser of each product.

The HD Moto is the motorcycle specialist among AMP Research's three BedXTender HD extenders. Its patented slant-back frame sets it apart from the U-shaped HD Max and the V-shaped HD Sport, both of which trade that profile for a wider enclosure. The brand's mounting kits, including the quick-latch bracket kit the Moto's guide calls for when hauling bikes, fit all three.

Every BedXTender HD pairs 6063-T6 aluminum tubing with nylon uprights and a powder-coat finish, and ships with the hardware to mount it. AMP Research protects its designs, including the Moto's slant-back frame, with patents.

A slant-back frame for bikes

The patented slant-back frame swings out over the lowered tailgate, and AMP Research says the Moto fits up to a full-size motorcycle.

More room from a smaller bed

On the mid-size and compact pickups it is built for, AMP Research says the Moto adds up to 30% more cargo space. Flip it inside with the gate closed and it becomes a basket for smaller loads.

Bring the bike along

Drop the tailgate and swing the slant-back frame out, and the end of the bed is closed off for the ride to the trail. Back home, flip it inside and it keeps smaller cargo gathered by the gate.

Frequently Asked Questions

Straight answers on specs, fit and support

Do I need an extra kit to haul a motorcycle?

Plan on it. The installation guide lists AMP Research's universal quick-latch mounting bracket kit as required on all short-bed trucks when hauling motorcycles. Older compact pickups (GM S-Series, Mazda B-Series, and Nissan and Toyota pickups before 2005) also need the L-bracket kit to complete installation. Check your truck's listing before you load up.

Will my motorcycle fit?

AMP Research says the Moto fits up to a full-size motorcycle. Measure your bike against the bed with the tailgate down before you rely on it. Keep in mind that the guide limits the open tailgate to 200 lb with the extender in use, so most of the bike's weight has to sit on the bed floor, and the bike must be strapped to the bed's anchors, never to the extender or the tailgate.

Which trucks is it made for?

The guide describes the Moto as the small-truck version, for mid-size and compact pickups with smaller beds. The fitment table on this page is the authority for your exact truck. For wider beds, AMP Research makes the HD Sport and HD Max.

Does installation require drilling?

Yes. The brackets mount to the rear bed pillars through holes drilled from the supplied template, then fasten with self-tapping screws. If the bed has a liner, drill through it and mount over it; where the liner's contours stop a bracket sitting flat, the guide has you cut a section away so the bracket seats on the metal pillar.

How do I take it off?

With the tailgate open, lift the extender to about 45 degrees and it comes out of its brackets; put it back the same way. Because it is not locked to the truck, take it out or cover the bed if you leave the truck somewhere busy.

Can it stay on when I am not carrying a bike?

Yes. Flip it forward into the bed and close the tailgate, and it works as a basket that keeps smaller cargo near the gate. When you need the whole bed, lift it out.
