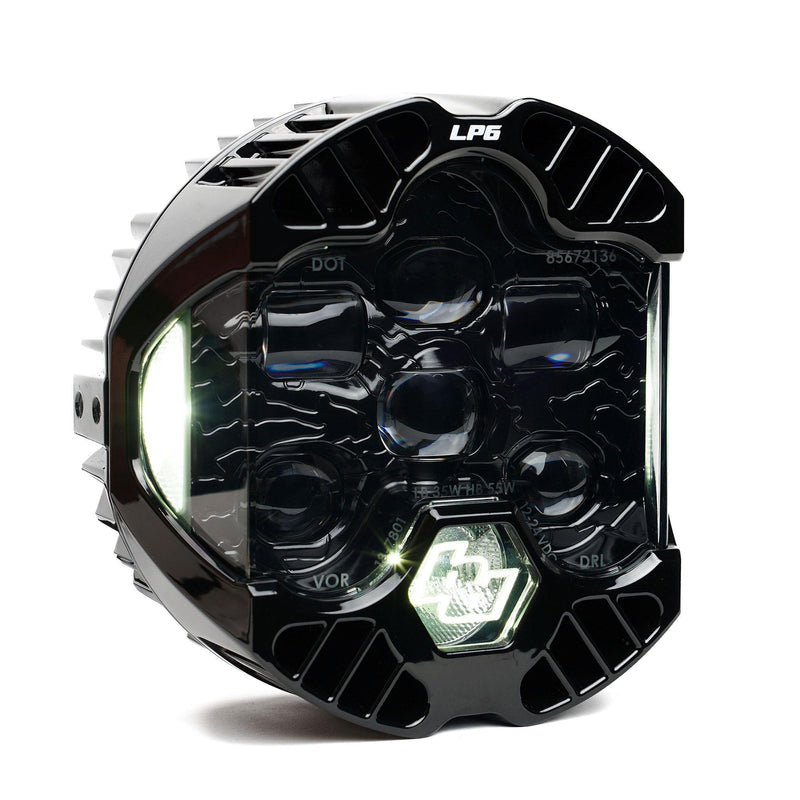

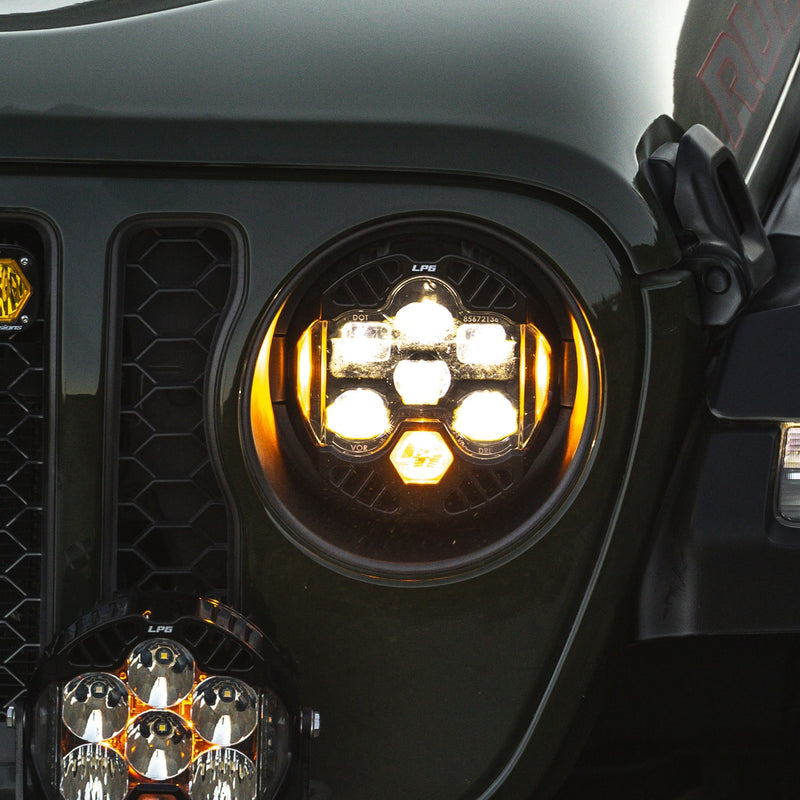

The DOT LP6 LED Headlight Replacement is Baja Designs' DOT-compliant LED headlight, built on the LP6 platform with integrated high and low beams plus a daytime running light. Choose a white or amber daytime running light to set the look of the vehicle. It ships as Baja Designs part 18-0001. Choose drl color from the options above; each option is its own Baja Designs part number, listed under Specifications.
What's Included:
| Item |
Qty |
| DOT LP6 White or Amber DRL |
1 |
| Mounting Hardware |
1 |
Single LP lights ship without a wiring harness, so add the matching Baja Designs LP series harness unless the package contents list one.
Features
High and low beams
Integrated high and low beam functions replace a standard headlight with a single LED unit.
Built to FMVSS 108
Baja Designs lists the DOT LP6 as compliant with FMVSS 108 for automotive and motorcycle use.

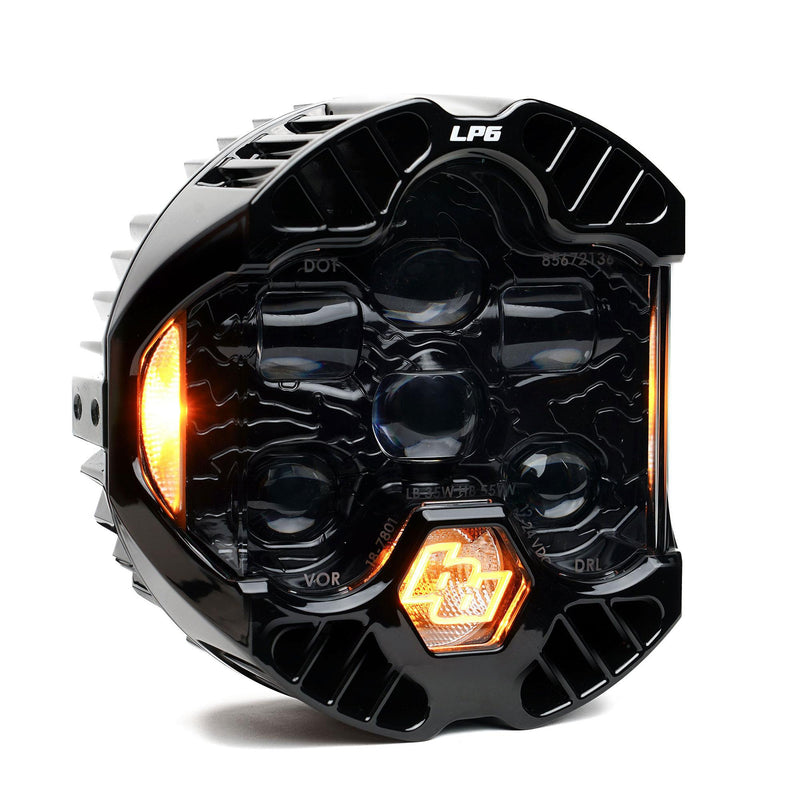

Selectable DRL color
A built-in daytime running light comes in white or amber, chosen as a variant option.
Proven LP6 durability ratings
Baja Designs rates the DOT LP6 IP69K for water and dust and IK10 for impact, and tests it beyond MIL-STD-810G.
Sealed, not serviceable
DOT headlights do not use the uService replaceable lens design, and Baja Designs says opening one voids its warranty.
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Water Resistance: IP69K
-
Impact Resistance: IK10
-
Compliance: FMVSS 108 (automotive and motorcycle)
-
Light Pattern: Low Beam: 10Lux out to 50meters (Standard Spec for DOT Headlights)
-
Brightness: 3,480 (Low) 5,280 (High)
-
Power draw: Single Lamp at 13.8V; 26W (L) 40W (H)
-
Current draw: 1.8A (L) 2.8A (H)
-
Voltage: 10.5 to 32V V
-
Wiring Harness Included: No
-
Water resistance: IK10 Compliant (Mechanical Impact Testing)
-
Impact resistance: IK10 Compliant (Mechanical Impact Testing)
-
Durability testing: Exceeds MIL-STD810G (Mil-Spec Testing); FMVSS 108 for automotive and motorcycle requirement
-
Length: 6.5"
-
Height: 6.5"
-
Depth: 3.2"
-
Fitment: Universal (not tied to one vehicle)
-
Road use: DOT headlight per Baja Designs's product name; Baja Designs notes that changing the lens can make an SAE or DOT light no longer road legal
-
Part numbers: 18-0001, 18-0002
Options and part numbers
| DRL Color |
Baja Designs part number |
| White |
18-0001 |
| Amber |
18-0002 |
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
LP lights mount on a bumper, rack or bracket with the supplied stainless hardware and connect to an LP series harness, which differs by model and by how many lights it powers. Aim each light after mounting and keep the front cooling inlets clear.
Baja Designs's installation instructions for this product are linked under Resources. Read them fully before starting.
