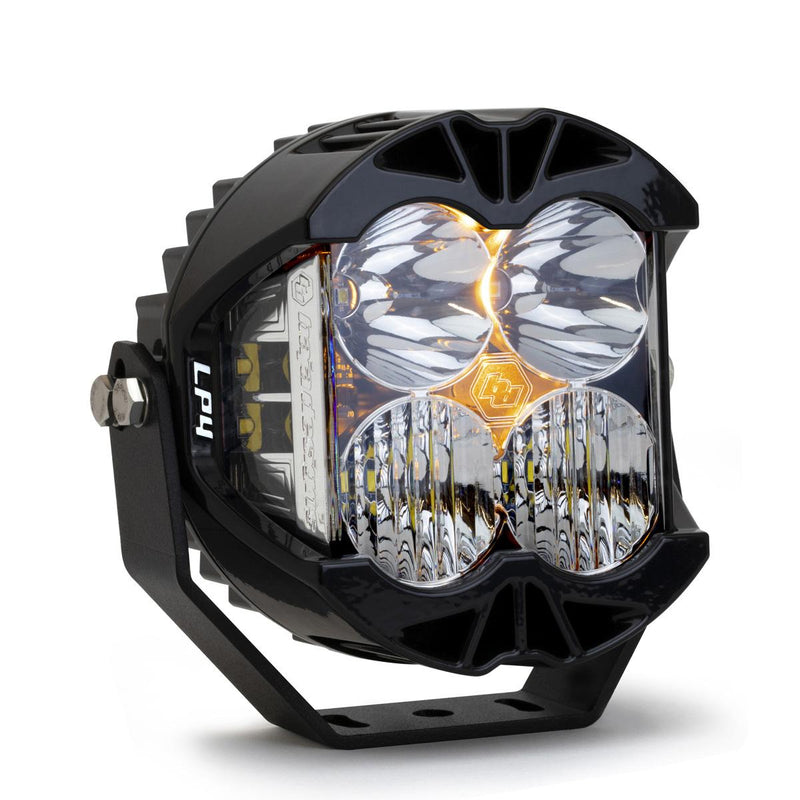

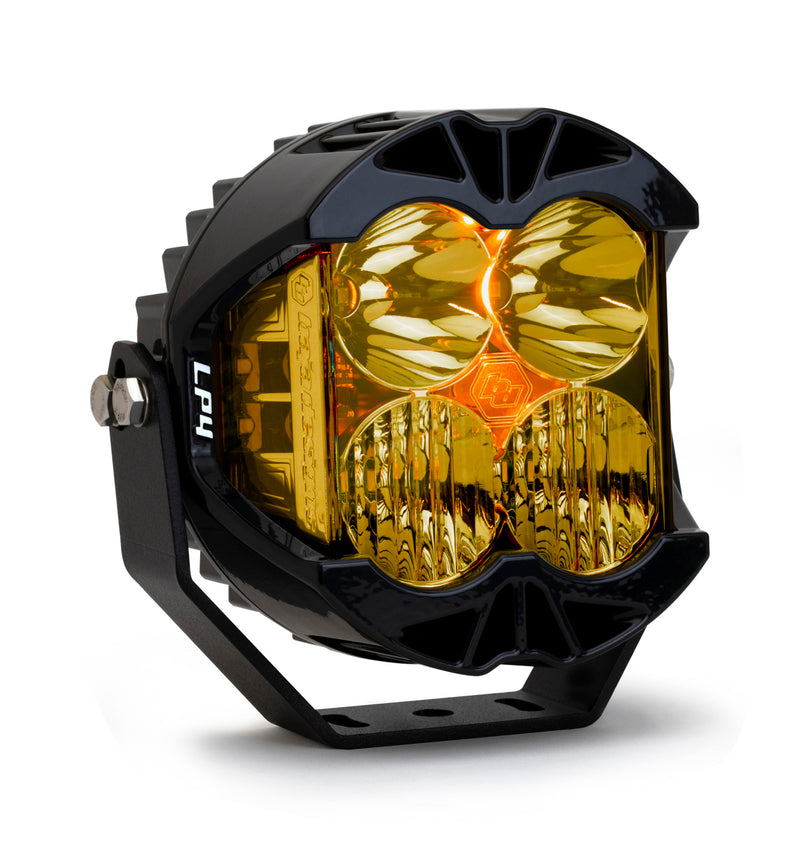

The LP4 Pro LED Auxiliary Light Pod comes from the Baja Designs LP series, a modern round light that pairs forward-projecting LEDs with dedicated side LEDs for a very wide spread of usable light. Air ducted through the housing carries heat off the rear heat sinks so the light keeps performing. It ships as Baja Designs part 290014. Choose light pattern, lens color and backlight from the options above; each option is its own Baja Designs part number, listed under Specifications.
Single LP lights ship without a wiring harness, so add the matching Baja Designs LP series harness unless the package contents list one.

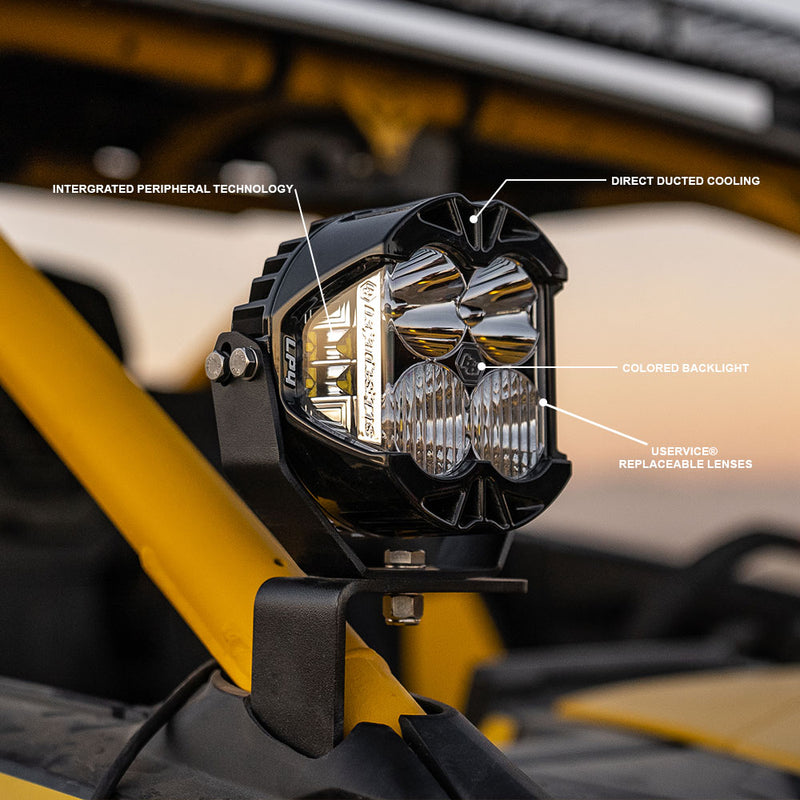

Features
Integrated peripheral lighting
Baja Designs Integrated Peripheral Technology adds side-firing LEDs to the forward optics, widening usable light around the front of the vehicle.
Direct ducted cooling
Air enters at the front of the housing and passes over the rear heat sinks, helping the LEDs stay cool under heavy use.
Cast aluminum construction
A powder coated cast aluminum housing and hardcoated polycarbonate lens resist rocks, corrosion and vibration.
Sealed and impact rated
Baja Designs rates its LP lights IP69K for water and dust and IK10 for impact, and tests them beyond MIL-STD-810G.
Replaceable lens design
uService construction lets you swap in an LP lens kit to change the pattern or color, or replace a damaged lens.
Stainless mounting hardware
Stainless steel mounting hardware comes with every LP light.
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Housing Material: Powder coated cast aluminum
-
Lens Material: Hardcoated polycarbonate
-
Water Resistance: IP69K
-
Impact Resistance: IK10
-
Durability: Exceeds MIL-STD-810G
-
Mounting Hardware: Included, stainless steel
-
Fitment: Universal (not tied to one vehicle)
-
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
-
Light type: Light Pod
-
Mount location: Universal
-
Color temperature: 5000K
-

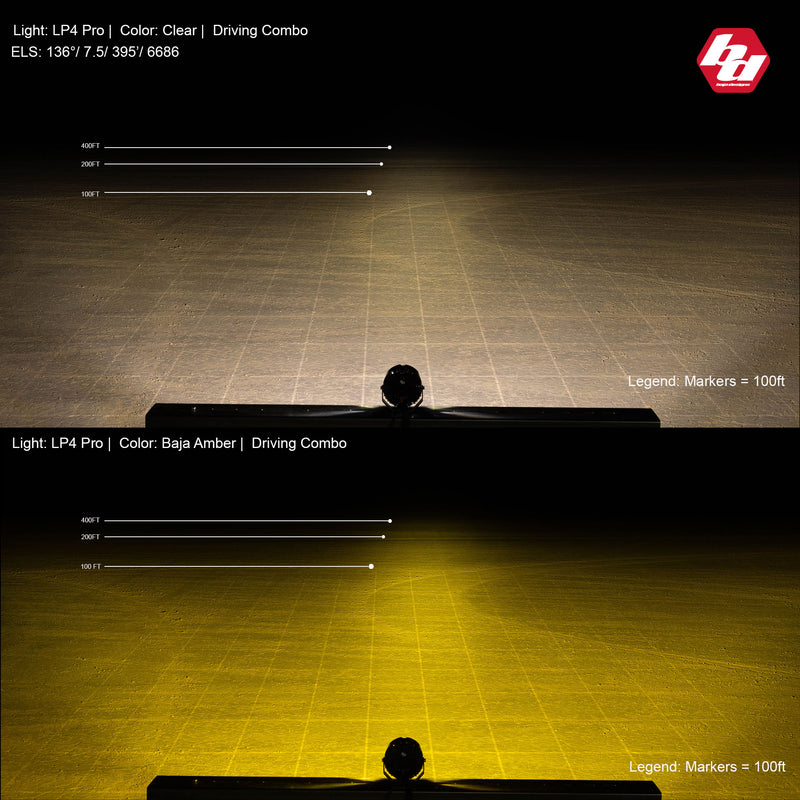

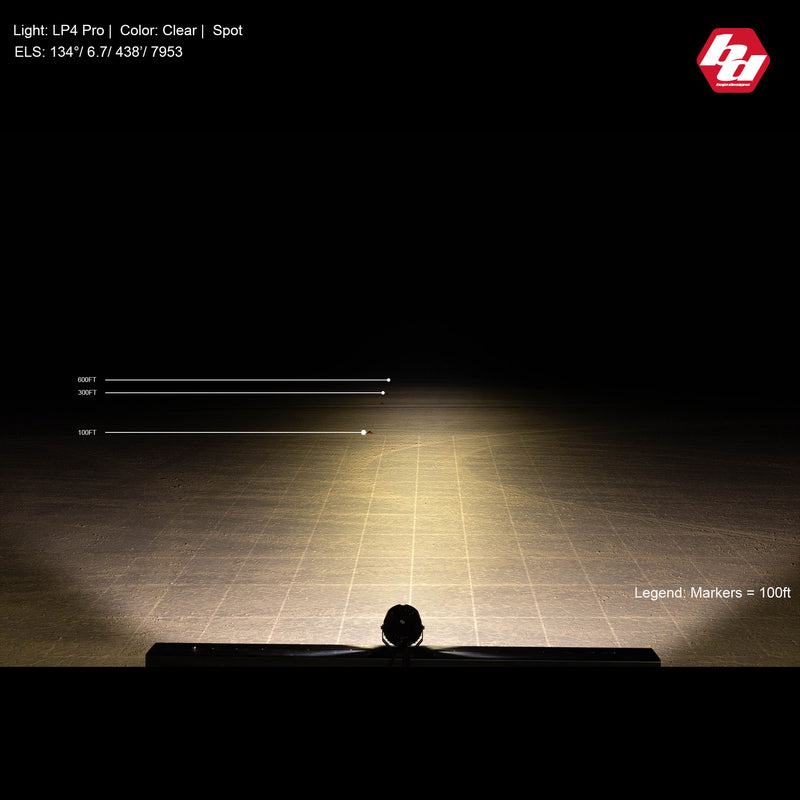

Beam distance: 438 ft (Spot) and 395 ft (Driving/Combo), measured to 10 lux with a pair of lights (Baja Designs ELS rating, clear lens)
-
Wiring Harness Included: No
-
Part numbers: 290014, 290001, 290003, 290013, 290015, 290016
Options and part numbers
| Light Pattern |
Lens Color |
Backlight |
Brightness |
Power draw |
Current draw |
Length |
Weight |
Baja Designs part number |
| Driving/Combo |
Clear |
Red |
|
|
|
|
|
290014 |

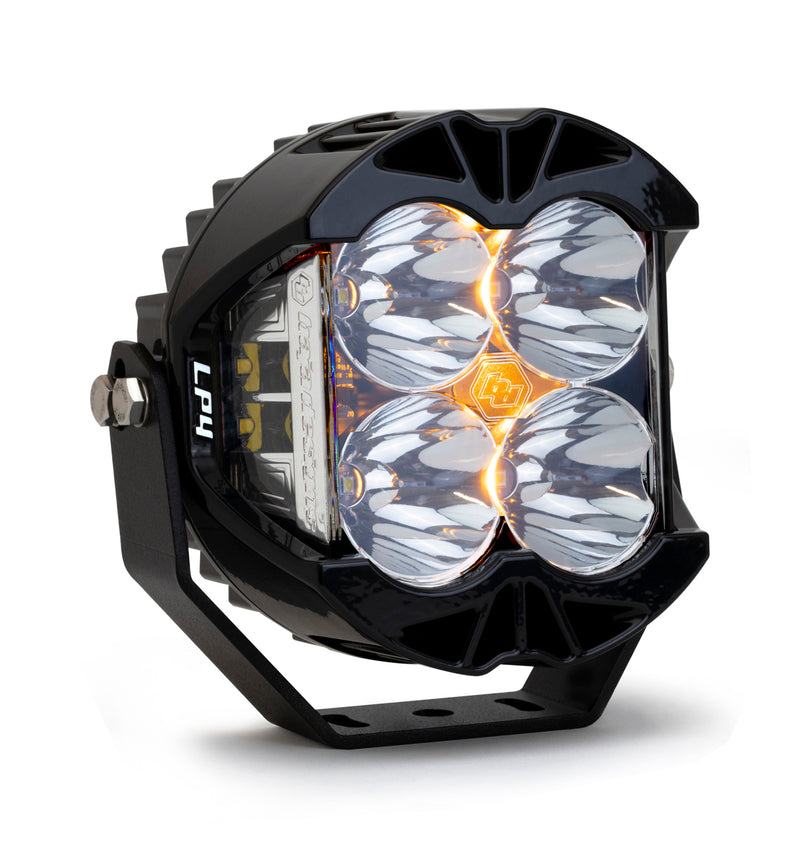

| Spot |
Clear |
Amber |
8,857 lumens |
75.9 W |
5.5 A |
5.1" |
2.8 lb |
290001 |
| Driving/Combo |
Clear |
Amber |
8,857 lumens |
75.9 W |
5.5 A |
5.1" |
2.8 lb |
290003 |
| Driving/Combo |
Baja Amber |
Amber |
8,857 lumens |
75.9 W |
5.5 A |
5.1" |
2.8 lb |
290013 |
| Driving/Combo |
Clear |
Blue |
|
|
|
|
|
290015 |

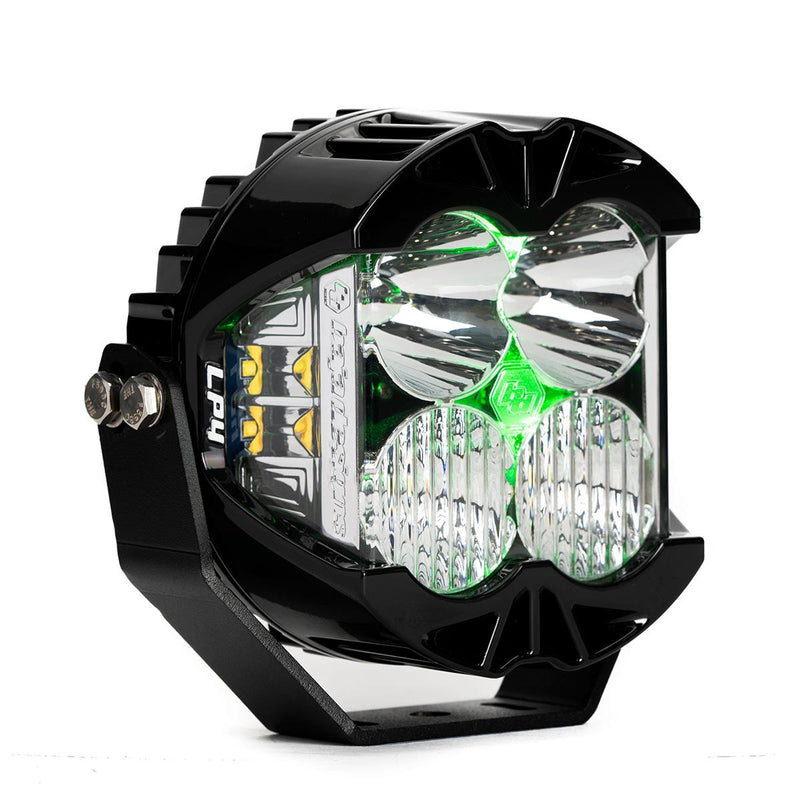

| Driving/Combo |
Clear |
Green |
|
|
|
|
|
290016 |
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation

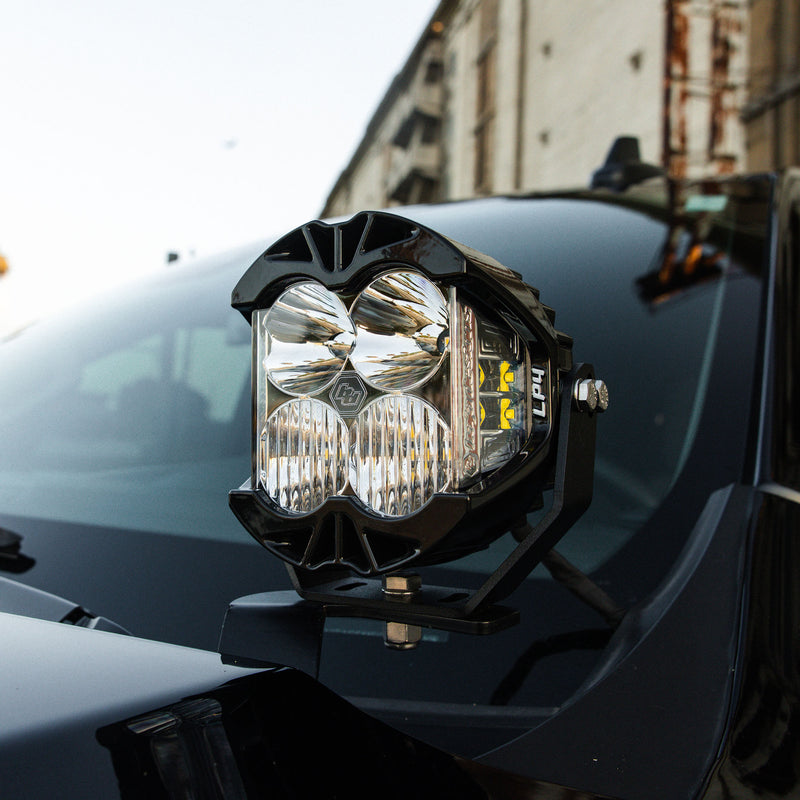

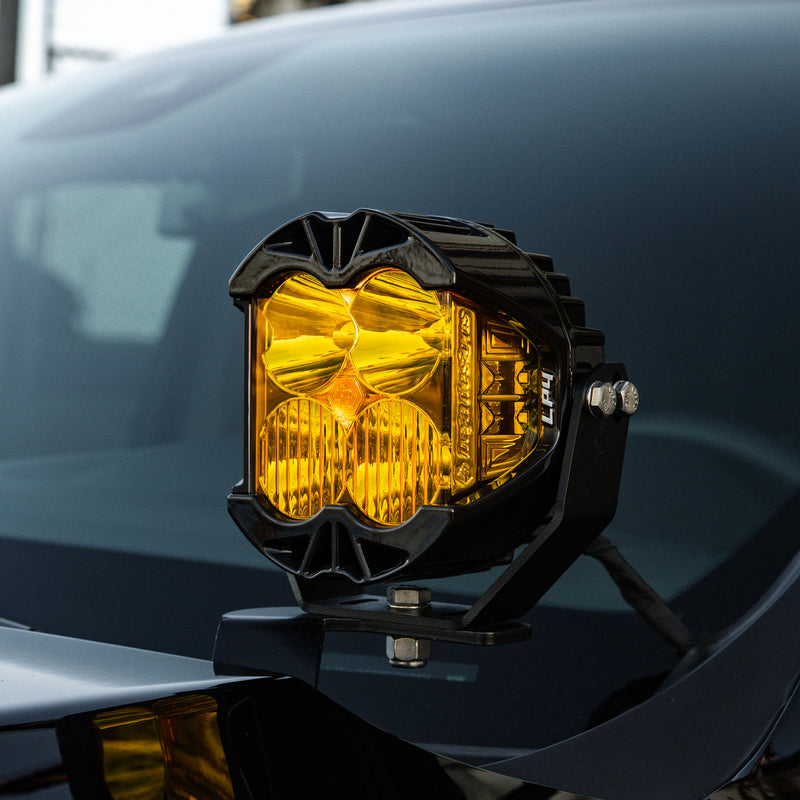

LP lights mount on a bumper, rack or bracket with the supplied stainless hardware and connect to an LP series harness, which differs by model and by how many lights it powers. Aim each light after mounting and keep the front cooling inlets clear.
Baja Designs's installation instructions for this product are linked under Resources. Read them fully before starting.
Resources
Warranty, Shipping & Returns
Warranty. Baja Designs warranties cover defects in design and manufacturing only, and the term depends on the product type. LED light bars and auxiliary lights for recreational use carry a limited lifetime warranty capped at 49,930 hours of operation. Brackets, wiring harnesses and switches that Baja Designs resells from other makers carry that maker's own warranty, which Baja Designs passes through. Installation errors, wear and tear, misuse, accidents, collisions, modifications and installation labor are not covered, and claims need proof of purchase or product registration. Shipping. The carrier and ship method are set by the size and weight of the carton when the order is placed. Inspect on delivery. Please inspect the package and every part as soon as it arrives, and report shipping damage or missing items before installing so a replacement can be arranged quickly.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Baja Designs
Baja Designs was founded in San Diego, California in 1992 by Alan Roach, a motorcycle racer who competed in the Baja 1000. The first product was a dual sport kit for off-road motorcycles, and the company went on to build HID race lights that ended up on many winning Baja 1000 bikes, trucks and buggies.
That racing work earned the engineering team the nickname The Scientists of Lighting, and professional teams began asking them to design and aim their lighting. In 2005 Baja Designs raced a forward-projecting LED light bar at the Baja 1000, the starting point for the LED pods and bars in the current range.
The company is now based in San Marcos, California, where it engineers and builds LED lighting for trucks, Jeeps, SUVs, UTVs and motorcycles.
