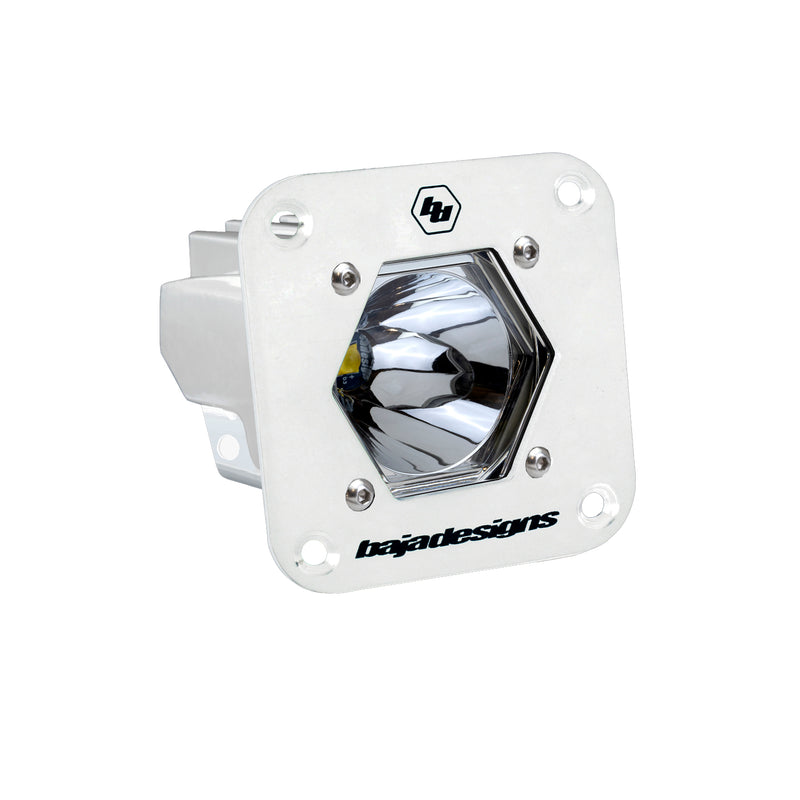

The S1 White Flush Mount Auxiliary Light Pod sets a Baja Designs pod into a flush or angled mount so it sits nearly level with a bumper, body panel or trailer side. Pattern and lens options appear as variants on this listing. It ships as Baja Designs part 381001WT. Choose light pattern from the options above; each option is its own Baja Designs part number, listed under Specifications.
Contents vary by item and lights are not included unless the title and package contents say so.
Features
Low-profile flush fit
The light sits almost level with the surface it mounts into, for a clean look and less exposure to snags.
Ideal reverse and work light
Flush pods suit rear bumpers, body panels and trailers where work or reverse light is needed.
Rugged sealed pod
The pod inside is a Baja Designs auxiliary light built with an aluminum housing and sealed lens.
Pattern and lens options
Pattern and lens color choices appear as variants where offered.
Lifetime warranty coverage
Baja Designs backs its lights for recreational use with a limited lifetime warranty.
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Lens Color: Clear
-
Brightness: 2,320 lumens
-
Power draw: 19.6 W
-
Current draw: 1.42 A
-
Voltage: 9-28 V
-
Light source: LED
-
LEDs per light: 1
-
Lighting Modes: Beam
-
Lens Material: Hardcoated Polycarbonate
-
Housing Material: Hard Anodized and Powder Coated Cast Aluminum
-
Housing Color: White
-
Bezel Material: Powder Coated Cast Aluminum
-
Rated LED life: 49,930 hours
-
Wiring Harness Included: No
-
Mounting Hardware Included: Yes
-
Mounting Hardware Material: Stainless Steel
-
Overvoltage Protection: Built-In
-
Water resistance: IP69K (Waterproof up to 9' & Pressure Washable)
-
Impact resistance: IK10 Compliant (Mechanical Impact Testing)
-
Durability testing: Exceeds MIL-STD810G (Mil-Spec Testing)
-
Length: 2.1"
-
Height: 2.1"
-
Depth: 2.1"
-
Weight: 0.4 lb
-
Fitment: Universal (not tied to one vehicle)
-
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
-
Light type: Light Pod
-
Mount location: Universal
-
Color temperature: 5000K
-
Beam distance: 155 ft (Spot), measured to 10 lux with a pair of lights (Baja Designs ELS rating, clear lens)
-
Part numbers: 381001WT, 381005WT, 381006WT
Options and part numbers
| Light Pattern |
Baja Designs part number |
| Spot |
381001WT |

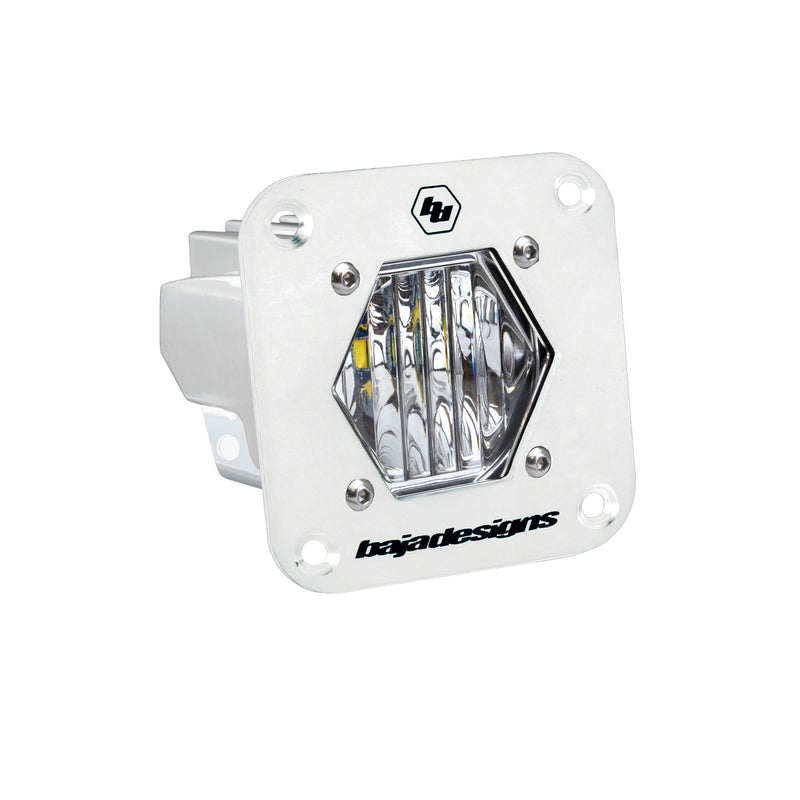

| Wide Cornering |
381005WT |

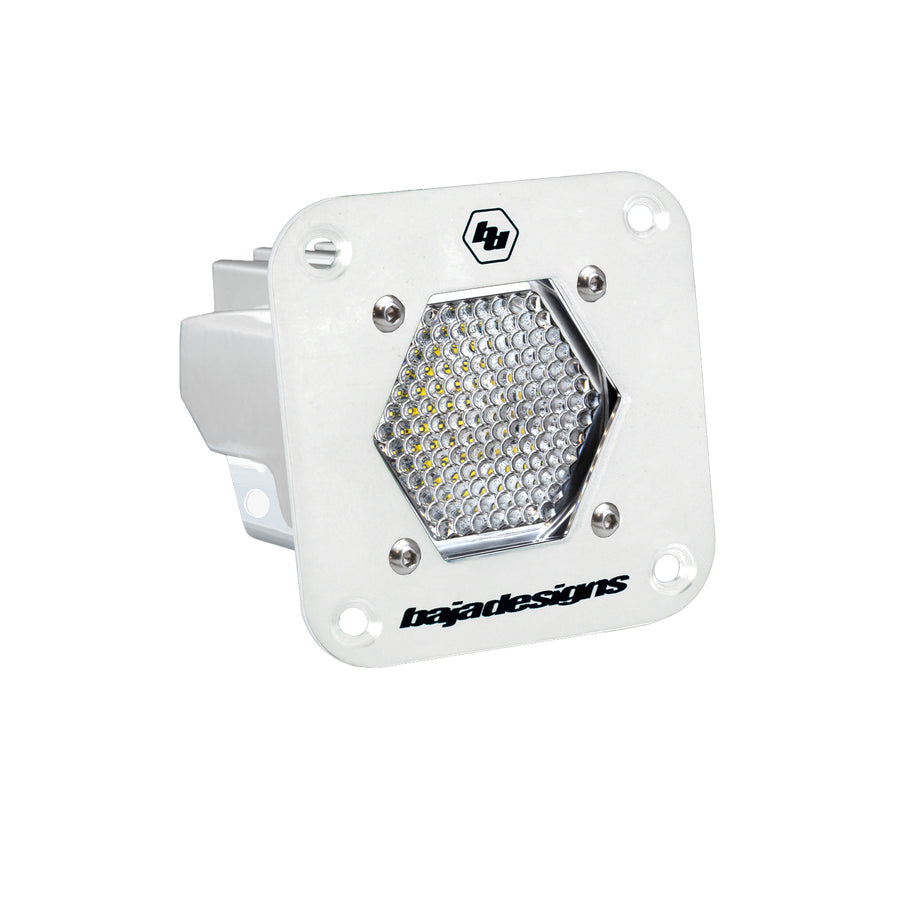

| Work/Scene |
381006WT |
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
Confirm the light series in the title before ordering. Mount brackets to a solid surface or tube able to carry the light's weight, tighten hardware to secure the light, and check the aim and fasteners again after the first drive.
Follow the fit notes and the included instructions; our team can answer installation questions before you order.
Resources
An installation guide for this product is not available to download. Our team can answer installation questions before you order; contact us with the part number.
