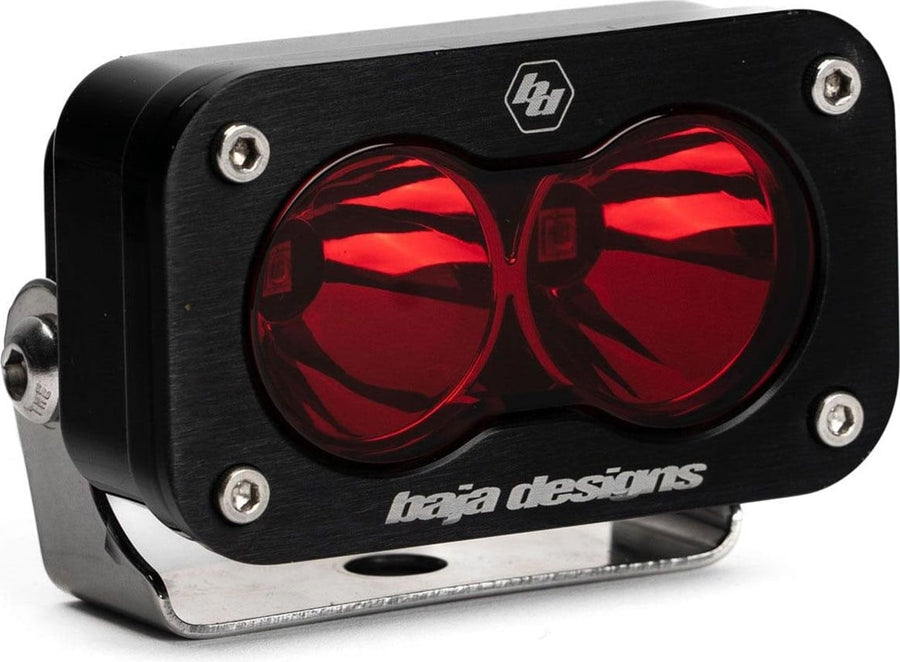

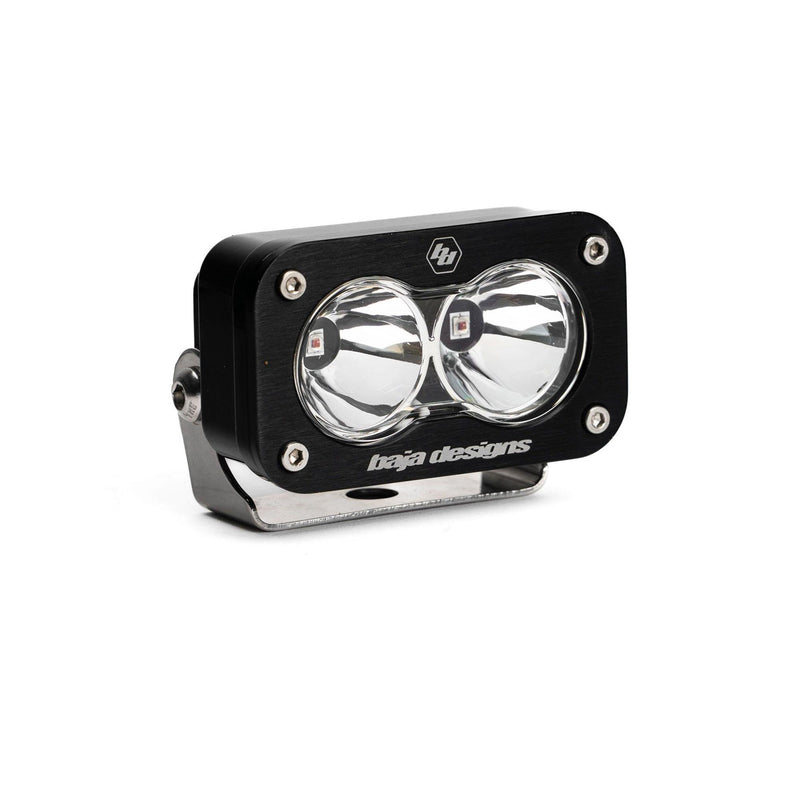

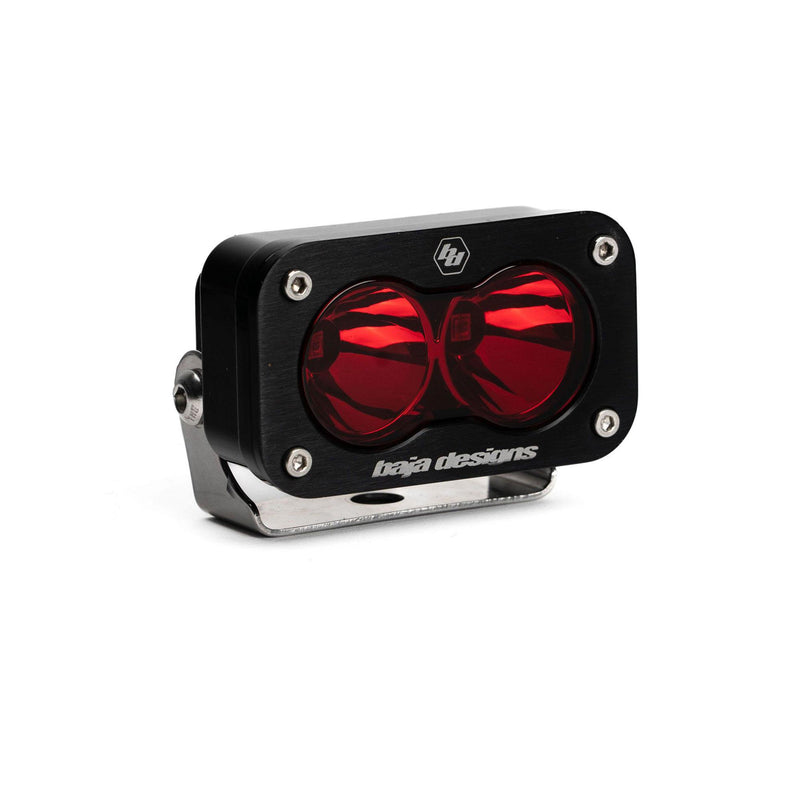

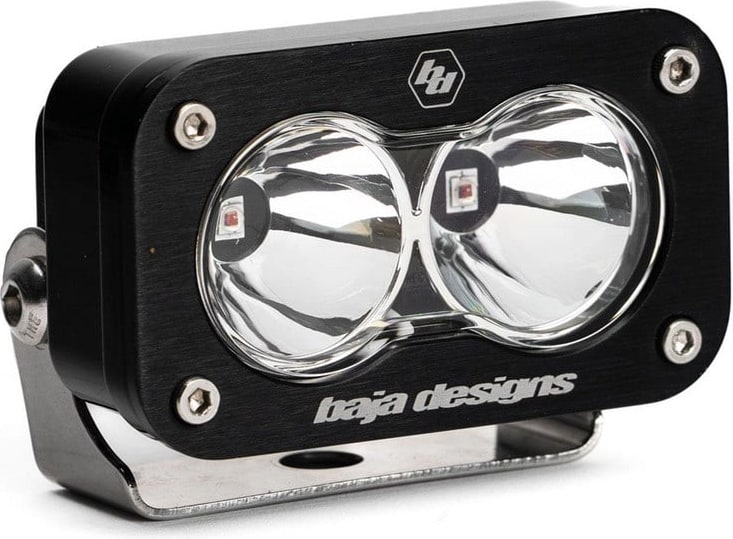

The S2 Red LED Auxiliary Light Pod fits red LEDs inside the compact Baja Designs S2 housing, giving a true red marker or low-visibility scene light. Red light keeps night vision intact around camp, the pits or a work area. It ships as Baja Designs part 54-0120. Choose light pattern and lens color from the options above; each option is its own Baja Designs part number, listed under Specifications.
What's Included:
| Item |
Qty |
| S2 with new Red LEDs (Red Spot, Clear Spot, or Clear Work Scene Lens options) |
1 |
| All necessary mounting hardware |
1 |
Single S2 pods ship without a wiring harness, so add a Baja Designs Squadron/S2/S1 2-pin harness unless the package contents list one.
Features
True red LEDs
Red LEDs produce real red light rather than a white LED behind a tinted lens.
Marker or scene light

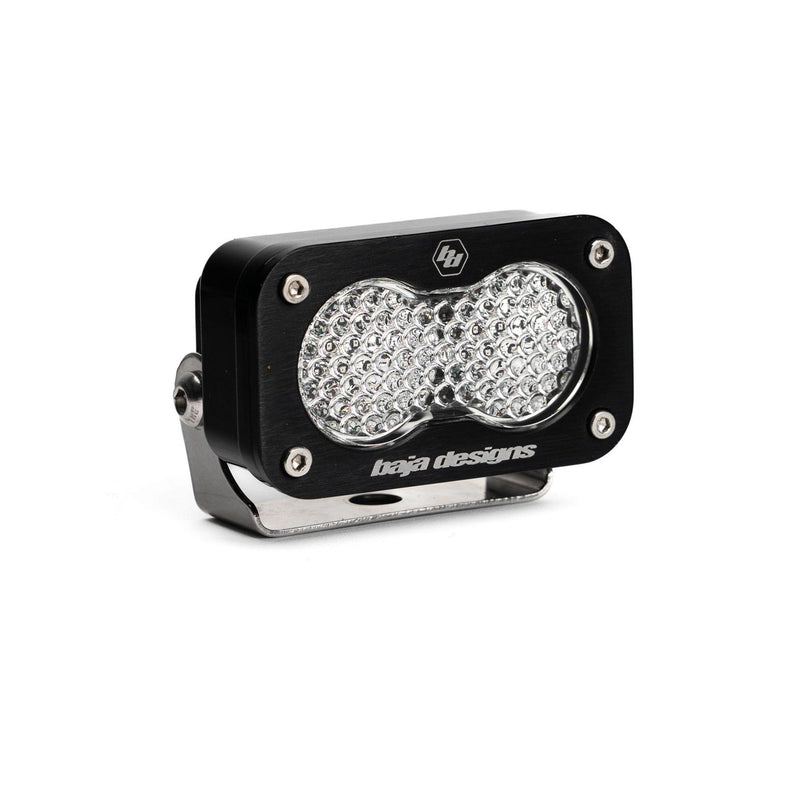

Spot lenses make a strong red marker, while the clear work/scene lens gives soft low-light coverage.
Slim S2 footprint
The narrow S2 housing fits tight spots on racks, bumpers and roll cages.
Sealed and impact rated
Baja Designs rates the S2 Red IP69K for water and dust and IK10 for impact.
Stainless mounting hardware
Stainless steel mounting hardware is included.
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Lens Material: Hardcoated polycarbonate
-
Water Resistance: IP69K
-
Impact Resistance: IK10
-
Mounting Hardware: Included, stainless steel
-
Brightness: 150 lumens
-
Power draw: 11.79W
-
Current draw: 0.88A
-
Light source: Forward Projecting
-
LEDs per light: 2
-
Lighting Modes: Hardcoated Polycarbonate
-
Housing Material: Powder Coated Cast Aluminum
-
Housing Color: Black
-
Bezel Material: Powder Coat Cast Aluminum
-
Rated LED life: 49930 hours
-
Wiring Harness Included: No
-
Mounting Hardware Included: Yes
-
Mounting Hardware Material: Stainless Steel
-
Overvoltage Protection: Built-In
-
Water resistance: IK10 Compliant (Mechanical Impact Testing)
-
Impact resistance: IK10 Compliant (Mechanical Impact Testing)
-
Durability testing: Exceeds MIL-STD810G (Mil-Spec Testing)
-
Length: 2.93"
-
Height: 1.76"
-
Depth: 1.68"
-
Weight: 0.5 lb
-
Fitment: Universal (not tied to one vehicle)
-
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
-
Part numbers: 54-0120, 54-0120-RD, 54-0620
Options and part numbers
| Light Pattern |
Lens Color |
Baja Designs part number |
| Spot |
Clear |
54-0120 |
| Spot |
Red |
54-0120-RD |
| Work Scene |
Clear |
54-0620 |
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
S2 pods mount with stainless hardware to a bracket, bumper, rack or flat panel and plug into a fused, relay-switched 2-pin harness. Aim each pod after mounting and route wiring clear of heat and moving parts.
Follow the fit notes and the included instructions; our team can answer installation questions before you order.
Resources
An installation guide for this product is not available to download. Our team can answer installation questions before you order; contact us with the part number.
Warranty, Shipping & Returns
Warranty. Baja Designs warranties cover defects in design and manufacturing only, and the term depends on the product type. LED light bars and auxiliary lights for recreational use carry a limited lifetime warranty capped at 49,930 hours of operation. Brackets, wiring harnesses and switches that Baja Designs resells from other makers carry that maker's own warranty, which Baja Designs passes through. Installation errors, wear and tear, misuse, accidents, collisions, modifications and installation labor are not covered, and claims need proof of purchase or product registration. Shipping. The carrier and ship method are set by the size and weight of the carton when the order is placed. Inspect on delivery. Please inspect the package and every part as soon as it arrives, and report shipping damage or missing items before installing so a replacement can be arranged quickly.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Baja Designs
Baja Designs was founded in San Diego, California in 1992 by Alan Roach, a motorcycle racer who competed in the Baja 1000. The first product was a dual sport kit for off-road motorcycles, and the company went on to build HID race lights that ended up on many winning Baja 1000 bikes, trucks and buggies.
That racing work earned the engineering team the nickname The Scientists of Lighting, and professional teams began asking them to design and aim their lighting. In 2005 Baja Designs raced a forward-projecting LED light bar at the Baja 1000, the starting point for the LED pods and bars in the current range.
The company is now based in San Marcos, California, where it engineers and builds LED lighting for trucks, Jeeps, SUVs, UTVs and motorcycles.
