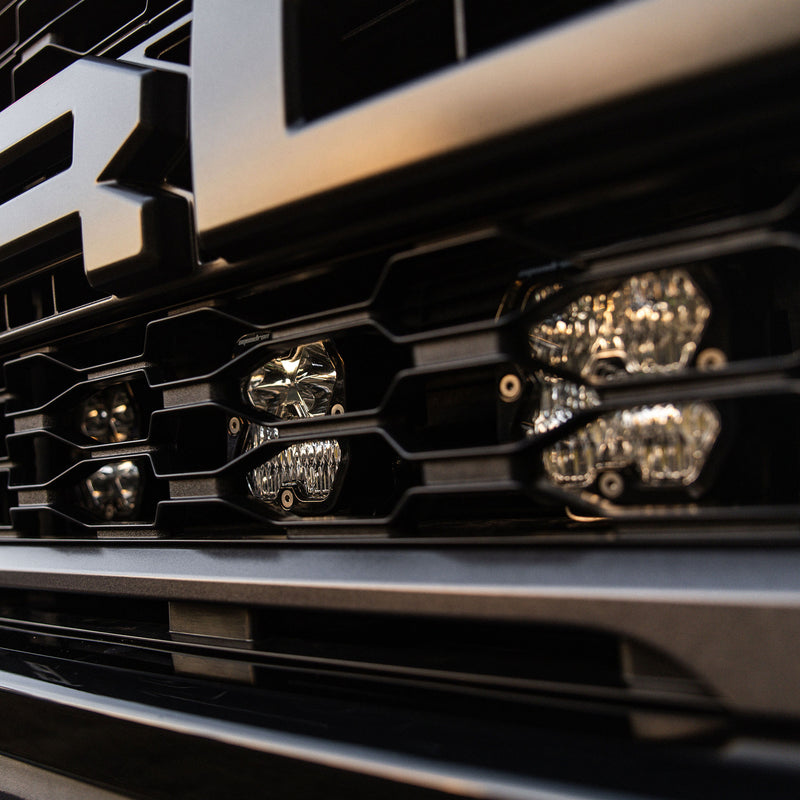

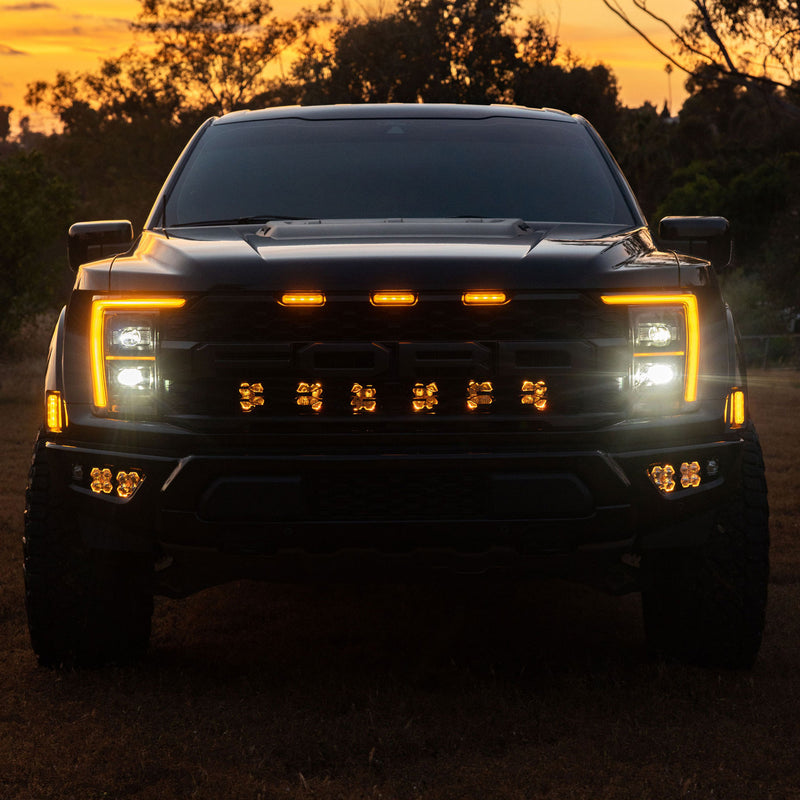

The Squadron 2.0 Sport Behind-the-Grille Light Kit places Baja Designs LED lighting in the front-end openings of this vehicle, such as the grille, lower grille or vents, so the lights sit inside the body lines instead of on top of them. Brackets made for this vehicle hold the lights in place behind or within the opening. Mounting lights inside the front openings keeps the profile clean and the lights shielded from branches. This kit is Baja Designs part 44-0016 for the 2021-2026 Ford F-150 Raptor.

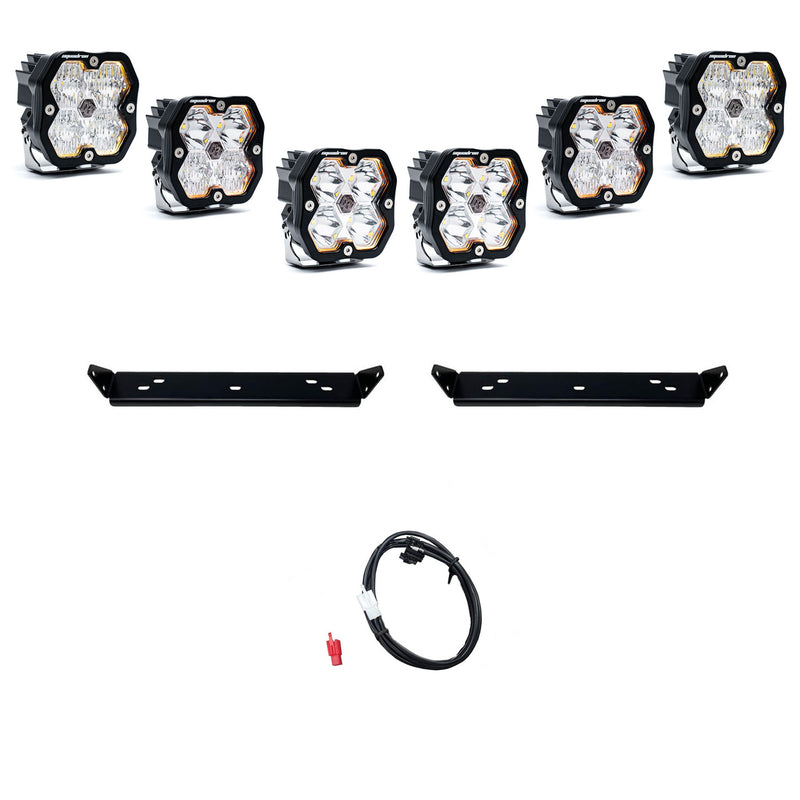

What's Included:
| Item |
Qty |
| Squadron 2.0 Sport - Wide Cornering Clear |
2 |
| Squadron 2.0 Sport - Driving Combo Clear |
2 |
| Squadron 2.0 Sport - Spot Clear |
2 |
| Behind-the-Grille mounting brackets |
2 |
| Wiring Harness |
1 |
| Upfitter Wiring Harness |
1 |
| All Necessary Mounting Hardware |
1 |
Anything a kit needs beyond the box, such as drilling, trimming or a compatible grille, is listed in that kit's fit notes.
Features
Hidden in the front openings
The lights sit inside the grille or vent openings, keeping the front end clean and the lights protected from brush and branches.
Brackets made for this vehicle
Each bracket is shaped for this vehicle's grille or vent area, so the lights line up with the opening without fabrication.
Baja Designs LED lights included
Each kit comes with Baja Designs LED lights. The series, count and beam pattern for this product are shown in the options and spec table.
Lens patterns sorted by zone
Baja Designs organizes its lens patterns by lighting zone, from wide near-field and cornering light to long-range spot, so a setup can be tuned to how you drive.
Sealed against weather and dust
Baja Designs LED lights use sealed housings and hard lenses meant to keep running through rain, mud, dust and road spray.
Lifetime limited warranty on lights
The lights carry the Baja Designs limited lifetime warranty for recreational use, and brackets and harnesses carry their maker's pass-through warranty.
Fitment & Compatibility
Fit guidance: Fits: 2021-2026 Ford F-150 Raptor, with the qualifiers shown. Check your vehicle against these notes before ordering.
Qualifier: 3rd gen; incl. Raptor 37 and Raptor R; w/o ACC relocation kit
Baja Designs fit notes for this product
| Will not work with adaptive cruise control relocation kits |
| Includes upfitter harness for the factory upfitter switches |
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Mount location: Grille / front-end openings
-
Fitment: Vehicle specific (see Fitment & Compatibility)
-
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
-
Light type: Grille Light Kit
-
Beam pattern: Wide Cornering, Driving/Combo and Spot
-
Lens Color: Clear
-
Color temperature: 5000K
-
Brightness: 3,200 lumens per light (19,200 lumens total for 6 lights)
-
Water resistance: IP69K
-
Wiring Harness Included: Yes
-
Power draw: 30 W per light (180 W total for 6 lights)
-
Current draw: 2.2 A per light (13.2 A total for 6 lights)
-
Part number: 44-0016
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
The kit mounts in or behind this vehicle's grille or front openings on brackets made for it. Some installs need the grille or trim pieces removed for access. Route the harness through the engine bay to the switch the kit uses, then aim the lights on level ground. The fit notes below list any drilling, trimming or grille compatibility the kit requires.
Follow the fit notes and the included instructions; our team can answer installation questions before you order.
Resources
An installation guide for this product is not available to download. Our team can answer installation questions before you order; contact us with the part number.
