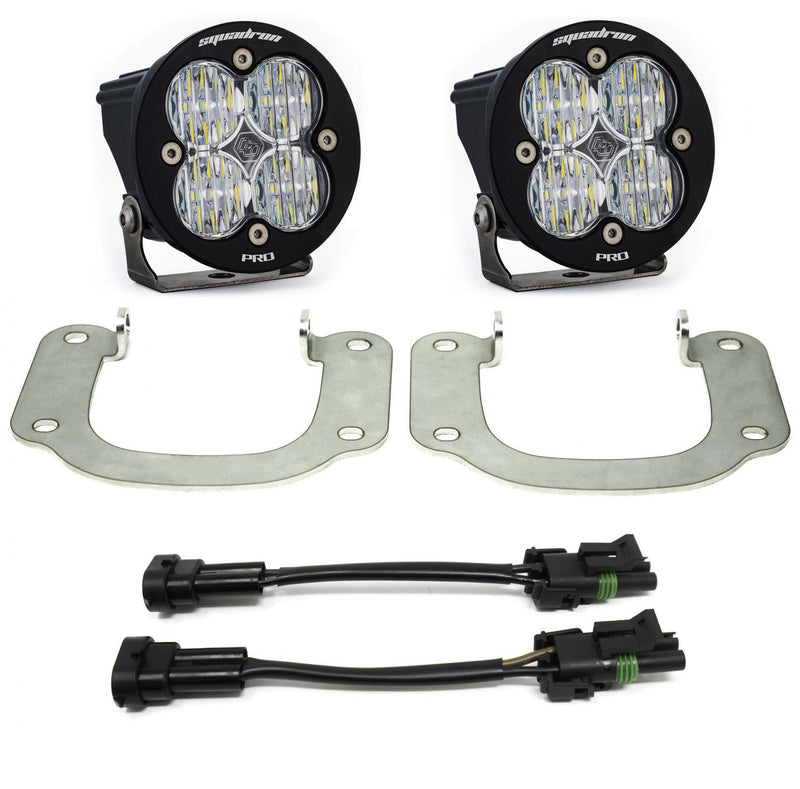

Baja Designs Squadron-R Pro Fog Pocket Light Kit, complete kit on a studio background: two round black Squadron Pro pods

Baja Designs Squadron-R Pro Fog Pocket Light Kit installed on a Nissan Titan XD: A white Nissan Titan XD parked among desert rocks with clear fog lights glowing and a lower bumper light bar

Baja Designs Squadron-R Pro Fog Pocket Light Kit on a vehicle: close view of a clear Squadron fog light glowing inside a chrome fog pocket bezel on a gray vehicle

Baja Designs Squadron-R Pro Fog Pocket Light Kit for 2016-2019 Nissan Titan / Titan XD

Name: Baja Designs Squadron-R Pro Fog Pocket Light Kit for 2016-2019 Nissan Titan / Titan XD
Brand: Baja Designs
SKU: 447502
Price: 527.95 USD
Availability: InStock

$527.95

FREE SHIPPINGNo sales tax Only 1 leftIn stock now Estimated delivery

GO

Clear

Option: Pro

Guaranteed FitmentTeam-confirmed fit or money back
No Sales TaxZero sales tax on every order
30-Day Money-Back GuaranteeReturn it within 30 days of delivery for a refund

Questions or a custom quote?

Mon to Fri, 9am to 5pm EST

+1 (470) 823-2453 Email Us

The Squadron-R Pro Fog Pocket Light Kit fits Baja Designs LED lights into the factory fog light location, giving this vehicle low, wide light right in front of the bumper. Kits in this line range from SAE fog lights to off-road pods and combinations of both; the lights and lens options for this kit are listed below. Brackets made for this vehicle's fog openings hold the lights square in the bumper, with no universal clamps. This kit is Baja Designs part 447502 for the 2016-2019 Nissan Titan and Titan XD.

Anything a kit needs beyond the box, such as a specific factory bumper, OEM fog brackets or a particular wiring version, is listed in that kit's fit notes.

Features

Built for the factory fog location
The brackets are made for this vehicle's fog light openings, so the lights sit in the bumper where fog lights belong.

Low light for bad weather
A bumper-height beam runs beneath dust, fog, rain and snow rather than lighting it up in front of the windshield, which helps you see the road edge in poor conditions.

SAE fog, off-road pods or both
Some kits use Baja Designs SAE fog lights, some use off-road pods, and some pair the two. This product's light types are shown in its options and spec table.

Lens options by lighting zone
Baja Designs matches lens patterns to lighting zones, from dust and fog light through cornering and driving to spot, and the options for this kit are listed above.

Sealed LED housings
Baja Designs lights use sealed housings and hard lenses meant to keep working through water crossings, mud and trail vibration.

Lifetime limited warranty on lights
The lights carry the Baja Designs limited lifetime warranty for recreational use, and brackets and harnesses carry their maker's pass-through warranty.

Fitment & Compatibility

Nissan
Years	Model	Notes
2017-2019	Titan	—
2016-2019	Titan XD	—

Fit guidance: Fits: 2016-2019 Nissan Titan/Titan XD, with the qualifiers shown. Check your vehicle against these notes before ordering.

Baja Designs fit notes for this product

Replaces the factory fog lights; adapters plug into OEM connectors and keep the factory fog switch (no splicing)

Specifications

Brand: Baja Designs
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
Mount location: Factory fog light location
Fitment: Vehicle specific (see Fitment & Compatibility)
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
Light type: Fog Light
Beam pattern: Wide Cornering
Lens Color: Clear
Color temperature: 5000K
Brightness: 4,095 lumens per light (8,190 lumens total for 2 lights)
Water resistance: IP69K
Power draw: 40 W per light (80 W total for 2 lights)
Current draw: 2.9 A per light (5.8 A total for 2 lights)
Part number: 447502

California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Installation

The kit mounts in the factory fog light openings using brackets made for this vehicle. How the lights are switched depends on the kit: some connect to the factory fog circuit and others use a toggle or upfitter harness. Aim the lights low with the vehicle parked on level ground. The fit notes below cover the bumper style the kit needs, any wiring choice and any modification.

Baja Designs's installation instructions for this product are linked under Resources. Read them fully before starting.

Resources

Baja Designs installation instructions (PDF)

Warranty, Shipping & Returns

Warranty. Baja Designs warranties cover defects in design and manufacturing only, and the term depends on the product type. LED light bars and auxiliary lights for recreational use carry a limited lifetime warranty capped at 49,930 hours of operation. Brackets, wiring harnesses and switches that Baja Designs resells from other makers carry that maker's own warranty, which Baja Designs passes through. Installation errors, wear and tear, misuse, accidents, collisions, modifications and installation labor are not covered, and claims need proof of purchase or product registration. Shipping. The carrier and ship method are set by the size and weight of the carton when the order is placed. Inspect on delivery. Open the carton when it arrives and check every light, bracket, harness and hardware bag against the kit contents before you start the install. Report shipping damage or a missing part right away, before anything is mounted.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.

About Baja Designs

Baja Designs began in San Diego, California in 1992, started by riders with a habit of racing the Baja 1000. Its first product turned pure dirt motorcycles into minimally street-ready dual-sport bikes, and its work tuning race lights for night stages earned its engineers the name The Scientists of Lighting.

From motorcycle HID race lights the company moved into truck and buggy racing, and in 2005 it ran its first forward-projecting LED light bar in the Baja 1000. That race program still feeds the design of every LED pod and bar the company builds.

Today Baja Designs lights trucks, Jeeps, SUVs, vans, UTVs and motorcycles, using its Lighting Zones method: pick the right lens pattern for each job and put it in the right place on the vehicle.

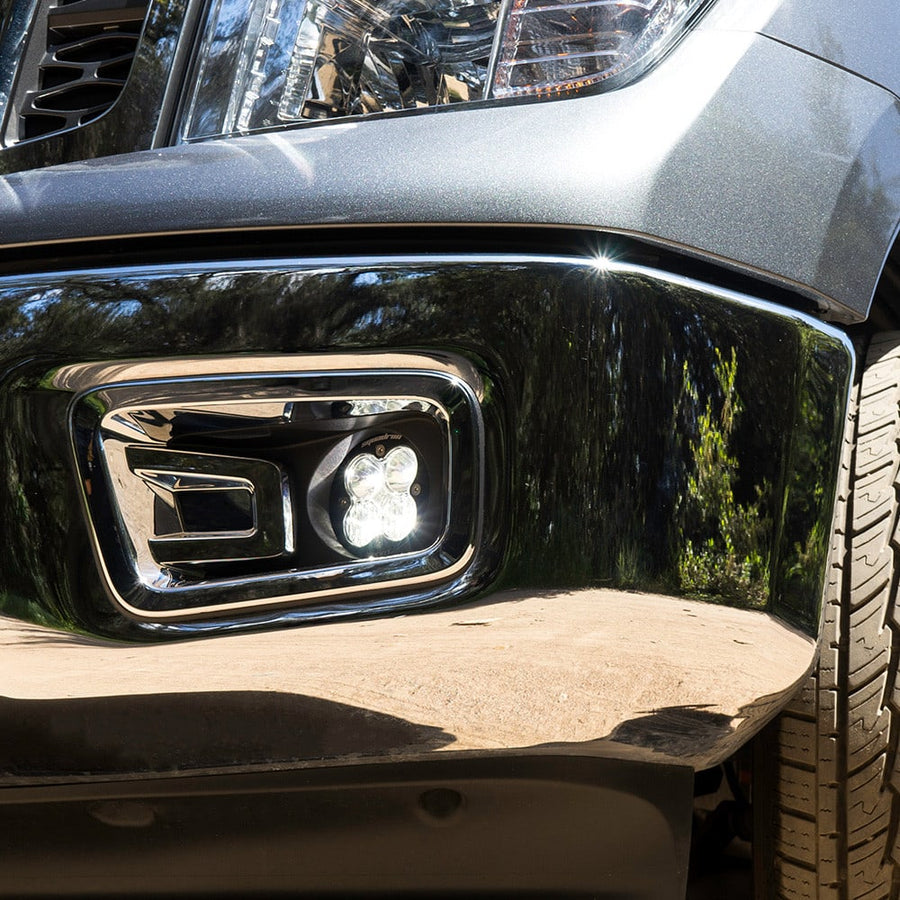

Fog Light Kits by Baja Designs: Close view of a clear Squadron fog light glowing inside a chrome fog pocket bezel on a gray vehicle.

Close light for bad conditions

Fog-location lights sit low, so their beam travels under rain, snow and trail dust rather than lighting it up in front of your eyes. Depending on the kit, that light comes from SAE fog lamps, wider off-road pods or a pairing of the two.

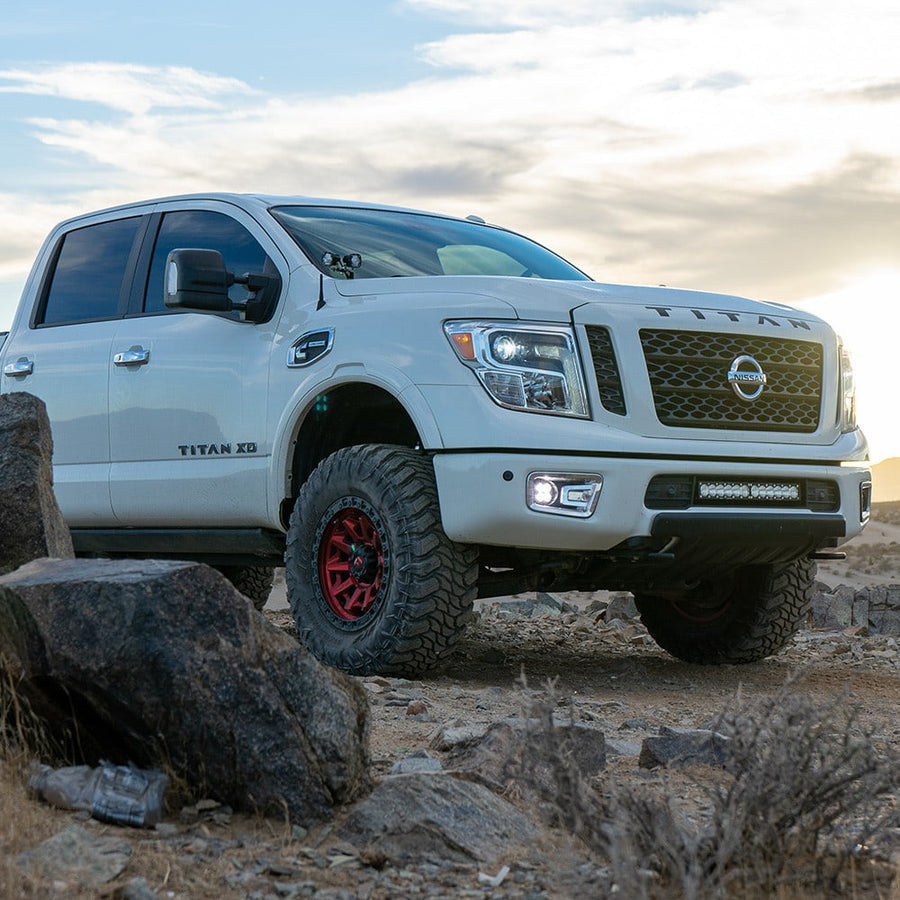

Fog Light Kits by Baja Designs: A white Nissan Titan XD parked among desert rocks with clear fog lights glowing and a lower bumper light bar.

Sealed for life below the bumper

The fog pocket takes the spray, grit and stones. Baja Designs builds its lights with sealed housings and hard lenses, and the vehicle-specific brackets keep them square in the opening.

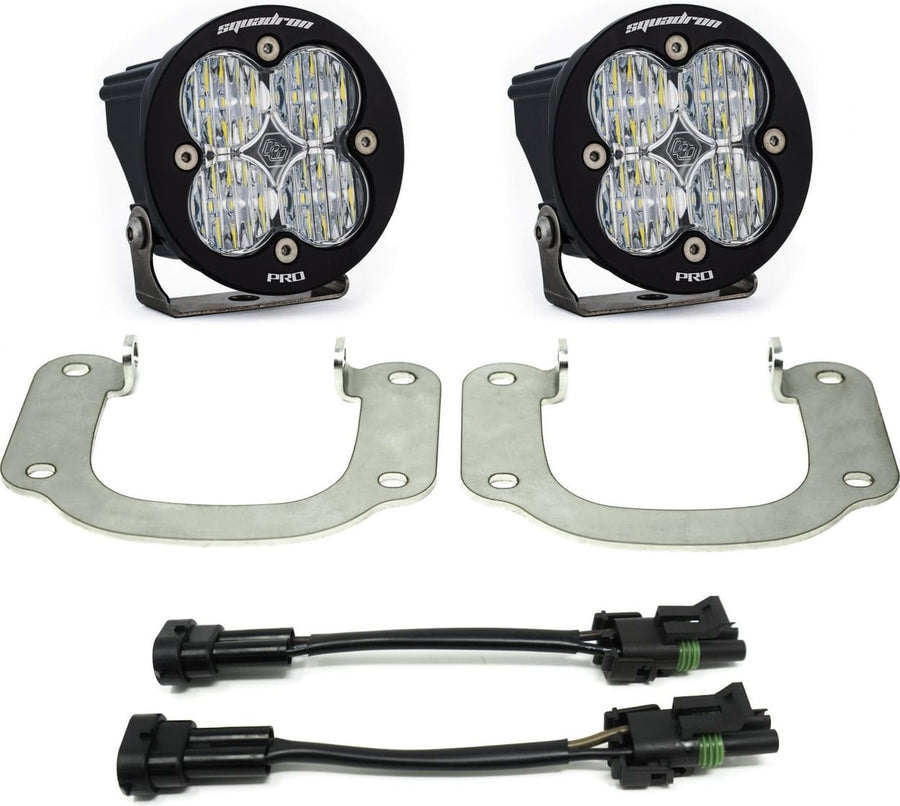

Fog Light Kits by Baja Designs: Two round black Squadron Pro pods with clear lenses, two silver hoop brackets and two adapter harnesses on white.

Stock look, new output

Because the lights fill the factory fog openings, the front end keeps its original lines. The lights carry the Baja Designs limited lifetime warranty for recreational use.

Frequently Asked Questions

Straight answers on specs, fit and support

Can I use this fog light kit on public roads?

That depends on the lights in the kit. Baja Designs SAE fog lights such as the Squadron SAE and S2 SAE are built to the SAE fog standard, while Sport, Pro and S1 pods are off-road lights that Baja Designs rates for off-road use only. Many kits mix the two. The spec table for this product shows which applies, and you should check your local laws.

Will it work with my bumper?

Fog pocket brackets are bumper specific. Some kits fit only a plastic bumper, a steel bumper or a particular trim, so match your bumper to the fit notes before ordering.

Can I keep using the factory fog switch?

Many kits connect to the factory fog circuit, and some use a toggle or upfitter harness instead. The fit notes and Wiring Type option for this kit show how it is switched.

Should I choose clear or amber?

Where a Baja Amber lens is offered, it cuts glare in dust, fog, rain and snow. Clear gives whiter light for general use. The colors available for this kit are listed in the options.

Can I change the lens on an SAE fog light?

No. Baja Designs SAE lights use pre-aligned optics that produce their sharp cutoff, so the lens is not user-replaceable. If one is damaged, the light goes back to Baja Designs for service.

What does the Baja Designs warranty cover?

The lights carry a limited lifetime warranty against defects in design and manufacturing for recreational use, capped at 49,930 hours of operation, for the original owner with proof of purchase. Brackets and harnesses pass through their maker's warranty. Damage from installation errors, accidents, misuse or modification is not covered.
