The Squadron Racer Edition LED Auxiliary Light Pod puts a compact Baja Designs Squadron pod to work, with engineered optics and high-output LEDs packed into a housing small enough for bumpers, grilles, racks and pillars where a larger light will not fit. Choose the beam and lens that match how you drive, and the pod sends usable light exactly where the trail or road needs it. It ships as Baja Designs part 720011. Choose lens color from the options above; each option is its own Baja Designs part number, listed under Specifications.
Single Squadron pods ship without a wiring harness and some pairs are sold with or without one, so check the package contents and add a matching Baja Designs harness if you need it.
Features
Small pod, full output
The Squadron footprint fits bumper pockets, A-pillar brackets and roof racks while still delivering true auxiliary light output from a single pod.
Tough aluminum housing
Each pod is built on an aluminum housing with a durable finish that stands up to corrosion, stone chips and constant trail vibration.
Sealed against water, dust
A sealed lens and gasket design keeps rain, creek splash and fine dust away from the LEDs and optics inside.
A pattern for every job
Across the Squadron range you can choose long-distance, blended driving, wide cornering, close-range work light or fog duty, then put each pod where it does the most good.
Clear or amber lens choice
Most Squadron pods are offered with a clear lens or Baja Amber. Amber softens glare and adds contrast in dust, fog, rain and snow.
Mounting hardware in box
Every pod comes with the bracket and hardware needed to fasten it to a bumper, rack or mounting tab.
Lifetime warranty coverage
Baja Designs backs its auxiliary lights for recreational use with a limited lifetime warranty against defects in design and manufacturing.
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Mounting Hardware Included: Yes
-
Light Pattern: Racer Spot
-
Brightness: 2,800 lumens
-
Power draw: 45.54 W
-
Current draw: 3.3 A
-
Light source: High Intensity Cree LED
-
LEDs per light: 4
-
Lighting Modes: Beam
-
Lens Material: Hardcoated Polycarbonate
-
Housing Material: Hard Anodized and Powder Coated Cast Aluminum
-
Housing Color: Black
-
Bezel Material: Powder Coated Cast Aluminum
-
Rated LED life: 49,930 hours
-
Wiring Harness Included: No
-
Mounting Hardware Material: Stainless Steel
-
Overvoltage Protection: Built-In
-
Water resistance: IP69K (Waterproof up to 9' & Pressure Washable)
-
Impact resistance: IK10 Compliant (Mechanical Impact Testing)
-
Durability testing: Exceeds MIL-STD810G (Mil-Spec Testing)
-
Length: 3.07"
-
Height: 3.07"
-
Depth: 2.77"
-
Weight: 0.75 lb
-
Fitment: Universal (not tied to one vehicle)
-
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
-
Light type: Light Pod
-
Mount location: Universal
-
Color temperature: 5000K
-
Beam distance: 374 ft (Racer Spot), measured to 10 lux with a pair of lights (Baja Designs ELS rating, clear lens)
-
Part numbers: 720011, 720001
Options and part numbers
| Lens Color |
Baja Designs part number |

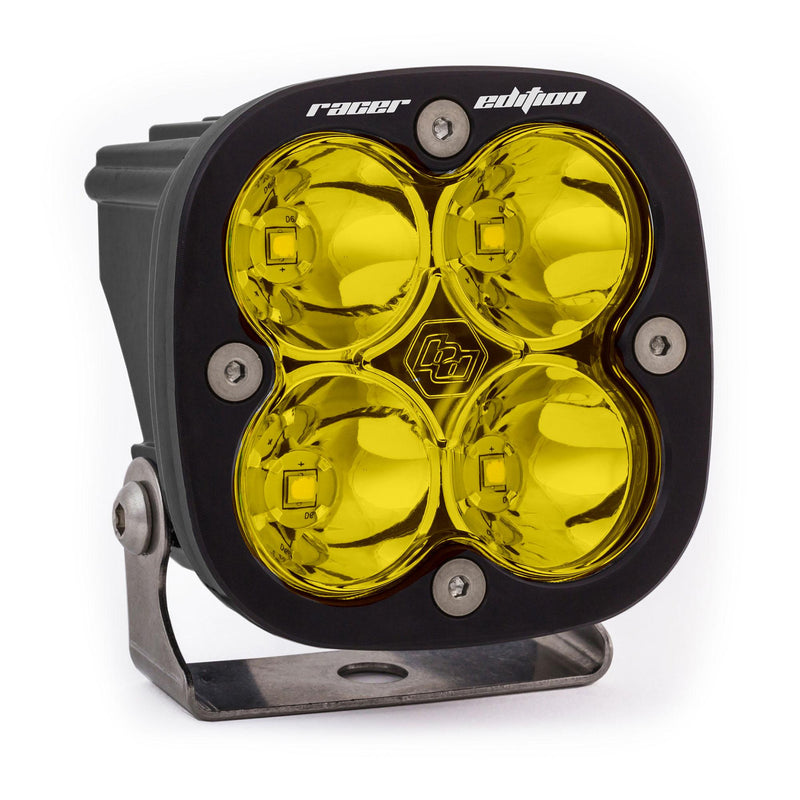

| Baja Amber |
720011 |

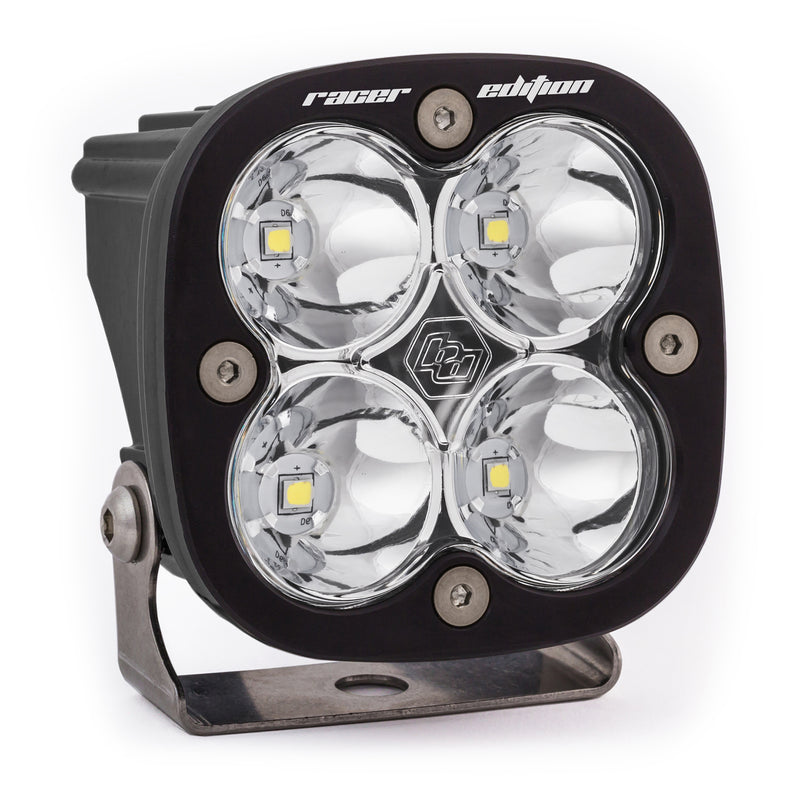

| Clear |
720001 |
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
Squadron pods mount to a bracket, bumper or rack with the supplied hardware and run from a fused, relay-switched harness sized for the light's draw. Confirm that the harness matches the pod's connector, since Squadron 2.0 pods use a 4-pin Deutsch-style plug and earlier Squadron pods use a 2-pin plug, then aim each pod once it is mounted.
Baja Designs's installation instructions for this product are linked under Resources. Read them fully before starting.
