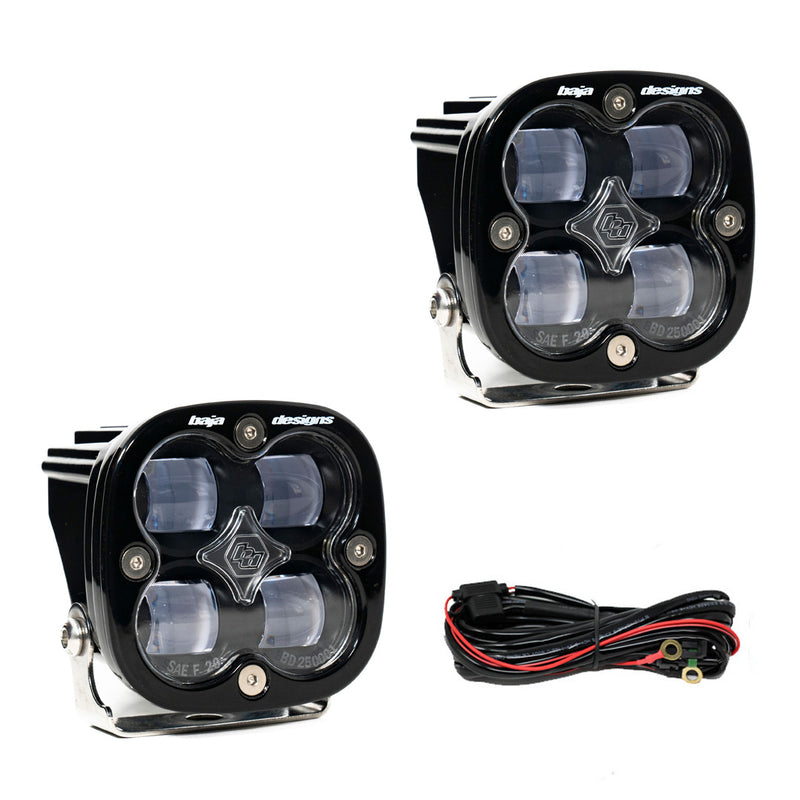

The Squadron SAE LED Auxiliary Light Pod Pair is a Squadron-size fog light pair from Baja Designs that uses aspheric projector optics to lay down a wide, low beam with a sharp cutoff for bad weather. Choose a clear or Baja Amber lens to match the look of the vehicle and the weather you drive in. It ships as Baja Designs part 25-7801. Choose lens color from the options above; each option is its own Baja Designs part number, listed under Specifications.
Single Squadron pods ship without a wiring harness and some pairs are sold with or without one, so check the package contents and add a matching Baja Designs harness if you need it.
Features
Fog beam, sharp cutoff
Aspheric projector optics shape a wide, low beam with a crisp upper cutoff, so light stays on the road instead of reflecting back from fog or dust.
Built to SAE fog standard
Baja Designs designs its Squadron SAE pods to the SAE J583 fog lamp requirements.
Tough aluminum housing
A hard anodized, powder coated cast aluminum housing resists corrosion, chips and vibration.
Clear or amber lens choice

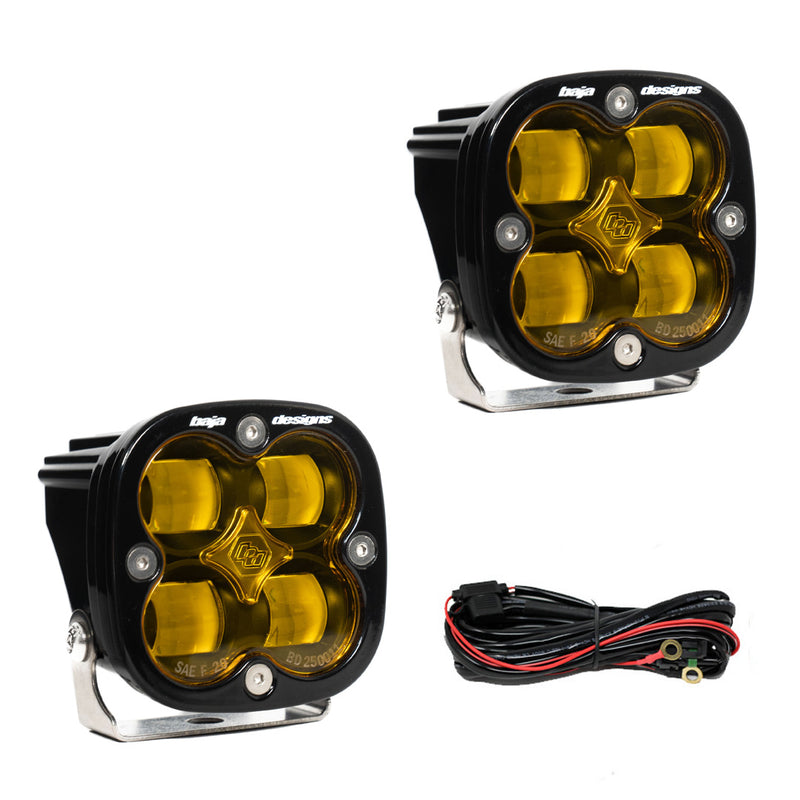

Pick a clear lens or Baja Amber. Amber adds contrast and softens glare in dust, fog, rain and snow.
Pair kit with harness
The pair ships with a wiring harness and stainless mounting hardware for both lights.
Lifetime warranty coverage
Baja Designs backs its auxiliary lights for recreational use with a limited lifetime warranty against defects in design and manufacturing.
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Mounting Hardware Included: Yes
-
Light Pattern: SAE Fog
-
Brightness: 2,420 lumens
-
Power draw: 29 W
-
Current draw: 2.1 A
-
Light source: Forward Projecting
-
LEDs per light: 4
-
Lighting Modes: Beam
-
Lens Material: Hardcoated Polycarbonate
-
Housing Material: Hard Anodized and Powder Coated Cast Aluminum
-
Housing Color: Black
-
Bezel Material: Powder Coated Cast Aluminum
-
Rated LED life: 49930 hours
-
Wiring Harness Included: Yes
-
Mounting Hardware Material: Stainless Steel
-
Overvoltage Protection: Built-In
-
SAE standard: SAE Standard J583
-
Water resistance: IK10 Compliant (Mechanical Impact Testing)
-
Impact resistance: IK10 Compliant (Mechanical Impact Testing)
-
Durability testing: Exceeds MIL-STD810G (Mil-Spec Testing)
-
Length: 3.07"
-
Height: 3.07"
-
Depth: 2.77"
-
Weight: 0.75 lb
-
Fitment: Universal (not tied to one vehicle)
-
Road use: Baja Designs lists this light as SAE compliant; the lens is part of that rating and is not user-replaceable
-
Mount location: Universal
-
Color temperature: 5000K
-
Part numbers: 25-7801, 25-7811
Options and part numbers
| Lens Color |
Baja Designs part number |
| Clear |
25-7801 |
| Baja Amber |
25-7811 |
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
Squadron pods mount to a bracket, bumper or rack with the supplied hardware and run from a fused, relay-switched harness sized for the light's draw. Confirm that the harness matches the pod's connector, since Squadron 2.0 pods use a 4-pin Deutsch-style plug and earlier Squadron pods use a 2-pin plug, then aim each pod once it is mounted.
Follow the fit notes and the included instructions; our team can answer installation questions before you order.
Resources
An installation guide for this product is not available to download. Our team can answer installation questions before you order; contact us with the part number.
