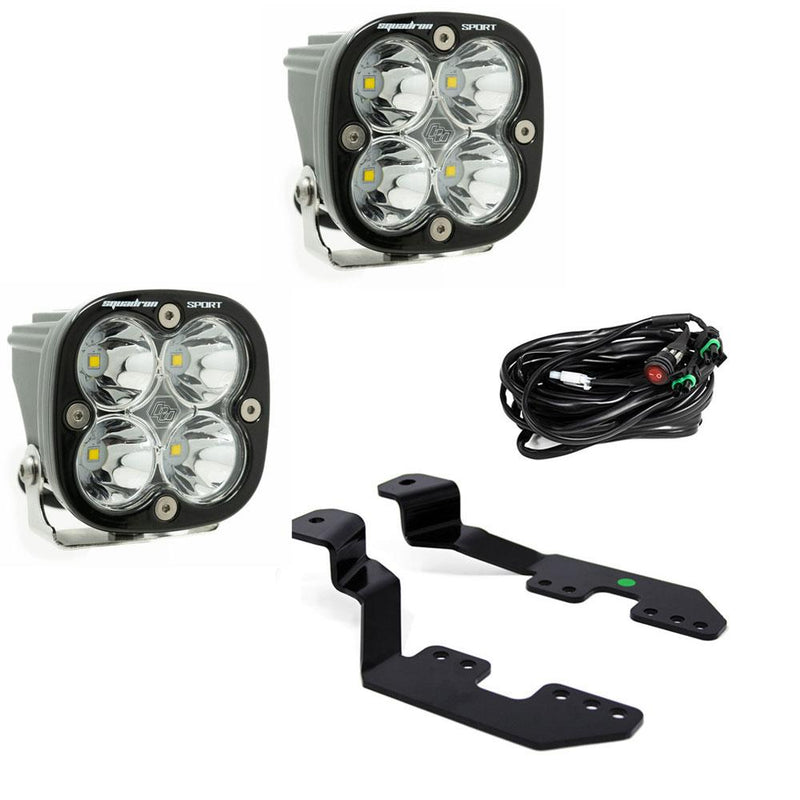

The Squadron Sport A-Pillar Light Kit mounts Baja Designs LED lights at the base of the windshield, high enough to see over the hood and into the edges of the trail. Its brackets are shaped for this vehicle's windshield pillars or cowl, so the lights sit close to the body lines. Pillar-mounted lights fill the gap between the headlights and the edge of the trail, where turns and obstacles appear first. This kit is Baja Designs part 447603 for the 2014-2019 Chevrolet Silverado 1500 and Colorado and GMC Sierra 1500 and Canyon.
Anything a kit needs beyond the box, such as an optional upgraded harness, longer bolts or minor trimming, is listed in that kit's fit notes.
Features
Brackets made for this vehicle
The mounts follow this vehicle's windshield pillar or cowl area, so the lights tuck in close instead of hanging from a universal clamp.
High mount, wide view
Lights at windshield height reach past the hood and cast light across the sides of the trail, where cornering and obstacles matter most.
Baja Designs LED lights included
Each kit comes with Baja Designs LED lights. The series, count and beam pattern for this product are shown in the options and spec table.
Lens patterns sorted by zone
Baja Designs organizes its lens patterns by lighting zone, from wide near-field and cornering light to long-range spot, so a setup can be tuned to how you drive.
Sealed against weather and dust
Baja Designs LED lights use sealed housings and hard lenses meant to keep running through rain, mud, dust and trail vibration.
Lifetime limited warranty on lights
The lights carry the Baja Designs limited lifetime warranty for recreational use, and the brackets carry their maker's pass-through warranty.
Fitment & Compatibility
Fit guidance: Fits: 2014-2019 Chevrolet Silverado 1500/Colorado & GMC Sierra 1500/Canyon, with the qualifiers shown. Check your vehicle against these notes before ordering.
Baja Designs fit notes for this product
| Minor trimming may be required depending on model |
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Mount location: Windshield A-pillar / cowl
-
Fitment: Vehicle specific (see Fitment & Compatibility)
-
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
-
Light type: Ditch Light Kit
-
Beam pattern: Spot
-
Lens Color: Clear
-
Color temperature: 5000K
-
Brightness: 3,162 lumens per light (6,324 lumens total for 2 lights)
-
Beam distance: 229 ft (Spot), measured to 10 lux with a pair of lights (Baja Designs ELS rating, clear lens)
-
Water resistance: IP69K
-
Wiring Harness Included: Yes
-
Power draw: 30.36 W per light (60.72 W total for 2 lights)
-
Current draw: 2.2 A per light (4.4 A total for 2 lights)
-
Part number: 447603
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
The kit mounts at the base of the windshield, using brackets made for this vehicle. Route the wiring along the body and into the cab or engine bay as the kit's instructions describe, then aim the lights with the vehicle parked on level ground. Any trimming, drilling, longer bolts or optional harness a kit needs is listed in the fit notes below.
Baja Designs's installation instructions for this product are linked under Resources. Read them fully before starting.
Resources
Warranty, Shipping & Returns
Warranty. Baja Designs warranties cover defects in design and manufacturing only, and the term depends on the product type. LED light bars and auxiliary lights for recreational use carry a limited lifetime warranty capped at 49,930 hours of operation. Brackets, wiring harnesses and switches that Baja Designs resells from other makers carry that maker's own warranty, which Baja Designs passes through. Installation errors, wear and tear, misuse, accidents, collisions, modifications and installation labor are not covered, and claims need proof of purchase or product registration. Shipping. The carrier and ship method are set by the size and weight of the carton when the order is placed. Inspect on delivery. Open the carton when it arrives and check every light, bracket, harness and hardware bag against the kit contents before you start the install. Report shipping damage or a missing part right away, before anything is mounted.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
