The XL Pro A-Pillar Kit mounts Baja Designs LED lights at the base of the windshield, high enough to see over the hood and into the edges of the trail. Its brackets are shaped for this vehicle's windshield pillars or cowl, so the lights sit close to the body lines. Lights and brackets come matched in one kit, so there is no guesswork about which pod fits which mount. This kit is Baja Designs part 44-8267 for the 2025-2026 Toyota 4Runner.

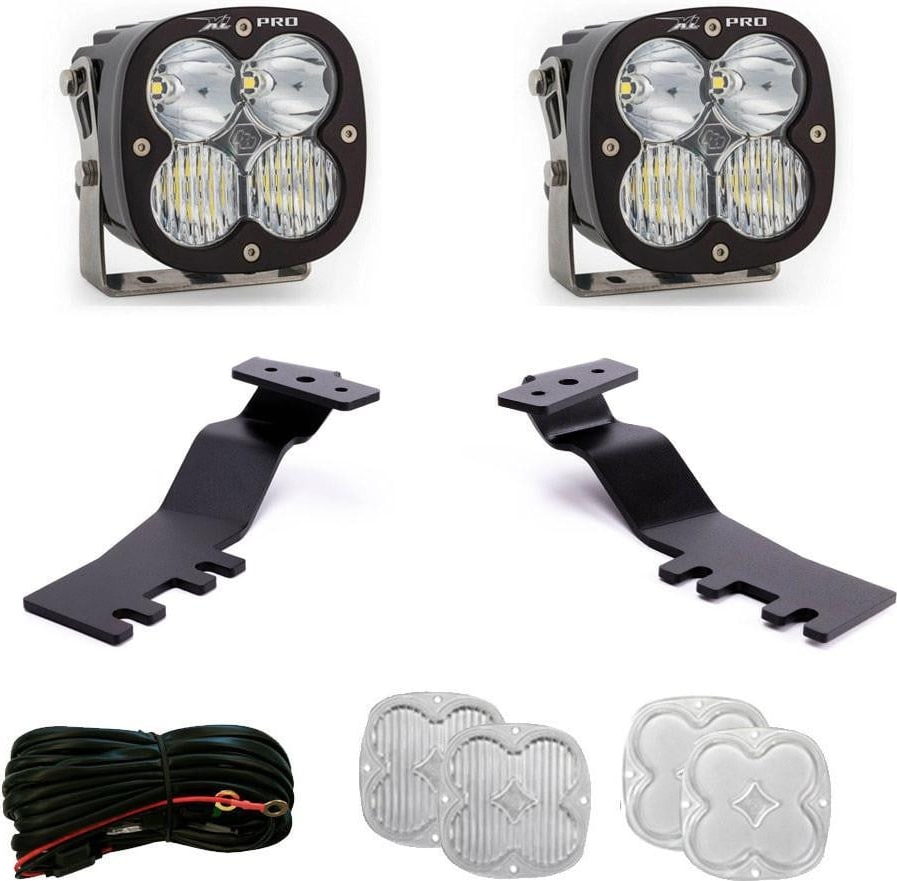

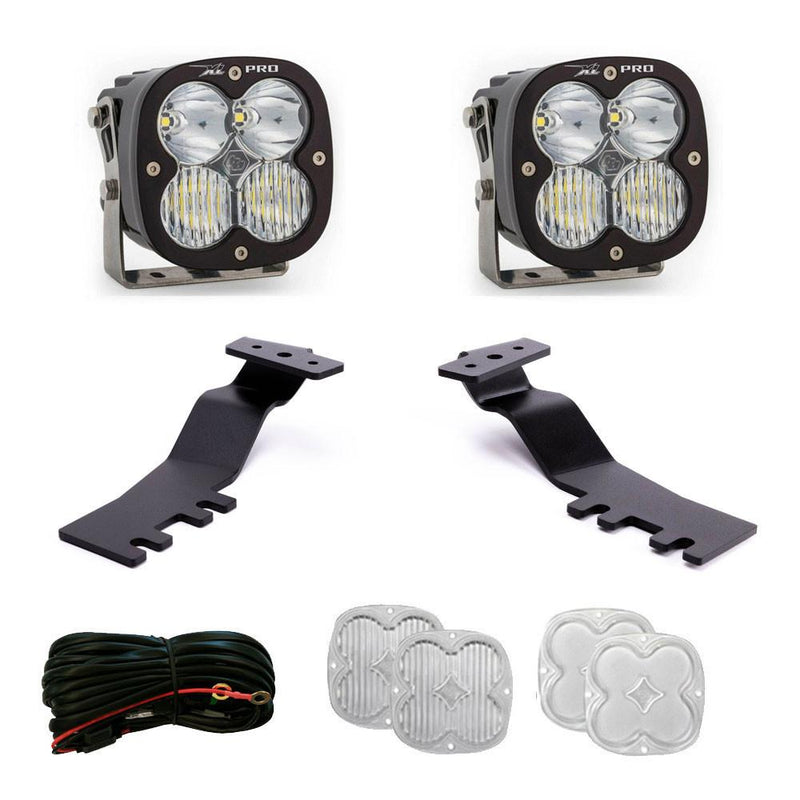

What's Included:
| Item |
Qty |
| XL Pro (Clear/Driving Combo) |
2 |
| Toggle Switch Harness (640121) |
1 |
| A-Pillar Brackets |
2 |
| XL Lens Kit (Clear/Spot) |
2 |
| XL Lens Kit (Clear/Wide Cornering) |
2 |
| All necessary mounting hardware |
1 |
Anything a kit needs beyond the box, such as an optional upgraded harness, longer bolts or minor trimming, is listed in that kit's fit notes.
Features
Brackets made for this vehicle
The mounts follow this vehicle's windshield pillar or cowl area, so the lights tuck in close instead of hanging from a universal clamp.
High mount, wide view
Lights at windshield height reach past the hood and cast light across the sides of the trail, where cornering and obstacles matter most.
Baja Designs LED lights included
Each kit comes with Baja Designs LED lights. The series, count and beam pattern for this product are shown in the options and spec table.
Lens patterns sorted by zone
Baja Designs organizes its lens patterns by lighting zone, from wide near-field and cornering light to long-range spot, so a setup can be tuned to how you drive.
Sealed against weather and dust
Baja Designs LED lights use sealed housings and hard lenses meant to keep running through rain, mud, dust and trail vibration.
Lifetime limited warranty on lights
The lights carry the Baja Designs limited lifetime warranty for recreational use, and the brackets carry their maker's pass-through warranty.
Fitment & Compatibility
Fit guidance: Fits: 2025-2026 Toyota 4Runner, with the qualifiers shown. Check your vehicle against these notes before ordering.
Qualifier: 6th gen
Baja Designs fit notes for this product
| A-pillar kit with toggle harness |
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Mount location: Windshield A-pillar / cowl
-
Fitment: Vehicle specific (see Fitment & Compatibility)
-
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
-
Light type: Ditch Light Kit
-
Beam pattern: Driving/Combo, Spot and Wide Cornering
-
Lens Color: Clear
-
Color temperature: 5000K
-
Brightness: 4,095 lumens per light (8,190 lumens total for 2 lights)
-
Beam distance: 498 ft (Spot), 432 ft (Driving/Combo) and 162 ft (Wide Cornering), measured to 10 lux with a pair of lights (Baja Designs ELS rating, clear lens)
-
Water resistance: IP69K
-
Wiring Harness Included: Yes
-
Power draw: 41.4 W per light (82.8 W total for 2 lights)
-
Current draw: 3 A per light (6 A total for 2 lights)
-
Part number: 44-8267
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
The kit mounts at the base of the windshield, using brackets made for this vehicle. Route the wiring along the body and into the cab or engine bay as the kit's instructions describe, then aim the lights with the vehicle parked on level ground. Any trimming, drilling, longer bolts or optional harness a kit needs is listed in the fit notes below.
Follow the fit notes and the included instructions; our team can answer installation questions before you order.
Resources
An installation guide for this product is not available to download. Our team can answer installation questions before you order; contact us with the part number.
Warranty, Shipping & Returns
Warranty. Baja Designs warranties cover defects in design and manufacturing only, and the term depends on the product type. LED light bars and auxiliary lights for recreational use carry a limited lifetime warranty capped at 49,930 hours of operation. Brackets, wiring harnesses and switches that Baja Designs resells from other makers carry that maker's own warranty, which Baja Designs passes through. Installation errors, wear and tear, misuse, accidents, collisions, modifications and installation labor are not covered, and claims need proof of purchase or product registration. Shipping. The carrier and ship method are set by the size and weight of the carton when the order is placed. Inspect on delivery. Open the carton when it arrives and check every light, bracket, harness and hardware bag against the kit contents before you start the install. Report shipping damage or a missing part right away, before anything is mounted.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Baja Designs
Baja Designs began in San Diego, California in 1992, started by riders with a habit of racing the Baja 1000. Its first product turned pure dirt motorcycles into minimally street-ready dual-sport bikes, and its work tuning race lights for night stages earned its engineers the name The Scientists of Lighting.
From motorcycle HID race lights the company moved into vehicle and buggy racing, and in 2005 it ran its first forward-projecting LED light bar in the Baja 1000. That race program still feeds the design of every LED pod and bar the company builds.
Today Baja Designs lights vehicles, Jeeps, SUVs, vans, UTVs and motorcycles, using its Lighting Zones method: pick the right lens pattern for each job and put it in the right place on the vehicle.
