The XL-R 80 LED Auxiliary Light Pod Pair is built on the Baja Designs XL, a full-size round pod with high-speed spot reflectors that stretch the beam both farther and wider. It suits trucks, Jeeps, SUVs, vans and UTVs that need serious light ahead without the width of a light bar. It ships as Baja Designs part 767803. Choose light pattern and lens color from the options above; each option is its own Baja Designs part number, listed under Specifications.
Single XL pods ship with mounting hardware only, while XL pairs add a wiring harness; buy a matching Baja Designs 3-pin harness for a single pod.
Features
High-speed spot reflectors
Baja Designs' trademarked high-speed spot reflectors shape a beam that reaches farther while still spreading wide.
Full-size round pod
The XL is a larger round light that delivers driving-light output from a single compact unit.
Cast aluminum construction
A powder coated cast aluminum housing and hardcoated polycarbonate lens resist rocks, corrosion and vibration.
Sealed and impact rated
Baja Designs rates its XL pods IP69K for water and dust and IK10 for impact, and tests them beyond MIL-STD-810G.
Replaceable lens design
uService construction seals each lens with an O-ring, so an XL lens kit can change the pattern or color later.
Built-in overvoltage protection
Protection circuitry is built into the light to guard the LEDs against voltage spikes.
Stainless mounting hardware
Every XL includes stainless steel mounting hardware.
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Housing Material: Powder coated cast aluminum
-
Lens Material: Hardcoated polycarbonate
-
Water Resistance: IP69K
-
Impact Resistance: IK10
-
Durability: Exceeds MIL-STD-810G
-
Mounting Hardware: Included, stainless steel
-
Overvoltage Protection: Built-in
-
Brightness: 9,500 lumens
-
Power draw: 80 W
-
Current draw: 5.79 A
-
Light source: Cree LED
-
LEDs per light: 4
-
Lighting Modes: High Beam/Dimming Feature (20%)
-
Housing Color: Black
-
Bezel Material: Powder Coated Cast Aluminum
-
Rated LED life: 49,930 hours
-
Wiring Harness Included: Yes
-
Mounting Hardware Included: Yes
-
Mounting Hardware Material: Stainless Steel
-
Water resistance: IP69K (Waterproof up to 9' & Pressure Washable)
-
Impact resistance: IK10 Compliant (Mechanical Impact Testing)
-
Durability testing: Exceeds MIL-STD810G (Mil-Spec Testing)
-
Length: 5.24"
-
Height: 5.24"
-
Depth: 3.65"
-
Weight: 2.45 lb
-
Fitment: Universal (not tied to one vehicle)
-
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
-
Light type: Light Pod
-
Mount location: Universal
-
Color temperature: 5000K
-
Part numbers: 767803, 767805, 767813, 767815
Options and part numbers
| Light Pattern |
Lens Color |
Baja Designs part number |

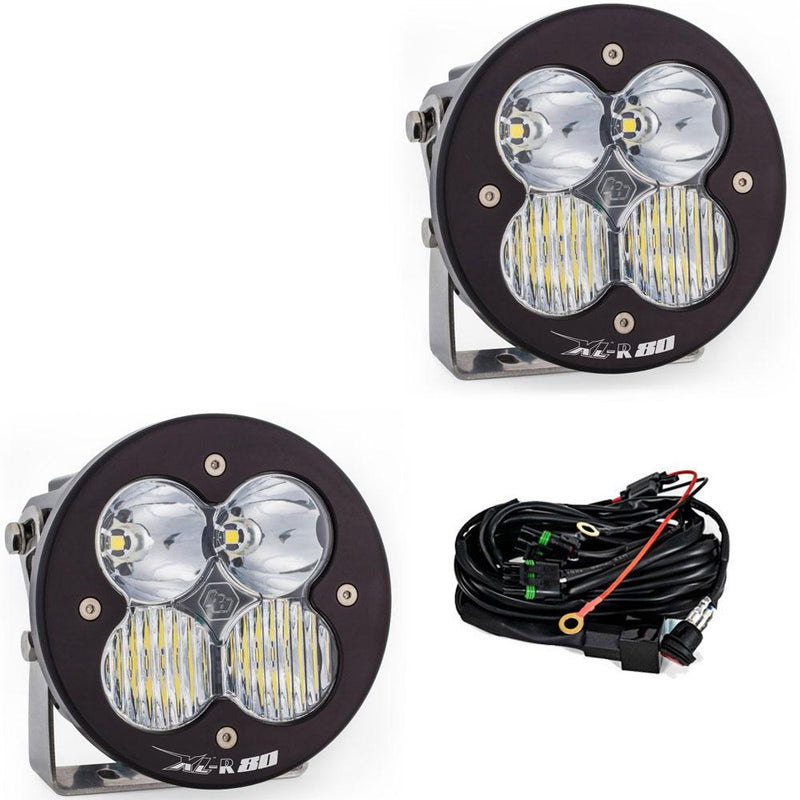

| Driving/Combo |
Clear |
767803 |
| Wide Cornering |
Clear |
767805 |

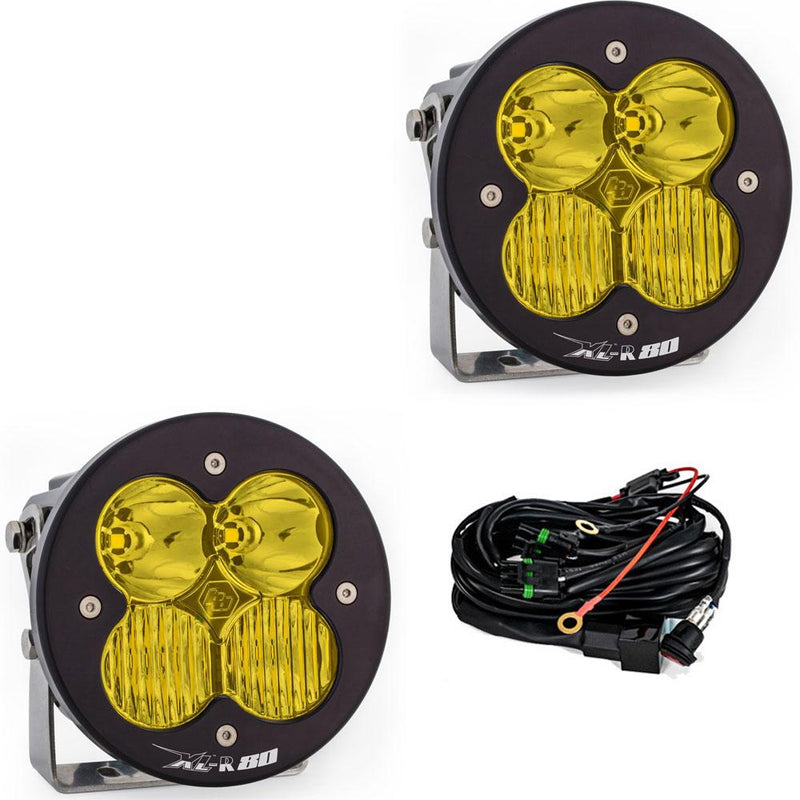

| Driving/Combo |
Baja Amber |
767813 |
| Wide Cornering |
Baja Amber |
767815 |
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation
XL pods mount on a bumper, light bar mount or rack with the supplied stainless hardware and run from a fused, relay-switched 3-pin harness rated for the lights' draw. Aim each pod after mounting and route wiring clear of heat and moving parts.
Follow the fit notes and the included instructions; our team can answer installation questions before you order.
Resources
An installation guide for this product is not available to download. Our team can answer installation questions before you order; contact us with the part number.
Warranty, Shipping & Returns
Warranty. Baja Designs warranties cover defects in design and manufacturing only, and the term depends on the product type. LED light bars and auxiliary lights for recreational use carry a limited lifetime warranty capped at 49,930 hours of operation. Brackets, wiring harnesses and switches that Baja Designs resells from other makers carry that maker's own warranty, which Baja Designs passes through. Installation errors, wear and tear, misuse, accidents, collisions, modifications and installation labor are not covered, and claims need proof of purchase or product registration. Shipping. The carrier and ship method are set by the size and weight of the carton when the order is placed. Inspect on delivery. Please inspect the package and every part as soon as it arrives, and report shipping damage or missing items before installing so a replacement can be arranged quickly.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Baja Designs
Baja Designs was founded in San Diego, California in 1992 by Alan Roach, a motorcycle racer who competed in the Baja 1000. The first product was a dual sport kit for off-road motorcycles, and the company went on to build HID race lights that ended up on many winning Baja 1000 bikes, trucks and buggies.
That racing work earned the engineering team the nickname The Scientists of Lighting, and professional teams began asking them to design and aim their lighting. In 2005 Baja Designs raced a forward-projecting LED light bar at the Baja 1000, the starting point for the LED pods and bars in the current range.
The company is now based in San Marcos, California, where it engineers and builds LED lighting for trucks, Jeeps, SUVs, UTVs and motorcycles.
