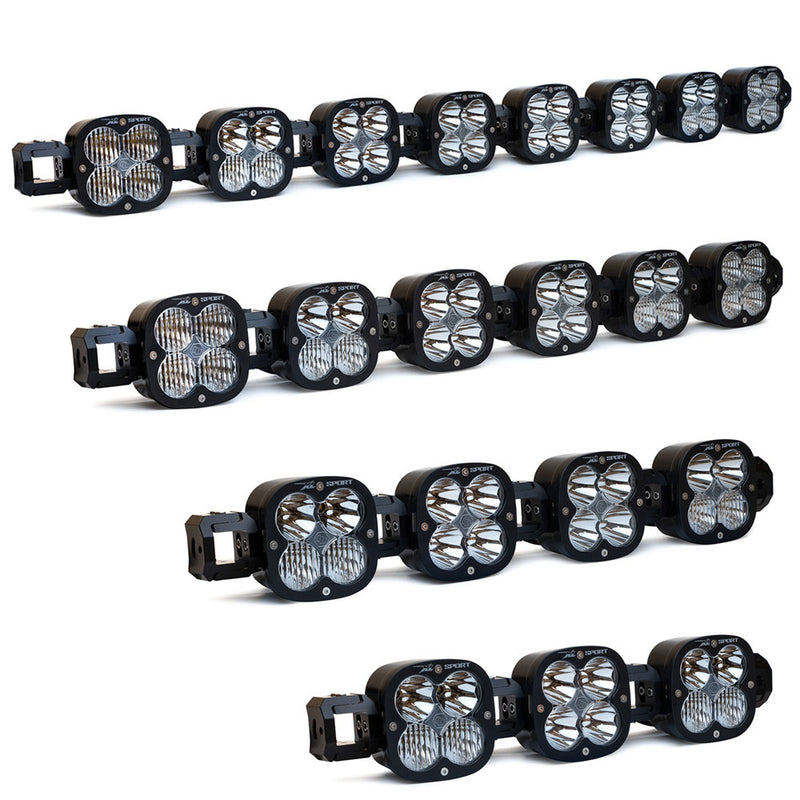

The XL Sport Linkable LED Light Bar builds a light bar out of individual Baja Designs XL pods joined on a common frame, so each light can be aimed and patterned on its own. Pre-crimped wiring makes it simple to add more lights to the system later. It ships as Baja Designs part 740001. Choose number of lights from the options above; each option is its own Baja Designs part number, listed under Specifications.
Wiring varies by bar: OnX6 and S8 bars ship without a harness, while XL Linkable kits include their linking harness, so check the package contents before ordering.
Features
Built from XL pods
Each position holds a full XL pod with Baja Designs' high-speed spot reflectors.
Aim every light separately
Each light pitches up or down and turns side to side on its own, so the row can be straight or arced.
Mix patterns per light

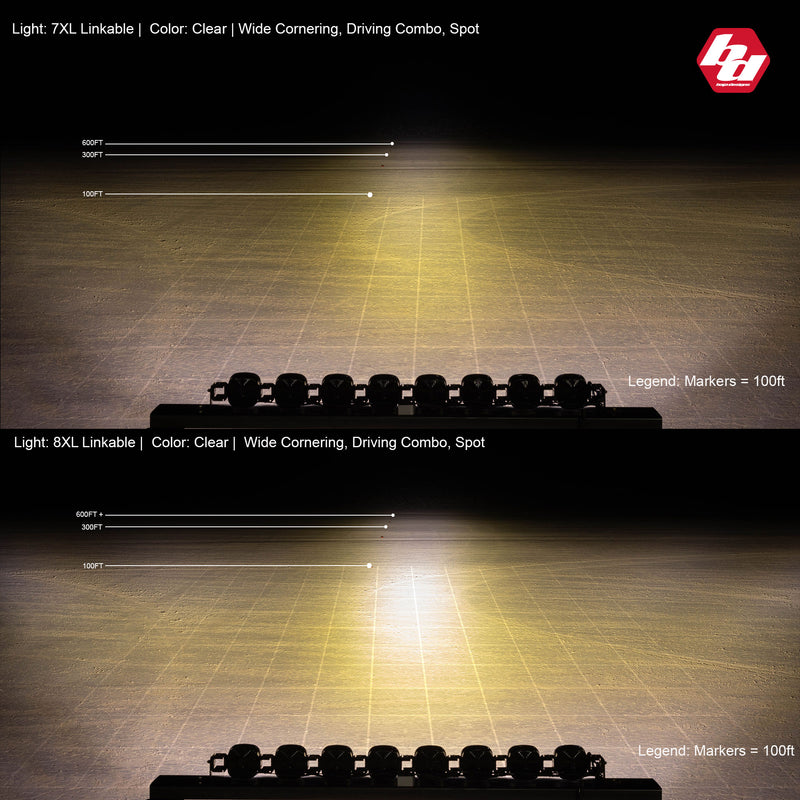

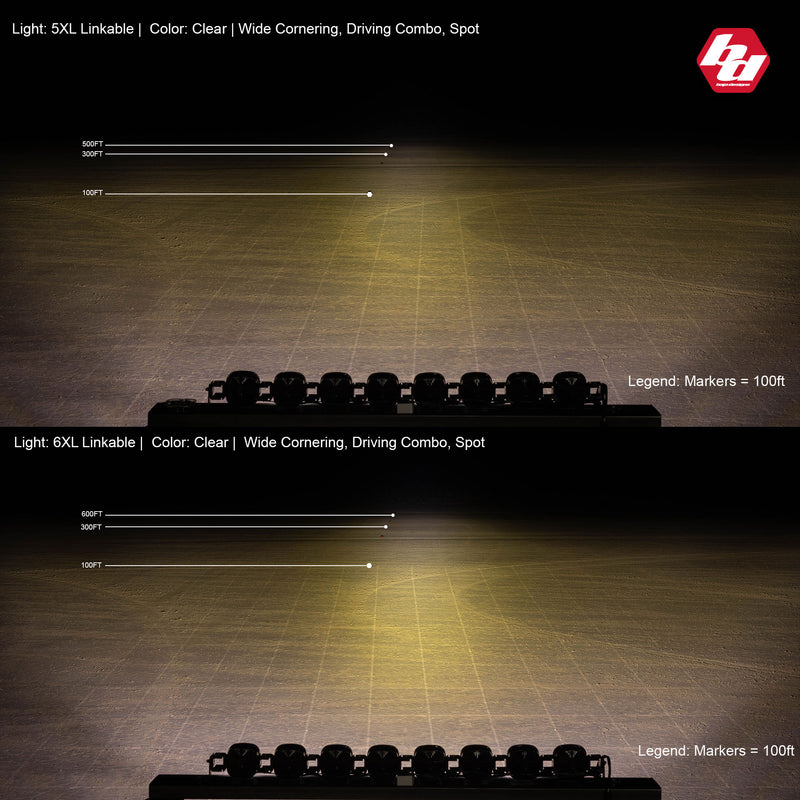

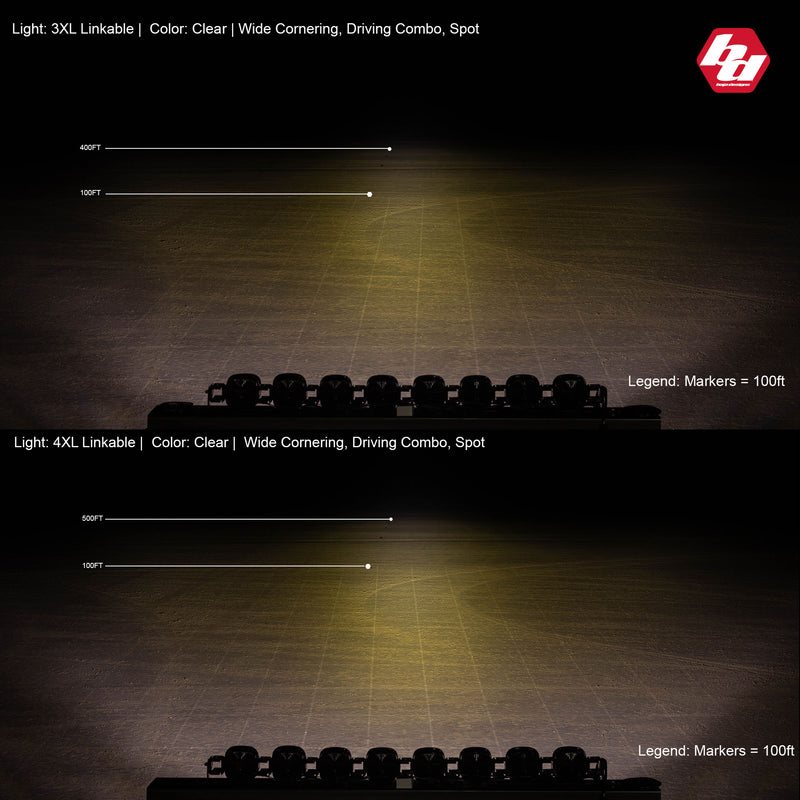

Different lens patterns on different pods blend long reach with wide coverage.
Wiring and guards included

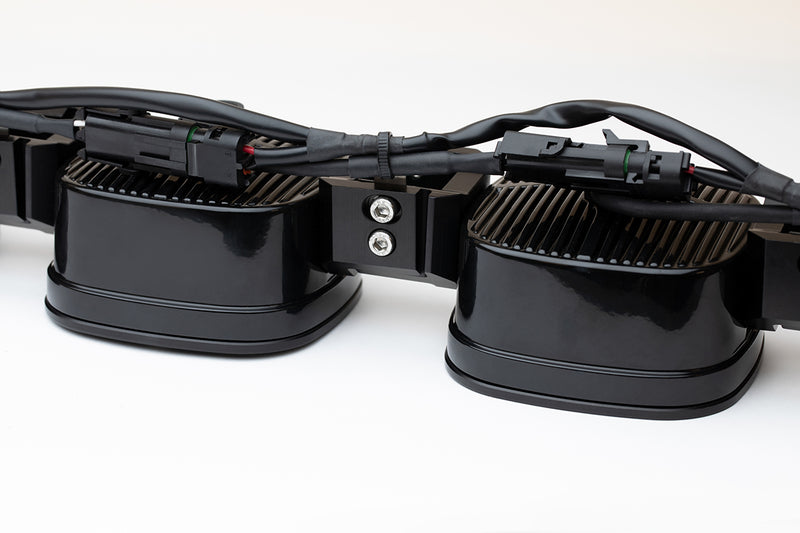

Pre-crimped wiring and black rock guards come with the kit.
Grow the system later
Add-a-light kits and longer linking harnesses let you grow the row later.
Lifetime warranty coverage
Baja Designs backs its lights for recreational use with a limited lifetime warranty.
Specifications
-
Brand: Baja Designs
-
Warranty: Limited lifetime on Baja Designs lights for recreational use (capped at 49,930 hours); brackets, harnesses and switches Baja Designs resells carry their maker's warranty
-
Lens Material: Hardcoated polycarbonate
-
Mounting Hardware: Included, stainless steel
-
Fitment: Universal (not tied to one vehicle)
-
Road use: Baja Designs notes that some of its lights may only be used off-road. Check the lighting laws where you drive before using this light on public roads.
-
Part numbers: 740001, 740002, 740003, 740004, 740005, 740006, 74-0016
Options and part numbers
| Number of Lights |
Brightness |
Power draw |
Current draw |

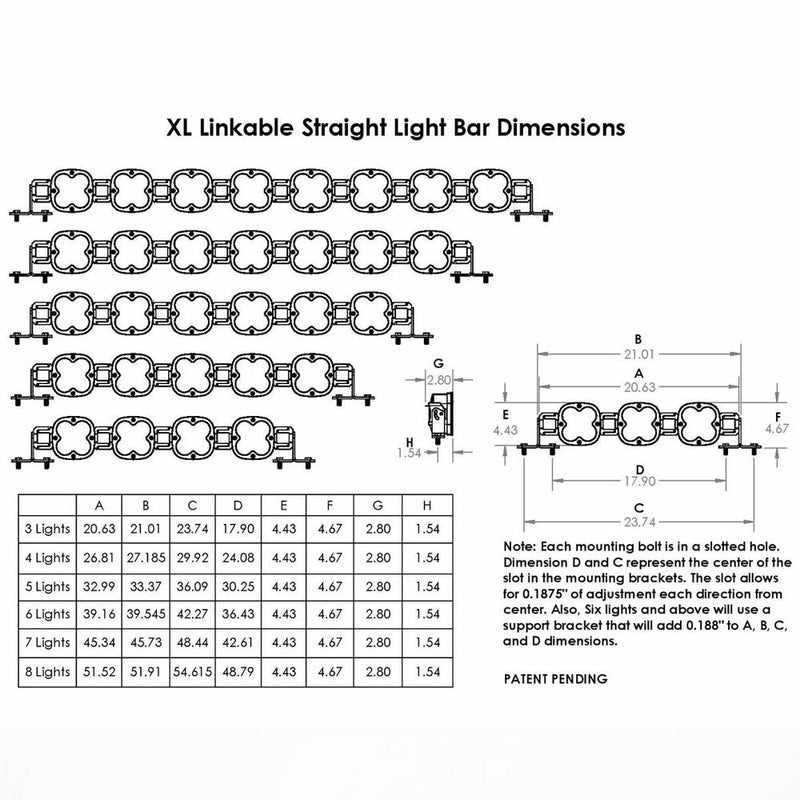

Length |
Baja Designs part number |

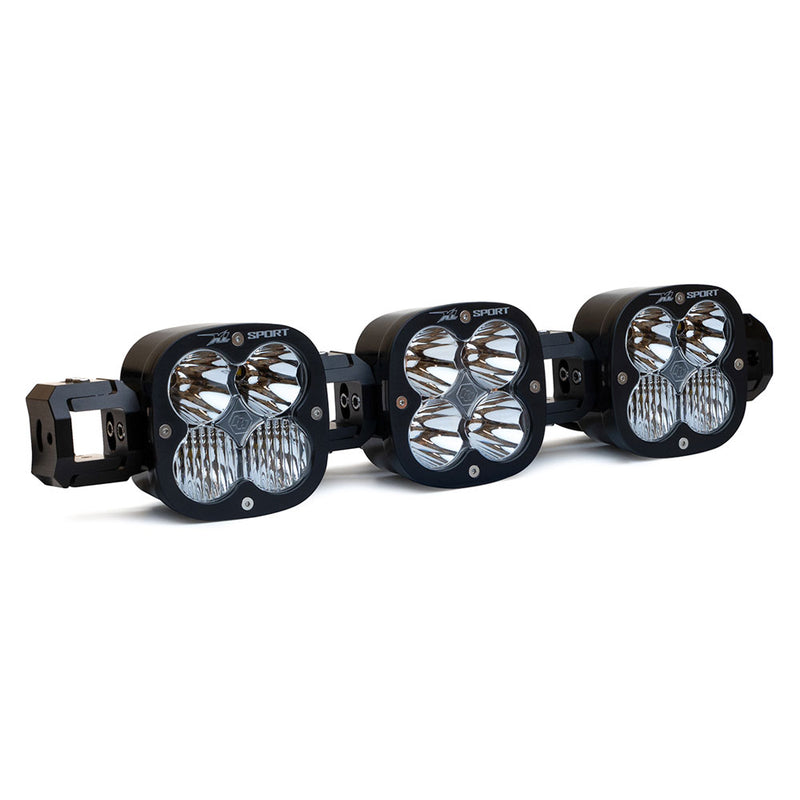

| 3 |
9,450 lumens |
78 W |
6 A |
20.63" |
740001 |

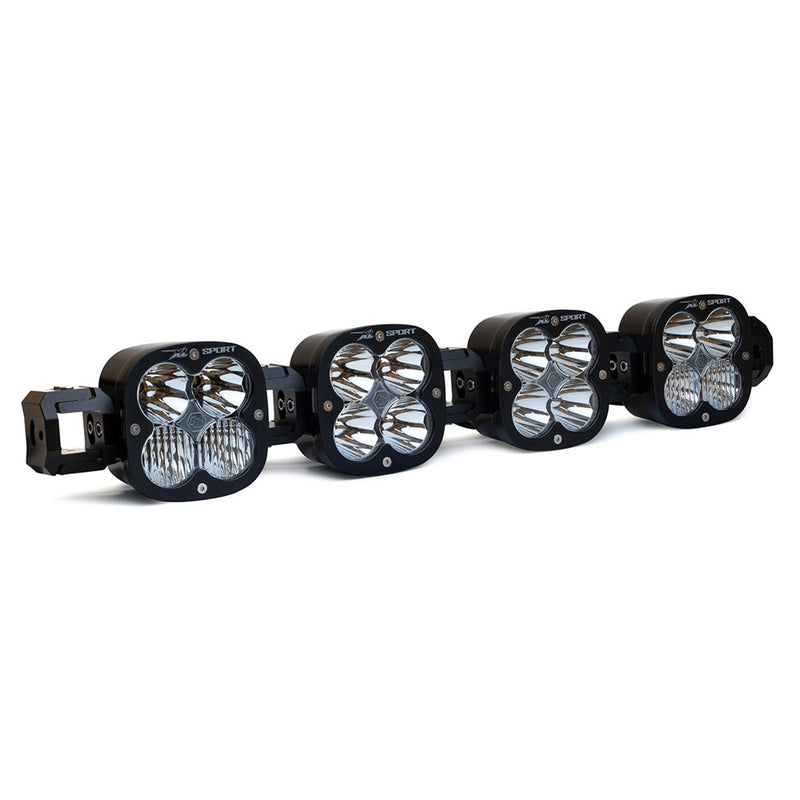

| 4 |
12,600 lumens |
104 W |
8 A |
26.81" |
740002 |

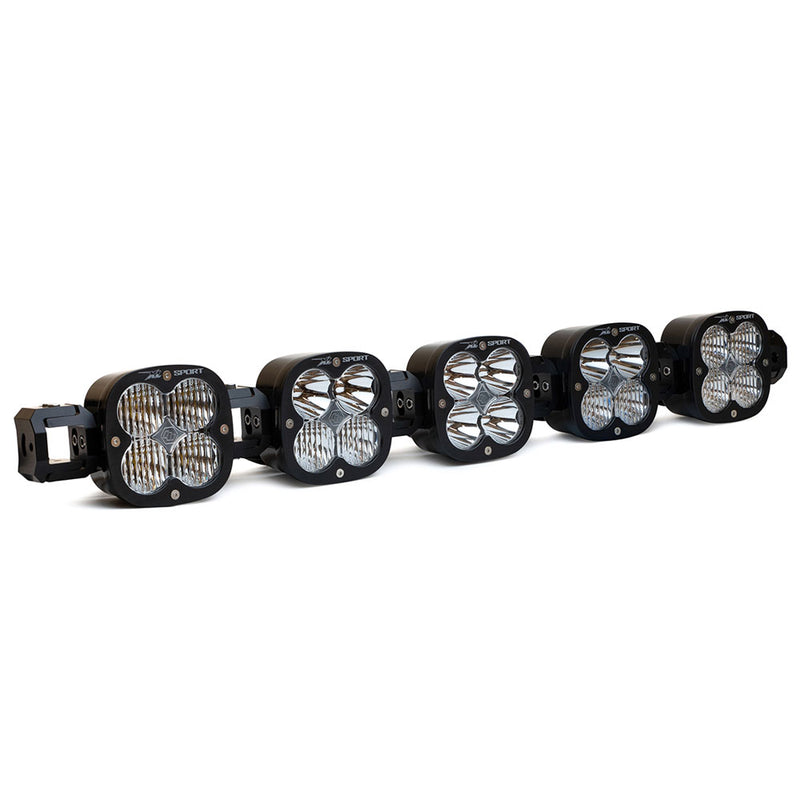

| 5 |
15,750 lumens |
130 W |
10 A |
32.99" |
740003 |

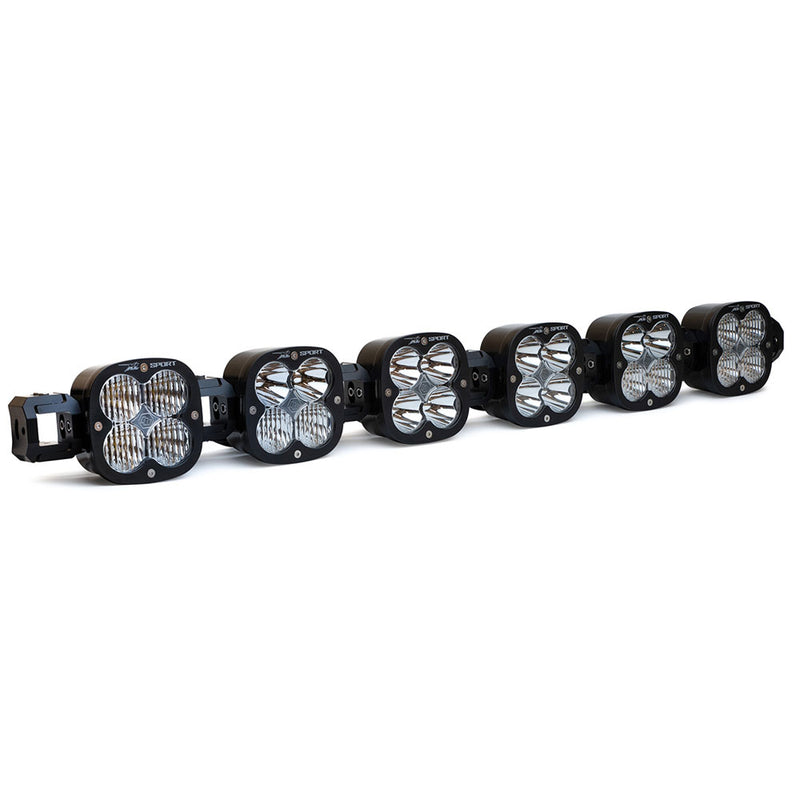

| 6 |
18,900 lumens |
156 W |
12 A |
39.16" |
740004 |

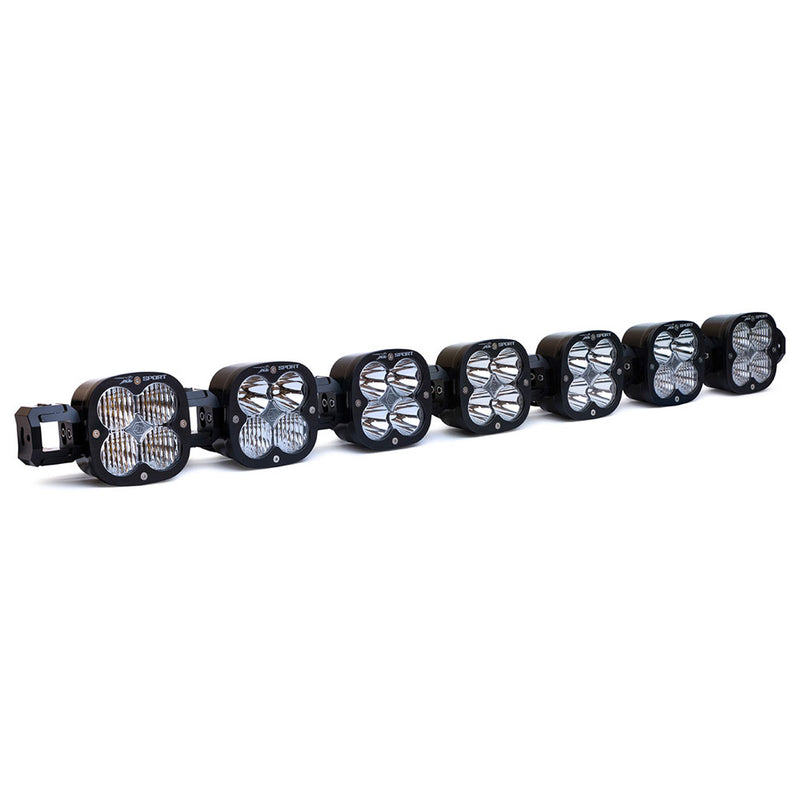

| 7 |
22,050 lumens |
182 W |
14 A |
45.34" |
740005 |

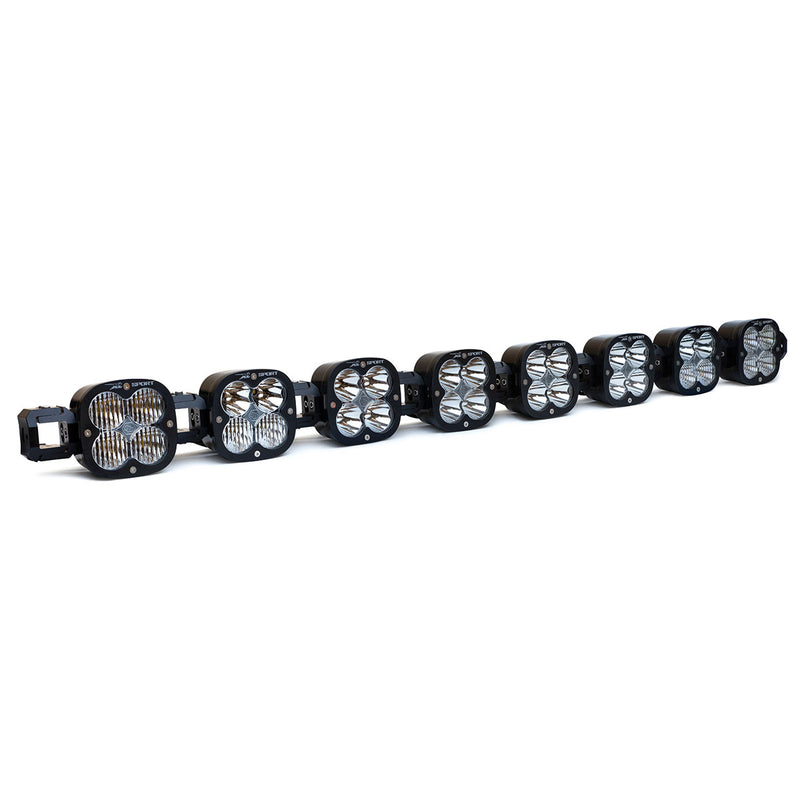

| 8 |
25,200 lumens |
208 W |
16 A |
51.52" |
740006 |

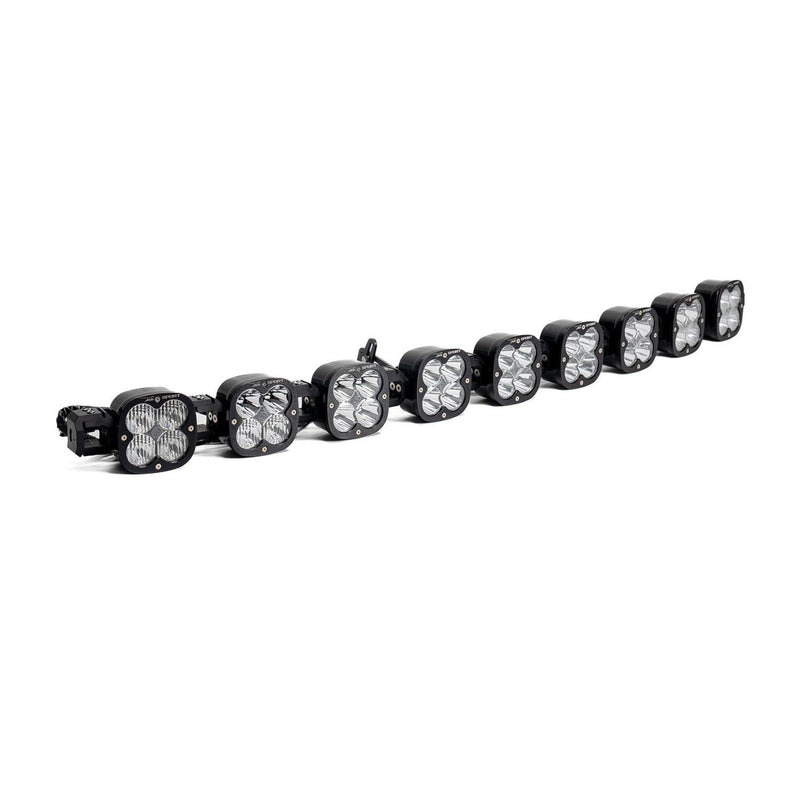

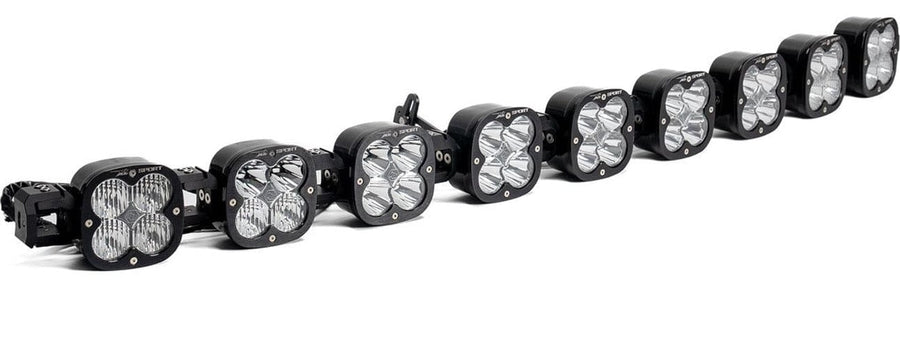

| 9 |
|
|
|
|
74-0016 |
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Installation

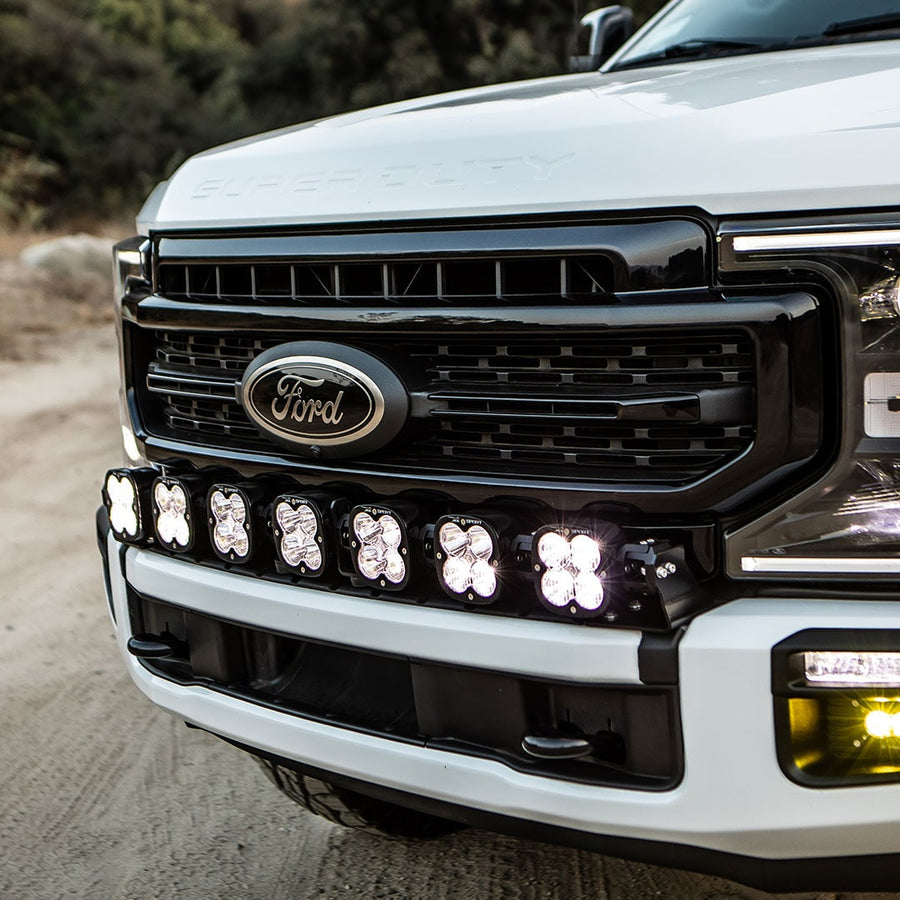

Light bars fasten to a bumper, roof rack, cage or mount with the supplied stainless hardware and connect to a fused, relay-switched harness rated for the bar's length and draw. Set the vertical aim after mounting and route wiring away from heat and moving parts.
Baja Designs's installation instructions for this product are linked under Resources. Read them fully before starting.
Resources
Warranty, Shipping & Returns
Warranty. Baja Designs warranties cover defects in design and manufacturing only, and the term depends on the product type. LED light bars and auxiliary lights for recreational use carry a limited lifetime warranty capped at 49,930 hours of operation. Brackets, wiring harnesses and switches that Baja Designs resells from other makers carry that maker's own warranty, which Baja Designs passes through. Installation errors, wear and tear, misuse, accidents, collisions, modifications and installation labor are not covered, and claims need proof of purchase or product registration. Shipping. The carrier and ship method are set by the size and weight of the carton when the order is placed. Inspect on delivery. Please inspect the package and every part as soon as it arrives, and report shipping damage or missing items before installing so a replacement can be arranged quickly.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About Baja Designs
Baja Designs was founded in San Diego, California in 1992 by Alan Roach, a motorcycle racer who competed in the Baja 1000. The first product was a dual sport kit for off-road motorcycles, and the company went on to build HID race lights that ended up on many winning Baja 1000 bikes, trucks and buggies.
That racing work earned the engineering team the nickname The Scientists of Lighting, and professional teams began asking them to design and aim their lighting. In 2005 Baja Designs raced a forward-projecting LED light bar at the Baja 1000, the starting point for the LED pods and bars in the current range.
The company is now based in San Marcos, California, where it engineers and builds LED lighting for trucks, Jeeps, SUVs, UTVs and motorcycles.
