Made for GEN3 Ford Super Duty trucks, this kit mounts a seven-light, 45" Gravity Pro6 bar to the front bumper with two bumper bracket mounts. Together the lights make 17,556 lm and reach 704 m. KC covers, a harness with plug-and-play connectors and a lighted switch are included.
Features
GEN3 Super Duty mounts
Two bumper bracket mounts made for 2011-2016 F-250 to F-550 Super Duty trucks.

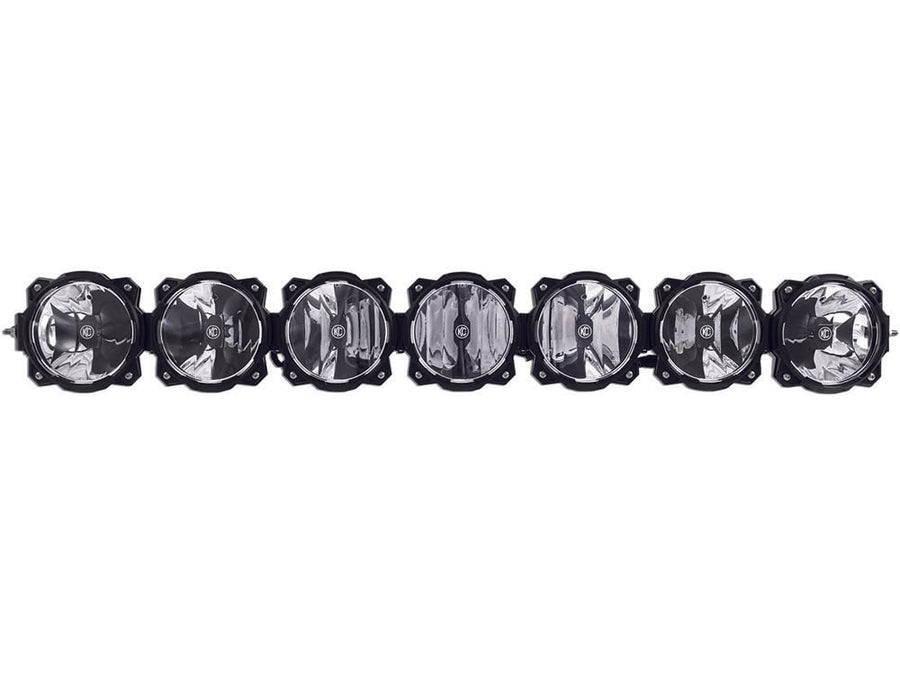

45" 7-light Pro6 bar
17,556 lm combined with a 704 m combo beam.
Infinity Ring linking
Pro6 rings link into a bar that can be set straight or curved.
Wiring and switch included
A plug-and-play harness with an illuminated LED switch is included.
KC covers included
A black KC cover with yellow logo for every light.
Fitment & Compatibility
Ford
| Years |
Model |
Notes |
| 2011-2016 |
F-250 Super Duty |
Front bumper 7-light kit (7355 mount) |
| 2011-2016 |
F-350 Super Duty |
Front bumper 7-light kit (7355 mount) |
| 2011-2016 |
F-450 Super Duty |
Front bumper 7-light kit (7355 mount) |
| 2011-2016 |
F-550 Super Duty |
Front bumper 7-light kit (7355 mount) |
Fit guidance: Fits: 2011-2016 Ford Super Duty F-250/F-350/F-450/F-550, with the qualifiers shown. Check your vehicle against these notes before ordering.
Specifications
-
Brand: KC HiLiTES
-
Light bar: 45" Gravity Pro6, 7 lights
-
Beam pattern: Combo
-
Wattage per light: 21.36 W
-
Lumens per light: 2,508 lm
-
Beam distance: 704 m
-
Voltage: 9 V to 36 V
-
Housing: Black aluminum alloy
-
Ingress rating: IP68
-
Bar dimensions: 45.625" W x 6.06" H x 3.33" D
-
Total lumens: 17,556 lm
-
Warranty: 5-year limited warranty
-
Shipping weight: 24 lb
-
Part number: 91344
In the box
| 1 45" 7-light Gravity Pro6 LED light bar |
| 2 bumper bracket mounts |
| 7 KC Pro6 light covers |
| 1 plug-and-play wiring harness |
| 1 illuminated LED light switch |
Installation
Type: Bumper light bar kit · Install: Bolt-on bumper brackets, plug-and-play harness · Tools: Basic hand tools
The two bumper bracket mounts hold the 45" Pro6 bar on the front bumper of 2011-2016 Super Duty trucks, and the plug-and-play harness with illuminated switch powers it.
Resources
An installation guide for this part number is not available to download. Our team can answer installation questions before you order; contact us with the part number.
