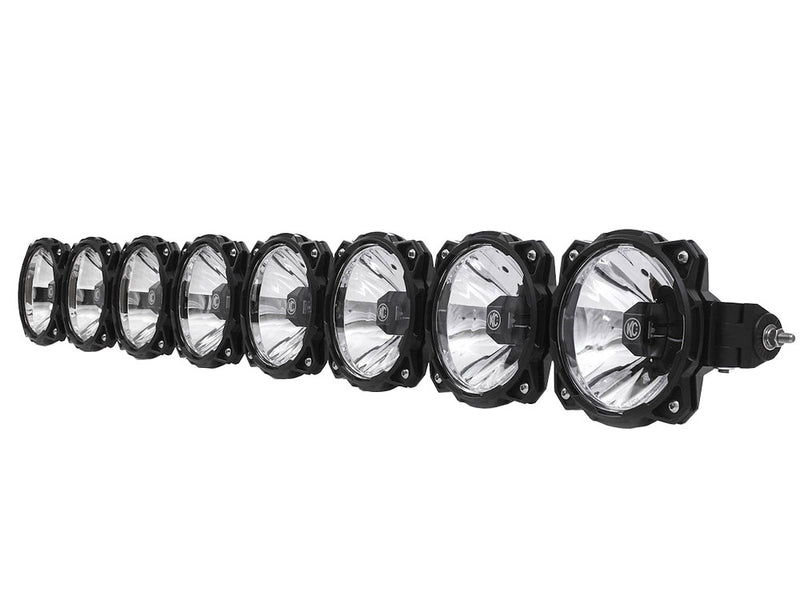

This kit pairs a 50" eight-light Pro6 bar with brackets made for the 2005-2023 Toyota Tacoma, so the whole overhead setup arrives in one box. Its combo beam reaches 763 m. Deluxe wiring with a 30 A LED switch and eight KC covers complete the kit.
Features
Brackets made for Tacoma
Mount brackets and hardware are made for the 2005-2023 Tacoma.
Eight Pro6 lights
A 50" combo bar with 763 m of beam distance.
Infinity Ring linking
Pro6 rings link into a bar that can be set straight or curved.
30 A switch harness
A deluxe plug-and-play harness with a 30 A LED switch.
KC covers included
A black KC cover with yellow logo for every light.
Fitment & Compatibility
Fit guidance: Fits: 2005-2023 Toyota Tacoma, with the qualifiers shown. Check your vehicle against these notes before ordering.
Qualifier: 50" overhead kit w/ Tacoma brackets
Specifications
-
Brand: KC HiLiTES
-
Light bar: 50" Gravity Pro6, 8 lights
-
Beam pattern: Combo
-
Wattage per light: 21.36 W
-
Lumens per light: 2,508 lm
-
Beam distance: 763 m
-
Voltage: 9 V to 36 V
-
Housing: Black aluminum alloy
-
Ingress rating: IP68
-
Bar dimensions: 51.625" W x 6.06" H x 3.33" D
-
Warranty: 5-year limited warranty
-
Shipping weight: 28 lb
-
Part number: 91331
In the box
| 1 Gravity Pro6 8-light 50" LED light bar |
| 8 light covers, black with yellow KC logo |
| Mount brackets and hardware for 2005-2023 Toyota Tacoma |
| 1 deluxe plug-and-play wiring harness with 30 A LED switch |
Installation
Type: Vehicle-specific light bar kit · Install: Bolt-on Tacoma brackets, plug-and-play harness · Tools: Basic hand tools
The included Tacoma brackets mount the 50" Pro6 bar on the truck, and the deluxe harness with 30 A LED switch powers it. Bar, brackets, covers and wiring all come in the kit.
Resources
An installation guide for this part number is not available to download. Our team can answer installation questions before you order; contact us with the part number.
Warranty, Shipping & Returns
Warranty. 5-year limited warranty from KC HiLiTES. Shipping. Most KC parts ship by parcel carrier; roof racks and long light bars ship in oversize cartons. The ship method is set by the carton size and weight when the order is placed.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
About KC HiLiTES
KC HiLiTES has been building off-road lights since 1970, a company story that began with a missed turn to a campsite in the middle of the night. Based in Williams, Arizona, KC takes features engineered for off-road racing and designs them into lights for drivers who head down the paths less traveled.
Today the KC line runs from the classic round Daylighter to LED families such as FLEX ERA, Gravity Pro6, Gravity Titan, SlimLite and Cyclone V2, many built around KC's patented Gravity Reflective Diode optics. Covers, shields, bezels, wiring kits and vehicle-specific mounts let you build a complete lighting setup for a Jeep, truck, SUV or UTV.
