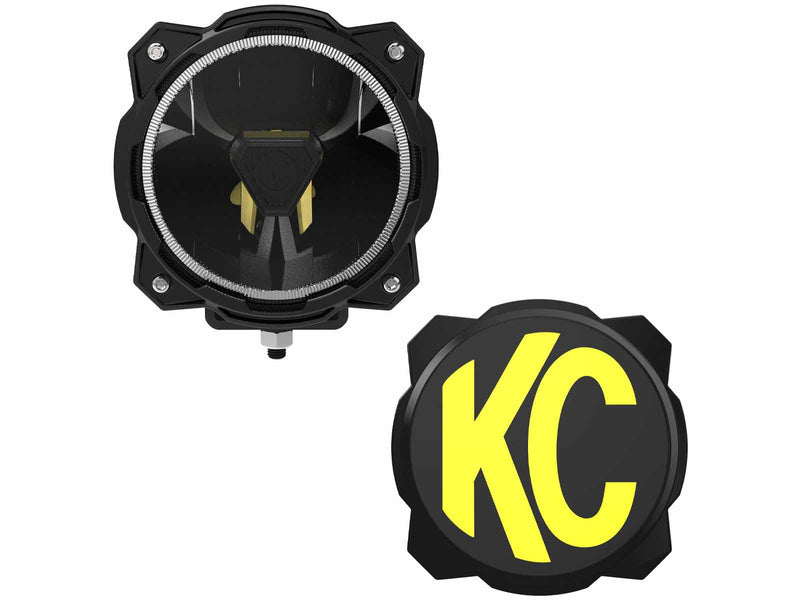

Gravity Titan is KC's step up from the Pro6: a 6" LED with a Titan core making 2,972 lm on 39 W. An integrated amber LED dust light helps in dust and snow, and MoistureBlock technology seals the wiring plug against water. Choose spot for 380 m of reach, Wide-40 for spread, or the SAE driving beam for road use.
Features
Titan core LED optics
A 39 W Titan core drives 3-source LED optics for 2,972 lm per light.
Integrated amber dust light
A built-in amber LED improves visibility in dust and snow and adds style.
MoistureBlock wiring plug
MoistureBlock technology keeps the connection sealed in any weather.

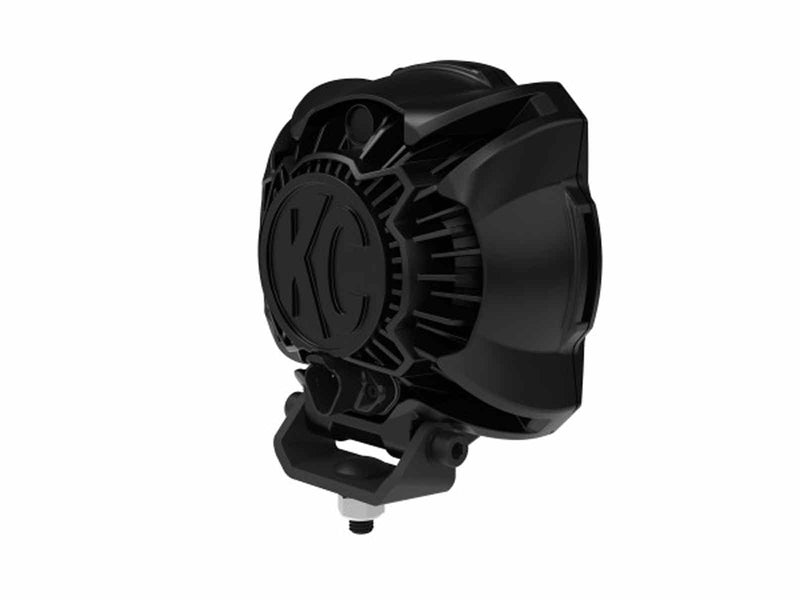

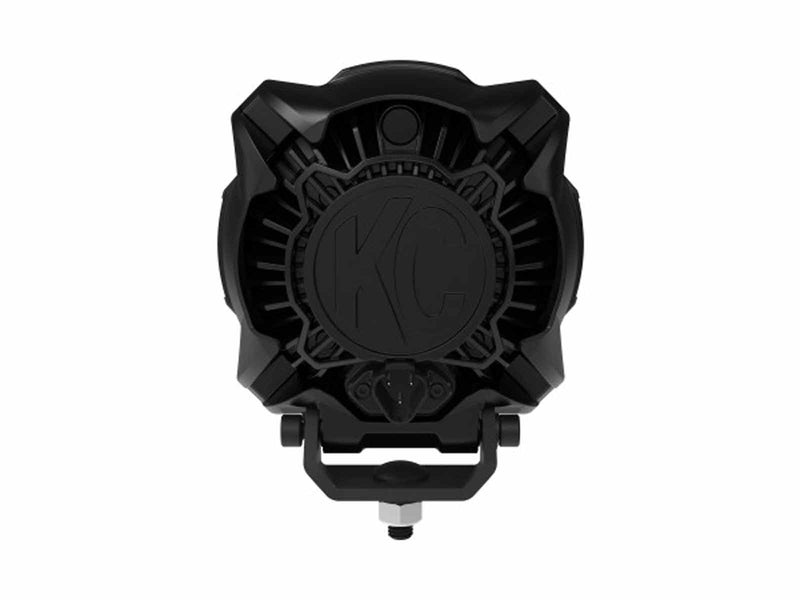

Pass-through front cooling
A housing inspired by KC's racing pods improves heat dissipation.
Lower, forward mounting
The mount sits lower and farther forward for an easier install and a sleeker look.
Specifications
-
Brand: KC HiLiTES
-
Series: Gravity Titan
-
Light size: 6"
-
Lumens per light: 2,972 lm
-
Wattage per light: 39 W
-
Amp draw per light: 3.29 A
-
Voltage: 9 V to 36 V
-
LED color: White with amber dust light
-
Color temperature: 5,000 K
-
Housing: Black aluminum alloy
-
Ingress rating: IP68
-
Mount location: A-pillar, ditch, bumper
-
Certification: DOT (SAE driving beam version)
-
Road use: The SAE driving beam version is listed by KC as DOT compliant.
-
Warranty: 5-year warranty
-
Lens color: Clear
-
Part numbers: 91404, 91400, 91401, 91402, 91403, 91405
Options
| Beam |
Kit |
Beam pattern |
Candela per light |
Lux at 10 m |
Beam distance per light |
Quantity |
KC part number |
| SAE Driving |
Single light |
SAE driving |
58,023 cd |
580 lx |
241 m |
1 light |
91404 |
| Spot |
Single light |
Spot |
144,250 cd |
1,443 lx |
380 m |
1 light |
91400 |
| Spot |
Pair (2-light system) |
Spot |
144,250 cd |
1,443 lx |
380 m |
2 lights |
91401 |
| Wide-40 |
Single light |
Wide-40 |
77,500 cd |
|
278 m |
1 light |
91402 |
| Wide-40 |
Pair (2-light system) |
Wide-40 |
77,500 cd |
|
278 m |
2 lights |
91403 |
| SAE Driving |
Pair (2-light system) |
SAE driving |
58,023 cd |
580 lx |
241 m |
2 lights |
91405 |
In the box
| Option |
Contents |
| SAE Driving, Single light (part 91404) |
1 Gravity Titan 6" LED SAE driving beam light with bracket; 1 light cover, black with yellow KC logo; Hardware |
| Spot, Single light (part 91400) |
1 Gravity Titan 6" LED spot beam light with bracket; 1 light cover, black with yellow KC logo; Hardware |

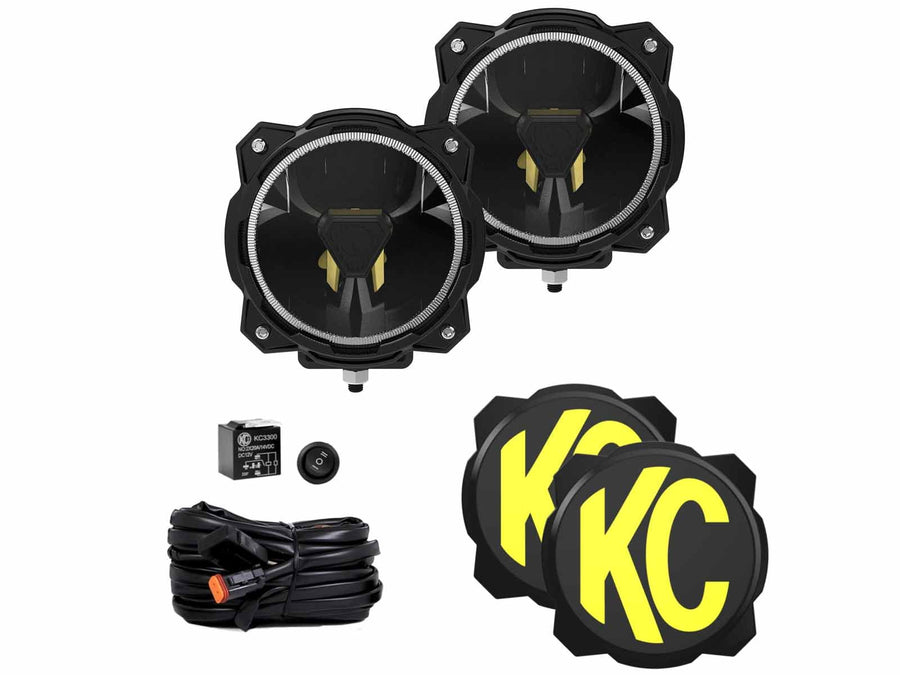

| Spot, Pair (2-light system) (part 91401) |
2 Gravity Titan 6" LED spot beam lights with brackets; 2 Gravity 6" light covers, black with yellow KC logo; 1 complete plug-and-play wiring harness with 3-position switch; Hardware |
| Wide-40, Single light (part 91402) |
1 Gravity Titan 6" LED Wide-40 beam light with bracket; 1 light cover, black with yellow KC logo; Hardware |
| Wide-40, Pair (2-light system) (part 91403) |
2 Gravity Titan 6" LED Wide-40 beam lights with brackets; 2 Gravity 6" light covers, black with yellow KC logo; 1 complete plug-and-play wiring harness with 3-position switch; Hardware |
| SAE Driving, Pair (2-light system) (part 91405) |
2 Gravity Titan 6" LED SAE driving beam lights with brackets; 2 Gravity 6" light covers, black with yellow KC logo; 1 complete plug-and-play wiring harness with 3-position switch; Hardware |
Installation
Type: 6" auxiliary light · Install: Bracket mount, 12 V wiring · Tools: Basic hand tools
Each light comes with its bracket and hardware for A-pillar, ditch or bumper mounting. Single lights do not include a wiring harness. 2-light systems include a plug-and-play harness with a 3-position switch.
KC's installation instructions for this part are linked under Resources. Read them fully before starting.
