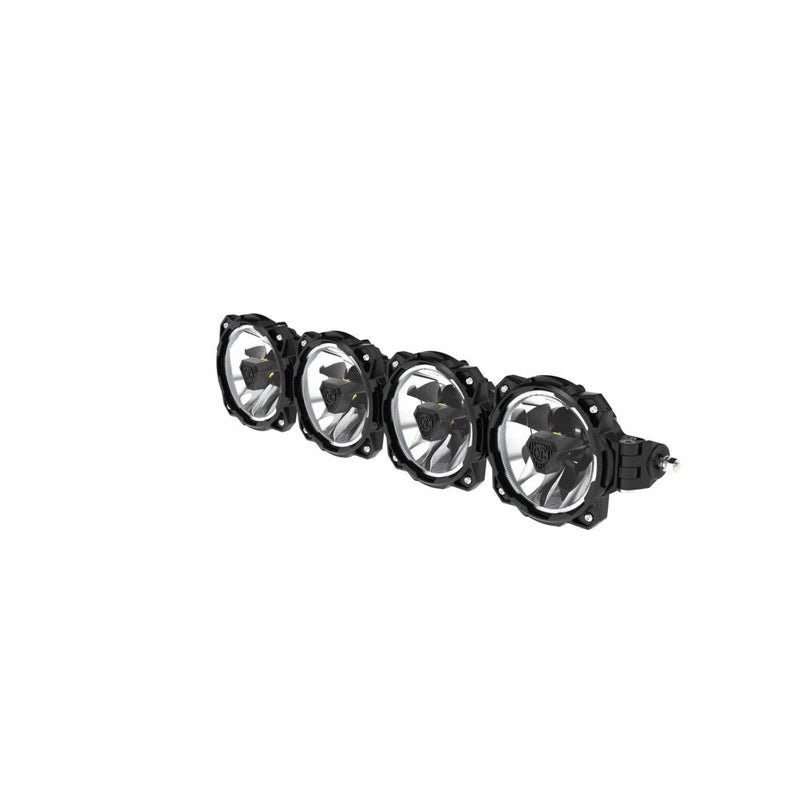

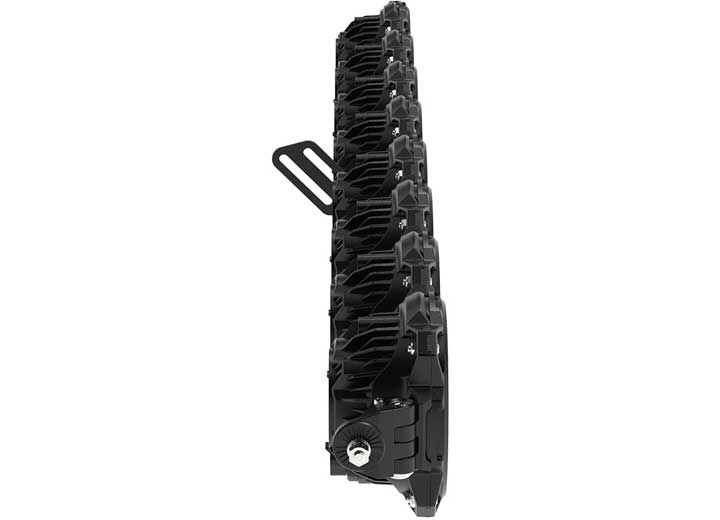

The Gravity Titan light bar strings 3 to 9 Titan lights into a combo-beam bar from 20" to 57". Each light runs a 39 W Titan core for 2,972 lm and carries an integrated amber dust light for dust and snow. Every length comes with a daisy-chain back harness plus plug-and-play wiring with a 3-position switch.
Features
Titan core in every light
Each light makes 2,972 lm from a 39 W Titan core.
Combo beam pattern
The bar ships with a mix of spot and Wide-40 optics.
Integrated amber dust light
Amber LEDs in each light help in dust and snow, drawing about 11 W per light.
Sealed MoistureBlock wiring plugs
MoistureBlock technology keeps the wiring plug sealed against water.
Complete wiring kit
Daisy-chain back harness, plug-and-play harness with 3-position switch, and cable clamps are included.
Specifications
-
Brand: KC HiLiTES
-
Series: Gravity Titan
-
Beam pattern: Combo (spot and Wide-40)
-
Lumens per light: 2,972 lm
-
Wattage per light: 39.48 W white / 11.2 W amber
-
Amp draw per light: 3.29 A white / 0.93 A amber
-
Voltage: 9 V to 36 V
-
Color temperature: 5,000 K
-
Housing: Black aluminum alloy
-
Ingress rating: IP68
-
Mounting brackets: Not included
-
Warranty: 5-year warranty
-
Lens color: Clear
-
Mount location: Bumper or overhead (45", 50" and 57" bars: overhead)
-
Part numbers: 91413, 91414, 91415, 91416, 91417, 91418, 91419
Options
| Length |
Lights |
Beam distance |
Dimensions |
KC part number |

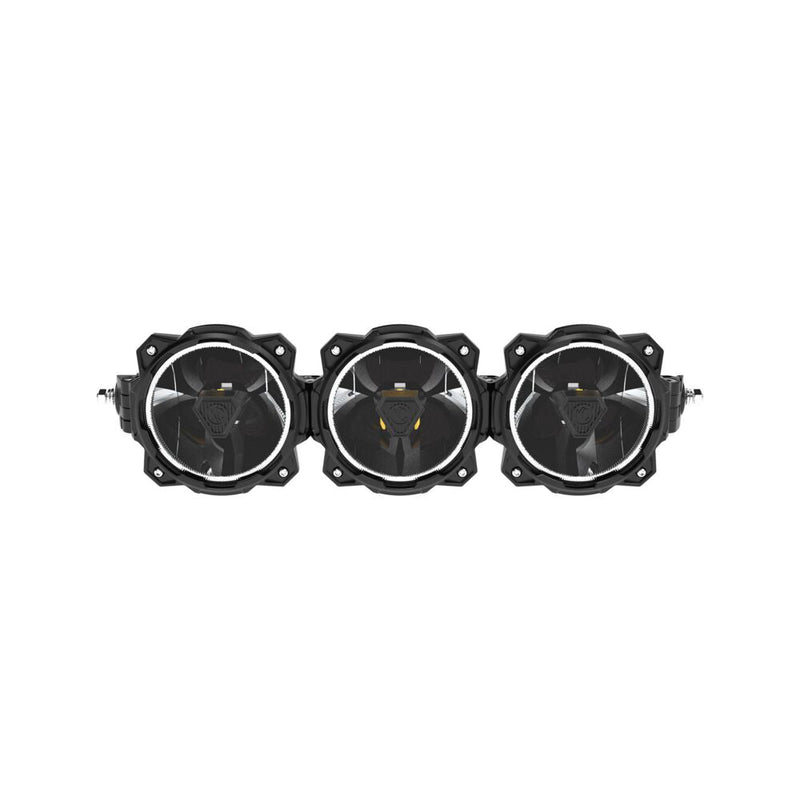

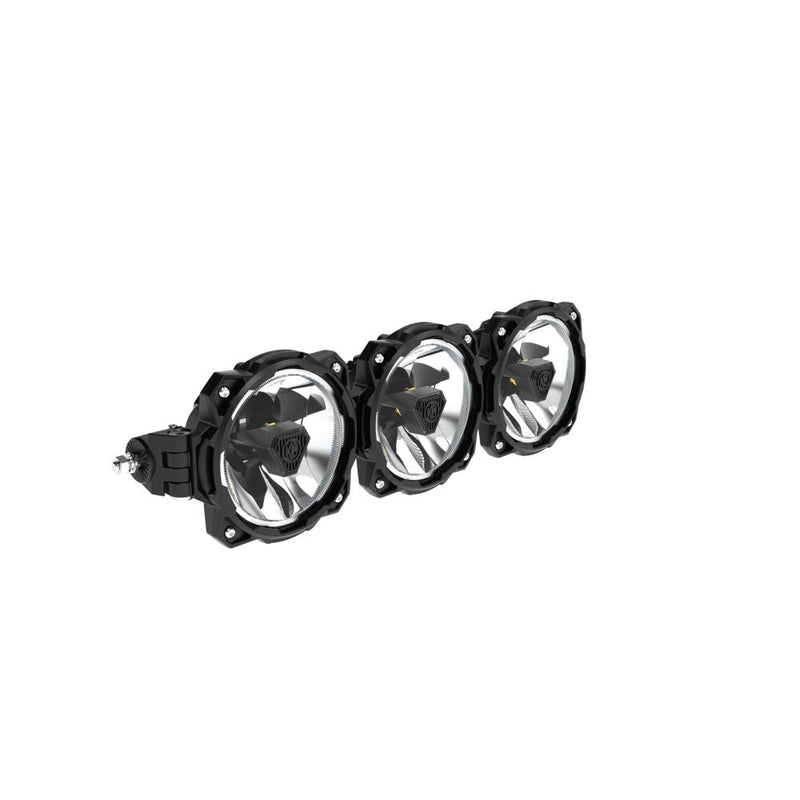

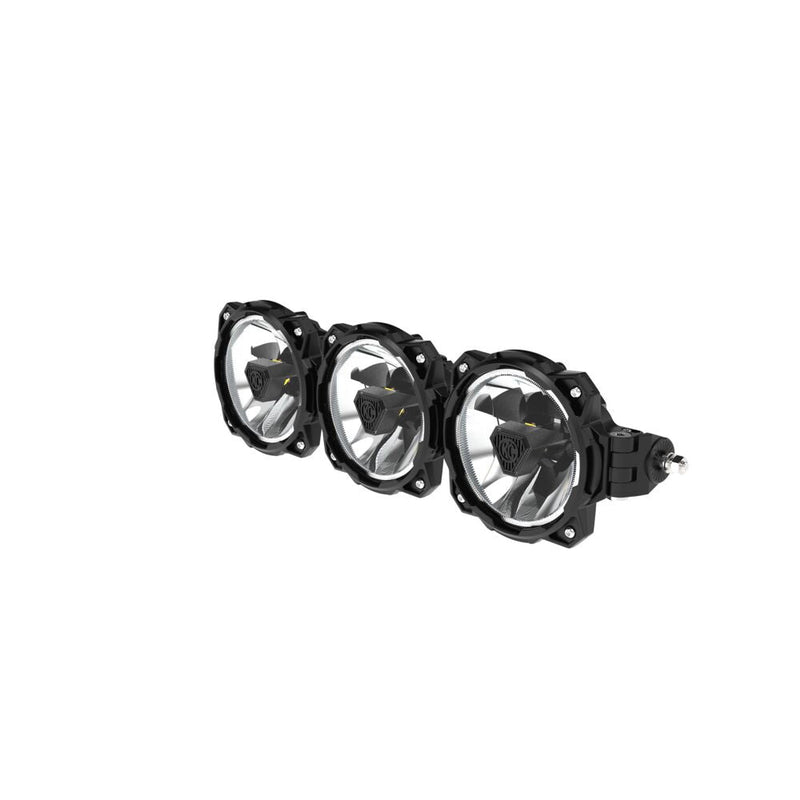

| 20" (3 lights) |
3 Titan lights |
547 m |
|
91413 |

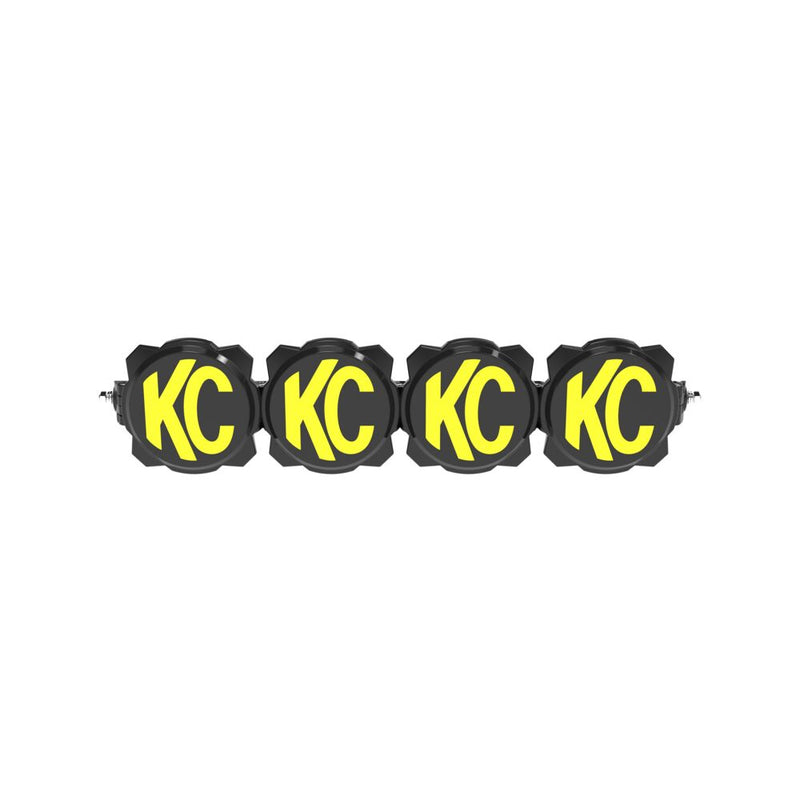

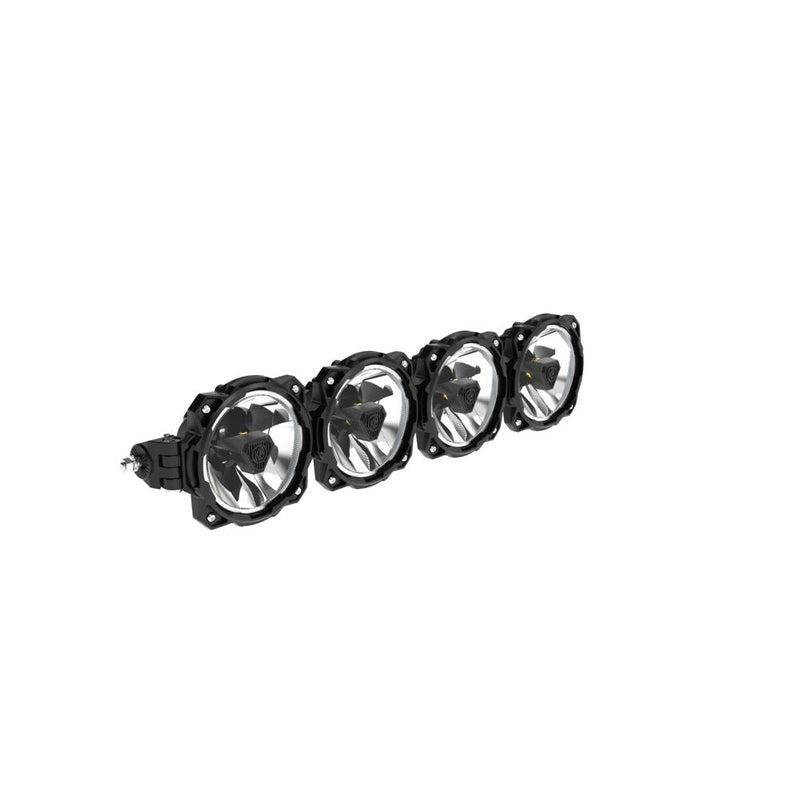

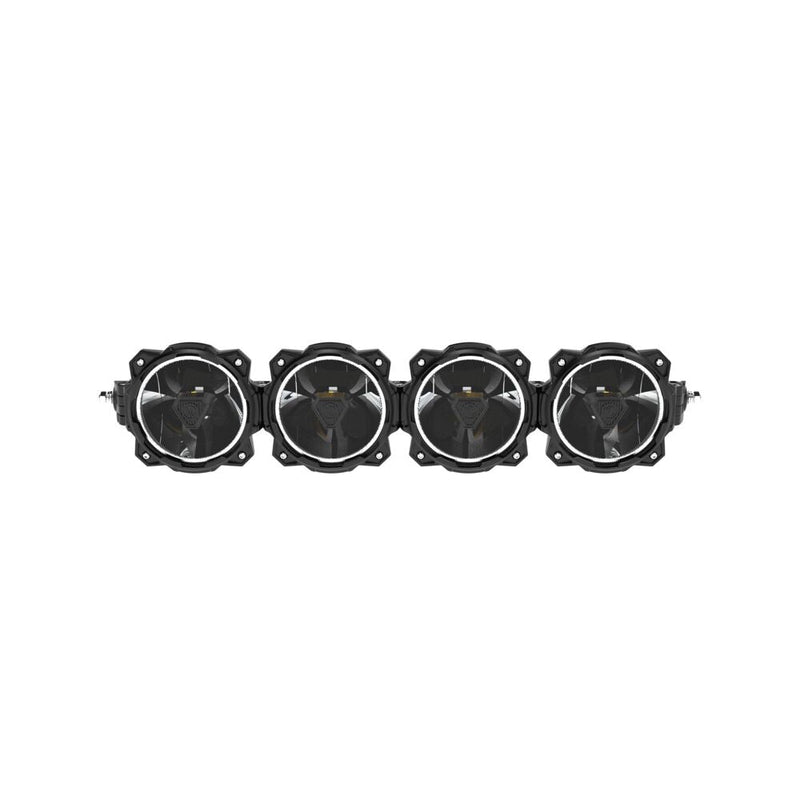

| 26" (4 lights) |
4 Titan lights |
666 m |
|
91414 |

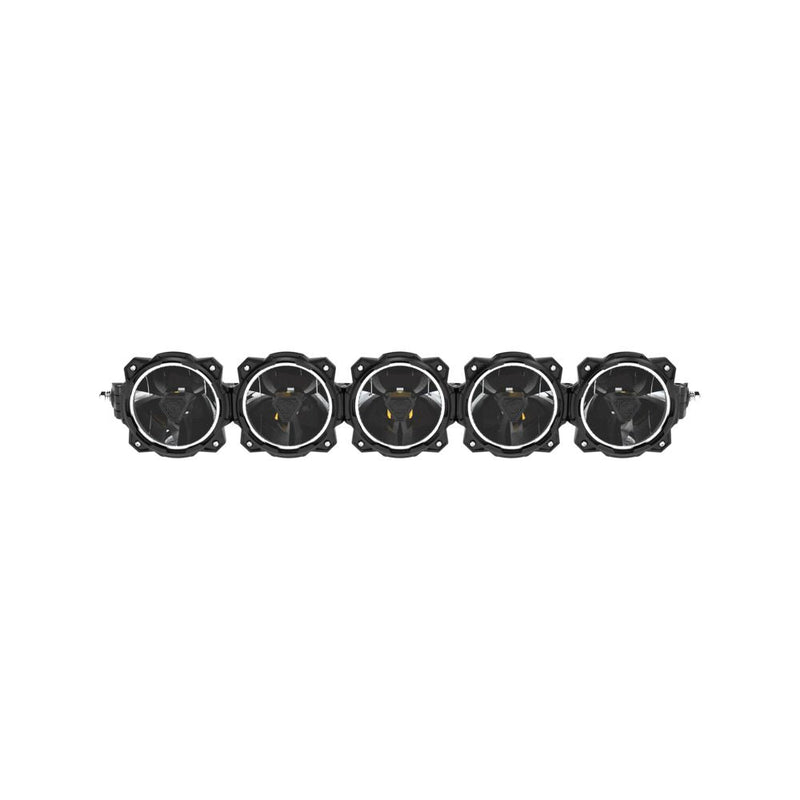

| 32" (5 lights) |
5 Titan lights |
767 m |
|
91415 |
| 39" (6 lights) |
6 Titan lights |
856 m |
|
91416 |
| 45" (7 lights) |
7 Titan lights |
936 m |
|
91417 |

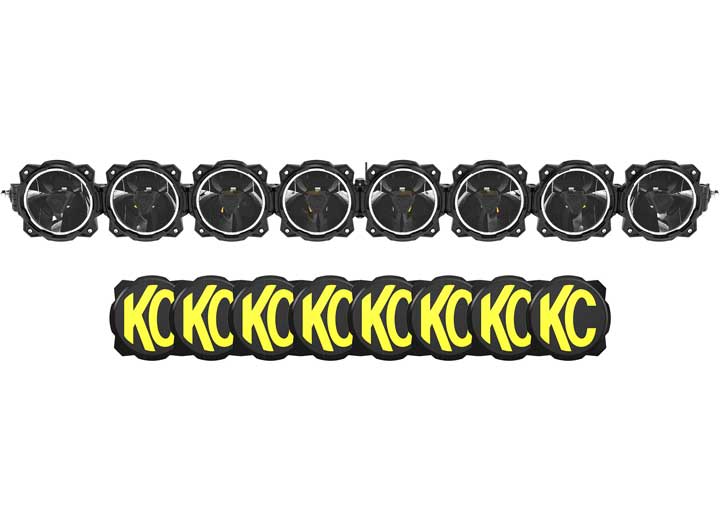

| 50" (8 lights) |
8 Titan lights |
1,010 m |
51.58" W x 6.05" H x 3.27" D |
91418 |

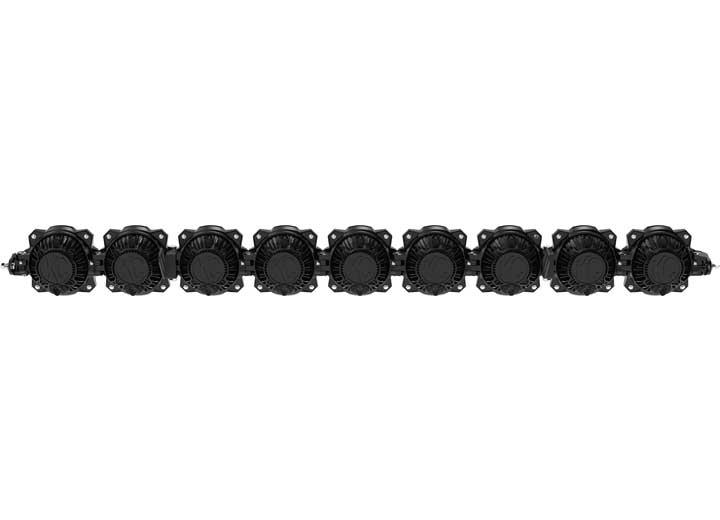

| 57" (9 lights) |
9 Titan lights |
1,079 m |
|
91419 |
In the box
| Option |
Contents |

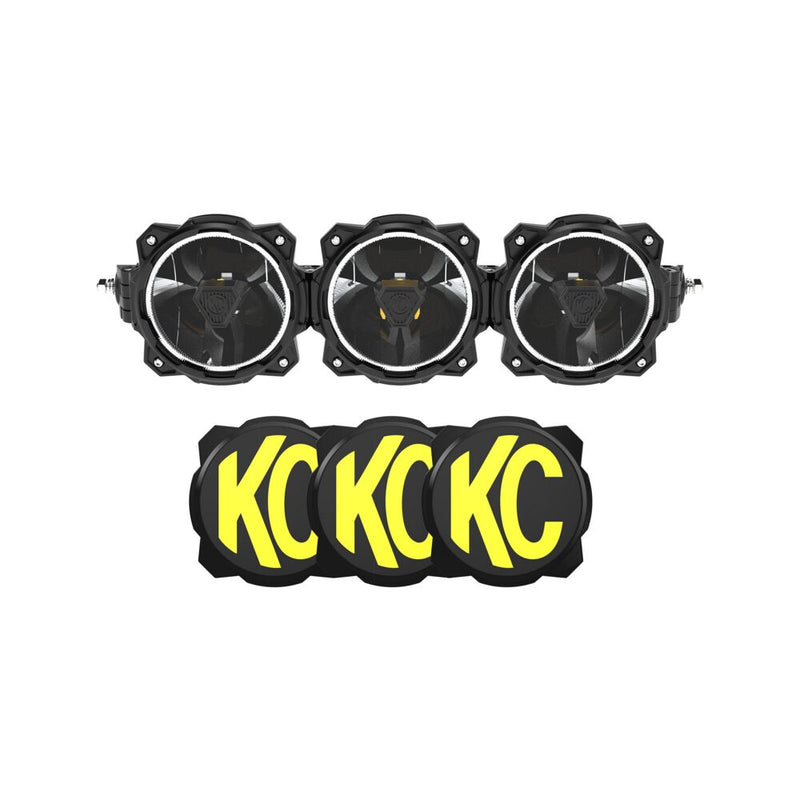

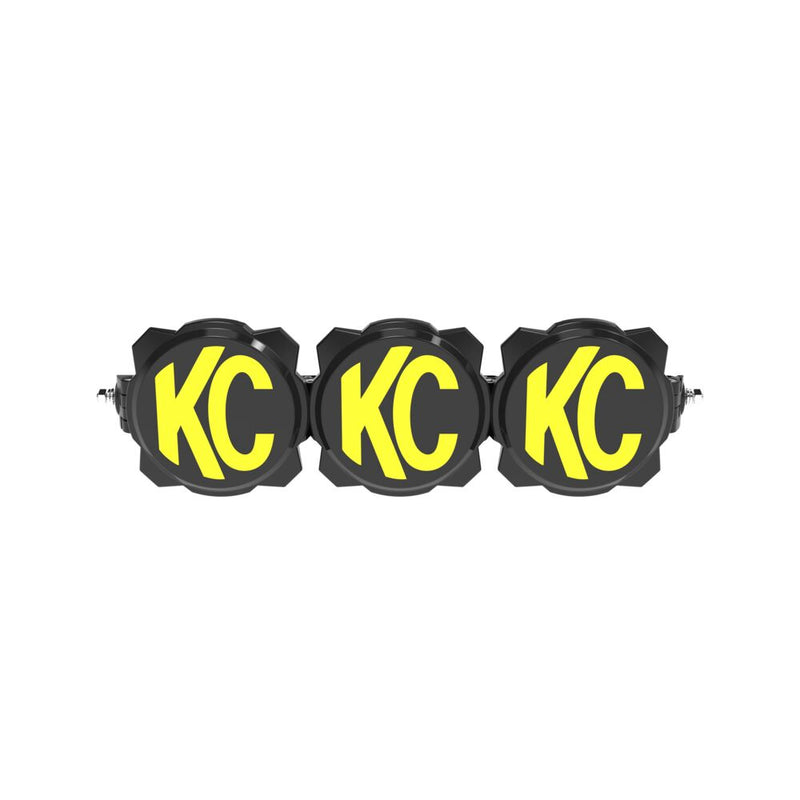

| 20" (3 lights) (part 91413) |
1 20" Gravity Titan LED light bar (3 lights); 3 Gravity 6" light covers, black with yellow KC logo; 1 Titan 3-light daisy-chain back harness; 1 plug-and-play wiring harness with 3-position switch; R-type cable clamps; Hardware |
| 26" (4 lights) (part 91414) |
1 26" Gravity Titan LED light bar (4 lights); 4 Gravity 6" light covers, black with yellow KC logo; 1 Titan 4-light daisy-chain back harness; 1 plug-and-play wiring harness with 3-position switch; R-type cable clamps; Hardware |

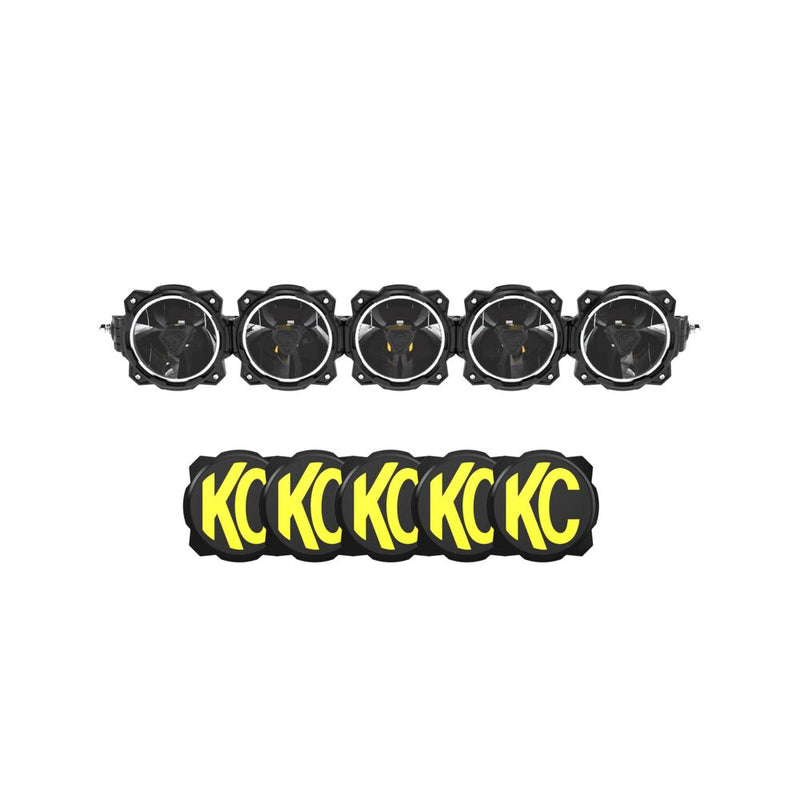

| 32" (5 lights) (part 91415) |
1 32" Gravity Titan LED light bar (5 lights); 5 Gravity 6" light covers, black with yellow KC logo; 1 Titan 5-light daisy-chain back harness; 1 plug-and-play wiring harness with 3-position switch; R-type cable clamps; Hardware |
| 39" (6 lights) (part 91416) |
1 39" Gravity Titan LED light bar (6 lights); 6 Gravity 6" light covers, black with yellow KC logo; 1 Titan 6-light daisy-chain back harness; 1 plug-and-play wiring harness with 3-position switch; R-type cable clamps; Hardware |
| 45" (7 lights) (part 91417) |
1 45" Gravity Titan LED light bar (7 lights); 7 Gravity 6" light covers, black with yellow KC logo; 1 Titan 7-light daisy-chain back harness; 1 plug-and-play wiring harness with 3-position switch; R-type cable clamps; Hardware |
| 50" (8 lights) (part 91418) |
1 50" Gravity Titan LED light bar (8 lights); 8 Gravity 6" light covers, black with yellow KC logo; 1 Titan 8-light daisy-chain back harness; 1 plug-and-play wiring harness with 3-position switch; R-type cable clamps; Hardware |
| 57" (9 lights) (part 91419) |
1 57" Gravity Titan LED light bar (9 lights); 9 Gravity 6" light covers, black with yellow KC logo; 1 Titan 9-light daisy-chain back harness; 1 plug-and-play wiring harness with 3-position switch; R-type cable clamps; Hardware |
Installation
Type: LED light bar · Install: Bracket mount (brackets sold separately), plug-and-play harness · Tools: Basic hand tools
The bar does not include mounting brackets, so pair it with a KC vehicle mount or bracket set for your rig. The included daisy-chain back harness links the lights, and the plug-and-play harness with 3-position switch powers the bar.
KC's installation instructions for this part are linked under Resources. Read them fully before starting.
Resources
Warranty, Shipping & Returns
Warranty. 5-year warranty from KC HiLiTES. Shipping. Most KC parts ship by parcel carrier; roof racks and long light bars ship in oversize cartons. The ship method is set by the carton size and weight when the order is placed.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
