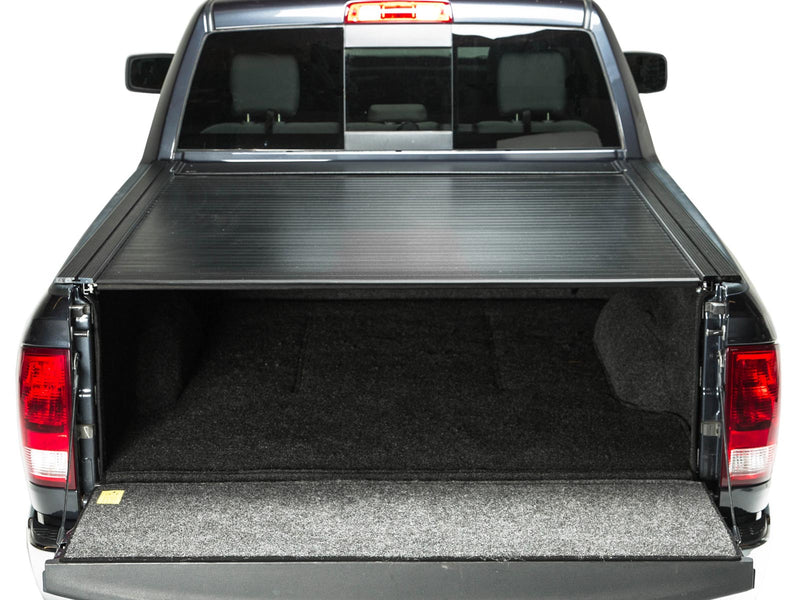

Pace Edwards BedLocker Electric Retractable Tonneau Cover for 2009-2018 Ram 1500, 2010-2026 Ram 2500/3500 & 2019-2023 Ram 1500 Classic (6'4" Bed, without RamBox / Cover with Standard Rails)

Owners of a Ram with the 6'4" box can fit BedLocker part BLD7833 to the Dodge Ram 1500 (2009-2010), Dodge Ram 2500/3500 (2010), Ram 1500 (2011-2018), Ram 2500/3500 (2011-2026) or Ram 1500 Classic (2019-2023). From 2012 on, trucks equipped with RamBox are excluded. Standard rails carry the cover, and it brakes wherever you stop it.

What's Included:

• Canister assembly with the aluminum slat deck and electric drive
• Canister top cover
• Left and right rails (shipped in a separate box)
• Rail clamps and clamp shims
• Drain tubes
• Battery wiring harness
• Two 2-button wireless key fobs
• Hardware pack and installation instructions

The in-cab manual switch harness (part BL1120) and Pace Edwards truck racks are sold separately.

Features

Opens by key fob
Two wireless key fobs come with the cover. One button opens it, the other closes it, and the built-in motor moves the deck along the rails for you.

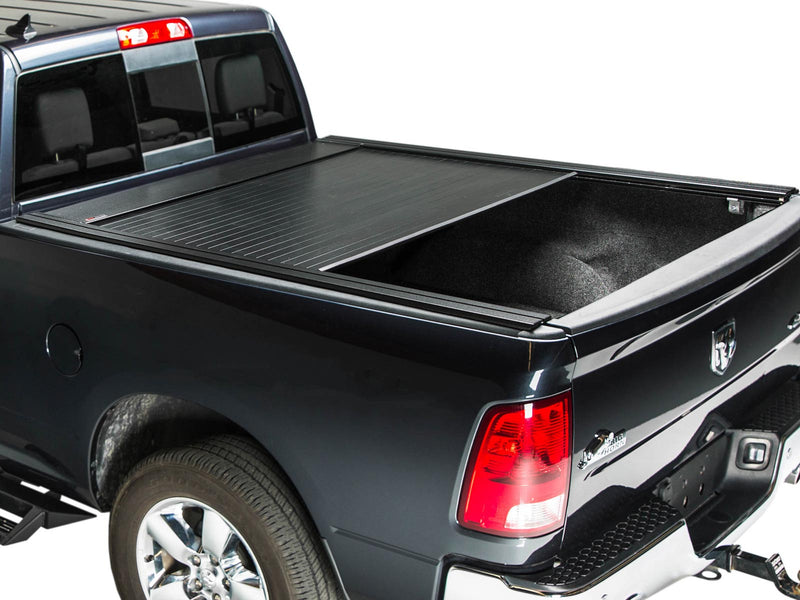

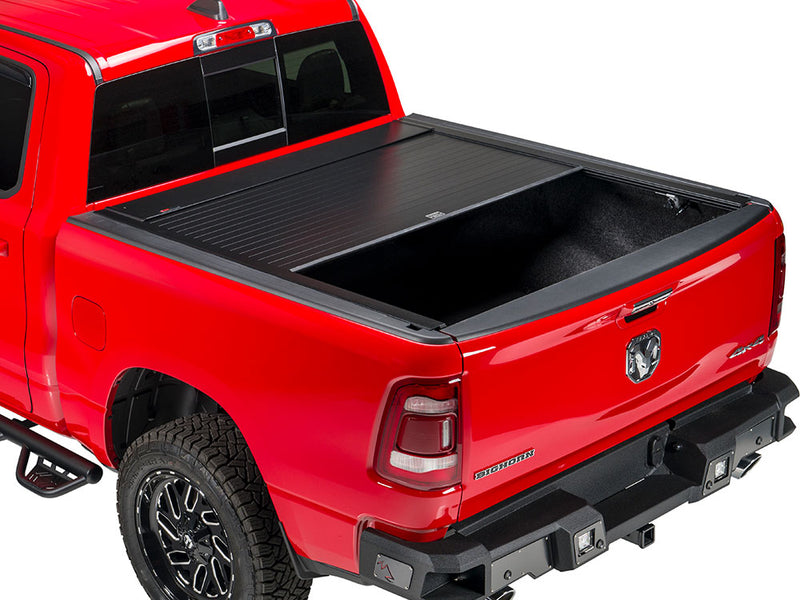

Stops at any point

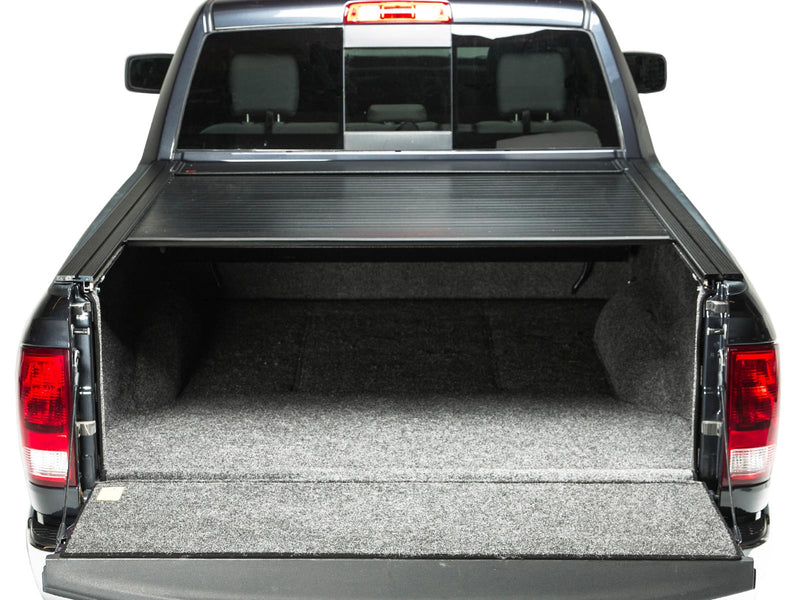

Press any fob button while the cover is moving and an electromagnetic brake holds the deck in place. Keep the front of the bed covered and leave the rear open for tall or long cargo.

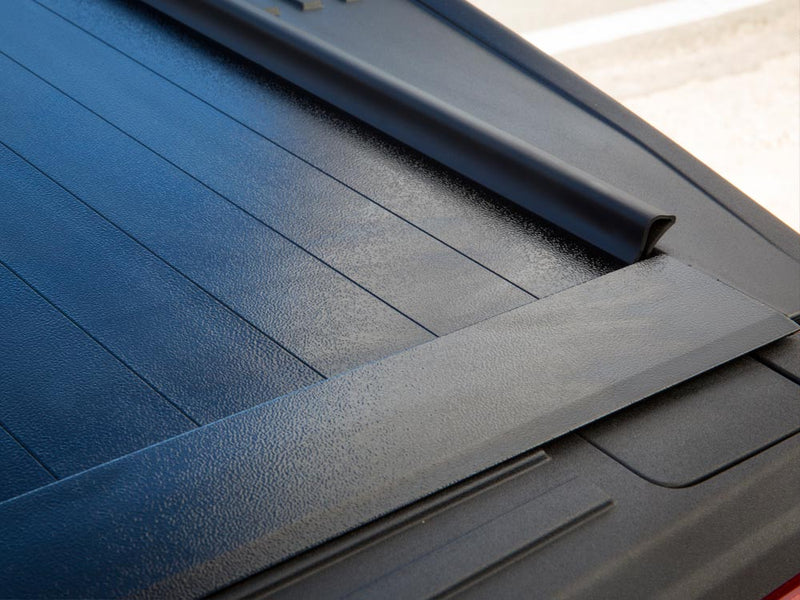

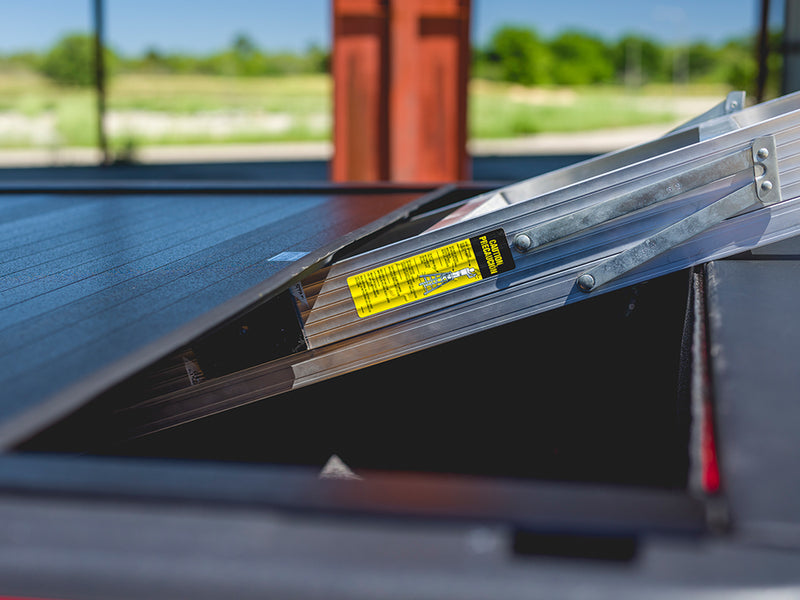

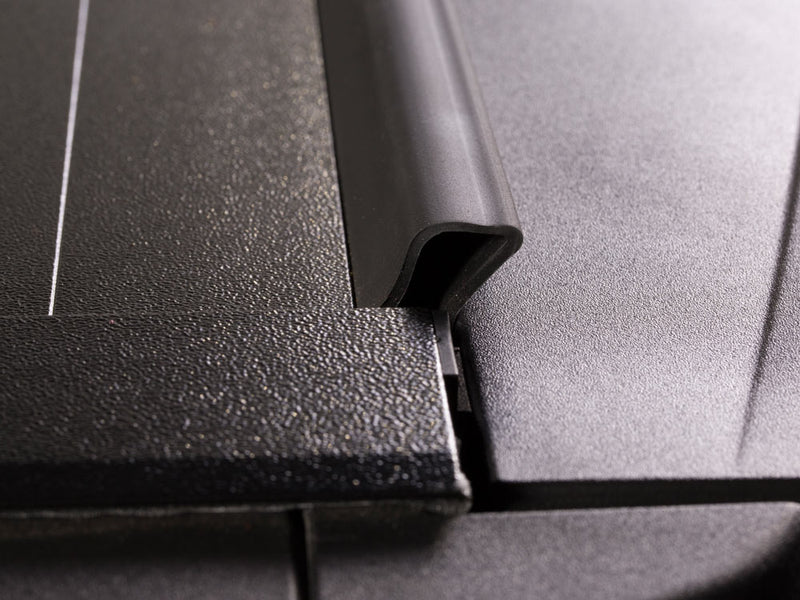

Aluminum deck, black powder coat

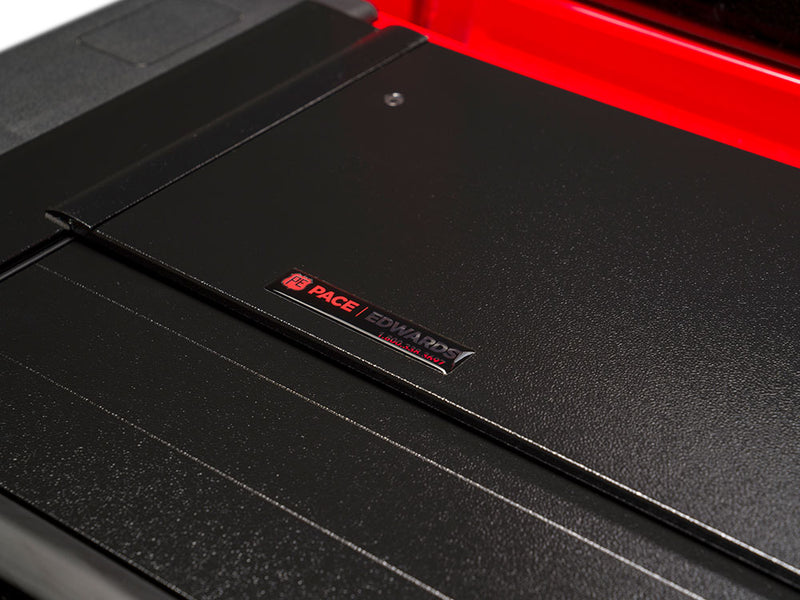

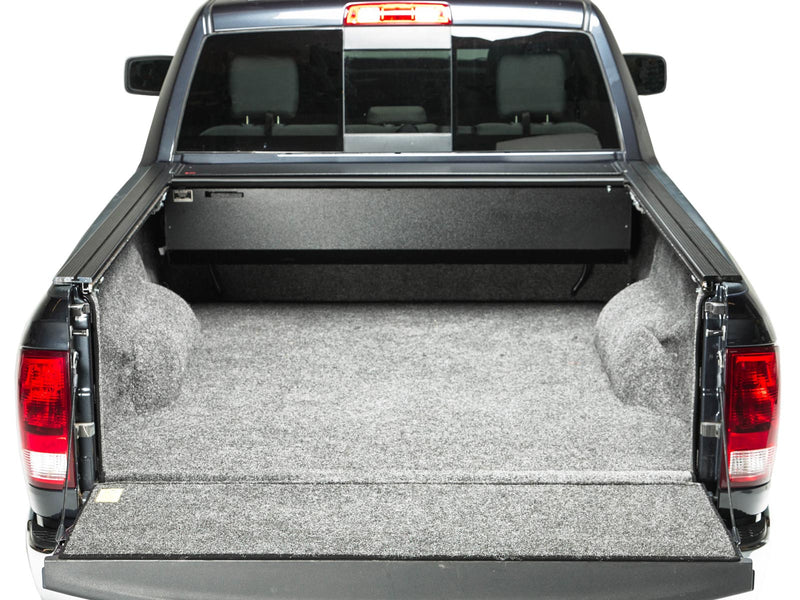

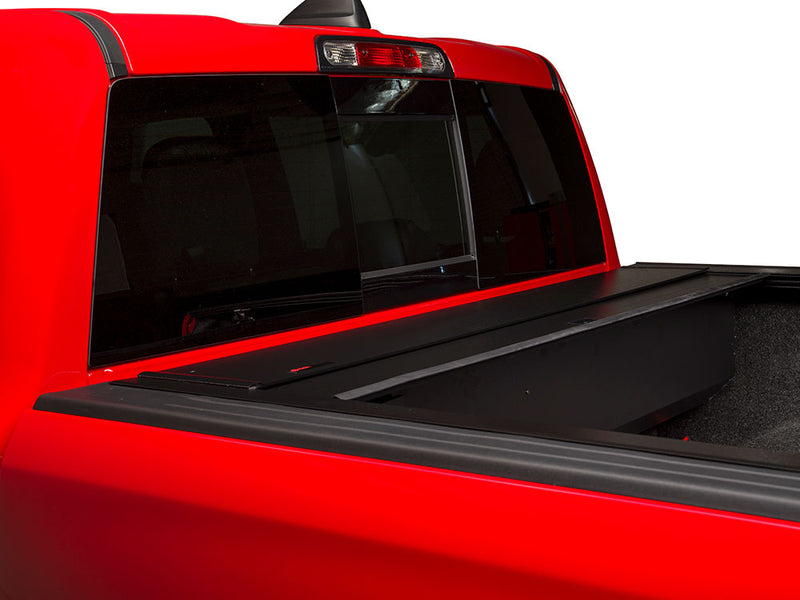

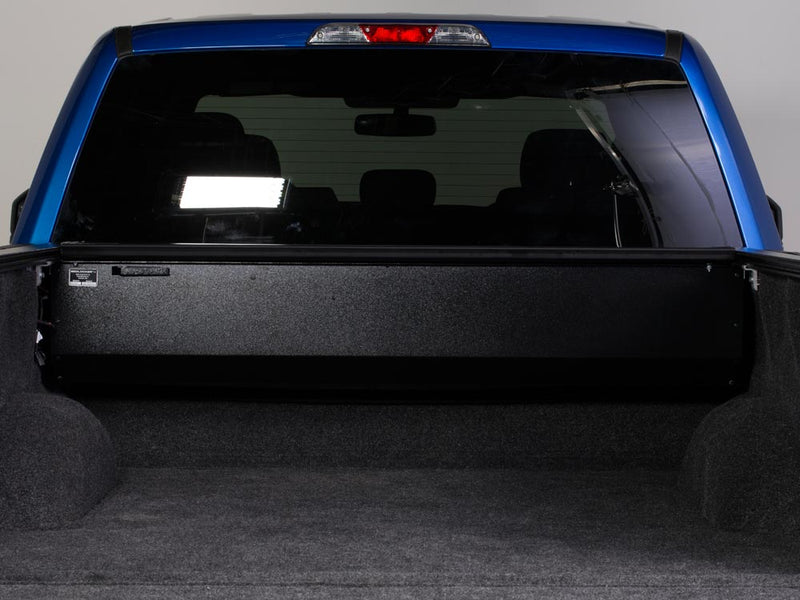

The deck is made of aluminum slats in a textured black powder coat that resists corrosion, and the canister at the front of the bed is aluminum as well, kept low to save cargo room.

Canister drain tubes
Water that works past the deck runs into the canister, and drain tubes in its floor carry it out of the bed. Route the tubes through the factory drain holes or ports and clean them from time to time.

Release handle for power loss
If the truck loses power or the drive stops, a release handle on the driver side of the canister frees the deck so you can push or pull it by hand until power returns.

Standard or Explorer rails
Most applications clamp on with no drilling into the bed. Standard rails suit the cover on its own, and Explorer Series rails are the version Pace Edwards recommends for mounting its Contractor Rig or Utility Rig rack.

Fitment & Compatibility

Specifications

• Brand: Pace Edwards
• Series: BedLocker
• Operation: Electric, two wireless key fobs included
• Locking: Electromagnetic brake holds the deck at any position along the rails
• Deck material: Aluminum slats
• Finish: Textured black powder coat, semi-gloss
• Canister: Low-profile aluminum, mounted at the front of the bed
• Water management: Drain tubes from the canister floor
• Power loss: Manual release handle
• Mounting: Clamp-on rails, no drilling on most applications
• Warranty: 7-year limited, prorated after 5 years
• Rail type: Standard rails
• Bed length: 6'4" (76.3"), Ram's "6'4" box"
• Part number: BLD7833

Installation

Type: electric retractable, clamp-on rails  ·  Power: wired to the truck battery  ·  Guide: Pace Edwards BedLocker installation guide

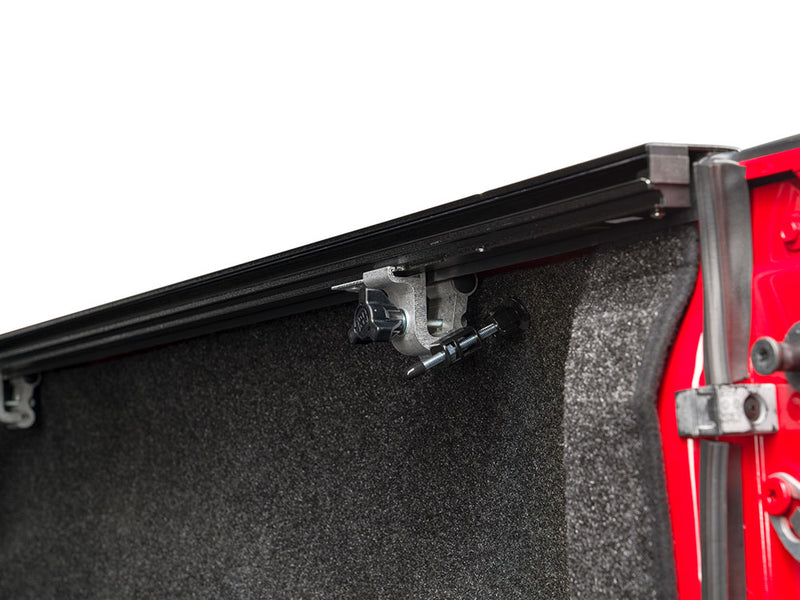

This cover installs with Pace Edwards' BedLocker installation guide. The canister goes against the front wall of the bed, the rails slide onto it and run back to the tailgate, and clamps hold the rails to the bed rails, with shims added where the bed tapers. A wiring harness runs from the canister under the truck to the battery, and the drain tubes pass through the factory drain holes or ports at the front of the bed; a truck without them needs holes drilled for the tubes. Over-the-sill bedliners usually need the sill section trimmed so the rails can sit flat. The guide is written for one installer and marks the steps where a helper makes the job easier. On Ram trucks, the guide notes that the front clamp's rail grip is 3/4" longer than the rear one.

This installation film was shot on a 2009-2018 Ram 1500/2500. Later trucks use the same Pace Edwards cover and guide, but details of the install differ from the film, so follow the instructions for your truck.

Resources

• Pace Edwards BedLocker installation instructions, Dodge Ram (BLD1-2302) (PDF), the step-by-step installation guide Pace Edwards publishes for this cover and truck.
• Pace Edwards BedLocker standard installation instructions (2011 edition; current warranty terms are on this page) (PDF), the brand's series-wide BedLocker guide.
• Pace Edwards BedLocker manual switch instructions (PDF), instructions for the optional in-cab manual switch.
• Pace Edwards Bedliner Modification Information (PDF), Pace Edwards' notes on bedliners that sit over the bed rails.

Warranty, Shipping & Returns

Warranty. Pace Edwards backs the BedLocker with a seven-year limited warranty from the date of purchase, prorated after the fifth year. It covers failures of materials and workmanship, separation of the deck panels, failure of the drive system and electrical components, and all hardware and components. Normal wear including fading or discoloration, water intrusion and any damage it causes, added parts and accessories, and storms or other outside causes are not covered. Lubricants other than the ones Pace Edwards specifies, misuse, improper installation, cargo left unsecured so it damages the cover, and accessories that interfere with the cover without Pace Edwards' written approval void the coverage. Pace Edwards decides whether a part is defective and repairs or replaces it at its discretion. Shipping. The carrier and ship method are set by the size and weight of the carton when the order is placed. Inspect on delivery. The rails ship in their own long box. Open it along its length rather than with a knife, then check the canister, deck, rails and hardware against the parts list before installation begins.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
