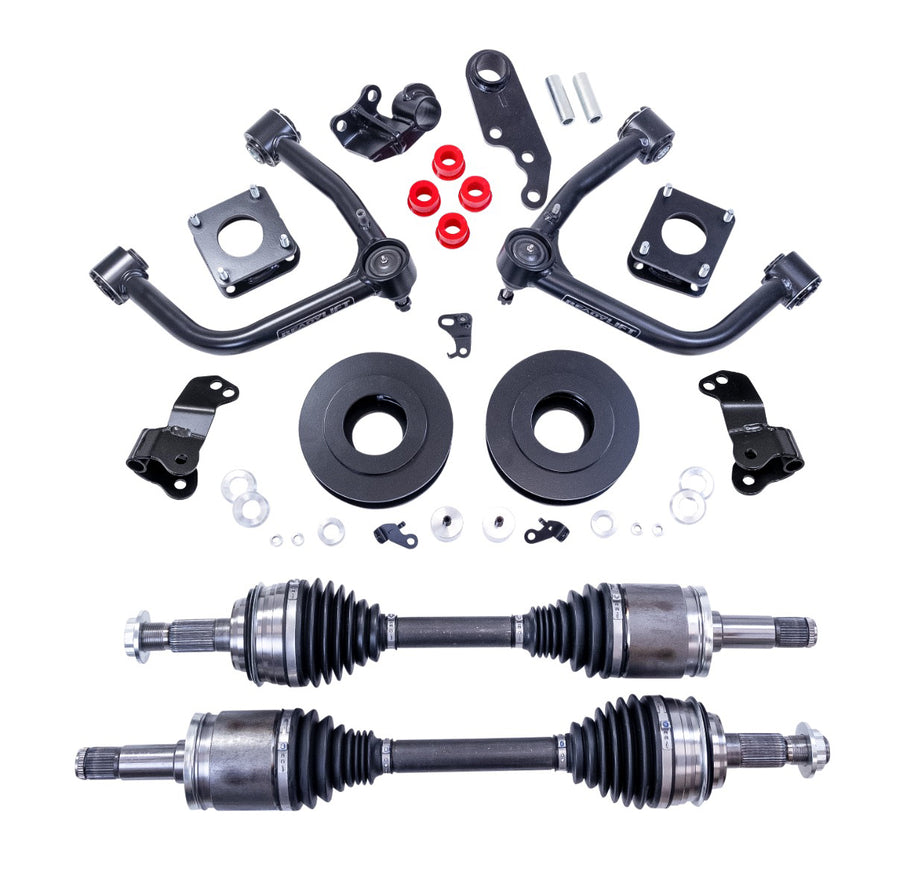

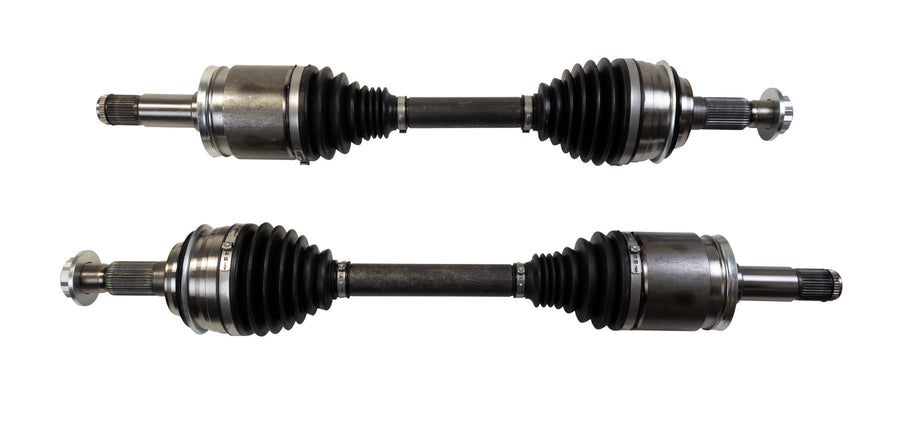

ReadyLIFT 3" SST Lift Kit With CV Axles for 2022-2026 Toyota Tundra (4WD only)

The ReadyLIFT 3" SST Lift Kit With CV Axles lifts the front and rear together, so the vehicle gains clearance without losing its balanced stance. Each component is matched to this platform's factory suspension rather than adapted from a universal part. ReadyLIFT kit 69-52311 is engineered for the 2022-2026 Toyota Tundra.

What's Included:

Wheels, tires, alignment, headlamp aiming and ADAS recalibration are not included.

Features

Lift at both ends
SST kits raise the front and the rear, unlike a leveling kit that only lifts the nose. The result is added clearance with a stance that still looks planned.

Room for larger tires
The added height opens the wheel wells for a bigger tire package. ReadyLIFT lists a tested tire size for every application.

Engineered per platform
ReadyLIFT designs each SST kit around one vehicle's suspension layout, so brackets, spacers and arms fit that platform rather than a universal pattern.

Keeps a usable rake
Most SST kits leave a slight rear rake so the vehicle sits right when it carries weight or pulls a trailer.

Built to keep factory manners
ReadyLIFT's stated aim for its mild lifts is added clearance without giving up the ride and handling the vehicle had from the factory.

Complete kit per application
Each kit ships with the lift components ReadyLIFT specifies for that vehicle, listed in the kit contents on every product page.

Fitment & Compatibility

ReadyLIFT fit notes for this part

Specifications

• Brand: ReadyLIFT
• Series: SST
• Lift location: Front and rear
• Warranty: ReadyLIFT No Hassle warranty, original purchaser; wear parts up to 1 year
• Lift height: 3"
• Install time (ReadyLIFT estimate): about 8 hours (give or take 1), alignment and wheel mounting extra
• Shipping weight: 92 lb
• Kit type: Lift kit
• Rear lift: 1.25"
• Largest tire: 35"
• Shocks included: No
• Alignment required: Yes, after installation
• Install difficulty: Professional install recommended
• Part number: 69-52311

Tire fitment (ReadyLIFT's published guidance for this kit)

Tire and wheel sizes vary by manufacturer, so test-fit your combination before installation.

Installation

Type: front and rear mild lift  ·  Install: per-vehicle, see each kit's install sheet  ·  Afterward: alignment, headlamp aim, ADAS check

This kit installs using the steps in ReadyLIFT's instructions for this vehicle. Plan on a wheel alignment after installation and have headlamp aim checked. Vehicles with camera, radar or sonar driver-assistance systems need those systems checked and recalibrated, which can require dealer tools. ReadyLIFT recommends installation by a certified mechanic and says to read the full instructions before starting. Tire sizes are ReadyLIFT guidance based on specific wheel and tire brands, so test fit every combination. Larger E-rated tires have stiffer sidewalls than stock C-rated tires and can make the ride feel firmer.

ReadyLIFT estimates about 8 hours for this kit, give or take 1 hour, not counting the alignment or mounting wheels and tires.

ReadyLIFT's installation instructions for this part number are linked under Resources. Read them fully before starting.

Resources

• ReadyLIFT SST Lift Kit installation instructions (PDF), ReadyLIFT's step-by-step guide for part 69-52311.

Warranty, Shipping & Returns

Warranty. ReadyLIFT backs this product with its No Hassle warranty for the original purchaser: if a part breaks or arrives defective, ReadyLIFT ships a replacement, and a claim starts with a call to 800-549-4620. Wear items such as shocks, ball joints and bushings are covered for up to one year. Damage caused by off-road abuse voids coverage. ReadyLIFT Jeep SST and Terrain Flex kits are the exception and stay covered in recreational off-road use. Discontinued, clearance and outlet items are excluded, as are labor, installation charges and consequential vehicle damage. Shipping. The carrier and ship method are set by the size and weight of the cartons when the order is placed; larger kits ship by freight. Inspect on delivery. Check every box and part against the kit component list when it arrives, and report any shortage or shipping damage before installation begins.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
