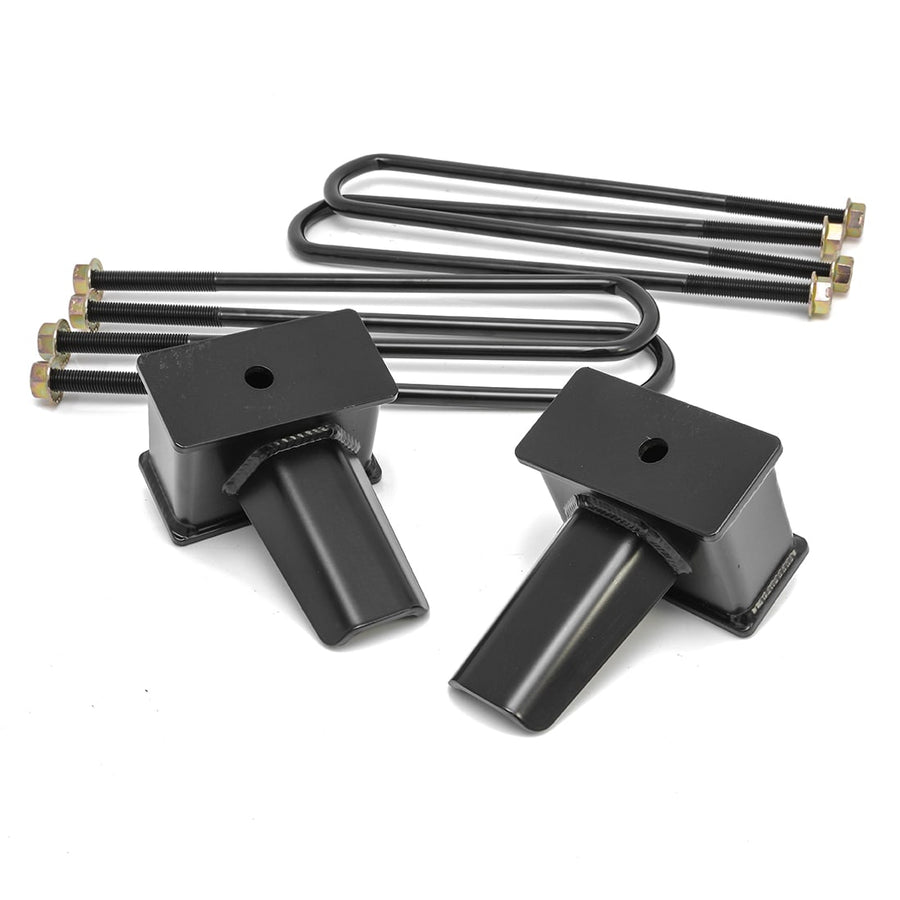

ReadyLIFT 4" Tall Taper Block (1-pc Drive Shaft) for 2017-2026 Ford F-250/F-350/F-450 Super Duty

The ReadyLIFT 4" Tall Taper Block (1-pc Drive Shaft) raises the rear of the truck on its leaf springs. One taller block per side replaces the need to stack blocks. ReadyLIFT kit 66-2740 is engineered for the 2017-2026 Ford F-250 Super Duty, F-350 Super Duty and F-450 Super Duty.

What's Included:

Alignment, headlamp aiming and ADAS recalibration are not included.

Features

Rear lift for leaf springs
The kit raises the rear of leaf-spring trucks and is sized for each application.

Puts back towing rake
A slight rear rake helps a truck sit level once a trailer or a heavy load is on board.

Based on OEM designs
ReadyLIFT bases its blocks on factory designs and builds them from cast iron or fabricated steel, not lightweight extrusions.

No stacked blocks
A single taller block per side avoids stacking blocks, a practice ReadyLIFT notes may be illegal in some states.

Pairs with front leveling
The kits are designed to work alongside ReadyLIFT leveling kits, adding rear height to match a raised front.

Fitment & Compatibility

ReadyLIFT fit notes for this part

Specifications

• Brand: ReadyLIFT
• Lift location: Rear
• Warranty: ReadyLIFT No Hassle warranty, original purchaser
• Lift height: 4"
• Install time (ReadyLIFT estimate): about 1 hours (give or take 0.5), alignment and wheel mounting extra
• Shipping weight: 28.85 lb
• Kit type: Block kit
• Alignment required: Yes, after installation
• Install difficulty: Professional install recommended
• Part number: 66-2740

Installation

Type: rear leaf-spring lift  ·  Install: per-vehicle, see each kit's install sheet  ·  Afterward: alignment, headlamp aim, ADAS check

This kit installs using the steps in ReadyLIFT's instructions for this truck. Plan on a wheel alignment after installation and have headlamp aim checked. Vehicles with camera, radar or sonar driver-assistance systems need those systems checked and recalibrated, which can require dealer tools. ReadyLIFT recommends installation by a certified mechanic and says to read the full instructions before starting.

ReadyLIFT estimates about 1 hours for this kit, give or take 0.5 hours, not counting the alignment or mounting wheels and tires.

ReadyLIFT's installation instructions for this part number are linked under Resources. Read them fully before starting.

Resources

• ReadyLIFT Tall Taper Block (1-pc Drive Shaft) installation instructions (PDF), ReadyLIFT's step-by-step guide, which covers part 66-2740.

Warranty, Shipping & Returns

Warranty. ReadyLIFT backs this product with its No Hassle warranty for the original purchaser: if a part breaks or arrives defective, ReadyLIFT ships a replacement, and a claim starts with a call to 800-549-4620. Wear items such as shocks, ball joints and bushings are covered for up to one year. Damage caused by off-road abuse voids coverage. Discontinued, clearance and outlet items are excluded, as are labor, installation charges and consequential vehicle damage. Shipping. The carrier and ship method are set by the size and weight of the cartons when the order is placed; larger kits ship by freight. Inspect on delivery. Check every box and part against the kit component list when it arrives, and report any shortage or shipping damage before installation begins.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
