ReadyLIFT 2.5" Coil Spring Front Lift Kit With Bilstein Front and Rear Shocks for 2017-2019 Ford F-250/F-350/F-450 Super Duty

The ReadyLIFT 2.5" Coil Spring Front Lift Kit With Bilstein Front and Rear Shocks raises the front end so the vehicle sits level instead of nose down. It uses the lift method ReadyLIFT chose for this vehicle's front suspension design. ReadyLIFT kit 46-2724 is engineered for the 2017-2019 Ford F-250 Super Duty, F-350 Super Duty and F-450 Super Duty.

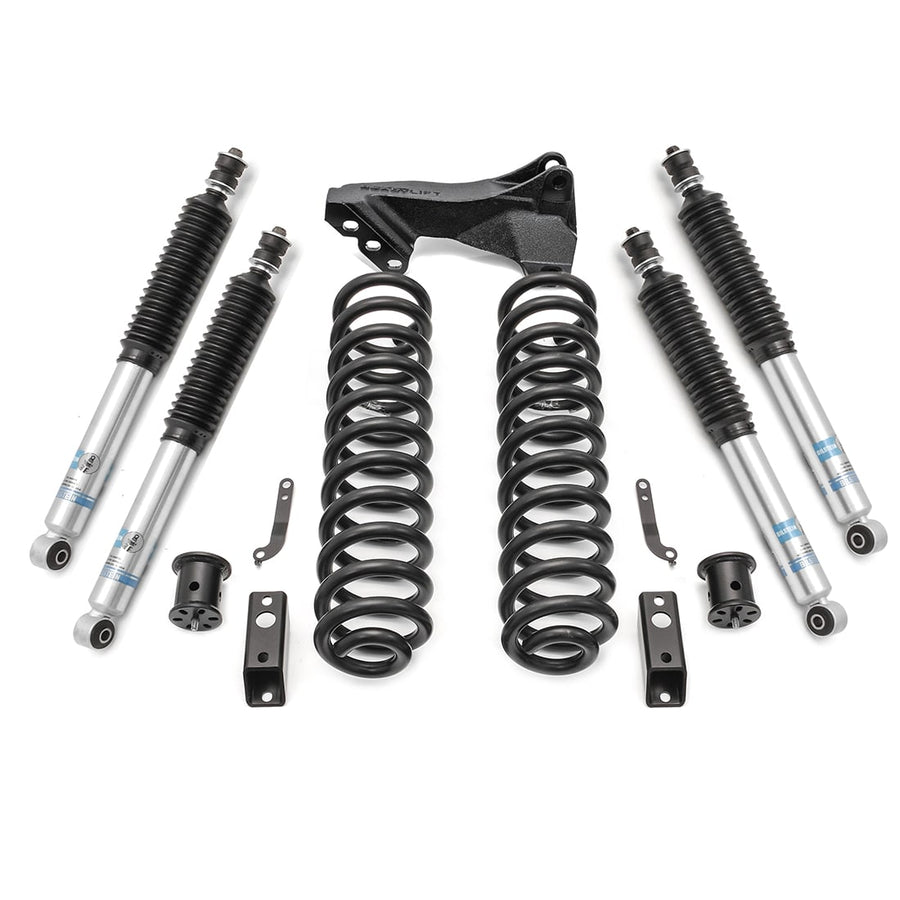

What's Included:

Wheels, tires, alignment, headlamp aiming and ADAS recalibration are not included.

Features

Removes the factory rake
Most vehicles leave the factory sitting lower in front. A leveling kit adds front height so the body sits even from bumper to bumper.

Front lift only
The kit works on the front suspension and leaves the rear at its factory height, so the change is focused and the parts count stays low.

Method matched to the suspension
Strut spacers suit coil-over struts, forged torsion keys suit torsion bar fronts and replacement springs suit coil front axles. ReadyLIFT uses the method each platform calls for.

Clearance for bigger tires
The added front height opens the wheel wells for a larger tire. ReadyLIFT lists a tested tire size for each application.

Designed around factory geometry
ReadyLIFT engineers each kit to its vehicle so the suspension works close to its original design after the lift.

Fitment & Compatibility

ReadyLIFT fit notes for this part

Specifications

• Brand: ReadyLIFT
• Lift location: Front
• Warranty: ReadyLIFT No Hassle warranty, original purchaser; wear parts up to 1 year
• Lift height: 2.5"
• Install time (ReadyLIFT estimate): about 5 hours (give or take 1), alignment and wheel mounting extra
• Shipping weight: 90 lb
• Kit type: Leveling kit
• Largest tire: 37" (with trimming)
• Shocks included: Yes
• Shock model: Front and rear Bilstein 5100 shocks
• Alignment required: Yes, after installation
• Install difficulty: Professional install recommended
• Part number: 46-2724

Tire fitment (ReadyLIFT's published guidance for this kit)

Tire and wheel sizes vary by manufacturer, so test-fit your combination before installation.

Installation

Type: front leveling  ·  Install: per-vehicle, see each kit's install sheet  ·  Afterward: alignment, headlamp aim, ADAS check

This kit installs using the steps in ReadyLIFT's instructions for this vehicle. Plan on a wheel alignment after installation and have headlamp aim checked. Vehicles with camera, radar or sonar driver-assistance systems need those systems checked and recalibrated, which can require dealer tools. ReadyLIFT recommends installation by a certified mechanic and says to read the full instructions before starting. Tire sizes are ReadyLIFT guidance based on specific wheel and tire brands, so test fit every combination. Larger E-rated tires have stiffer sidewalls than stock C-rated tires and can make the ride feel firmer.

ReadyLIFT estimates about 5 hours for this kit, give or take 1 hour, not counting the alignment or mounting wheels and tires.

ReadyLIFT's installation instructions for this part number are linked under Resources. Read them fully before starting.

Resources

• ReadyLIFT Coil Spring Front Lift Kit installation instructions (PDF), ReadyLIFT's step-by-step guide, which covers part 46-2724.

Warranty, Shipping & Returns

Warranty. ReadyLIFT backs this product with its No Hassle warranty for the original purchaser: if a part breaks or arrives defective, ReadyLIFT ships a replacement, and a claim starts with a call to 800-549-4620. Wear items such as shocks, ball joints and bushings are covered for up to one year. Damage caused by off-road abuse voids coverage. Discontinued, clearance and outlet items are excluded, as are labor, installation charges and consequential vehicle damage. Shipping. The carrier and ship method are set by the size and weight of the cartons when the order is placed; larger kits ship by freight. Inspect on delivery. Check every box and part against the kit component list when it arrives, and report any shortage or shipping damage before installation begins.

Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
