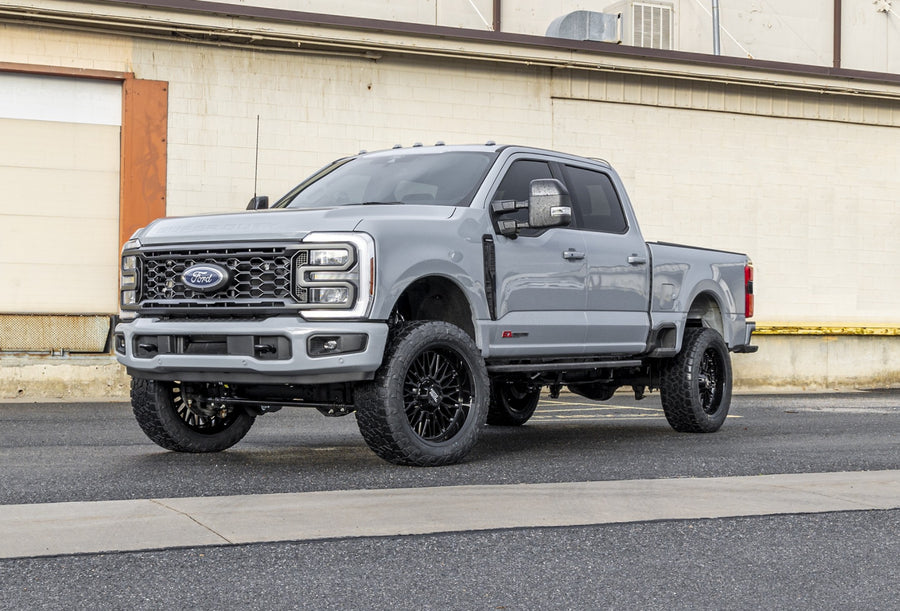

The ReadyLIFT 2.5" Coil Spring Front Lift Kit With Falcon 2.1 Front and Tow/Haul Rear Shocks levels the front of the truck and includes Falcon shocks for both axles. It suits owners who want a level stance and a ride upgrade in one package. ReadyLIFT kit 46-20254 is engineered for the 2017-2026 Ford F-250 Super Duty, F-350 Super Duty and F-450 Super Duty.
What's Included:
| Kit components (ReadyLIFT) |
|---|
| 2.5" lift front coil springs |
| Sway bar spacers |
| Brake line extensions |
| Front track bar relocation bracket |
| Front Falcon 2.1 Monotube shocks |
| Rear Adjustable Tow Haul Falcon 2.1 Monotube shocks |
Wheels, tires, alignment, headlamp aiming, ADAS recalibration and any trimming labor are not included.
Features
Front leveling for HD trucks
The kit raises the front of a heavy-duty pickup to remove the factory rake.
Falcon shocks at both axles
Falcon performance shocks for the front and rear come in the kit, so the damping matches the new stance.
Room for larger tires
The level stance clears a bigger tire. ReadyLIFT lists the tested size for each truck.
Built for tow and haul
Heavy-duty trucks work hard, and these kits are engineered for that duty cycle as well as daily driving.
Supporting parts included
Each kit includes the brackets, keys or springs this truck needs for the lift, listed in the kit contents.
Fitment & Compatibility
Ford
| Years |
Model |
Notes |
| 2017-2026 |
F-250 Super Duty |
4WD only; Diesel engine only |
| 2017-2019 |
F-350 Super Duty |
4WD only; Diesel engine only |
| 2020 |
F-350 Super Duty |
Not for Tremor trim; 4WD only; Diesel engine only |
| 2021-2026 |
F-350 Super Duty |
4WD only; Diesel engine only |
| 2020-2026 |
F-450 Super Duty |
4WD only; Diesel engine only |
Fit guidance: Fits: 2017-2026 Ford F-250 Super Duty/F-350 Super Duty/F-450 Super Duty, with the qualifiers shown. Check your vehicle's trim, drivetrain and factory suspension against these notes before ordering.
ReadyLIFT fit notes for this part
| Caster bushings will not work on 10-lug trucks |
| 37 is possible but may require trimming |
Specifications
-
Brand: ReadyLIFT
-
Series: Falcon
-
Lift location: Front
-
Shocks: Falcon shocks, front and rear
-
Warranty: ReadyLIFT No Hassle warranty, original purchaser; shocks and other wear parts up to 1 year
-
Lift height: 2.5"
-
Install time (ReadyLIFT estimate): about 5 hours (give or take 1), alignment and wheel mounting extra
-
Shipping weight: 98 lb
-
Kit type: Leveling kit
-
Largest tire: 37" (with trimming)
-
Alignment required: Yes, after installation
-
Install difficulty: Professional install recommended
-
Part number: 46-20254
Tire fitment (ReadyLIFT's published guidance for this kit)
| 35x12.50 for no rub on a 9 or 10 wide +25 to 0 offset wheel |
| 37 is possible but may require trimming. |
Tire and wheel sizes vary by manufacturer, so test-fit your combination before installation.
Installation
Type: front leveling with shocks · Install: per-vehicle, see each kit's install sheet · Afterward: alignment, headlamp aim, ADAS check
This kit installs using the steps in ReadyLIFT's instructions for this truck. Plan on a wheel alignment after installation and have headlamp aim checked. Vehicles with camera, radar or sonar driver-assistance systems need those systems checked and recalibrated, which can require dealer tools. ReadyLIFT recommends installation by a certified mechanic and says to read the full instructions before starting. Tire sizes are ReadyLIFT guidance based on specific wheel and tire brands, so test fit every combination. Larger E-rated tires have stiffer sidewalls than stock C-rated tires and can make the ride feel firmer.
ReadyLIFT estimates about 5 hours for this kit, give or take 1 hour, not counting the alignment or mounting wheels and tires.
ReadyLIFT's installation instructions for this part number are linked under Resources. Read them fully before starting.
Resources
Warranty, Shipping & Returns
Warranty. ReadyLIFT backs this product with its No Hassle warranty for the original purchaser: if a part breaks or arrives defective, ReadyLIFT ships a replacement, and a claim starts with a call to 800-549-4620. Wear items such as the included shocks, ball joints and bushings are covered for up to one year. Damage caused by off-road abuse voids coverage. Discontinued, clearance and outlet items are excluded, as are labor, installation charges and consequential vehicle damage. Shipping. The carrier and ship method are set by the size and weight of the cartons when the order is placed; larger kits ship by freight. Inspect on delivery. Check every box and part against the kit component list when it arrives, and report any shortage or shipping damage before installation begins.
Returns. Unused items in their original packaging can be returned within 30 days of delivery. If an item arrives damaged, defective or wrong, return shipping is on us. See our Returns & Refunds Policy, or email support@prestigetruck.com with any question.
